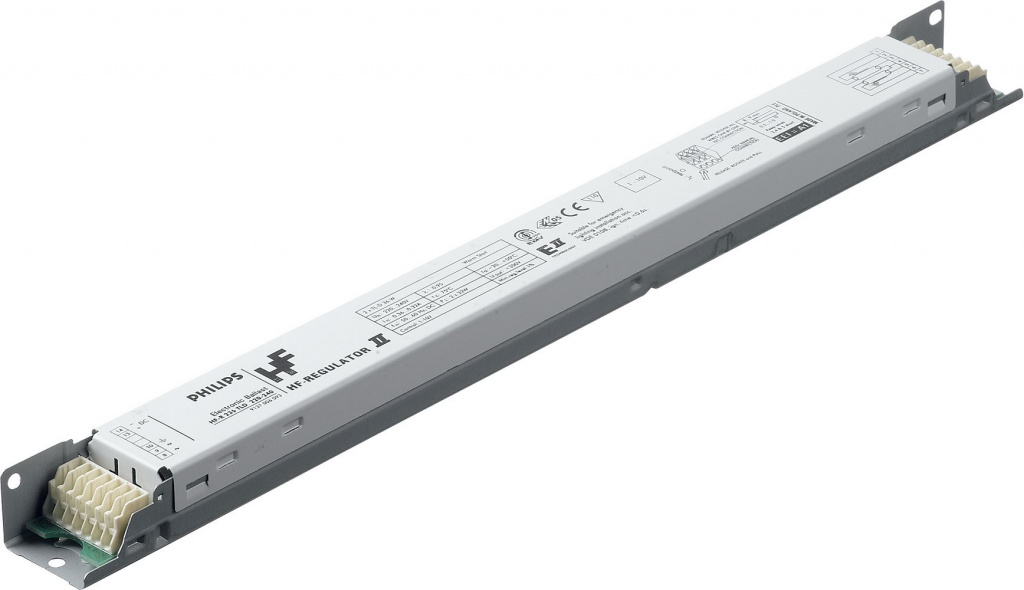

HF-Regulator II for TL5 lamps Fluorescent Electronic Gear

Philips HF-R 414 TL5 EII 220-240V 50/60Hz

From € 42,91 incl. VAT
From € 42,91 ex. VAT

See variants (8)

Ask for product Description / FAQ / Warranty

Score

rate product

Select your product from the 8

HF-R 1 14-35 TL5 EII 220-240V 50/60Hz

Karta produktu PDF

Product code: 58359 Line Frequency: 50/60 Hz Full product code: 913700619866 Full product name: HF-R 1 14-35 TL5 EII 220-240V 50/60Hz Order code: 913700619866 Order product name: HF-R 1 14-35 TL5 EII 220-240V 50/60Hz Packing configuration: 12 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500911810 Bar code on pack - EAN1: 8711500911803 Packs per outerbox: 12 see more »

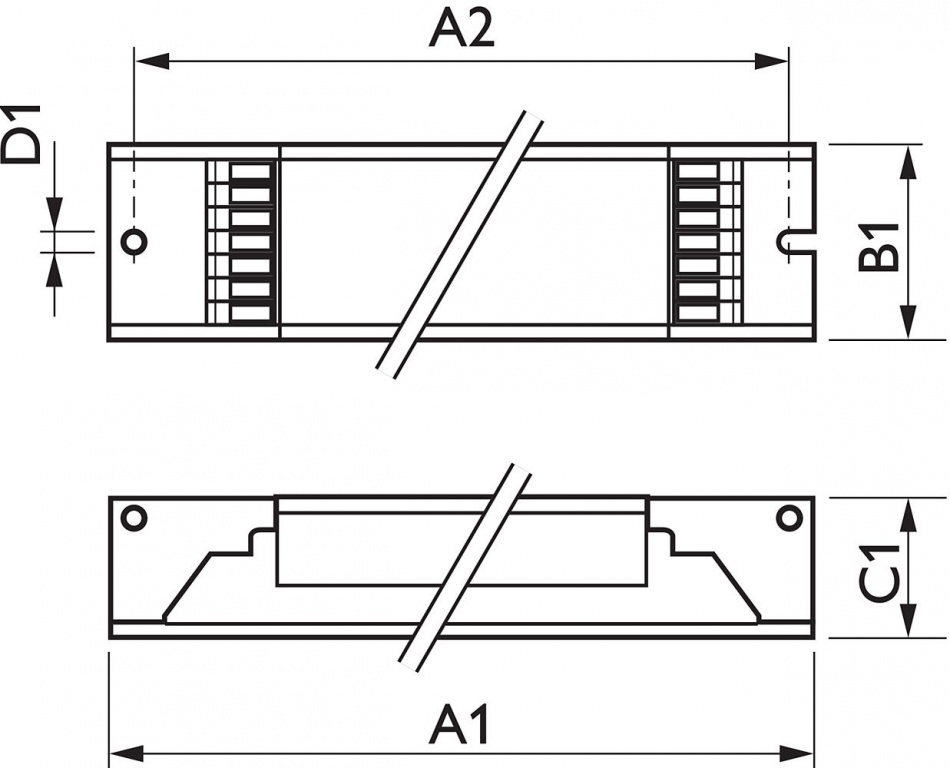

Logistic code(s) - 12NC: 913700619866 Net weight per piece: 0.255 kg Length A1: 360 mm CE marking: Yes Height C1: 22 mm T-ambient: -20 (min), 50 (max) C Width B1: 30 mm Lifetime 90% surv.@Tcaselife: 50000 hr Fixing Hole Diameter D1: 4.2 mm Fixing Hole Distance Length A2: 350 mm Inrush current Peak: 27 (max) A Earth leakage current: 0.5 (max) mA Inrush current Width: 0.30 ms T-storage: -25 (min), 80 (max) C Rated Lamptype: TL5 Line Voltage: 220-240 V Rated Ballast-Lamp Power: 14-35 Rated Number of Lamps: 1 piece Approval marks: ENEC / VDE-EMV Automatic restart: Yes Energy Efficiency Index: A1 Housing: L 360x30x21 Mains voltage safety (AC): -10%/+10% Mains voltage performance (AC): -8%/+6% Power losses gear: 3.5-4.4 W PowerFactor 100% output power: 0.98 - Overvoltage protection 320Vac: 48 hr Overvoltage protection 350Vac: 2 hr Crestfactor: 1.7 (max) - Max ballast on MCB(16A type B): 28 x Hum and Noise level: Inaudible Conn.type input terminals: WAGO 251 universal connector [Suitable for both automatic wiring (ALF and ADS) and manual wiring] Conn.type output terminals: WAGO 251 universal connector [Suitable for both automatic wiring (ALF and ADS) and manual wiring] Striplength: 8.0-9.0 mm Dual fixture Master/Slave: Not applicable [Master/Slave oper. not applicable] Wcs Input terminals: 0.50-1.00 mm2 Wcs Output terminals: 0.50-1.00 mm2 Bumps: IEC 68-2-29 Eb EMI 9kHz .. 30 MHz: EN 55015 Vibrations: IEC 68-2-6 Fc Application code: EII Interface: 1-10V Ignition Method: Programmed Start Ignition time: 0.2 (max) s Operating frequency: 46 (min), 98 (max) kHz Regulating level power: 1%-100% Battery voltage lamp ignition: 196 V Battery voltage running lamps: 154-276 Control input protection: Yes (Basic insulation) Conn.type ctrl input terminals: WAGO 251 universal connector [Suitable for both automatic wiring (ALF and ADS) and manual wiring] Total Harmonic Distortion EUR: 13 % Wcs Control input terminals: 0.50-1.00 mm2 T-ignition: 0 (min), 50 (max) C Wcs auto insertion (ALF/ADS): 0.5 mm2 EMI 30 MHz .. 1000MHz: EN 55022 level B [Level = Class] Performance Standard: IEC 60929 Safety Standard: IEC 61347-2-3 Environmental Standard: ISO 14001 Quality Standard: ISO 9000:2000 Harmonic current emissions: IEC 61000-3-2 EMC Immunity: IEC 61547 Humidity: EN 61347-2-3 clause 11 Emergency standard: IEC 60598-2-22 Temperature marking: 110 [Yes] « hide more

€ 42,91 € 42,91 ex. VAT

HF-R 139 TL5 EII 220-240V 50/60Hz

Karta produktu PDF

Product code: 58361 Line Frequency: 50/60 Hz Full product code: 913700632966 Full product name: HF-R 139 TL5 EII 220-240V 50/60Hz Order code: 913700632966 Order product name: HF-R 139 TL5 EII 220-240V 50/60Hz Packing configuration: 12 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500914699 Bar code on pack - EAN1: 8711500914682 Packs per outerbox: 12 see more »

Logistic code(s) - 12NC: 913700632966 Net weight per piece: 0.260 kg Length A1: 359 mm CE marking: Yes Height C1: 22 mm T-ambient: -20 (min), 50 (max) C Width B1: 30 mm Lifetime 90% surv.@Tcaselife: 50000 hr Fixing Hole Diameter D1: 4.2 mm Fixing Hole Distance Length A2: 350 mm Inrush current Peak: 27 (max) A Earth leakage current: 0.5 (max) mA Inrush current Width: 0.25 ms T-storage: -25 (min), 80 (max) C Rated Lamptype: TL5 Line Voltage: 220-240 V Rated Ballast-Lamp Power: 39 Rated Number of Lamps: 1 piece Approval marks: ENEC / VDE-EMV Automatic restart: Yes Energy Efficiency Index: A1 Housing: L 359x30x22 Mains voltage safety (AC): -10%/+10% Mains voltage performance (AC): -8%/+6% Power losses gear: 5.8 W PowerFactor 100% output power: 0.98 - Overvoltage protection 320Vac: 48 hr Overvoltage protection 350Vac: 2 hr Crestfactor: 1.7 (max) - Max ballast on MCB(16A type B): 28 x Hum and Noise level: Inaudible Conn.type input terminals: WAGO 251 universal connector [Suitable for both automatic wiring (ALF and ADS) and manual wiring] Conn.type output terminals: WAGO 251 universal connector [Suitable for both automatic wiring (ALF and ADS) and manual wiring] Striplength: 8.0-9.0 mm Dual fixture Master/Slave: Not applicable [Master/Slave oper. not applicable] Wcs Input terminals: 0.50-1.00 mm2 Wcs Output terminals: 0.50-1.00 mm2 Bumps: IEC 68-2-29 Eb EMI 9kHz .. 30 MHz: EN 55015 Vibrations: IEC 68-2-6 Fc Application code: EII Interface: 1-10V Ignition Method: Warm Start Ignition time: 0.2 (max) s Operating frequency: 45 (min), 89 (max) kHz Regulating level power: 1%-100% Battery voltage lamp ignition: 196 V Battery voltage running lamps: 154-276 Control input protection: Yes (Basic insulation) Conn.type ctrl input terminals: WAGO 251 universal connector [Suitable for both automatic wiring (ALF and ADS) and manual wiring] Total Harmonic Distortion EUR: 7 % Wcs Control input terminals: 0.50-1.00 mm2 T-ignition: 0 (min), 50 (max) C Wcs auto insertion (ALF/ADS): 0.5 mm2 EMI 30 MHz .. 1000MHz: EN 55022 level B [Level = Class] Performance Standard: IEC 60929 Safety Standard: IEC 61347-2-3 Environmental Standard: ISO 14001 Quality Standard: ISO 9000:2000 Harmonic current emissions: IEC 61000-3-2 EMC Immunity: IEC 61547 Humidity: EN 61347-2-3 clause 11 Emergency standard: IEC 60598-2-22 Temperature marking: 110 [Yes] « hide more

€ 42,91 € 42,91 ex. VAT

HF-R 149 TL5 EII 220-240V 50/60Hz

Karta produktu PDF

Product code: 58362 Line Frequency: 50/60 Hz Full product code: 913700608666 Full product name: HF-R 149 TL5 EII 220-240V 50/60Hz Order code: 913700608666 Order product name: HF-R 149 TL5 EII 220-240V 50/60Hz Packing configuration: 12 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500909992 Bar code on pack - EAN1: 8711500909985 Packs per outerbox: 12 see more »

Logistic code(s) - 12NC: 913700608666 Net weight per piece: 0.260 kg Length A1: 360 mm CE marking: Yes Height C1: 22 mm T-ambient: 10 (min), 50 (max) C Width B1: 30 mm Lifetime 90% surv.@Tcaselife: 50000 hr Fixing Hole Diameter D1: 4.2 mm Fixing Hole Distance Length A2: 350 mm Inrush current Peak: 27 (max) A Earth leakage current: 0.5 (max) mA Inrush current Width: 0.25 ms T-storage: -25 (min), 80 (max) C Rated Lamptype: TL5 Line Voltage: 220-240 V Rated Ballast-Lamp Power: 49 Rated Number of Lamps: 1 piece Approval marks: ENEC / VDE-EMV Automatic restart: Yes Energy Efficiency Index: A1 Housing: L 360x30x21 Mains voltage safety (AC): -10%/+10% Mains voltage performance (AC): -8%/+6% Power losses gear: 5.3 W PowerFactor 100% output power: 0.97 - Overvoltage protection 320Vac: 48 hr Overvoltage protection 350Vac: 2 hr Crestfactor: 1.7 (max) - Max ballast on MCB(16A type B): 28 x Hum and Noise level: Inaudible Conn.type input terminals: WAGO 251 universal connector [Suitable for both automatic wiring (ALF and ADS) and manual wiring] Conn.type output terminals: WAGO 251 universal connector [Suitable for both automatic wiring (ALF and ADS) and manual wiring] Striplength: 8.0-9.0 mm Dual fixture Master/Slave: Not applicable [Master/Slave oper. not applicable] Wcs Input terminals: 0.50-1.00 mm2 Wcs Output terminals: 0.50-1.00 mm2 Bumps: IEC 68-2-29 Eb EMI 9kHz .. 30 MHz: EN 55015 Vibrations: IEC 68-2-6 Fc Application code: EII Interface: 1-10V Ignition Method: Programmed Start Ignition time: 0.2 (max) s Operating frequency: 45 (min), 89 (max) kHz Regulating level power: 1%-100% Battery voltage lamp ignition: 196 V Battery voltage running lamps: 154-276 Control input protection: Yes (Basic insulation) Conn.type ctrl input terminals: WAGO 251 universal connector [Suitable for both automatic wiring (ALF and ADS) and manual wiring] Total Harmonic Distortion EUR: 7 % Wcs Control input terminals: 0.50-1.00 mm2 T-ignition: 0 (min), 50 (max) C Wcs auto insertion (ALF/ADS): 0.5 mm2 EMI 30 MHz .. 1000MHz: EN 55022 level B [Level = Class] Performance Standard: IEC 60929 Safety Standard: IEC 61347-2-3 Environmental Standard: ISO 14001 Quality Standard: ISO 9000:2000 Harmonic current emissions: IEC 61000-3-2 EMC Immunity: IEC 61547 Humidity: EN 61347-2-3 clause 11 Emergency standard: IEC 60598-2-22 Temperature marking: 110 [Yes] « hide more

€ 42,91 € 42,91 ex. VAT

HF-R 2 14-35 TL5 EII 220-240V 50/60Hz

Karta produktu PDF

Product code: 58364 Line Frequency: 50/60 Hz Full product code: 913700619566 Full product name: HF-R 2 14-35 TL5 EII 220-240V 50/60Hz Order code: 913700619566 Order product name: HF-R 2 14-35 TL5 EII 220-240V 50/60Hz Packing configuration: 12 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500911797 Bar code on pack - EAN1: 8711500911780 Packs per outerbox: 12 see more »

Logistic code(s) - 12NC: 913700619566 Net weight per piece: 0.290 kg Length A1: 360 mm CE marking: Yes Height C1: 22 mm T-ambient: -20 (min), 50 (max) C Width B1: 30 mm Lifetime 90% surv.@Tcaselife: 50000 hr Fixing Hole Diameter D1: 4.2 mm Fixing Hole Distance Length A2: 350 mm Inrush current Peak: 45 (max) A Earth leakage current: 0.5 (max) mA Inrush current Width: 0.40 ms T-storage: -25 (min), 80 (max) C Rated Lamptype: TL5 Line Voltage: 220-240 V Rated Ballast-Lamp Power: 14-35 Rated Number of Lamps: 2 piece Approval marks: ENEC / VDE-EMV Automatic restart: Yes Energy Efficiency Index: A1 Housing: L 360x30x21 Mains voltage safety (AC): -10%/+10% Mains voltage performance (AC): -8%/+6% Power losses gear: 5.3-6.5 W PowerFactor 100% output power: 0.98 - Overvoltage protection 320Vac: 48 hr Overvoltage protection 350Vac: 2 hr Crestfactor: 1.7 (max) - Max ballast on MCB(16A type B): 12 x Hum and Noise level: Inaudible Conn.type input terminals: WAGO 251 universal connector [Suitable for both automatic wiring (ALF and ADS) and manual wiring] Conn.type output terminals: WAGO 251 universal connector [Suitable for both automatic wiring (ALF and ADS) and manual wiring] Striplength: 8.0-9.0 mm Wcs Input terminals: 0.50-1.00 mm2 Wcs Output terminals: 0.50-1.00 mm2 Bumps: IEC 68-2-29 Eb EMI 9kHz .. 30 MHz: EN 55015 Vibrations: IEC 68-2-6 Fc Application code: EII Interface: 1-10V Ignition Method: Programmed Start Ignition time: 0.2 (max) s Operating frequency: 46 (min), 100 (max) kHz Regulating level power: 1%-100% Battery voltage lamp ignition: 196 V Battery voltage running lamps: 154-276 Control input protection: Yes (Basic insulation) Conn.type ctrl input terminals: WAGO 251 universal connector [Suitable for both automatic wiring (ALF and ADS) and manual wiring] Total Harmonic Distortion EUR: 13 % Wcs Control input terminals: 0.50-1.00 mm2 T-ignition: 0 (min), 50 (max) C Wcs auto insertion (ALF/ADS): 0.5 mm2 EMI 30 MHz .. 1000MHz: EN 55022 level B [Level = Class] Performance Standard: IEC 60929 Safety Standard: IEC 61347-2-3 Environmental Standard: ISO 14001 Quality Standard: ISO 9000:2000 Harmonic current emissions: IEC 61000-3-2 EMC Immunity: IEC 61547 Humidity: EN 61347-2-3 clause 11 Emergency standard: IEC 60598-2-22 Temperature marking: 110 [Yes] « hide more

€ 50,97 € 50,97 ex. VAT

HF-R 239 TL5 EII 220-240V 50/60Hz

Karta produktu PDF

Product code: 58366 Line Frequency: 50/60 Hz Full product code: 913700633266 Full product name: HF-R 239 TL5 EII 220-240V 50/60Hz Order code: 913700633266 Order product name: HF-R 239 TL5 EII 220-240V 50/60Hz Packing configuration: 12 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500914750 Bar code on pack - EAN1: 8711500914743 Packs per outerbox: 12 see more »

Logistic code(s) - 12NC: 913700633266 Net weight per piece: 0.325 kg Length A1: 359 mm CE marking: Yes Height C1: 22 mm T-ambient: -20 (min), 50 (max) C Width B1: 30 mm Lifetime 90% surv.@Tcaselife: 50000 hr Fixing Hole Diameter D1: 4.2 mm Fixing Hole Distance Length A2: 350 mm Inrush current Peak: 45 (max) A Earth leakage current: 0.5 (max) mA Inrush current Width: 0.40 ms T-storage: -25 (min), 80 (max) C Rated Lamptype: TL5 Line Voltage: 220-240 V Rated Ballast-Lamp Power: 39 Rated Number of Lamps: 2 piece Approval marks: ENEC / VDE-EMV Automatic restart: Yes Energy Efficiency Index: A1 Housing: L 359x30x22 Mains voltage safety (AC): -10%/+10% Mains voltage performance (AC): -8%/+6% Power losses gear: 5.9 W PowerFactor 100% output power: 0.99 - Overvoltage protection 320Vac: 48 hr Overvoltage protection 350Vac: 2 hr Crestfactor: 1.7 (max) - Max ballast on MCB(16A type B): 12 x Hum and Noise level: Inaudible Conn.type input terminals: WAGO 251 universal connector [Suitable for both automatic wiring (ALF and ADS) and manual wiring] Conn.type output terminals: WAGO 251 universal connector [Suitable for both automatic wiring (ALF and ADS) and manual wiring] Striplength: 8.0-9.0 mm Wcs Input terminals: 0.50-1.00 mm2 Wcs Output terminals: 0.50-1.00 mm2 Bumps: IEC 68-2-29 Eb EMI 9kHz .. 30 MHz: EN 55015 Vibrations: IEC 68-2-6 Fc Application code: EII Interface: 1-10V Ignition Method: Warm Start Ignition time: 0.2 (max) s Operating frequency: 45 (min), 95 (max) kHz Regulating level power: 1%-100% Battery voltage lamp ignition: 196 V Battery voltage running lamps: 154-276 Control input protection: Yes (Basic insulation) Conn.type ctrl input terminals: WAGO 251 universal connector [Suitable for both automatic wiring (ALF and ADS) and manual wiring] Total Harmonic Distortion EUR: 4 % Wcs Control input terminals: 0.50-1.00 mm2 T-ignition: 0 (min), 50 (max) C Wcs auto insertion (ALF/ADS): 0.5 mm2 EMI 30 MHz .. 1000MHz: EN 55022 level B [Level = Class] Performance Standard: IEC 60929 Safety Standard: IEC 61347-2-3 Environmental Standard: ISO 14001 Quality Standard: ISO 9000:2000 Harmonic current emissions: IEC 61000-3-2 EMC Immunity: IEC 61547 Humidity: EN 61347-2-3 clause 11 Emergency standard: IEC 60598-2-22 Temperature marking: 110 [Yes] « hide more

€ 50,97 € 50,97 ex. VAT

HF-R 249 TL5 EII 220-240V 50/60Hz

Karta produktu PDF

Product code: 58367 Line Frequency: 50/60 Hz Full product code: 913700608766 Full product name: HF-R 249 TL5 EII 220-240V 50/60Hz Order code: 913700608766 Order product name: HF-R 249 TL5 EII 220-240V 50/60Hz Packing configuration: 12 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500910042 Bar code on pack - EAN1: 8711500910035 Packs per outerbox: 12 see more »

Logistic code(s) - 12NC: 913700608766 Net weight per piece: 0.310 kg Length A1: 360 mm CE marking: Yes Height C1: 22 mm T-ambient: 10 (min), 50 (max) C Width B1: 30 mm Lifetime 90% surv.@Tcaselife: 50000 hr Fixing Hole Diameter D1: 4.2 mm Fixing Hole Distance Length A2: 350 mm Inrush current Peak: 45 (max) A Earth leakage current: 0.5 (max) mA Inrush current Width: 0.40 ms T-storage: -25 (min), 80 (max) C Rated Lamptype: TL5 Line Voltage: 220-240 V Rated Ballast-Lamp Power: 49 Rated Number of Lamps: 2 piece Approval marks: ENEC / VDE-EMV Automatic restart: Yes Energy Efficiency Index: A1 Housing: L 360x30x21 Mains voltage safety (AC): -10%/+10% Mains voltage performance (AC): -8%/+6% Power losses gear: 7.9 W PowerFactor 100% output power: 0.98 - Overvoltage protection 320Vac: 48 hr Overvoltage protection 350Vac: 2 hr Crestfactor: 1.7 (max) - Max ballast on MCB(16A type B): 12 x Hum and Noise level: Inaudible Conn.type input terminals: WAGO 251 universal connector [Suitable for both automatic wiring (ALF and ADS) and manual wiring] Conn.type output terminals: WAGO 251 universal connector [Suitable for both automatic wiring (ALF and ADS) and manual wiring] Striplength: 8.0-9.0 mm Wcs Input terminals: 0.50-1.00 mm2 Wcs Output terminals: 0.50-1.00 mm2 Bumps: IEC 68-2-29 Eb EMI 9kHz .. 30 MHz: EN 55015 Vibrations: IEC 68-2-6 Fc Application code: EII Interface: 1-10V Ignition Method: Programmed Start Ignition time: 0.2 (max) s Operating frequency: 45 (min), 89 (max) kHz Regulating level power: 1%-100% Battery voltage lamp ignition: 196 V Battery voltage running lamps: 154-276 Control input protection: Yes (Basic insulation) Conn.type ctrl input terminals: WAGO 251 universal connector [Suitable for both automatic wiring (ALF and ADS) and manual wiring] Total Harmonic Distortion EUR: 5 % Wcs Control input terminals: 0.50-1.00 mm2 T-ignition: 0 (min), 50 (max) C Wcs auto insertion (ALF/ADS): 0.5 mm2 EMI 30 MHz .. 1000MHz: EN 55022 level B [Level = Class] Performance Standard: IEC 60929 Safety Standard: IEC 61347-2-3 Environmental Standard: ISO 14001 Quality Standard: ISO 9000:2000 Harmonic current emissions: IEC 61000-3-2 EMC Immunity: IEC 61547 Humidity: EN 61347-2-3 clause 11 Emergency standard: IEC 60598-2-22 Temperature marking: 110 [Yes] « hide more

€ 50,97 € 50,97 ex. VAT

HF-R 414 TL5 EII 220-240V 50/60Hz

Karta produktu PDF

Product code: 58371 Line Frequency: 50-60 Hz Full product code: 913700614466 Full product name: HF-R 414 TL5 EII 220-240V 50/60Hz Order code: 913700614466 Order product name: HF-R 414 TL5 EII 220-240V 50/60Hz Packing configuration: 10 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500913654 Bar code on pack - EAN1: 8711500913647 Packs per outerbox: 10 see more »

Logistic code(s) - 12NC: 913700614466 Net weight per piece: 0.340 kg Length A1: 359 mm CE marking: Yes Height C1: 22 mm T-ambient: -20 (min), 50 (max) C Width B1: 39 mm Lifetime 90% surv.@Tcaselife: 50000 hr Fixing Hole Diameter D1: 4.2 mm Fixing Hole Distance Length A2: 350 mm Inrush current Peak: 27 (max) A Earth leakage current: 0.5 (max) mA Inrush current Width: 0.25 ms T-storage: -25 (min), 80 (max) C Rated Lamptype: TL5 Line Voltage: 220-240 V Rated Ballast-Lamp Power: 14 Rated Number of Lamps: 4 piece Approval marks: ENEC / VDE-EMV Automatic restart: Yes Energy Efficiency Index: A1 Housing: L 359x39x22 Mains voltage safety (AC): -10%/+10% Mains voltage performance (AC): -8%/+6% Power losses gear: 9.9 W PowerFactor 100% output power: 0.98 - Overvoltage protection 320Vac: 48 hr Overvoltage protection 350Vac: 2 hr Crestfactor: 1.7 (max) - Max ballast on MCB(16A type B): 28 x Hum and Noise level: Inaudible Conn.type input terminals: WAGO 251 universal connector [Suitable for both automatic wiring (ALF and ADS) and manual wiring] Conn.type output terminals: WAGO 251 universal connector [Suitable for both automatic wiring (ALF and ADS) and manual wiring] Striplength: 8.0-9.0 mm Wcs Input terminals: 0.50-1.00 mm2 Wcs Output terminals: 0.50-1.00 mm2 Bumps: IEC 68-2-29 Eb EMI 9kHz .. 30 MHz: EN 55015 Vibrations: IEC 68-2-6 Fc Application code: EII Interface: 1-10V Ignition Method: Programmed Start Ignition time: 0.2 (max) s Operating frequency: 46 (min), 85 (max) kHz Regulating level power: 1%-100% Battery voltage lamp ignition: 196 V Battery voltage running lamps: 154-276 Control input protection: Yes (Basic insulation) Conn.type ctrl input terminals: WAGO 251 universal connector [Suitable for both automatic wiring (ALF and ADS) and manual wiring] Total Harmonic Distortion EUR: 7 % Wcs Control input terminals: 0.50-1.00 mm2 T-ignition: 0 (min), 50 (max) C Wcs auto insertion (ALF/ADS): 0.5 mm2 EMI 30 MHz .. 1000MHz: EN 55022 level B [Level = Class] Performance Standard: IEC 60929 Safety Standard: IEC 61347-2-3 Environmental Standard: ISO 14001 Quality Standard: ISO 9000:2000 Harmonic current emissions: IEC 61000-3-2 EMC Immunity: IEC 61547 Humidity: EN 61347-2-3 clause 11 Emergency standard: IEC 60598-2-22 Temperature marking: 110 [Yes] « hide more

€ 60,91 € 60,91 ex. VAT

HF-R 424 TL5/PL-L EII 220-240V 50/60Hz

Karta produktu PDF

Product code: 58372 Line Frequency: 50-60 Hz Full product code: 913700614866 Full product name: HF-R 424 TL5/PL-L EII 220-240V 50/60Hz Order code: 913700614866 Order product name: HF-R 424 TL5/PL-L EII 220-240V 50/60Hz Packing configuration: 10 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500913753 Bar code on pack - EAN1: 8711500913746 Packs per outerbox: 10 see more »

Logistic code(s) - 12NC: 913700614866 Net weight per piece: 0.385 kg Length A1: 359 mm CE marking: Yes Height C1: 22 mm T-ambient: -20 (min), 50 (max) C Width B1: 39 mm Lifetime 90% surv.@Tcaselife: 50000 hr Fixing Hole Diameter D1: 4.2 mm Fixing Hole Distance Length A2: 350 mm Inrush current Peak: 45 (max) A Earth leakage current: 0.5 (max) mA Inrush current Width: 0.40 ms T-storage: -25 (min), 80 (max) C Rated Lamptype: TL5/PL-L Line Voltage: 220-240 V Rated Ballast-Lamp Power: 24 Rated Number of Lamps: 4 piece Approval marks: ENEC / VDE-EMV Automatic restart: Yes Energy Efficiency Index: A1 Housing: L 359x39x22 Mains voltage safety (AC): -10%/+10% Mains voltage performance (AC): -8%/+6% Power losses gear: 16.4 W PowerFactor 100% output power: 0.99 - Overvoltage protection 320Vac: 48 hr Overvoltage protection 350Vac: 2 hr Crestfactor: 1.7 (max) - Max ballast on MCB(16A type B): 12 x Hum and Noise level: Inaudible Conn.type input terminals: WAGO 251 universal connector [Suitable for both automatic wiring (ALF and ADS) and manual wiring] Conn.type output terminals: WAGO 251 universal connector [Suitable for both automatic wiring (ALF and ADS) and manual wiring] Striplength: 8.0-9.0 mm Wcs Input terminals: 0.50-1.00 mm2 Wcs Output terminals: 0.50-1.00 mm2 Bumps: IEC 68-2-29 Eb EMI 9kHz .. 30 MHz: EN 55015 Vibrations: IEC 68-2-6 Fc Application code: EII Interface: 1-10V Ignition Method: Programmed Start Ignition time: 0.2 (max) s Operating frequency: 46 (min), 84 (max) kHz Regulating level power: 1%-100% Battery voltage lamp ignition: 196 V Battery voltage running lamps: 154-276 Control input protection: Yes (Basic insulation) Conn.type ctrl input terminals: WAGO 251 universal connector [Suitable for both automatic wiring (ALF and ADS) and manual wiring] Total Harmonic Distortion EUR: 4 % Wcs Control input terminals: 0.50-1.00 mm2 T-ignition: 0 (min), 50 (max) C Wcs auto insertion (ALF/ADS): 0.5 mm2 EMI 30 MHz .. 1000MHz: EN 55022 level B [Level = Class] Performance Standard: IEC 60929 Safety Standard: IEC 61347-2-3 Environmental Standard: ISO 14001 Quality Standard: ISO 9000:2000 Harmonic current emissions: IEC 61000-3-2 EMC Immunity: IEC 61547 Humidity: EN 61347-2-3 clause 11 Emergency standard: IEC 60598-2-22 Temperature marking: 110 [Yes] « hide more

€ 60,91 € 60,91 ex. VAT

Description / FAQ Warranty

High-frequency electronic dimming ballast, using the analog protocol (1-10 V) for TL5 HE/HO and TL5 Eco lamps

Features

Programmed start: flicker-free ignition < 0.5 seconds and striation-free operation, no stroboscopic effects. Preheating the lamp electrodes enables the lamps to be switched on and off without reducing life

Smart power ensures constant light, independent of mains fluctuations

Up to 60% reduction in energy consumption by using automatic lighting control systems

Stop circuit is activated within 5 seconds in the event of lamp failure (safety stop), and ballast resets automatically after lamp replacement

Applications

Indoor, general and task lighting applications in combination with lighting control systems (personal control, daylight linking and/or movement detection)
