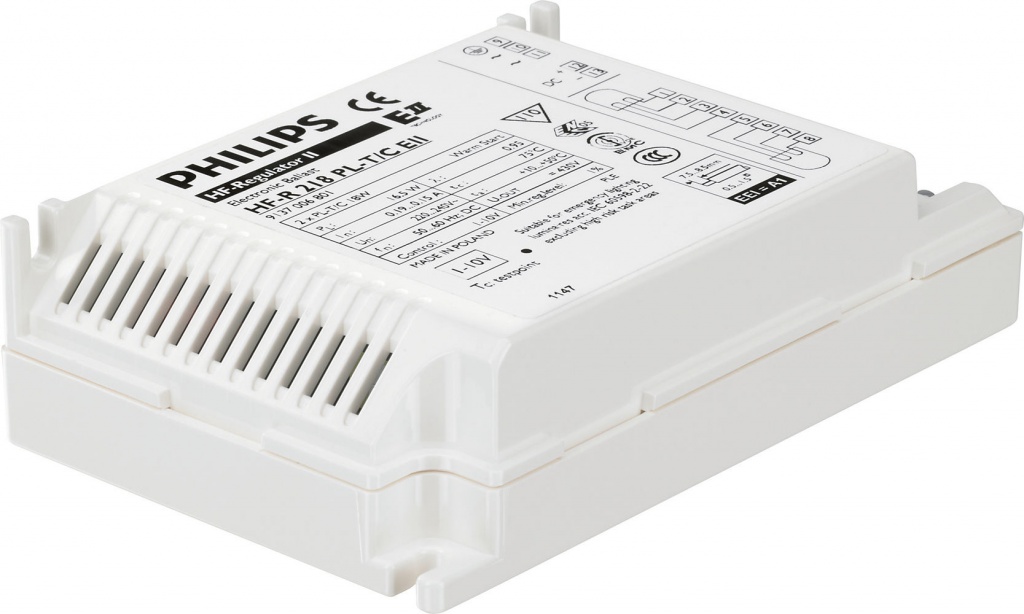

HF-Regulator II for PL-T/C Fluorescent Electronic Gear

Product code: 58387
Price € 51,77 incl. VAT
€ 51,77 netto
pc(s)
pc(s)
  • Line Frequency 50/60 Hz
  • T-case maximum 75 (max) C
  • Full product code 913700680166
  • Full product name HF-R 218 PL-T/C EII 220-240V 50/60Hz
  • Order code 913700680166
  • Order product name HF-R 218 PL-T/C EII 220-240V 50/60Hz
  • Packing configuration 12
  • Pieces per pack 1
  • Bar code on outerbox - EAN3 8718291176992
  • Bar code on pack - EAN1 8718291176985
  • Packs per outerbox 12
  • Logistic code(s) - 12NC 913700680166
  • ▼ see full specification ▼
Compact, high-frequency electronic dimming ballast, using the analog protocol (1-10 V) for PL-T, PL-C and PL-R lamps

1 variant available

 HF-R 218 PL-T/C EII 220-240V 50/60Hz
Product code: 58387 Line Frequency: 50/60 Hz T-case maximum: 75 (max) C Full product code: 913700680166 Full product name: HF-R 218 PL-T/C EII 220-240V 50/60Hz Order code: 913700680166 Order product name: HF-R 218 PL-T/C EII 220-240V 50/60Hz Packing configuration: 12 Pieces per pack: 1 Bar code on outerbox - EAN3: 8718291176992 Bar code on pack - EAN1: 8718291176985 see more »
Packs per outerbox: 12 Logistic code(s) - 12NC: 913700680166 Net weight per piece: 0.230 kg Length A1: 123.0 mm CE marking: Yes Height C1: 33.0 mm T-ambient: -20 (min), 50 (max) C Width B1: 79.0 mm Lifetime 90% surv.@Tcaselife: 50000 hr Fixing Hole Diameter D1: 4.5 mm Fixing Hole Distance Length A2: 111.0 mm Fixing Hole Distance Width B2: 67.0 mm Inrush current Peak: 28 (max) A Earth leakage current: 0.5 (max) mA Inrush current Width: 0.35 ms T-storage: -25 (min), 80 (max) C Rated Lamptype: PL-T/C Line Voltage: 220-240 V Rated Ballast-Lamp Power: 18 Rated Number of Lamps: 2 piece T-case life: 65 C Approval marks: ENEC / VDE-EMV Automatic restart: Yes Energy Efficiency Index: A1 Housing: S 123x79x33 Mains voltage safety (AC): -10%/+10% Mains voltage performance (AC): -8%/+6% Ballast Lumen Factor: 1.0 - PowerFactor 100% output power: 0.95 - Overvoltage protection 320Vac: 48 hr Overvoltage protection 350Vac: 2 hr Crestfactor: 1.7 (max) - Max ballast on MCB(16A type B): 28 x Cable-Cap outputwires mutual: 30 pF Hum and Noise level: Inaudible Conn.type input terminals: Insert Conn.type output terminals: Insert Striplength: 7.5-8.5 mm Dual fixture Master/Slave: Not applicable [Master/Slave oper. not applicable] Wcs Input terminals: 0.50-1.50 mm2 Wcs Output terminals: 0.50-1.50 mm2 Bumps: IEC 68-2-29 Eb EMI 9kHz .. 30 MHz: EN 55015 Vibrations: IEC 68-2-6 Fc Application code: EII Interface: 1-10V Ignition Method: Programmed Start Operating frequency: 40 (min), 100 (max) kHz Regulating level power: 1%-100% Battery voltage lamp ignition: 198-254 V Battery voltage running lamps: 176-254 Control input protection: Yes (Basic insulation) Conn.type ctrl input terminals: Insert Wcs Control input terminals: 0.50-1.50 mm2 EMI 30 MHz .. 1000MHz: EN 55022 level B [Level = Class] Performance Standard: IEC 60929 Safety Standard: IEC 61347-2-3 Environmental Standard: ISO 14001 Quality Standard: ISO 9000:2000 Harmonic current emissions: IEC 61000-3-2 EMC Immunity: IEC 61547 Humidity: EN 61347-2-3 clause 11 Emergency standard: IEC 60598-2-22 Cable-Cap outputwires to earth: 75 pF Constant wattage deviation: -2%/+2% « hide more
€ 51,77 € 51,77 ex. VAT
pc(s)
pc(s)
Line Frequency 50/60 Hz
T-case maximum 75 (max) C
Full product code 913700680166
Full product name HF-R 218 PL-T/C EII 220-240V 50/60Hz
Order code 913700680166
Order product name HF-R 218 PL-T/C EII 220-240V 50/60Hz
Packing configuration 12
Pieces per pack 1
Bar code on outerbox - EAN3 8718291176992
Bar code on pack - EAN1 8718291176985
Packs per outerbox 12
Logistic code(s) - 12NC 913700680166
Net weight per piece 0.230 kg

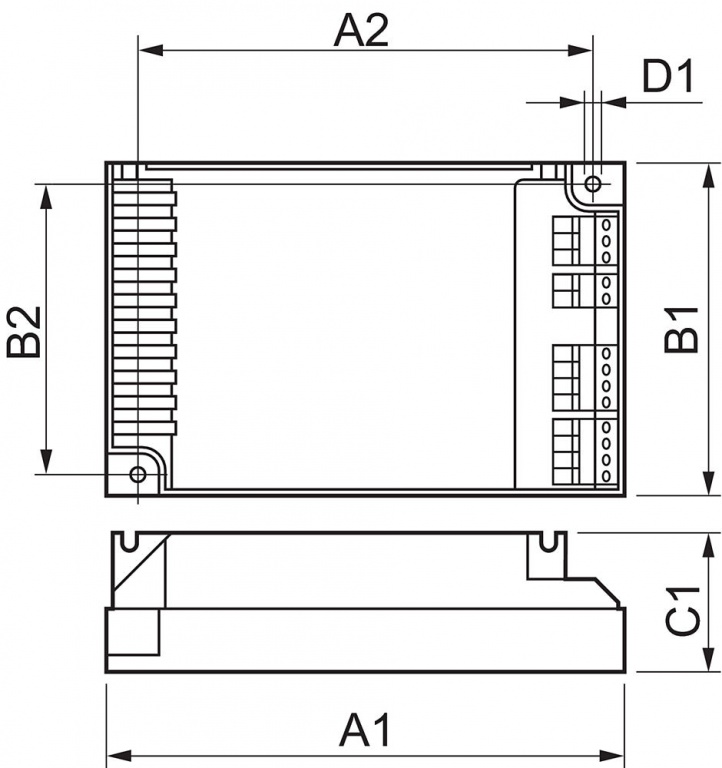

Length A1 123.0 mm
CE marking Yes
Height C1 33.0 mm
T-ambient -20 (min), 50 (max) C
Width B1 79.0 mm
Lifetime 90% surv.@Tcaselife 50000 hr
Fixing Hole Diameter D1 4.5 mm
Fixing Hole Distance Length A2 111.0 mm
Fixing Hole Distance Width B2 67.0 mm
Inrush current Peak 28 (max) A
Earth leakage current 0.5 (max) mA
Inrush current Width 0.35 ms
T-storage -25 (min), 80 (max) C
Rated Lamptype PL-T/C
Line Voltage 220-240 V
Rated Ballast-Lamp Power 18
Rated Number of Lamps 2 piece
T-case life 65 C
Approval marks ENEC / VDE-EMV
Automatic restart Yes
Energy Efficiency Index A1
Housing S 123x79x33
Mains voltage safety (AC) -10%/+10%
Mains voltage performance (AC) -8%/+6%
Ballast Lumen Factor 1.0 -
PowerFactor 100% output power 0.95 -
Overvoltage protection 320Vac 48 hr
Overvoltage protection 350Vac 2 hr
Crestfactor 1.7 (max) -
Max ballast on MCB(16A type B) 28 x
Cable-Cap outputwires mutual 30 pF
Hum and Noise level Inaudible
Conn.type input terminals Insert
Conn.type output terminals Insert
Striplength 7.5-8.5 mm
Dual fixture Master/Slave Not applicable [Master/Slave oper. not applicable]
Wcs Input terminals 0.50-1.50 mm2
Wcs Output terminals 0.50-1.50 mm2
Bumps IEC 68-2-29 Eb
EMI 9kHz .. 30 MHz EN 55015
Vibrations IEC 68-2-6 Fc
Application code EII
Interface 1-10V
Ignition Method Programmed Start
Operating frequency 40 (min), 100 (max) kHz
Regulating level power 1%-100%
Battery voltage lamp ignition 198-254 V
Battery voltage running lamps 176-254
Control input protection Yes (Basic insulation)
Conn.type ctrl input terminals Insert
Wcs Control input terminals 0.50-1.50 mm2
EMI 30 MHz .. 1000MHz EN 55022 level B [Level = Class]
Performance Standard IEC 60929
Safety Standard IEC 61347-2-3
Environmental Standard ISO 14001
Quality Standard ISO 9000:2000
Harmonic current emissions IEC 61000-3-2
EMC Immunity IEC 61547
Humidity EN 61347-2-3 clause 11
Emergency standard IEC 60598-2-22
Cable-Cap outputwires to earth 75 pF
Constant wattage deviation -2%/+2%

If you buy goods in partial package that is not currently available in our store (available on request), we reserve the rights to charge additional increments of 5 EUR ex. VAT.
