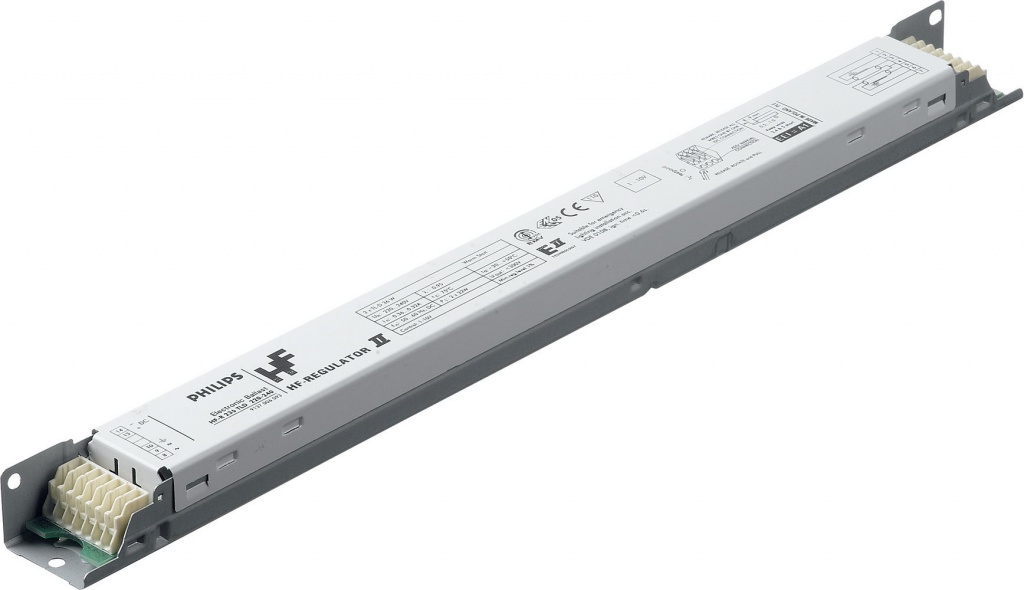

HF-Regulator II for PL-L lamps Fluorescent Electronic Gear

Product code: 58398

Philips HF-R 280 TL5/PL-L EII 220-240V 50/60Hz

Price € 62,93 incl. VAT
€ 62,93 netto

Line Frequency 50/60 Hz
Full product code 913700609166
Full product name HF-R 280 TL5/PL-L EII 220-240V 50/60Hz
Order code 913700609166
Order product name HF-R 280 TL5/PL-L EII 220-240V 50/60Hz
Packing configuration 12
Pieces per pack 1
Bar code on outerbox - EAN3 8711500910660
Bar code on pack - EAN1 8711500910653
Packs per outerbox 12
Logistic code(s) - 12NC 913700609166
Net weight per piece 0.417 kg
▼ see full specification ▼

High-frequency electronic dimming ballast, using the analog protocol (1-10 V) for TL5 HE/HO and TL5 Eco lamps

Ask for product Description / FAQ / Warranty

Score

rate product

1 variant available

HF-R 280 TL5/PL-L EII 220-240V 50/60Hz

Karta produktu PDF

Product code: 58398 Line Frequency: 50/60 Hz Full product code: 913700609166 Full product name: HF-R 280 TL5/PL-L EII 220-240V 50/60Hz Order code: 913700609166 Order product name: HF-R 280 TL5/PL-L EII 220-240V 50/60Hz Packing configuration: 12 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500910660 Bar code on pack - EAN1: 8711500910653 Packs per outerbox: 12 see more »

Logistic code(s) - 12NC: 913700609166 Net weight per piece: 0.417 kg Length A1: 425 mm CE marking: Yes Height C1: 22 mm T-ambient: -20 (min), 50 (max) C Width B1: 30 mm Lifetime 90% surv.@Tcaselife: 50000 hr Fixing Hole Diameter D1: 4.2 mm Fixing Hole Distance Length A2: 415 mm Inrush current Peak: 40 (max) A Earth leakage current: 0.5 (max) mA Inrush current Width: 0.15 ms T-storage: -25 (min), 80 (max) C Rated Lamptype: TL5/PL-L Line Voltage: 220-240 V Rated Ballast-Lamp Power: 80 Rated Number of Lamps: 2 piece Approval marks: ENEC / VDE-EMV Automatic restart: Yes Energy Efficiency Index: A1 Housing: L 425x30x21 Mains voltage safety (AC): -10%/+10% Mains voltage performance (AC): -8%/+6% Power losses gear: 13.2 W PowerFactor 100% output power: 0.96 - Overvoltage protection 320Vac: 48 hr Overvoltage protection 350Vac: 2 hr Crestfactor: 1.7 (max) - Max ballast on MCB(16A type B): 9 x Hum and Noise level: Inaudible Conn.type input terminals: WAGO 251 universal connector [Suitable for both automatic wiring (ALF and ADS) and manual wiring] Conn.type output terminals: WAGO 251 universal connector [Suitable for both automatic wiring (ALF and ADS) and manual wiring] Striplength: 8.0-9.0 mm Wcs Input terminals: 0.50-1.00 mm2 Wcs Output terminals: 0.50-1.00 mm2 Bumps: IEC 68-2-29 Eb EMI 9kHz .. 30 MHz: EN 55015 Vibrations: IEC 68-2-6 Fc Application code: EII Interface: 1-10V Ignition Method: Programmed Start Ignition time: 0.2 (max) s Operating frequency: 44 (min), 105 (max) kHz Regulating level power: 1%-100% Battery voltage lamp ignition: 220 V Battery voltage running lamps: 220-276 Control input protection: Yes (Basic insulation) Conn.type ctrl input terminals: WAGO 251 universal connector [Suitable for both automatic wiring (ALF and ADS) and manual wiring] Total Harmonic Distortion EUR: 10 % Wcs Control input terminals: 0.50-1.00 mm2 T-ignition: 0 (min), 50 (max) C Wcs auto insertion (ALF/ADS): 0.5 mm2 EMI 30 MHz .. 1000MHz: EN 55022 level B [Level = Class] Performance Standard: IEC 60929 Safety Standard: IEC 61347-2-3 Environmental Standard: ISO 14001 Quality Standard: ISO 9000:2000 Harmonic current emissions: IEC 61000-3-2 EMC Immunity: IEC 61547 Humidity: EN 61347-2-3 clause 11 Emergency standard: IEC 60598-2-22 Temperature marking: 110 [Yes] « hide more

€ 62,93 € 62,93 ex. VAT

Description / FAQ Warranty

Line Frequency	50/60 Hz
Full product code	913700609166
Full product name	HF-R 280 TL5/PL-L EII 220-240V 50/60Hz
Order code	913700609166
Order product name	HF-R 280 TL5/PL-L EII 220-240V 50/60Hz
Packing configuration	12
Pieces per pack	1
Bar code on outerbox - EAN3	8711500910660
Bar code on pack - EAN1	8711500910653
Packs per outerbox	12
Logistic code(s) - 12NC	913700609166
Net weight per piece	0.417 kg

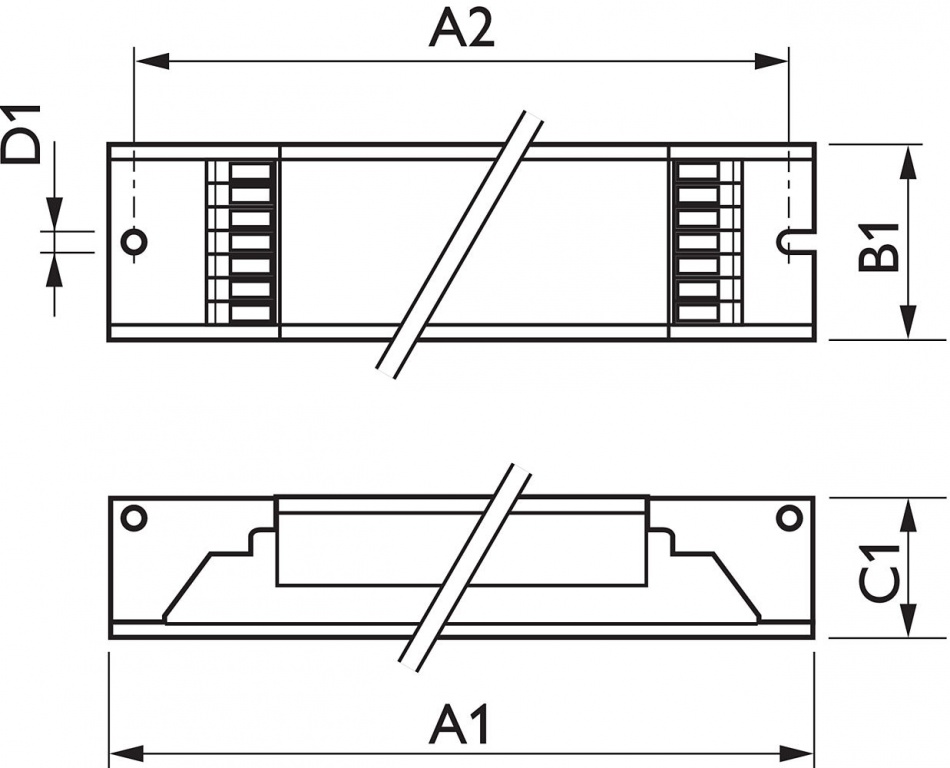

Length A1	425 mm
CE marking	Yes
Height C1	22 mm
T-ambient	-20 (min), 50 (max) C
Width B1	30 mm
Lifetime 90% surv.@Tcaselife	50000 hr
Fixing Hole Diameter D1	4.2 mm
Fixing Hole Distance Length A2	415 mm
Inrush current Peak	40 (max) A
Earth leakage current	0.5 (max) mA
Inrush current Width	0.15 ms
T-storage	-25 (min), 80 (max) C
Rated Lamptype	TL5/PL-L
Line Voltage	220-240 V
Rated Ballast-Lamp Power	80
Rated Number of Lamps	2 piece
Approval marks	ENEC / VDE-EMV
Automatic restart	Yes
Energy Efficiency Index	A1
Housing	L 425x30x21
Mains voltage safety (AC)	-10%/+10%
Mains voltage performance (AC)	-8%/+6%
Power losses gear	13.2 W
PowerFactor 100% output power	0.96 -
Overvoltage protection 320Vac	48 hr
Overvoltage protection 350Vac	2 hr
Crestfactor	1.7 (max) -
Max ballast on MCB(16A type B)	9 x
Hum and Noise level	Inaudible
Conn.type input terminals	WAGO 251 universal connector [Suitable for both automatic wiring (ALF and ADS) and manual wiring]
Conn.type output terminals	WAGO 251 universal connector [Suitable for both automatic wiring (ALF and ADS) and manual wiring]
Striplength	8.0-9.0 mm
Wcs Input terminals	0.50-1.00 mm2
Wcs Output terminals	0.50-1.00 mm2
Bumps	IEC 68-2-29 Eb
EMI 9kHz .. 30 MHz	EN 55015
Vibrations	IEC 68-2-6 Fc
Application code	EII
Interface	1-10V
Ignition Method	Programmed Start
Ignition time	0.2 (max) s
Operating frequency	44 (min), 105 (max) kHz
Regulating level power	1%-100%
Battery voltage lamp ignition	220 V
Battery voltage running lamps	220-276
Control input protection	Yes (Basic insulation)
Conn.type ctrl input terminals	WAGO 251 universal connector [Suitable for both automatic wiring (ALF and ADS) and manual wiring]
Total Harmonic Distortion EUR	10 %
Wcs Control input terminals	0.50-1.00 mm2
T-ignition	0 (min), 50 (max) C
Wcs auto insertion (ALF/ADS)	0.5 mm2
EMI 30 MHz .. 1000MHz	EN 55022 level B [Level = Class]
Performance Standard	IEC 60929
Safety Standard	IEC 61347-2-3
Environmental Standard	ISO 14001
Quality Standard	ISO 9000:2000
Harmonic current emissions	IEC 61000-3-2
EMC Immunity	IEC 61547
Humidity	EN 61347-2-3 clause 11
Emergency standard	IEC 60598-2-22
Temperature marking	110 [Yes]

High-frequency electronic dimming ballast, using the analog protocol (1-10 V) for PL-L lamps

Features

Programmed start: flicker-free ignition < 0.5 seconds and striation-free operation, no stroboscopic effects. Preheating the lamp electrodes enables the lamps to be switched on and off without reducing life

Smart power ensures constant light, independent of mains fluctuations

Up to 60% reduction in energy consumption by using automatic lighting control systems

Stop circuit is activated within 5 seconds in the event of lamp failure (safety stop), and ballast resets automatically after lamp replacement

Applications

Indoor, general and task lighting applications in combination with lighting control systems (personal control, daylight linking and/or movement detection)
