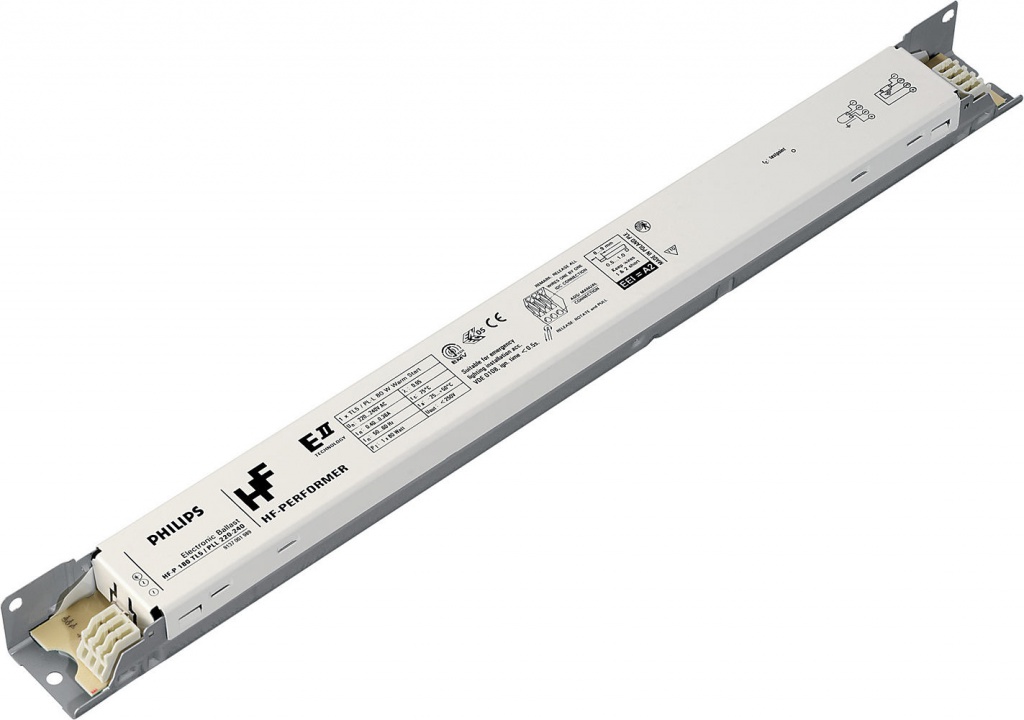

HF-Performer Intelligent for TL5 HE/HO lamps Fluorescent Electronic Gear

Philips HF-Pi 1 14/21/24/39 TL5 EII 220-240V

From € 23,66 incl. VAT
From € 23,66 ex. VAT

See variants (4)

Ask for product Description / FAQ / Warranty

Score

rate product

Select your product from the 4

HF-Pi 1 14/21/24/39 TL5 EII 220-240V

Karta produktu PDF

Product code: 58422 Line Frequency: 50/60 Hz T-case maximum: 75 (max) C Full product code: 913700624066 Full product name: HF-Pi 1 14/21/24/39 TL5 EII 220-240V Order code: 913700624066 Order product name: HF-Pi 1 14/21/24/39 TL5 EII 220-240V Packing configuration: 12 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500914958 Bar code on pack - EAN1: 8711500914941 see more »

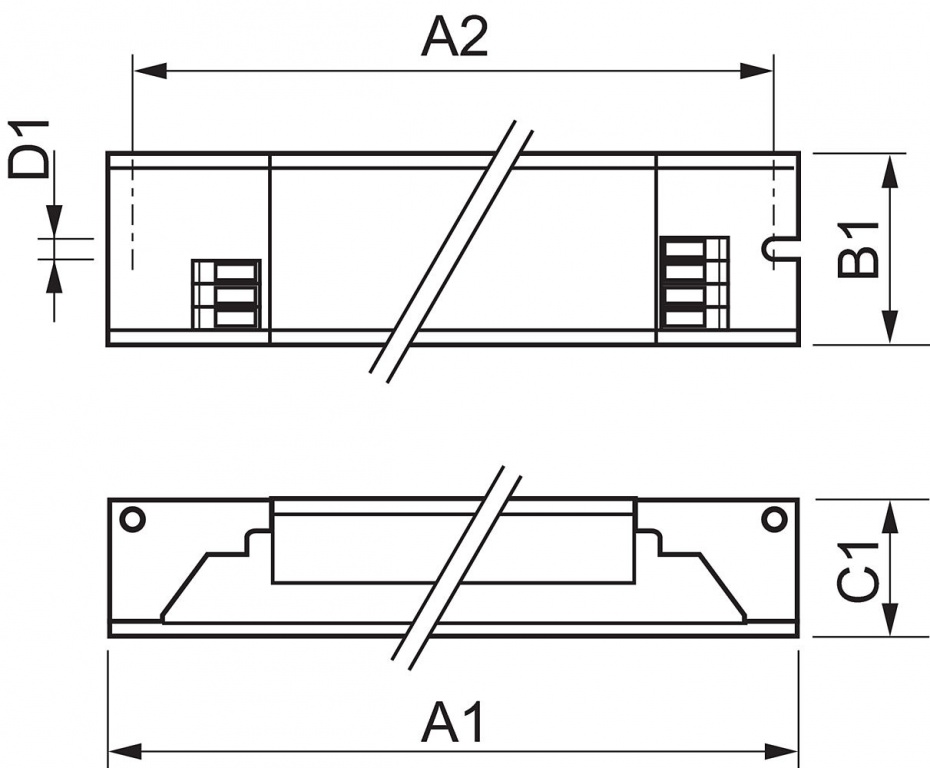

Packs per outerbox: 12 Logistic code(s) - 12NC: 913700624066 Net weight per piece: 0.247 kg Length A1: 360 mm CE marking: Yes Height C1: 22 mm T-ambient: -25 (min), 50 (max) C Width B1: 30 mm Lifetime 90% surv.@Tcaselife: 50000 hr Fixing Hole Diameter D1: 4.2 mm Fixing Hole Distance Length A2: 350 mm Inrush current Peak: 20 (max) A Earth leakage current: 0.5 (max) mA Inrush current Width: 0.35 ms T-storage: -40 (min), 80 (max) C Rated Lamptype: TL5 Line Voltage: 220-240 V Rated Ballast-Lamp Power: 14-39 Rated Number of Lamps: 1 piece T-case life: 75 C Approval marks: ENEC / VDE-EMV Automatic restart: Yes Energy Efficiency Index: A2 Housing: L 360x30x22 Mains voltage safety (AC): -10%/+10% Mains voltage performance (AC): -8%/+6% Ballast Lumen Factor: 1.00 - Power losses gear: 1.9-2.5 W Crestfactor: 1.7 (max) - Max ballast on MCB(16A type B): 18 x Cable-Cap outputwires mutual: 70 pF Hum and Noise level: Inaudible Conn.type input terminals: Insert Conn.type output terminals: Insert Max. cable length Hot Wires: 0.75 m Striplength: 8.0-9.0 mm Wcs Input terminals: 0.50-1.00 mm2 Wcs Output terminals: 0.50-1.00 mm2 Bumps: IEC 68-2-29 Eb EMI 9kHz .. 30 MHz: EN 55015 Vibrations: IEC 68-2-6 Fc Application code: EII Ignition Method: Warm Start Ignition time: 5.0 (max) s Battery voltage running lamps: 198-276 T-ignition: -25 (min), 50 (max) C EMI 30 MHz .. 1000MHz: EN 55022 Class B Performance Standard: IEC 60929 Safety Standard: IEC 61347-2-3 Environmental Standard: ISO 14001 Quality Standard: ISO 9000:2000 Harmonic current emissions: IEC 61000-3-2 EMC Immunity: IEC 61547 Humidity: EN 61347-2-3 clause 11 Emergency standard: IEC 60598-2-22 Temperature marking: 110 [Yes] Cable-Cap outputwires to earth: 70 pF Constant wattage deviation: -2%/+2% Lamp Power on TL5 HO: 24.3/37.5 Power Loss on TL5 HO: 2.2/2.4 Rated Lamp Power on TL5 HO: 24/39 System Power on TL5 HO: 26.5/39.9 Lamp Power on TL5 HE: 14.7/21.2 Rated Lamp Power on TL5 HE: 14/21 System Power on TL5 HE: 16.6/23.6 Power Loss on TL5 HE: 1.9/2.4 « hide more

€ 23,66 € 23,66 ex. VAT

HF-Pi 2 14/21/24/39 TL5 EII 220-240V

Karta produktu PDF

Product code: 58423 Line Frequency: 50/60 Hz T-case maximum: 75 (max) C Full product code: 913700624266 Full product name: HF-Pi 2 14/21/24/39 TL5 EII 220-240V Order code: 913700624266 Order product name: HF-Pi 2 14/21/24/39 TL5 EII 220-240V Packing configuration: 12 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500915016 Bar code on pack - EAN1: 8711500915009 see more »

Packs per outerbox: 12 Logistic code(s) - 12NC: 913700624266 Net weight per piece: 0.290 kg Length A1: 360 mm CE marking: Yes Height C1: 22 mm T-ambient: -25 (min), 50 (max) C Width B1: 30 mm Lifetime 90% surv.@Tcaselife: 50000 hr Fixing Hole Diameter D1: 4.2 mm Fixing Hole Distance Length A2: 350 mm Inrush current Peak: 31 (max) A Earth leakage current: 0.5 (max) mA Inrush current Width: 0.35 ms T-storage: -40 (min), 80 (max) C Rated Lamptype: TL5 Line Voltage: 220-240 V Rated Ballast-Lamp Power: 14-39 Rated Number of Lamps: 2 piece T-case life: 75 C Approval marks: ENEC / VDE-EMV Automatic restart: Yes Energy Efficiency Index: A2 Housing: L 360x30x22 Mains voltage safety (AC): -10%/+10% Mains voltage performance (AC): -8%/+6% Ballast Lumen Factor: 1.00 - Power losses gear: 2.9-4.6 W Crestfactor: 1.7 (max) - Max ballast on MCB(16A type B): 12 x Cable-Cap outputwires mutual: 70 pF Hum and Noise level: Inaudible Conn.type input terminals: Insert Conn.type output terminals: Insert Max. cable length Hot Wires: 0.75 m Striplength: 8.0-9.0 mm Wcs Input terminals: 0.50-1.00 mm2 Wcs Output terminals: 0.50-1.00 mm2 Bumps: IEC 68-2-29 Eb EMI 9kHz .. 30 MHz: EN 55015 Vibrations: IEC 68-2-6 Fc Application code: EII Ignition Method: Warm Start Ignition time: 5.0 (max) s Battery voltage running lamps: 198-276 T-ignition: -25 (min), 50 (max) C EMI 30 MHz .. 1000MHz: EN 55022 Class B Performance Standard: IEC 60929 Safety Standard: IEC 61347-2-3 Environmental Standard: ISO 14001 Quality Standard: ISO 9000:2000 Harmonic current emissions: IEC 61000-3-2 EMC Immunity: IEC 61547 Humidity: EN 61347-2-3 clause 11 Emergency standard: IEC 60598-2-22 Temperature marking: 110 [Yes] Cable-Cap outputwires to earth: 70 pF Constant wattage deviation: -2%/+2% Lamp Power on TL5 HO: 46.8/71.2 Power Loss on TL5 HO: 3.6/4.6 Rated Lamp Power on TL5 HO: 24/39 System Power on TL5 HO: 50.4/75.8 Lamp Power on TL5 HE: 28.6/42.8 Rated Lamp Power on TL5 HE: 14/21 System Power on TL5 HE: 31.5/46.7 Power Loss on TL5 HE: 2.9/3.9 « hide more

€ 25,62 € 25,62 ex. VAT

HF-Pi 1 28/35/49/54 TL5 EII 220-240V

Karta produktu PDF

Product code: 58424 Line Frequency: 50/60 Hz T-case maximum: 75 (max) C Full product code: 913700624166 Full product name: HF-Pi 1 28/35/49/54 TL5 EII 220-240V Order code: 913700624166 Order product name: HF-Pi 1 28/35/49/54 TL5 EII 220-240V Packing configuration: 12 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500914972 Bar code on pack - EAN1: 8711500914965 see more »

Packs per outerbox: 12 Logistic code(s) - 12NC: 913700624166 Net weight per piece: 0.247 kg Length A1: 360 mm CE marking: Yes Height C1: 22 mm T-ambient: -25 (min), 50 (max) C Width B1: 30 mm Lifetime 90% surv.@Tcaselife: 50000 hr Fixing Hole Diameter D1: 4.2 mm Fixing Hole Distance Length A2: 350 mm Inrush current Peak: 20 (max) A Earth leakage current: 0.5 (max) mA Inrush current Width: 0.35 ms T-storage: -40 (min), 80 (max) C Rated Lamptype: TL5 Line Voltage: 220-240 V Rated Ballast-Lamp Power: 28-54 Rated Number of Lamps: 1 piece T-case life: 75 C Approval marks: ENEC / VDE-EMV Automatic restart: Yes Energy Efficiency Index: A2 Housing: L 360x30x22 Mains voltage safety (AC): -10%/+10% Mains voltage performance (AC): -8%/+6% Ballast Lumen Factor: 1.00 - Power losses gear: 4.8-7.0 W Crestfactor: 1.7 (max) - Max ballast on MCB(16A type B): 18 x Cable-Cap outputwires mutual: 70 pF Hum and Noise level: Inaudible Conn.type input terminals: Insert Conn.type output terminals: Insert Max. cable length Hot Wires: 0.75 m Striplength: 8.0-9.0 mm Wcs Input terminals: 0.50-1.00 mm2 Wcs Output terminals: 0.50-1.00 mm2 Bumps: IEC 68-2-29 Eb EMI 9kHz .. 30 MHz: EN 55015 Vibrations: IEC 68-2-6 Fc Lamp Power on TL5: 30.9/39.8/52.6/57.8 Rated Lamp Power on TL5: 28/35/49/54 System Power on TL5: 37.9/44.4/56.8/62.6 Power Loss on TL5: 7/4.6/4.2/4.8 Application code: EII Ignition Method: Warm Start Ignition time: 5.0 (max) s Battery voltage running lamps: 198-276 T-ignition: -25 (min), 50 (max) C EMI 30 MHz .. 1000MHz: EN 55022 Class B Performance Standard: IEC 60929 Safety Standard: IEC 61347-2-3 Environmental Standard: ISO 14001 Quality Standard: ISO 9000:2000 Harmonic current emissions: IEC 61000-3-2 EMC Immunity: IEC 61547 Humidity: EN 61347-2-3 clause 11 Emergency standard: IEC 60598-2-22 Temperature marking: 110 [Yes] Cable-Cap outputwires to earth: 70 pF Constant wattage deviation: -2%/+2% « hide more

€ 26,71 € 26,71 ex. VAT

HF-Pi 2 28/35/49/54 TL5 EII 220-240V

Karta produktu PDF

Product code: 58425 Line Frequency: 50/60 Hz T-case maximum: 75 (max) C Full product code: 913700624366 Full product name: HF-Pi 2 28/35/49/54 TL5 EII 220-240V Order code: 913700624366 Order product name: HF-Pi 2 28/35/49/54 TL5 EII 220-240V Packing configuration: 12 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500915030 Bar code on pack - EAN1: 8711500915023 see more »

Packs per outerbox: 12 Logistic code(s) - 12NC: 913700624366 Net weight per piece: 0.305 kg Length A1: 360 mm CE marking: Yes Height C1: 22 mm T-ambient: -25 (min), 50 (max) C Width B1: 30 mm Lifetime 90% surv.@Tcaselife: 50000 hr Fixing Hole Diameter D1: 4.2 mm Fixing Hole Distance Length A2: 350 mm Inrush current Peak: 31 (max) A Earth leakage current: 0.5 (max) mA Inrush current Width: 0.35 ms T-storage: -40 (min), 80 (max) C Rated Lamptype: TL5 Line Voltage: 220-240 V Rated Ballast-Lamp Power: 28-54 Rated Number of Lamps: 2 piece T-case life: 75 C Approval marks: ENEC / VDE-EMV Automatic restart: Yes Energy Efficiency Index: A2 Housing: L 360x30x22 Mains voltage safety (AC): -10%/+10% Mains voltage performance (AC): -8%/+6% Ballast Lumen Factor: 1.00 - Power losses gear: 6.1-8.9 W Crestfactor: 1.7 (max) - Max ballast on MCB(16A type B): 12 x Cable-Cap outputwires mutual: 70 pF Hum and Noise level: Inaudible Conn.type input terminals: Insert Conn.type output terminals: Insert Max. cable length Hot Wires: 0.75 m Striplength: 8.0-9.0 mm Wcs Input terminals: 0.50-1.00 mm2 Wcs Output terminals: 0.50-1.00 mm2 Bumps: IEC 68-2-29 Eb EMI 9kHz .. 30 MHz: EN 55015 Vibrations: IEC 68-2-6 Fc Lamp Power on TL5: 27.5/34.4/45.6/48.4 Rated Lamp Power on TL5: 28/35/49/54 System Power on TL5: 33.6/41.1/53/53.2 Power Loss on TL5: 6.1/6.7/7.4/8 Application code: EII Ignition Method: Warm Start Ignition time: 5.0 (max) s Battery voltage running lamps: 198-276 T-ignition: -25 (min), 50 (max) C EMI 30 MHz .. 1000MHz: EN 55022 Class B Performance Standard: IEC 60929 Safety Standard: IEC 61347-2-3 Environmental Standard: ISO 14001 Quality Standard: ISO 9000:2000 Harmonic current emissions: IEC 61000-3-2 EMC Immunity: IEC 61547 Humidity: EN 61347-2-3 clause 11 Emergency standard: IEC 60598-2-22 Temperature marking: 110 [Yes] Cable-Cap outputwires to earth: 70 pF Constant wattage deviation: -2%/+2% « hide more

€ 31,10 € 31,10 ex. VAT

Description / FAQ Warranty

HF-Performer Intelligent for Master and ECO TL5 HE/HO, TL-D and PL-L lampsHF-Performer Intelligent features automatic recognition of the connected lamp and is independently able to adjust its operation parameters exactly to the respective lamp. This results in a substantial benefit, especially for T5 lamps, as it means TL5 HE and HO lamps of the same length can be interchanged.With a choice of seven ballasts, the customer is able to handle efficiently every possible combination of Master TL5 and Eco, TL-D, and PL-L lamps.

Features

Highest CELMA Energy Efficiency Index A2 BAT

Complies with CE, ENEC, EL, VDE-EMC, CCC marks of conformity

Average nominal service lifetime over 100,000 hours (at Ta 50 °C) with a failure rate ≤ 0.1 % per 1,000 hours

Optimized lamp preheating for a minimum of 50,000 On/Off switch operations without lamp replacement

Applications

Suitable for DC operation and emergency lighting installations; full compliance with requirements for emergency lighting according to EN 61347-2-3-annex J

Extended lamp life in frequent-switching applications, e.g. where occupancy sensors or motion detectors are used

For luminaires of protection class I and protection class II used in office buildings, hospitals, supermarkets, department stores, industrial premises and schools
