TL5C lamps Fluorescent Electronic Gear

Philips HF-P 1 13-17 PL-T/C/R EII 220-240V

From € 20,21 incl. VAT
From € 20,21 ex. VAT

See variants (2)

Ask for product Description / FAQ / Warranty

Score

rate product

Select your product from the 2

HF-P 1 22-42 PL-T/C/L/TL5C EII 220-240V

Karta produktu PDF

Product code: 58414 Line Frequency: 50/60 Hz T-case maximum: 75 (max) C Full product code: 913700630766 Full product name: HF-P 1 22-42 PL-T/C/L/TL5C EII 220-240V Order code: 913700630766 Order product name: HF-P 1 22-42 PL-T/C/L/TL5C EII 220-240V Packing configuration: 12 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500913982 Bar code on pack - EAN1: 8711500913975 see more »

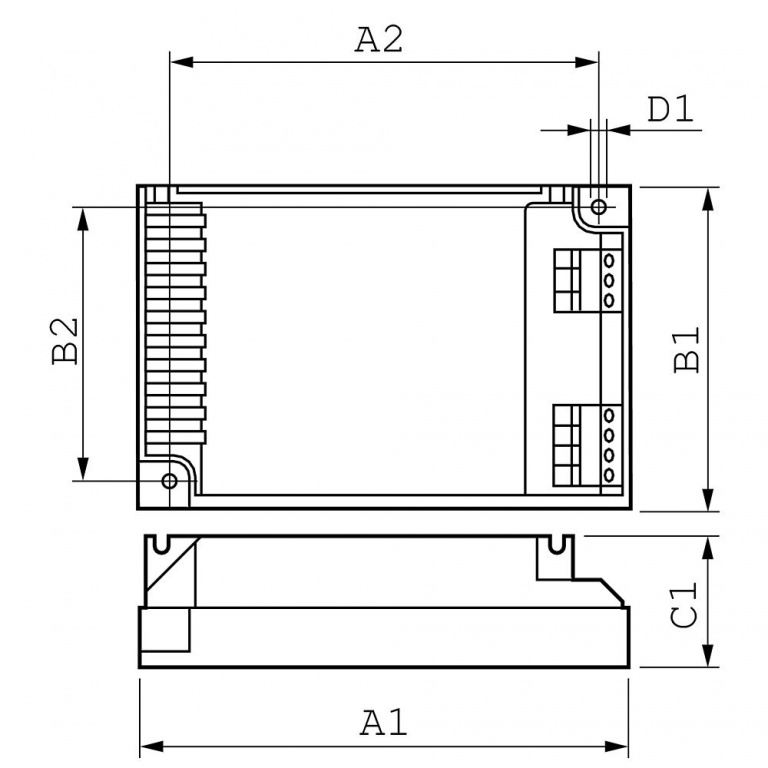

Packs per outerbox: 12 Logistic code(s) - 12NC: 913700630766 Net weight per piece: 0.140 kg Length A1: 103.0 mm CE marking: Yes Height C1: 30.0 mm T-ambient: -25 (min), 50 (max) C Width B1: 67.0 mm Lifetime 90% surv.@Tcaselife: 50000 hr Fixing Hole Diameter D1: 4.5 mm Fixing Hole Distance Length A2: 93.5 mm Fixing Hole Distance Width B2: 57.5 mm Inrush current Peak: 18 (max) A Earth leakage current: 0.5 mA Inrush current Width: 0.25 ms T-storage: -40 (min), 80 (max) C Rated Lamptype: PL-T/C/L/TL5C Line Voltage: 220-240 V Rated Ballast-Lamp Power: 22-42 Rated Number of Lamps: 1 piece T-case life: 75 C Approval marks: ENEC / VDE-EMV Automatic restart: Yes Energy Efficiency Index: A2 Mains voltage safety (AC): -10%/+10% Mains voltage performance (AC): -8%/+6% Ballast Lumen Factor: 1 - Power losses gear: 2.86-2.66 W PowerFactor 100% output power: 0.95 - Overvoltage protection 320Vac: 48 hr Overvoltage protection 350Vac: 2 hr Crestfactor: 1.7 (max) - Max ballast on MCB(16A type B): 28 x Cable-Cap outputwires mutual: 200 pF Hum and Noise level: Inaudible Conn.type input terminals: Insert Conn.type output terminals: Insert Max. cable length Hot Wires: 0.75 m Striplength: 7.5-8.5 mm Dual fixture Master/Slave: Not applicable [Master/Slave oper. not applicable] Wcs Input terminals: 0.50-1.50 mm2 Wcs Output terminals: 0.50-1.50 mm2 Bumps: IEC 68-2-29 Eb EMI 9kHz .. 30 MHz: EN 55015 Vibrations: IEC 68-2-6 Fc Application code: EII Ignition Method: Warm Start Ignition time: 0.52 (max) s Operating frequency: 42 (min), 45 (nom) kHz Battery voltage lamp ignition: 198-254 V Battery voltage running lamps: 176-254 Total Harmonic Distortion EUR: 17 % T-ignition: -25 (min), 50 (max) C EMI 30 MHz .. 1000MHz: EN 55022 level B [Level = Class] Performance Standard: IEC 60929 Safety Standard: IEC 61347-2-3 Environmental Standard: ISO 14001 Quality Standard: ISO 9000:2000 Harmonic current emissions: IEC 61000-3-2 EMC Immunity: IEC 61547 Humidity: EN 61347-2-3 clause 11 Emergency standard: IEC 60598-2-22 Temperature marking: 110 [Yes] Cable-Cap outputwires to earth: 200 pF Constant wattage deviation: -2%/+2% Rated Lamp Power on PL-T/C: 22/42 « hide more

€ 20,21 € 20,21 ex. VAT

HF-P 2 22-42 PL-T/C/L/TL5C EII 220-240V

Karta produktu PDF

Product code: 58416 Line Frequency: 50/60 Hz T-case maximum: 75 (max) C Full product code: 913700630866 Full product name: HF-P 2 22-42 PL-T/C/L/TL5C EII 220-240V Order code: 913700630866 Order product name: HF-P 2 22-42 PL-T/C/L/TL5C EII 220-240V Packing configuration: 12 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500914019 Bar code on pack - EAN1: 8711500913999 see more »

Packs per outerbox: 12 Logistic code(s) - 12NC: 913700630866 Net weight per piece: 0.150 kg Length A1: 103.0 mm CE marking: Yes Height C1: 30.0 mm T-ambient: -25 (min), 50 (max) C Width B1: 67.0 mm Lifetime 90% surv.@Tcaselife: 50000 hr Fixing Hole Diameter D1: 4.5 mm Fixing Hole Distance Length A2: 93.5 mm Fixing Hole Distance Width B2: 57.5 mm Inrush current Peak: 31 (max) A Earth leakage current: 0.5 mA Inrush current Width: 0.35 ms T-storage: -40 (min), 80 (max) C Rated Lamptype: PL-T/C/L/TL5C Line Voltage: 220-240 V Rated Ballast-Lamp Power: 22-42 Rated Number of Lamps: 2 piece T-case life: 75 C Approval marks: ENEC / VDE-EMV Automatic restart: Yes Energy Efficiency Index: A2 Mains voltage safety (AC): -10%/+10% Mains voltage performance (AC): -8%/+6% Ballast Lumen Factor: 1 - Power losses gear: 4.35-4.93 W PowerFactor 100% output power: 0.95 - Overvoltage protection 320Vac: 48 hr Overvoltage protection 350Vac: 2 hr Crestfactor: 1.7 (max) - Max ballast on MCB(16A type B): 12 x Cable-Cap outputwires mutual: 100 pF Hum and Noise level: Inaudible Conn.type input terminals: Insert Conn.type output terminals: Insert Max. cable length Hot Wires: 0.75 m Striplength: 7.5-8.5 mm Dual fixture Master/Slave: Not applicable [Master/Slave oper. not applicable] Wcs Input terminals: 0.50-1.50 mm2 Wcs Output terminals: 0.50-1.50 mm2 Bumps: IEC 68-2-29 Eb EMI 9kHz .. 30 MHz: EN 55015 Vibrations: IEC 68-2-6 Fc Application code: EII Ignition Method: Warm Start Ignition time: 0.52 (max) s Operating frequency: 42 (min), 45 (nom) kHz Battery voltage lamp ignition: 198-254 V Battery voltage running lamps: 176-254 Total Harmonic Distortion EUR: 12 % T-ignition: -25 (min), 50 (max) C EMI 30 MHz .. 1000MHz: EN 55022 level B [Level = Class] Performance Standard: IEC 60929 Safety Standard: IEC 61347-2-3 Environmental Standard: ISO 14001 Quality Standard: ISO 9000:2000 Harmonic current emissions: IEC 61000-3-2 EMC Immunity: IEC 61547 Humidity: EN 61347-2-3 clause 11 Emergency standard: IEC 60598-2-22 Temperature marking: 110 [Yes] Cable-Cap outputwires to earth: 100 pF Constant wattage deviation: -2%/+2% Rated Lamp Power on PL-T/C: 22/42 « hide more

€ 20,64 € 20,64 ex. VAT

Description / FAQ Warranty

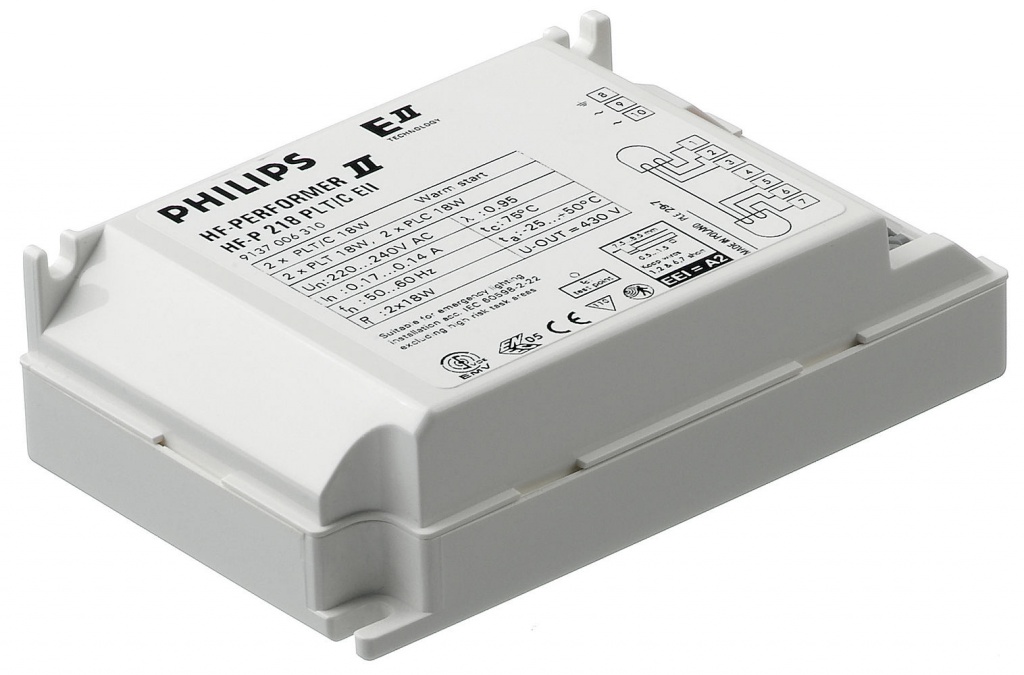

HF-Performer EII PL-T/C/R/T5c is a sustainable, slim and high-frequency electronic ballast for a wide range of CFL- ni applications. It is ideal for applications where high energy efficiency is required. The HF-Performer EII range has a robust design, meets all relevant international safety and performance standards and is energy-efficient (CELMA EEI A2).

Features

50,000-hour lifetime at maximum case temperature, combined with over 60,000 on/off switches on one lamp

Programmed, flicker-free, pre-heated start (< 1.5 s) which allows the lamp to be switched on and off without reducing useful lamp life

Active power factor correction to ensure constant light, irrespective of mains-voltage fluctuations

The unit is protected against excessive mains voltage and incorrect connections.

Applications

Ideal for commercial indoor lighting applications where it is necessary to reduce the wattage per square meter or operating costs

Used with movement-detection control systems like Philips OccuPlus

Mainly for indoor applications such as spotlights, downlights and recessed fixtures used largely in retail stores, office buildings, supermarkets, hotels, convenience stores

Industrial premises with long operating hours
