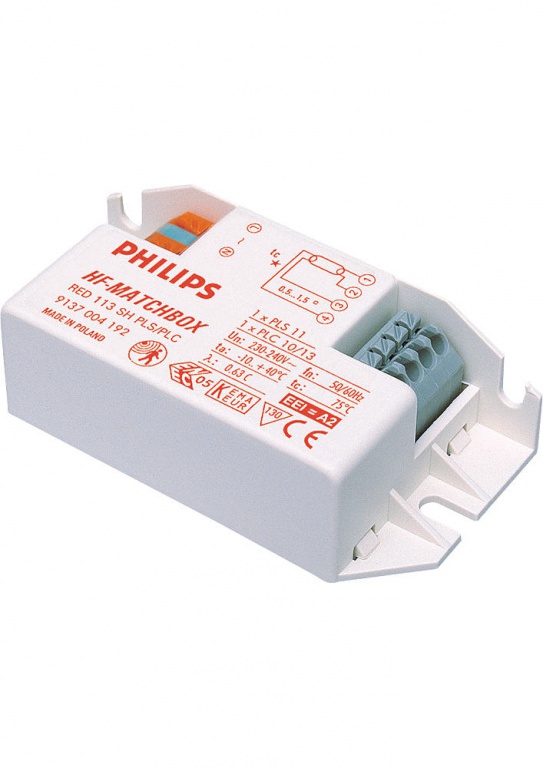

HF-Matchbox Red Fluorescent Electronic Gear

From € 10,83 incl. VAT
From € 10,83 ex. VAT
See variants (4)

Select your product from the 4

 HF-M RED 109 SH TL/PL-S 230-240V
Product code: 58440 Line Frequency: 50/60 Hz T-case maximum: 75 (max) C Full product code: 913700422866 Full product name: HF-M RED 109 SH TL/PL-S 230-240V Order code: 913700422866 Order product name: HF-M RED 109 SH TL/PL-S 230-240V Packing configuration: 50 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500931436 Bar code on pack - EAN1: 8711500931429 see more »

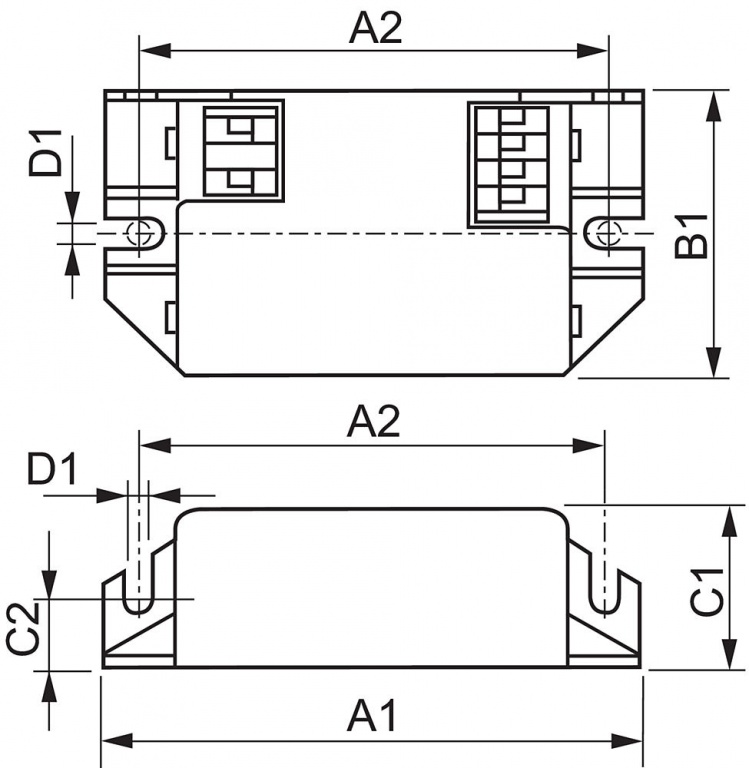

Packs per outerbox: 50 Logistic code(s) - 12NC: 913700422866 Net weight per piece: 0.034 kg Length A1: 80.0 mm CE marking: Yes UL certificate: No Height C1: 22.0 mm T-ambient: -10 (min), 40 (max) C Width B1: 40.0 mm Lifetime 90% surv.@Tcaselife: 40000 hr Fixing Hole Diameter D1: 4.4 mm Fixing Hole Distance Length A2: 70.0 mm ENEC certificate: Yes Rated Lamptype: TL/PL-S Line Voltage: 230-240 V Rated Ballast-Lamp Power: 9 Rated Number of Lamps: 1 piece Automatic restart: Yes Housing: SH Mains voltage safety (AC): -10%/+10% Mains voltage performance (AC): -8%/+6% Power losses gear: 1.7 W PowerFactor 100% output power: 0.64 - Overvoltage protection 320Vac: 0.03 hr Max ballast on MCB(16A type B): 159 x Conn.type input terminals: Insert Conn.type output terminals: Insert Max. cable length Hot Wires: 0.30 m Striplength: 8.0-9.0 mm Wcs Input terminals: 0.50-1.50 mm2 Wcs Output terminals: 0.50-1.50 mm2 F-marking: Yes CB Certificate: Yes Battery voltage lamp ignition: 194-254 V VDE certificate: No Maximum ignition time: 0.45 (max) s Color input terminals: Black Color output terminals: Grey Max. cable length Device/Lamp: 1.50 m Power Loss on PL-S: 1.7 Rated Lamp Power on PL-S: 9 System Power on PL-S: 8.2 Lamp Power on PL-S: 6.5 Lamp Power on TL: 5.3 Power Loss on TL: 1.7 Rated Lamp Power on TL: 9 System Power on TL: 7 Fixing Hole Distance Height C2: 10.0 mm « hide more
€ 10,83 € 10,83 ex. VAT
pc(s)
pc(s)
 HF-M RED 114 SH TL/TL5/PL-C/S 230-240V
Product code: 58441 Line Frequency: 50/60 Hz T-case maximum: 80 (max) C Full product code: 913700423266 Full product name: HF-M RED 114 SH TL/TL5/PL-C/S 230-240V Order code: 913700423266 Order product name: HF-M RED 114 SH TL/TL5/PL-C/S 230-240V Packing configuration: 50 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500931412 Bar code on pack - EAN1: 8711500931405 see more »
Packs per outerbox: 50 Logistic code(s) - 12NC: 913700423266 Net weight per piece: 0.034 kg Length A1: 80.0 mm CE marking: Yes UL certificate: No Height C1: 22.0 mm T-ambient: -25 (min), 50 (max) C Width B1: 40.0 mm Lifetime 90% surv.@Tcaselife: 45000 hr Fixing Hole Diameter D1: 4.2 mm Fixing Hole Distance Length A2: 70.0 mm ENEC certificate: Yes Rated Lamptype: TL/TL5/PL-C/S Line Voltage: 230-240 V Rated Ballast-Lamp Power: 14 Rated Number of Lamps: 1 piece Automatic restart: Yes Housing: SH Mains voltage safety (AC): -10%/+10% Mains voltage performance (AC): -8%/+6% Power losses gear: 2.9 W PowerFactor 100% output power: 0.64 - Overvoltage protection 320Vac: 48 hr Max ballast on MCB(16A type B): 101 x Conn.type input terminals: Insert Conn.type output terminals: Insert Max. cable length Hot Wires: 0.75 m Striplength: 8.0-9.0 mm Wcs Input terminals: 0.50-1.50 mm2 Wcs Output terminals: 0.50-1.50 mm2 F-marking: No CB Certificate: No Lamp Power on TL5: 13.1 Rated Lamp Power on TL5: 14 System Power on TL5: 16 Power Loss on TL5: 2.9 Battery voltage lamp ignition: 190-254 V VDE certificate: No Maximum ignition time: 1.55 (max) s Color input terminals: Blue Color output terminals: Grey Lamp Power on PL-C: 8.9 Power Loss on PL-C: 1.7 Rated Lamp Power on PL-C: 14 System Power on PL-C: 10.6 Fixing Hole Distance Height C2: 10.0 mm « hide more
€ 10,83 € 10,83 ex. VAT
pc(s)
pc(s)
 HF-M RED 118 SH PL-C/PL-T 230-240V
Product code: 58442 Line Frequency: 50/60 Hz T-case maximum: 75 (max) C Full product code: 913700423466 Full product name: HF-M RED 118 SH PL-C/PL-T 230-240V Order code: 913700423466 Order product name: HF-M RED 118 SH PL-C/PL-T 230-240V Packing configuration: 50 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500928030 Bar code on pack - EAN1: 8711500928023 see more »
Packs per outerbox: 50 Logistic code(s) - 12NC: 913700423466 Net weight per piece: 0.034 kg Length A1: 80.0 mm CE marking: Yes UL certificate: No Height C1: 22.0 mm T-ambient: -10 (min), 40 (max) C Width B1: 40.0 mm Lifetime 90% surv.@Tcaselife: 40000 hr Fixing Hole Diameter D1: 4.4 mm Fixing Hole Distance Length A2: 70.0 mm ENEC certificate: Yes Rated Lamptype: PL-C/PL-T Line Voltage: 230-240 V Rated Ballast-Lamp Power: 18 Rated Number of Lamps: 1 piece Automatic restart: Yes Housing: SH Mains voltage safety (AC): -10%/+10% Mains voltage performance (AC): -8%/+6% Power losses gear: 2.0-2.1 W PowerFactor 100% output power: 0.62 - Overvoltage protection 320Vac: 0.03 hr Max ballast on MCB(16A type B): 73 x Conn.type input terminals: Insert Conn.type output terminals: Insert Max. cable length Hot Wires: 0.30 m Striplength: 8.0-9.0 mm Wcs Input terminals: 0.50-1.50 mm2 Wcs Output terminals: 0.50-1.50 mm2 F-marking: Yes CB Certificate: Yes Battery voltage lamp ignition: 194-254 V Rated Lamp Power on PL-T: 18 System Power on PL-T: 17.3 Power Loss on PL-T: 2.1 Lamp Power on PL-T: 15.2 VDE certificate: No Maximum ignition time: 0.45 (max) s Color input terminals: Orange Color output terminals: Grey Max. cable length Device/Lamp: 1.50 m Lamp Power on PL-C: 15.9 Power Loss on PL-C: 2 Rated Lamp Power on PL-C: 18 System Power on PL-C: 17.9 Fixing Hole Distance Height C2: 10.0 mm « hide more
€ 10,83 € 10,83 ex. VAT
pc(s)
pc(s)
 HF-M RED 124 SH TL/TL5/PL-L 230-240V
Product code: 58443 Line Frequency: 50/60 Hz T-case maximum: 75 (max) C Full product code: 913700420666 Full product name: HF-M RED 124 SH TL/TL5/PL-L 230-240V Order code: 913700420666 Order product name: HF-M RED 124 SH TL/TL5/PL-L 230-240V Packing configuration: 50 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500910417 Bar code on pack - EAN1: 8711500910400 see more »
Packs per outerbox: 50 Logistic code(s) - 12NC: 913700420666 Net weight per piece: 0.041 kg Length A1: 94.0 mm CE marking: Yes UL certificate: No Height C1: 22.0 mm T-ambient: -10 (min), 40 (max) C Width B1: 40.0 mm Lifetime 90% surv.@Tcaselife: 50000 hr Fixing Hole Diameter D1: 4.4 mm Fixing Hole Distance Length A2: 70.0 mm ENEC certificate: Yes Rated Lamptype: TL/TL5/PL-L Line Voltage: 230-240 V Rated Ballast-Lamp Power: 24 Rated Number of Lamps: 1 piece Automatic restart: Yes Housing: SH Mains voltage safety (AC): -10%/+10% Mains voltage performance (AC): -8%/+6% Power losses gear: 2.9 W PowerFactor 100% output power: 0.61 - Overvoltage protection 320Vac: 0.03 hr Max ballast on MCB(16A type B): 48 x Conn.type input terminals: Insert Conn.type output terminals: Insert Max. cable length Hot Wires: 0.30 m Striplength: 8.0-9.0 mm Wcs Input terminals: 0.50-1.50 mm2 Wcs Output terminals: 0.50-1.50 mm2 F-marking: Yes CB Certificate: Yes Lamp Power on TL5: 19.8 Rated Lamp Power on TL5: 24 System Power on TL5: 22.7 Power Loss on TL5: 2.9 Battery voltage lamp ignition: 194-254 V Lamp Power on PL-L: 19.3 Rated Lamp Power on PL-L: 24 System Power on PL-L: 22.2 Power Loss on PL-L: 2.9 VDE certificate: No Maximum ignition time: 0.92 (max) s Color input terminals: Red Color output terminals: Grey Max. cable length Device/Lamp: 1.50 m Fixing Hole Distance Height C2: 10.0 mm « hide more
€ 11,69 € 11,69 ex. VAT
pc(s)
pc(s)

HF-Matchbox Red is an affordable, reliable, compact, lightweight and high-frequency ballast for use with system wattages below 25 W in combination with TL mini, TL-D, TL5 and TL5c, PL-T/C, and PL-L/S lamps. The HF-M Red range has a robust design, meets all relevant international safety and performance standards and has an energy efficiency index (CELMA EEI ) of A2.

Features

Over 60,000 on/off switches on one lamp (depending on lamp/ballast combination)
Suitable for emergency DC operation between 190 and 254 V
Programmed, flicker-free, pre-heated start (

Applications

Used with movement-detection control systems like Philips OccuPlus
Mainly for indoor applications such as spotlights, downlights, light boxes, and emergency and security fixtures used largely in retail stores, office buildings, hotels, private homes and residential buildings
Domestic applications such as outdoor garden lighting, garage areas, stairways
