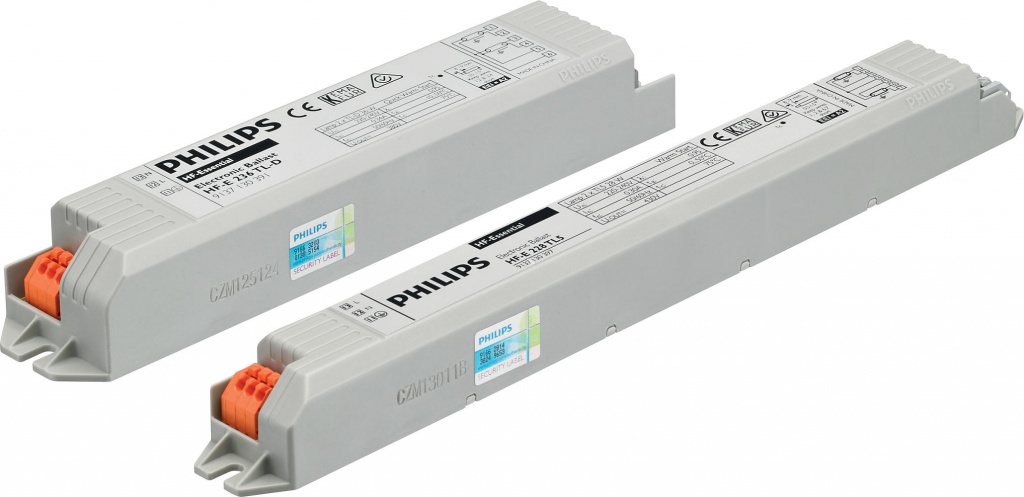

HF-E 158 TL-D 220-240 50/60Hz Fluorescent Electronic Gear

Product code: 58347
Price € 7,81 incl. VAT
€ 7,81 netto
pc(s)
pc(s)
  • Line Frequency 50/60 Hz
  • T-case maximum 75 (max) C
  • Full product code 913713038966
  • Full product name HF-E 158 TL-D 220-240V 50/60Hz
  • Order code 913713038966
  • Order product name HF-E 158 TL-D 220-240V 50/60Hz
  • Packing configuration 50
  • Pieces per pack 1
  • Bar code on outerbox - EAN3 8718291668701
  • Bar code on pack - EAN1 8718291668695
  • Packs per outerbox 50
  • Logistic code(s) - 12NC 913713038966
  • ▼ see full specification ▼

Essentially smart and reliableHF-Essential is the most cost-effective, slim and affordable ballast to reliably operate a fluorescent lamp. It is also the ideal entry-level product for EM system users who want to enjoy the benefits offered by electronic ballasts. The cost-saving and reliable HF-Essential has an energy efficiency class A2, and its robust design meets all relevant international safety and performance standards. HF- Essential is intended for use with indoor lighting fixtures such as recessed luminaires, which are largely used in office, industrial, hotel, restaurant and other applications.

Select your product from the 4

 HF-E 158 TL-D 220-240 50/60Hz
HF-E 158 TL-D 220-240 50/60Hz (currently dislayed)
Product code: 58347 Line Frequency: 50/60 Hz T-case maximum: 75 (max) C Full product code: 913713038966 Full product name: HF-E 158 TL-D 220-240V 50/60Hz Order code: 913713038966 Order product name: HF-E 158 TL-D 220-240V 50/60Hz Packing configuration: 50 Pieces per pack: 1 Bar code on outerbox - EAN3: 8718291668701 Bar code on pack - EAN1: 8718291668695 see more »
Packs per outerbox: 50 Logistic code(s) - 12NC: 913713038966 Net weight per piece: 0.100 kg Length A1: 150.0 mm CE marking: Yes Height C1: 28.0 mm T-ambient: -10 (min), 50 (max) C Width B1: 40.0 mm Lifetime 90% surv.@Tcaselife: 30000 hr Fixing Hole Diameter D1: 4.2 mm Fixing Hole Distance Length A2: 136.0 mm ENEC certificate: No Inrush current Peak: 15 (max) A Earth leakage current: 0.5 (max) mA Inrush current Width: 0.24 ms T-storage: -20 (min), 50 (max) C Rated Lamptype: TL-D Line Voltage: 220-240 V Rated Ballast-Lamp Power: 58 Rated Number of Lamps: 1 piece T-case life: 75 C Approval marks: CE / KEMA / C-Tick / CB / RoHS Automatic restart: Yes Energy Efficiency Index: A2 Mains voltage safety (AC): 198...264V Operating frequency *: 43 kHz Mains voltage performance (AC): 184...253V Ballast Lumen Factor: 1 - Power losses gear: 6 W PowerFactor 100% output power: 0.95 - Overvoltage protection 320Vac: 48 hr Overvoltage protection 350Vac: 2 hr Crestfactor: 1.8 - Max ballast on MCB(16A type B): 20 x Cable-Cap outputwires mutual: 150 (max) pF Hum and Noise level: < 30 dB(A) Conn.type input terminals: Insert Conn.type output terminals: Insert Max. cable length Hot Wires: 0.75 m Striplength: 8.0-9.0 mm Dual fixture Master/Slave: Not applicable [Master/Slave oper. not applicable] Wcs Input terminals: 0.50-1.50 mm2 Wcs Output terminals: 0.50-1.50 mm2 Cable-Cap cold out-wires-earth: 150 (max) pF Cable-Cap hot out-wires-earth: 150 (max) pF F-marking: No Bumps: IEC 60068-2-29:1993-Eb EMI 9kHz .. 30 MHz: EN 55015 Vibrations: IEC 60068-2-6:2007-Fc C-Tick certificate: Yes CCC certificate: No PSB certification: No TISI marking: No CB Certificate: Yes SIRIM approval: No « hide more
€ 7,81 € 7,81 ex. VAT
pc(s)
pc(s)
 HF-E 418 TL-D 220-240 50/60Hz
Product code: 58350 Line Frequency: 50/60 Hz T-case maximum: 75 (max) C Full product code: 913713039266 Full product name: HF-E 418 TL-D 220-240V 50/60Hz Order code: 913713039266 Order product name: HF-E 418 TL-D 220-240V 50/60Hz Packing configuration: 20 Pieces per pack: 1 Bar code on outerbox - EAN3: 8718291668787 Bar code on pack - EAN1: 8718291668770 see more »
Packs per outerbox: 20 Logistic code(s) - 12NC: 913713039266 Net weight per piece: 0.100 kg Length A1: 211.0 mm CE marking: Yes Height C1: 30.0 mm T-ambient: -10 (min), 50 (max) C Width B1: 40.0 mm Lifetime 90% surv.@Tcaselife: 30000 hr Fixing Hole Diameter D1: 4.2 mm Fixing Hole Distance Length A2: 197.0 mm ENEC certificate: No Inrush current Peak: 20 (max) A Earth leakage current: 0.5 (max) mA Inrush current Width: 0.37 ms T-storage: -20 (min), 50 (max) C Rated Lamptype: TL-D Line Voltage: 220-240 V Rated Ballast-Lamp Power: 18 Rated Number of Lamps: 4 piece T-case life: 75 C Approval marks: CE / KEMA / C-Tick / CB / RoHS Automatic restart: Yes Energy Efficiency Index: A2 Housing: L 211x40x30 Mains voltage safety (AC): 198...264V Operating frequency *: 51 kHz Mains voltage performance (AC): 184...253V Ballast Lumen Factor: 1.02 - Power losses gear: 12 W PowerFactor 100% output power: 0.95 - Overvoltage protection 320Vac: 48 hr Overvoltage protection 350Vac: 2 hr Crestfactor: 1.8 - Max ballast on MCB(16A type B): 20 x Cable-Cap outputwires mutual: 150 (max) pF Hum and Noise level: < 30 dB(A) Conn.type input terminals: Insert Conn.type output terminals: Insert Max. cable length Hot Wires: 0.75 m Striplength: 8.0-9.0 mm Dual fixture Master/Slave: Not applicable [Master/Slave oper. not applicable] Wcs Input terminals: 0.50-1.50 mm2 Wcs Output terminals: 0.50-1.50 mm2 Cable-Cap cold out-wires-earth: 150 (max) pF Cable-Cap hot out-wires-earth: 150 (max) pF Rated Lamp Power on TL-D: 18 Lamp Power on TL-D: 15.1/15.7/15.7 Power Loss on TL-D: 8.5/8.0/10.3 System Power on TL-D: 23.6/23.7/26.0 F-marking: No Bumps: IEC 60068-2-29:1993-Eb EMI 9kHz .. 30 MHz: EN 55015 Vibrations: IEC 60068-2-6:2007-Fc C-Tick certificate: Yes CCC certificate: No PSB certification: No TISI marking: No CB Certificate: Yes SIRIM approval: No « hide more
€ 9,51 € 9,51 ex. VAT
pc(s)
pc(s)
 HF-E 1/2 58 TL-D II 220-240 50/60Hz
Product code: 72818 Full product name: HF-E 1/2 58 TL-D II 220-240 50/60Hz Rated Lamptype: TL-D Rated Ballast-Lamp Power: 58 Rated Number of Lamps: 1 piece
€ 10,74 € 10,74 ex. VAT
pc(s)
pc(s)
 HF-E 418 TL-D II 220-240 50/60Hz
Product code: 71371 Line Frequency: 50/60 Hz T-case maximum: 75 (max) C Full product code: 913713039266 Full product name: HF-E 418 TL-D 220-240V 50/60Hz Order code: 913713039266 Order product name: HF-E 418 TL-D 220-240V 50/60Hz Packing configuration: 20 Pieces per pack: 1 Bar code on outerbox - EAN3: 8718291668787 Bar code on pack - EAN1: 8718291668770 see more »
Packs per outerbox: 20 Logistic code(s) - 12NC: 913713039266 Net weight per piece: 0.100 kg Length A1: 211.0 mm CE marking: Yes Height C1: 30.0 mm T-ambient: -10 (min), 50 (max) C Width B1: 40.0 mm Lifetime 90% surv.@Tcaselife: 30000 hr Fixing Hole Diameter D1: 4.2 mm Fixing Hole Distance Length A2: 197.0 mm ENEC certificate: No Inrush current Peak: 20 (max) A Earth leakage current: 0.5 (max) mA Inrush current Width: 0.37 ms T-storage: -20 (min), 50 (max) C Rated Lamptype: TL-D Line Voltage: 220-240 V Rated Ballast-Lamp Power: 18 Rated Number of Lamps: 4 piece T-case life: 75 C Approval marks: CE / KEMA / C-Tick / CB / RoHS Automatic restart: Yes Energy Efficiency Index: A2 Housing: L 211x40x30 Mains voltage safety (AC): 198...264V Operating frequency *: 51 kHz Mains voltage performance (AC): 184...253V Ballast Lumen Factor: 1.02 - Power losses gear: 12 W PowerFactor 100% output power: 0.95 - Overvoltage protection 320Vac: 48 hr Overvoltage protection 350Vac: 2 hr Crestfactor: 1.8 - Max ballast on MCB(16A type B): 20 x Cable-Cap outputwires mutual: 150 (max) pF Hum and Noise level: < 30 dB(A) Conn.type input terminals: Insert Conn.type output terminals: Insert Max. cable length Hot Wires: 0.75 m Striplength: 8.0-9.0 mm Dual fixture Master/Slave: Not applicable [Master/Slave oper. not applicable] Wcs Input terminals: 0.50-1.50 mm2 Wcs Output terminals: 0.50-1.50 mm2 Cable-Cap cold out-wires-earth: 150 (max) pF Cable-Cap hot out-wires-earth: 150 (max) pF Rated Lamp Power on TL-D: 18 Lamp Power on TL-D: 15.1/15.7/15.7 Power Loss on TL-D: 8.5/8.0/10.3 System Power on TL-D: 23.6/23.7/26.0 F-marking: No Bumps: IEC 60068-2-29:1993-Eb EMI 9kHz .. 30 MHz: EN 55015 Vibrations: IEC 60068-2-6:2007-Fc C-Tick certificate: Yes CCC certificate: No PSB certification: No TISI marking: No CB Certificate: Yes SIRIM approval: No « hide more
€ 13,96 € 13,96 ex. VAT
pc(s)
pc(s)
Line Frequency 50/60 Hz
T-case maximum 75 (max) C
Full product code 913713038966
Full product name HF-E 158 TL-D 220-240V 50/60Hz
Order code 913713038966
Order product name HF-E 158 TL-D 220-240V 50/60Hz
Packing configuration 50
Pieces per pack 1
Bar code on outerbox - EAN3 8718291668701
Bar code on pack - EAN1 8718291668695
Packs per outerbox 50
Logistic code(s) - 12NC 913713038966
Net weight per piece 0.100 kg

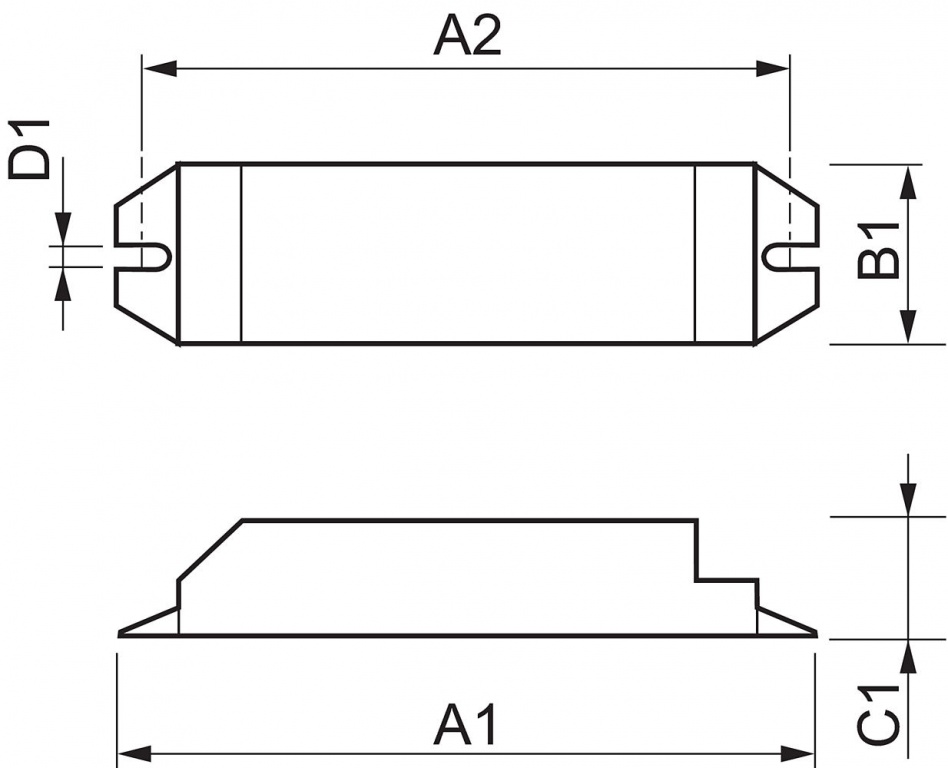

Length A1 150.0 mm
CE marking Yes
Height C1 28.0 mm
T-ambient -10 (min), 50 (max) C
Width B1 40.0 mm
Lifetime 90% surv.@Tcaselife 30000 hr
Fixing Hole Diameter D1 4.2 mm
Fixing Hole Distance Length A2 136.0 mm
ENEC certificate No
Inrush current Peak 15 (max) A
Earth leakage current 0.5 (max) mA
Inrush current Width 0.24 ms
T-storage -20 (min), 50 (max) C
Rated Lamptype TL-D
Line Voltage 220-240 V
Rated Ballast-Lamp Power 58
Rated Number of Lamps 1 piece
T-case life 75 C
Approval marks CE / KEMA / C-Tick / CB / RoHS
Automatic restart Yes
Energy Efficiency Index A2
Mains voltage safety (AC) 198...264V
Operating frequency * 43 kHz
Mains voltage performance (AC) 184...253V
Ballast Lumen Factor 1 -
Power losses gear 6 W
PowerFactor 100% output power 0.95 -
Overvoltage protection 320Vac 48 hr
Overvoltage protection 350Vac 2 hr
Crestfactor 1.8 -
Max ballast on MCB(16A type B) 20 x
Cable-Cap outputwires mutual 150 (max) pF
Hum and Noise level < 30 dB(A)
Conn.type input terminals Insert
Conn.type output terminals Insert
Max. cable length Hot Wires 0.75 m
Striplength 8.0-9.0 mm
Dual fixture Master/Slave Not applicable [Master/Slave oper. not applicable]
Wcs Input terminals 0.50-1.50 mm2
Wcs Output terminals 0.50-1.50 mm2
Cable-Cap cold out-wires-earth 150 (max) pF
Cable-Cap hot out-wires-earth 150 (max) pF
F-marking No
Bumps IEC 60068-2-29:1993-Eb
EMI 9kHz .. 30 MHz EN 55015
Vibrations IEC 60068-2-6:2007-Fc
C-Tick certificate Yes
CCC certificate No
PSB certification No
TISI marking No
CB Certificate Yes
SIRIM approval No

Essentially smart and reliableHF-Essential is the most cost-effective, slim and affordable ballast to reliably operate a fluorescent lamp. It is also the ideal entry-level product for EM system users who want to enjoy the benefits offered by electronic ballasts. The cost-saving and reliable HF-Essential has an energy efficiency class A2, and its robust design meets all relevant international safety and performance standards. HF- Essential is intended for use with indoor lighting fixtures such as recessed luminaires, which are largely used in office, industrial, hotel, restaurant and other applications.

Features

Complies with CE and Kema
Robust design for 45,000 hours lifetime at Ta=50 ˚C and over 6,000 on/off switching operations on one lamp
Energy efficiency class: A2
Failure rate of 0.3% per 1,000 hours at Tc max = 75 °C
Igniter and capacitor not required; flicker-free and noiseless

Applications

Ideal for applications where there is a need to reduce the wattage per square meter or to reduce operating costs
Indoor applications such as office buildings, hospitals, supermarkets, department stores, homes and schools

If you buy goods in partial package that is not currently available in our store (available on request), we reserve the rights to charge additional increments of 5 EUR ex. VAT.
