HF-Essential for TL5/TL-D Fluorescent Electronic Gear

From € 7,23 incl. VAT
From € 7,23 ex. VAT
See variants (5)

Select your product from the 5

 HF-E 158 TL-D 220-240 50/60Hz
Product code: 58347 Line Frequency: 50/60 Hz T-case maximum: 75 (max) C Full product code: 913713038966 Full product name: HF-E 158 TL-D 220-240V 50/60Hz Order code: 913713038966 Order product name: HF-E 158 TL-D 220-240V 50/60Hz Packing configuration: 50 Pieces per pack: 1 Bar code on outerbox - EAN3: 8718291668701 Bar code on pack - EAN1: 8718291668695 see more »

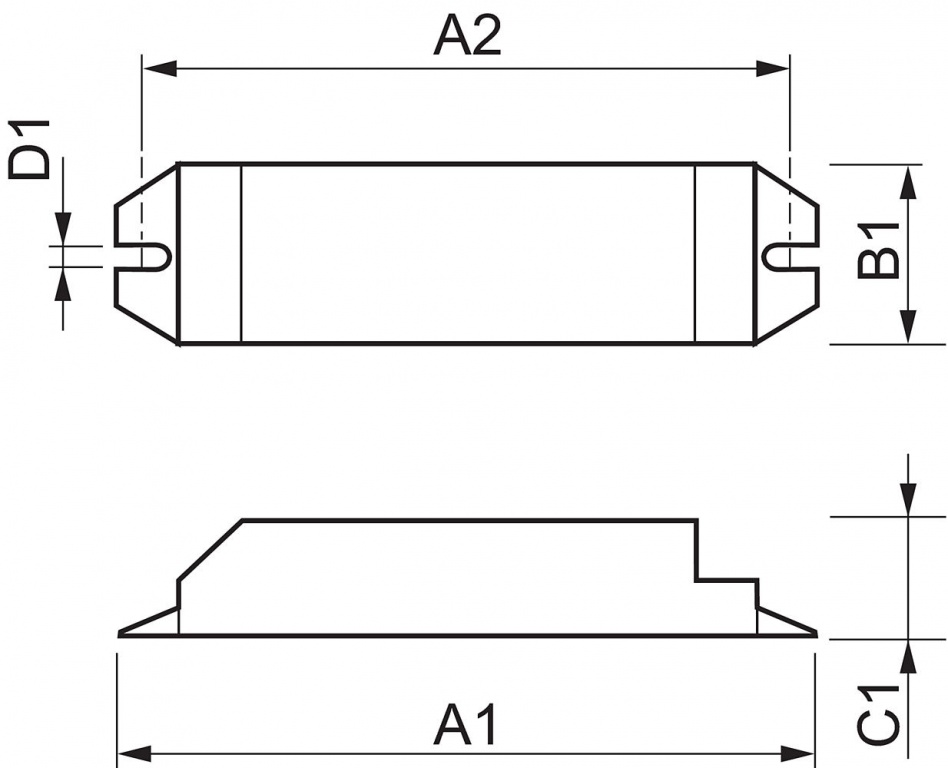

Packs per outerbox: 50 Logistic code(s) - 12NC: 913713038966 Net weight per piece: 0.100 kg Length A1: 150.0 mm CE marking: Yes Height C1: 28.0 mm T-ambient: -10 (min), 50 (max) C Width B1: 40.0 mm Lifetime 90% surv.@Tcaselife: 30000 hr Fixing Hole Diameter D1: 4.2 mm Fixing Hole Distance Length A2: 136.0 mm ENEC certificate: No Inrush current Peak: 15 (max) A Earth leakage current: 0.5 (max) mA Inrush current Width: 0.24 ms T-storage: -20 (min), 50 (max) C Rated Lamptype: TL-D Line Voltage: 220-240 V Rated Ballast-Lamp Power: 58 Rated Number of Lamps: 1 piece T-case life: 75 C Approval marks: CE / KEMA / C-Tick / CB / RoHS Automatic restart: Yes Energy Efficiency Index: A2 Mains voltage safety (AC): 198...264V Operating frequency *: 43 kHz Mains voltage performance (AC): 184...253V Ballast Lumen Factor: 1 - Power losses gear: 6 W PowerFactor 100% output power: 0.95 - Overvoltage protection 320Vac: 48 hr Overvoltage protection 350Vac: 2 hr Crestfactor: 1.8 - Max ballast on MCB(16A type B): 20 x Cable-Cap outputwires mutual: 150 (max) pF Hum and Noise level: < 30 dB(A) Conn.type input terminals: Insert Conn.type output terminals: Insert Max. cable length Hot Wires: 0.75 m Striplength: 8.0-9.0 mm Dual fixture Master/Slave: Not applicable [Master/Slave oper. not applicable] Wcs Input terminals: 0.50-1.50 mm2 Wcs Output terminals: 0.50-1.50 mm2 Cable-Cap cold out-wires-earth: 150 (max) pF Cable-Cap hot out-wires-earth: 150 (max) pF F-marking: No Bumps: IEC 60068-2-29:1993-Eb EMI 9kHz .. 30 MHz: EN 55015 Vibrations: IEC 60068-2-6:2007-Fc C-Tick certificate: Yes CCC certificate: No PSB certification: No TISI marking: No CB Certificate: Yes SIRIM approval: No « hide more
€ 7,23 € 7,23 ex. VAT
pc(s)
pc(s)
 Hf-e 136 Tl-d Ii 220-240v 50/60hz
Product code: 74724 Line Frequency: 50/60 Hz Lifetime 90% surv.@Tcaselife: 30000 hr Rated Lamptype: TL-D Line Voltage: 220-240 V Rated Ballast-Lamp Power: 36 Automatic restart: Yes Energy Efficiency Index: A2 Housing: L 150x40x28 Operating frequency *: 49,4 kHz
€ 7,85 € 7,85 ex. VAT
Minimal quantity: 20
pc(s)
pc(s)
 HF-E 418 TL-D 220-240 50/60Hz
Product code: 58350 Line Frequency: 50/60 Hz T-case maximum: 75 (max) C Full product code: 913713039266 Full product name: HF-E 418 TL-D 220-240V 50/60Hz Order code: 913713039266 Order product name: HF-E 418 TL-D 220-240V 50/60Hz Packing configuration: 20 Pieces per pack: 1 Bar code on outerbox - EAN3: 8718291668787 Bar code on pack - EAN1: 8718291668770 see more »
Packs per outerbox: 20 Logistic code(s) - 12NC: 913713039266 Net weight per piece: 0.100 kg Length A1: 211.0 mm CE marking: Yes Height C1: 30.0 mm T-ambient: -10 (min), 50 (max) C Width B1: 40.0 mm Lifetime 90% surv.@Tcaselife: 30000 hr Fixing Hole Diameter D1: 4.2 mm Fixing Hole Distance Length A2: 197.0 mm ENEC certificate: No Inrush current Peak: 20 (max) A Earth leakage current: 0.5 (max) mA Inrush current Width: 0.37 ms T-storage: -20 (min), 50 (max) C Rated Lamptype: TL-D Line Voltage: 220-240 V Rated Ballast-Lamp Power: 18 Rated Number of Lamps: 4 piece T-case life: 75 C Approval marks: CE / KEMA / C-Tick / CB / RoHS Automatic restart: Yes Energy Efficiency Index: A2 Housing: L 211x40x30 Mains voltage safety (AC): 198...264V Operating frequency *: 51 kHz Mains voltage performance (AC): 184...253V Ballast Lumen Factor: 1.02 - Power losses gear: 12 W PowerFactor 100% output power: 0.95 - Overvoltage protection 320Vac: 48 hr Overvoltage protection 350Vac: 2 hr Crestfactor: 1.8 - Max ballast on MCB(16A type B): 20 x Cable-Cap outputwires mutual: 150 (max) pF Hum and Noise level: < 30 dB(A) Conn.type input terminals: Insert Conn.type output terminals: Insert Max. cable length Hot Wires: 0.75 m Striplength: 8.0-9.0 mm Dual fixture Master/Slave: Not applicable [Master/Slave oper. not applicable] Wcs Input terminals: 0.50-1.50 mm2 Wcs Output terminals: 0.50-1.50 mm2 Cable-Cap cold out-wires-earth: 150 (max) pF Cable-Cap hot out-wires-earth: 150 (max) pF Rated Lamp Power on TL-D: 18 Lamp Power on TL-D: 15.1/15.7/15.7 Power Loss on TL-D: 8.5/8.0/10.3 System Power on TL-D: 23.6/23.7/26.0 F-marking: No Bumps: IEC 60068-2-29:1993-Eb EMI 9kHz .. 30 MHz: EN 55015 Vibrations: IEC 60068-2-6:2007-Fc C-Tick certificate: Yes CCC certificate: No PSB certification: No TISI marking: No CB Certificate: Yes SIRIM approval: No « hide more
€ 8,81 € 8,81 ex. VAT
pc(s)
pc(s)
 HF-E 1/2 58 TL-D II 220-240 50/60Hz
Product code: 72818 Full product name: HF-E 1/2 58 TL-D II 220-240 50/60Hz Rated Lamptype: TL-D Rated Ballast-Lamp Power: 58 Rated Number of Lamps: 1 piece
€ 10,27 € 10,27 ex. VAT
pc(s)
pc(s)
 HF-E 128 TL5 220-240 50/60Hz
Product code: 58353 Line Frequency: 50/60 Hz T-case maximum: 75 (max) C Full product code: 913713039566 Full product name: HF-E 128 TL5 220-240V 50/60Hz Order code: 913713039566 Order product name: HF-E 128 TL5 220-240V 50/60Hz Packing configuration: 50 Pieces per pack: 1 Bar code on outerbox - EAN3: 8718291668848 Bar code on pack - EAN1: 8718291668831 see more »
Packs per outerbox: 50 Logistic code(s) - 12NC: 913713039566 Net weight per piece: 0.050 kg Length A1: 275.0 mm CE marking: Yes Height C1: 21.3 mm T-ambient: 0 (min), 50 (max) C Width B1: 19.6 mm Lifetime 90% surv.@Tcaselife: 30000 hr Fixing Hole Diameter D1: 4.2 mm Fixing Hole Distance Length A2: 263.0 mm ENEC certificate: No Inrush current Peak: 12 (max) A Earth leakage current: 0.5 (max) mA Inrush current Width: 0.30 ms T-storage: -20 (min), 80 (max) C Rated Lamptype: TL5 Line Voltage: 220-240 V Rated Ballast-Lamp Power: 28 Rated Number of Lamps: 1 piece T-case life: 75 C Approval marks: CE / KEMA / C-Tick / CB / RoHS Automatic restart: Yes Energy Efficiency Index: A2 Housing: L 275x19.6x21.3 Mains voltage safety (AC): 198...264V Operating frequency *: 50 kHz Mains voltage performance (AC): 184...253V Ballast Lumen Factor: 1.04 - Power losses gear: 4.5 W PowerFactor 100% output power: 0.95 - Overvoltage protection 320Vac: 48 hr Overvoltage protection 350Vac: 2 hr Crestfactor: 1.8 - Max ballast on MCB(16A type B): 20 x Cable-Cap outputwires mutual: 120 (max) pF Hum and Noise level: < 30 dB(A) Conn.type input terminals: Insert Conn.type output terminals: Insert Max. cable length Hot Wires: 0.75 m Striplength: 8.0-9.0 mm Dual fixture Master/Slave: Not applicable [Master/Slave oper. not applicable] Wcs Input terminals: 0.50-1.50 mm2 Wcs Output terminals: 0.50-1.50 mm2 Cable-Cap cold out-wires-earth: 120 (max) pF Cable-Cap hot out-wires-earth: 120 (max) pF F-marking: No Bumps: IEC 60068-2-29:1993-Eb EMI 9kHz .. 30 MHz: EN 55015 Vibrations: IEC 60068-2-6:2007-Fc C-Tick certificate: Yes CCC certificate: No PSB certification: No TISI marking: No CB Certificate: Yes SIRIM approval: No Lamp Power on TL5: 27/28.3/29.8 Rated Lamp Power on TL5: 28 System Power on TL5: 31.1/33.0/34.5 Power Loss on TL5: 4.1/4.7/4.7 « hide more
€ 11,08 € 11,08 ex. VAT
pc(s)
pc(s)

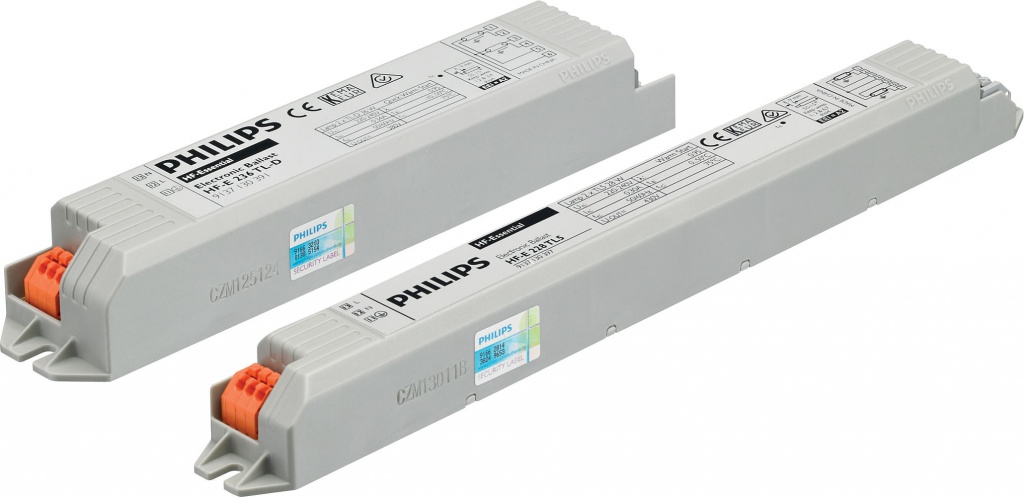

Essentially smart and reliableHF-Essential is the most cost-effective, slim and affordable ballast to reliably operate a fluorescent lamp. It is also the ideal entry-level product for EM system users who want to enjoy the benefits offered by electronic ballasts. The cost-saving and reliable HF-Essential has an energy efficiency class A2, and its robust design meets all relevant international safety and performance standards. HF- Essential is intended for use with indoor lighting fixtures such as recessed luminaires, which are largely used in office, industrial, hotel, restaurant and other applications.

Features

Complies with CE and Kema
Robust design for 45,000 hours lifetime at Ta=50 ˚C and over 6,000 on/off switching operations on one lamp
Energy efficiency class: A2
Failure rate of 0.3% per 1,000 hours at Tc max = 75 °C
Igniter and capacitor not required; flicker-free and noiseless

Applications

Ideal for applications where there is a need to reduce the wattage per square meter or to reduce operating costs
Indoor applications such as office buildings, hospitals, supermarkets, department stores, homes and schools

If you buy goods in partial package that is not currently available in our store (available on request), we reserve the rights to charge additional increments of 5 EUR ex. VAT.
