Green Starters Fluorescent Starters

Product code: 58343

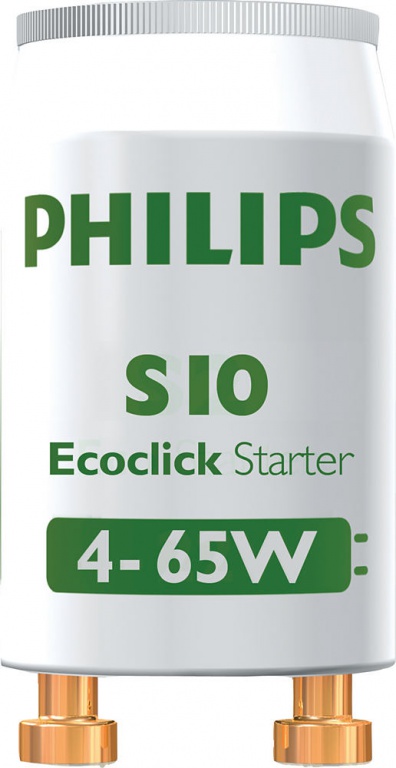

Philips S10 4-65W SIN 220-240V WH 2BC/10

Price € 1,76 incl. VAT
€ 1,76 netto

Voltage 220-240 V

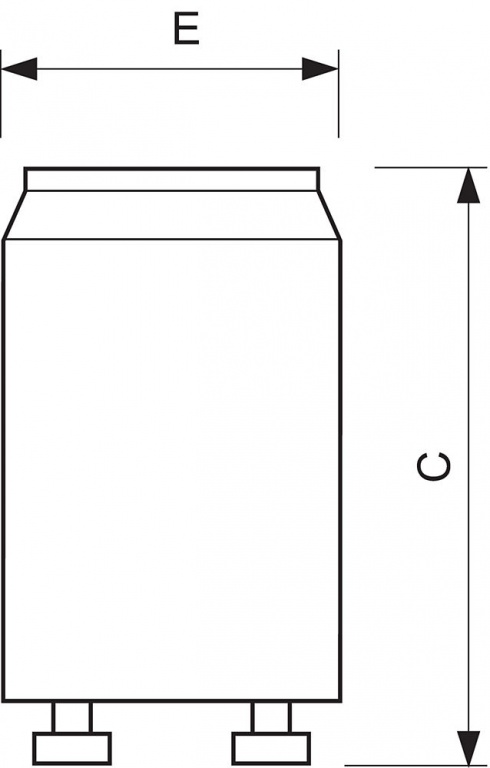

Overall Length C 40.3 (max) mm
Full product code 928392210187
Full product name S10 4-65W SIN 220-240V WH 2BC
Order code 928392210187
Order product name S10 4-65W SIN 220-240V WH 2BC
Packing configuration 5
Pieces per pack 2
Bar code on outerbox - EAN3 8711500902627
Bar code on pack - EAN1 8711500698322
Packs per outerbox 5
Logistic code(s) - 12NC 928392210187
▼ see full specification ▼

Range of glow switches for igniting fluorescent lamps with electromagnetic gear2-pin ignitor in plastic (flame-retardant polycarbonate) canister and radio-interference suppression capacitor

Ask for product Description / FAQ / Warranty

Score

rate product

1 variant available

S10 4-65W SIN 220-240V WH 2BC/10

Karta produktu PDF

Product code: 58343 Voltage: 220-240 V Overall Length C: 40.3 (max) mm Full product code: 928392210187 Full product name: S10 4-65W SIN 220-240V WH 2BC Order code: 928392210187 Order product name: S10 4-65W SIN 220-240V WH 2BC Packing configuration: 5 Pieces per pack: 2 Bar code on outerbox - EAN3: 8711500902627 Bar code on pack - EAN1: 8711500698322 see more »

Packs per outerbox: 5 Logistic code(s) - 12NC: 928392210187 Net weight per piece: 7.000 gr Cap-Base Information: 2P System Description: Single Capacitor: Yes Color of the Housing: White Lamp Wattage: 4-65 W Ambient Temperature: -15 (min), 75 (max) C Overall Width E: 21.5 (max) mm Pulse Voltage: 900 (min) V Non Reclosure Voltage: 140 (min) V « hide more

€ 1,76 € 1,76 ex. VAT

Description / FAQ Warranty

Voltage	220-240 V
Overall Length C	40.3 (max) mm
Full product code	928392210187
Full product name	S10 4-65W SIN 220-240V WH 2BC
Order code	928392210187
Order product name	S10 4-65W SIN 220-240V WH 2BC
Packing configuration	5
Pieces per pack	2
Bar code on outerbox - EAN3	8711500902627
Bar code on pack - EAN1	8711500698322
Packs per outerbox	5
Logistic code(s) - 12NC	928392210187
Net weight per piece	7.000 gr
Cap-Base Information	2P
System Description	Single
Capacitor	Yes
Color of the Housing	White
Lamp Wattage	4-65 W
Ambient Temperature	-15 (min), 75 (max) C
Overall Width E	21.5 (max) mm
Pulse Voltage	900 (min) V
Non Reclosure Voltage	140 (min) V

Range of glow switches for igniting fluorescent lamps with electromagnetic gear2-pin ignitor in plastic (flame-retardant polycarbonate) canister and radio-interference suppression capacitor

Features

Premium reliability with less than 100 early failures per million products (25% compared with cheap starters)

Canister shape designed for a better grip while installing and replacing the starter

Green insulation plate to identify these lead-free and radioactive-free environment-friendly starters

Different green printing for visual distinction between S2 and S10 (S2 = light green / S10 = dark green)

Applications

Ignition of fluorescent lamps of all brands with conventional electromagnetic ballasts using TL-D (T8), TL (T12), TL mini and PL-L lamps

S2 starters are suitable for 110/130 V 4-22 W single applications, 220/240 V 4-6-8-15-18-22 W single applications and 220/240 V 4-22 W series applications. It is recommended for 220/240 V 18 W single applications for optimal performance

S10 starters are suitable for 220/240 V 13, 4-65 W single applications. It is required for 220/240 V 13 W single applications
