Product code: 58455
Price € 100,47 incl. VAT
€ 100,47 netto
pc(s)
pc(s)
  • Line Frequency 50/60 Hz
  • Full product code 913700621766
  • Full product name EXC 66 SOX-E 220-240V 50/60Hz
  • Order code 913700621766
  • Order product name EXC 66 SOX-E 220-240V 50/60Hz
  • Packing configuration 25
  • Pieces per pack 1
  • Bar code on outerbox - EAN3 8711500062451
  • Bar code on pack - EAN1 8711500062444
  • Packs per outerbox 25
  • Logistic code(s) - 12NC 913700621766
  • Net weight per piece 0.275 kg
  • ▼ see full specification ▼

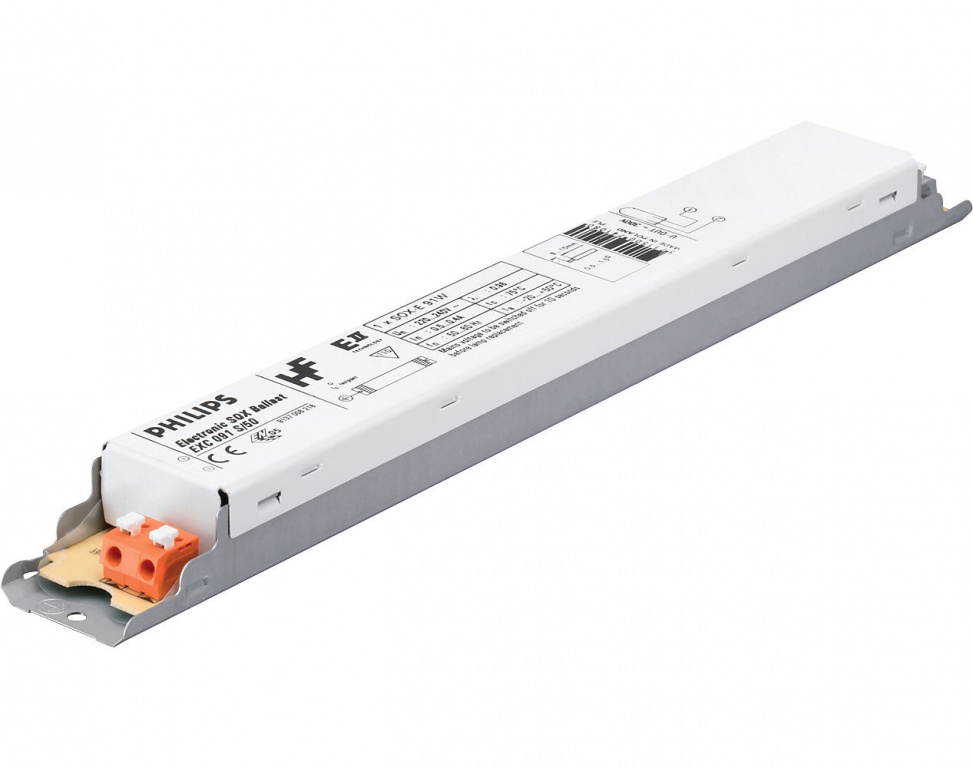

Electronic drivers for SOX lamps; designed to save energy and reduce maintenance costs

1 variant available

 EXC 66 SOX-E 220-240V 50/60Hz
Product code: 58455 Line Frequency: 50/60 Hz Full product code: 913700621766 Full product name: EXC 66 SOX-E 220-240V 50/60Hz Order code: 913700621766 Order product name: EXC 66 SOX-E 220-240V 50/60Hz Packing configuration: 25 Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500062451 Bar code on pack - EAN1: 8711500062444 Packs per outerbox: 25 see more »
Logistic code(s) - 12NC: 913700621766 Net weight per piece: 0.275 kg Length A1: 280.0 mm CE marking: Yes Height C1: 28.0 mm T-ambient: -20 (min), 50 (max) C Width B1: 40.0 mm Lifetime 90% surv.@Tcaselife: 50000 hr Fixing Hole Diameter D1: 4.2 mm Fixing Hole Distance Length A2: 265.0 mm ENEC certificate: Yes Inrush current Peak: 40 (max) A Earth leakage current: 0.5 mA Inrush current Width: 0.15 ms T-storage: -40 (min), 80 (max) C Rated Lamptype: SOX-E Line Voltage: 220-240 V Rated Ballast-Lamp Power: 66 Rated Number of Lamps: 1 piece T-case life: 75 C Approval marks: ENEC Automatic restart: No Housing: L 280x39x28 Mains voltage safety (AC): -10%/+10% Operating frequency *: 45 kHz Mains voltage performance (AC): -8%/+6% PowerFactor 100% output power: 0.95 - Overvoltage protection 320Vac: 48 hr Overvoltage protection 350Vac: 2 hr Max ballast on MCB(16A type B): 22 x Cable-Cap outputwires mutual: 1000 pF Hum and Noise level: 37 dB(A) Striplength: 8.0 mm Bumps: IEC 68-2-29 Eb Vibrations: IEC 68-2-6 Fc CB Certificate: Yes Application code: EII Safety Standard: EN 60928, 60926 Environmental Standard: ISO 14001 Quality Standard: ISO 9000:2000 Harmonic current emissions: EN 60555.2 Humidity: IEC 928-13 VDE certificate: No Max. cable length Device/Lamp: 10 m Output peak voltage: 1000 (max) V Connector type: Insert Wcs Ballast contacts: 0.50-2.50 mm2 VDE-EMV certificate: No Ignition Voltage: 0.5 (min), 1.0 (max) kV Ignition switch-off time: 0.08 min EMI 9 kHz ... 300MHz: CISPR 15 ed 7.1 Line Current: 0.30 A IP Classification Luminaires: 20 Min. Mains voltage operational: 180 (min) V Lamp Power Tolerance: -10%/+10% T-case switch-off: 75 (min) C Rated Lamp Power on SOX-E: 66 System Power on SOX-E: 73.0 Lamp Power on SOX-E: 67.0 Power Loss on SOX-E: 6.0 « hide more
€ 100,47 € 100,47 ex. VAT
pc(s)
pc(s)
Line Frequency 50/60 Hz
Full product code 913700621766
Full product name EXC 66 SOX-E 220-240V 50/60Hz
Order code 913700621766
Order product name EXC 66 SOX-E 220-240V 50/60Hz
Packing configuration 25
Pieces per pack 1
Bar code on outerbox - EAN3 8711500062451
Bar code on pack - EAN1 8711500062444
Packs per outerbox 25
Logistic code(s) - 12NC 913700621766
Net weight per piece 0.275 kg

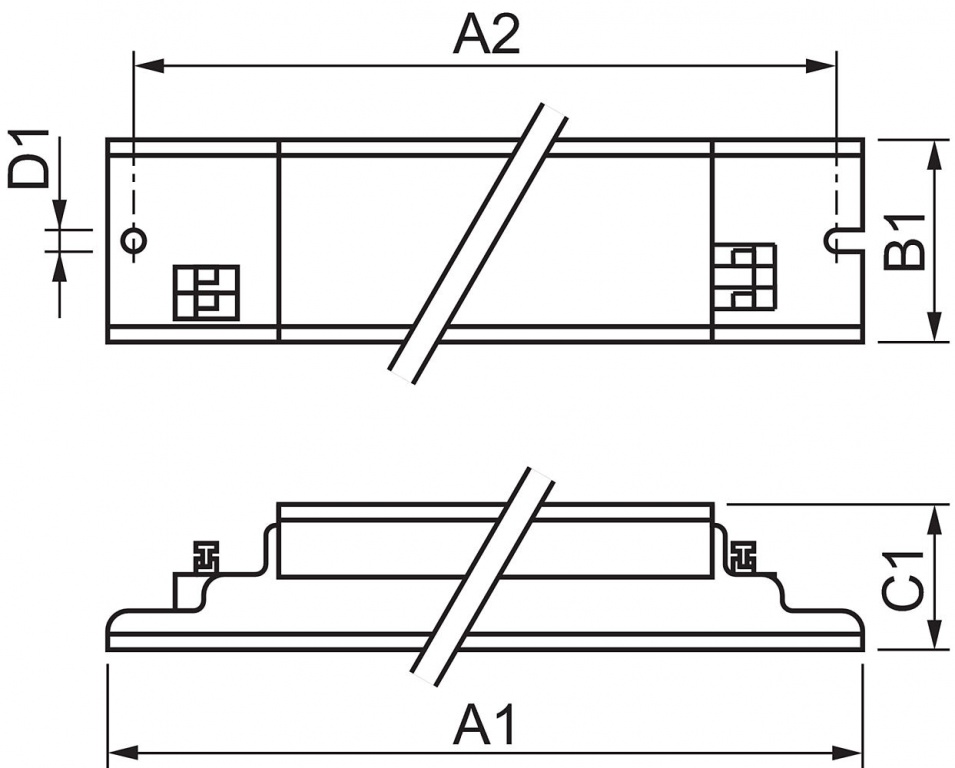

Length A1 280.0 mm
CE marking Yes
Height C1 28.0 mm
T-ambient -20 (min), 50 (max) C
Width B1 40.0 mm
Lifetime 90% surv.@Tcaselife 50000 hr
Fixing Hole Diameter D1 4.2 mm
Fixing Hole Distance Length A2 265.0 mm
ENEC certificate Yes
Inrush current Peak 40 (max) A
Earth leakage current 0.5 mA
Inrush current Width 0.15 ms
T-storage -40 (min), 80 (max) C
Rated Lamptype SOX-E
Line Voltage 220-240 V
Rated Ballast-Lamp Power 66
Rated Number of Lamps 1 piece
T-case life 75 C
Approval marks ENEC
Automatic restart No
Housing L 280x39x28
Mains voltage safety (AC) -10%/+10%
Operating frequency * 45 kHz
Mains voltage performance (AC) -8%/+6%
PowerFactor 100% output power 0.95 -
Overvoltage protection 320Vac 48 hr
Overvoltage protection 350Vac 2 hr
Max ballast on MCB(16A type B) 22 x
Cable-Cap outputwires mutual 1000 pF
Hum and Noise level 37 dB(A)
Striplength 8.0 mm
Bumps IEC 68-2-29 Eb
Vibrations IEC 68-2-6 Fc
CB Certificate Yes
Application code EII
Safety Standard EN 60928, 60926
Environmental Standard ISO 14001
Quality Standard ISO 9000:2000
Harmonic current emissions EN 60555.2
Humidity IEC 928-13
VDE certificate No
Max. cable length Device/Lamp 10 m
Output peak voltage 1000 (max) V
Connector type Insert
Wcs Ballast contacts 0.50-2.50 mm2
VDE-EMV certificate No
Ignition Voltage 0.5 (min), 1.0 (max) kV
Ignition switch-off time 0.08 min
EMI 9 kHz ... 300MHz CISPR 15 ed 7.1
Line Current 0.30 A
IP Classification Luminaires 20
Min. Mains voltage operational 180 (min) V
Lamp Power Tolerance -10%/+10%
T-case switch-off 75 (min) C
Rated Lamp Power on SOX-E 66
System Power on SOX-E 73.0
Lamp Power on SOX-E 67.0
Power Loss on SOX-E 6.0

Electronic drivers for SOX lamps; designed to save energy and reduce maintenance costs

Features

Up to 93% system efficiency
Constant light output at mains voltages between approximately 200 and 255 V
One compact component
Slim cross-section and low weight
Single-insert contacts

Applications

Residential lighting
City beautification
Road lighting
