Ecoclick Starters Fluorescent Starters

Product code: 58342

Philips S10 4-65W SIN 220-240V WH EUR/12X25CT

Price € 0,44 incl. VAT
€ 0,44 netto

Voltage 220-240 V
Overall Length C 40.3 (max) mm
Full product code 928392220247
Full product name S10 4-65W SIN 220-240V WH EUR
Order code 928392220247
Order product name S10 4-65W SIN 220-240V WH EUR/32X25CT
Packing configuration 32X25CT
Pieces per pack 1
Bar code on outerbox - EAN3 8711500903310
Bar code on pack - EAN1 8711500697691
Packs per outerbox 800
Logistic code(s) - 12NC 928392220247
▼ see full specification ▼

Range of premium-quality glow switch starters for igniting fluorescent lamps with electromagnetic ballast.

Ask for product Description / FAQ / Warranty

Score

rate product

1 variant available

S10 4-65W SIN 220-240V WH EUR/12X25CT

Karta produktu PDF

Product code: 58342 Voltage: 220-240 V Overall Length C: 40.3 (max) mm Full product code: 928392220247 Full product name: S10 4-65W SIN 220-240V WH EUR Order code: 928392220247 Order product name: S10 4-65W SIN 220-240V WH EUR/32X25CT Packing configuration: 32X25CT Pieces per pack: 1 Bar code on outerbox - EAN3: 8711500903310 Bar code on pack - EAN1: 8711500697691 see more »

Packs per outerbox: 800 Logistic code(s) - 12NC: 928392220247 Net weight per piece: 6.930 gr Bar code on intermediate packing - EAN2: 8711500697745 Cap-Base Information: 2P System Description: Single Capacitor: Yes Color of the Housing: White Lamp Wattage: 4-65 W Ambient Temperature: -15 (min), 75 (max) C Overall Width E: 21.5 (max) mm Pulse Voltage: 900 (min) V Non Reclosure Voltage: 140 (min) V « hide more

€ 0,44 € 0,44 ex. VAT

Description / FAQ Warranty

Voltage	220-240 V

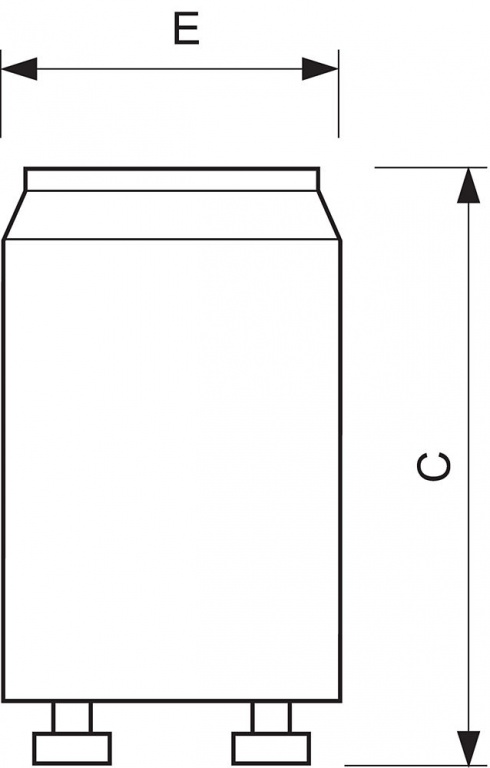

Overall Length C	40.3 (max) mm
Full product code	928392220247
Full product name	S10 4-65W SIN 220-240V WH EUR
Order code	928392220247
Order product name	S10 4-65W SIN 220-240V WH EUR/32X25CT
Packing configuration	32X25CT
Pieces per pack	1
Bar code on outerbox - EAN3	8711500903310
Bar code on pack - EAN1	8711500697691
Packs per outerbox	800
Logistic code(s) - 12NC	928392220247
Net weight per piece	6.930 gr
Bar code on intermediate packing - EAN2	8711500697745
Cap-Base Information	2P
System Description	Single
Capacitor	Yes
Color of the Housing	White
Lamp Wattage	4-65 W
Ambient Temperature	-15 (min), 75 (max) C
Overall Width E	21.5 (max) mm
Pulse Voltage	900 (min) V
Non Reclosure Voltage	140 (min) V

Range of premium-quality glow switch starters for igniting fluorescent lamps with electromagnetic ballast.

Features

Redesigned canister top with two installation notches into which the pins of another starter fit perfectly (patented innovation)

Radioactive-free (patented) and lead-free (RoHS-compliant)

Premium reliability with more than 10,000 safe switches

2-pin igniter in plastic (flame-retardant polycarbonate) canister with high-quality radio-interference suppression capacitor

Well-defined preheat and peak voltage ensure proper ignition

Applications

Ignition of fluorescent lamps of all brands with conventional electromagnetic ballasts using TL-D (T8), TL (T12), TL mini and PL-L lamps

S2 starters are suitable for 110/130 V 4-22 W single applications, 220/240 V 4-6-8-15-18-22 W single applications and 220/240 V 4-22 W series applications. It is recommended for 220/240 V 18 W single applications for optimal performance

S10 starters are suitable for 220/240 V 13 4-65 W single applications. It is required for 220/240 V 13 W single applications
