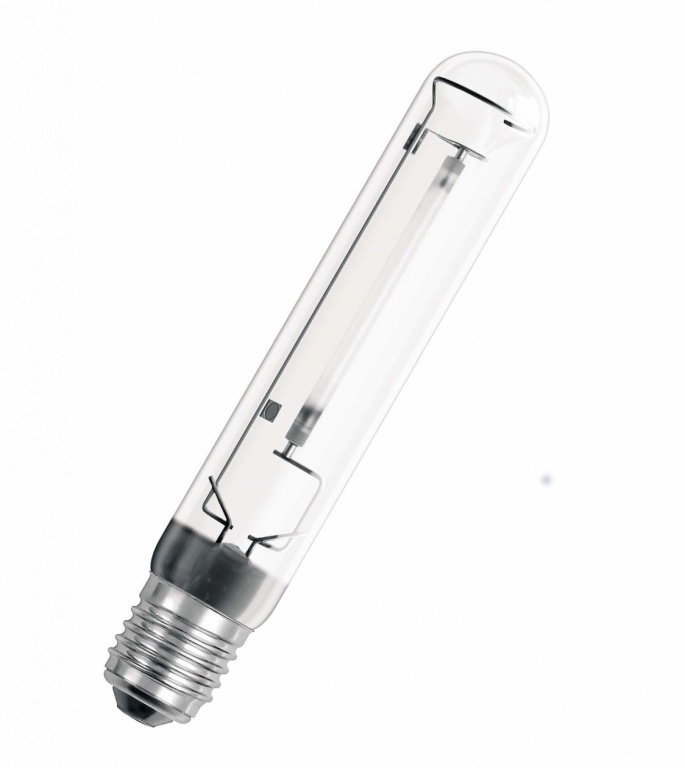

Sodium Lamp VIALOX NAV-T SUPER 4Y Sodium Lamps

From € 14,87 incl. VAT
From € 14,87 ex. VAT
See variants (4)
  • Construction wattage [PICOS] 100.00 W
  • Nominal voltage 100 V
  • Nominal wattage 100.00 W
  • Rated lamp efficacy (standard condition) 107 lm/W
  • Lamp current 1.20000 A
  • Ignition voltage 3.3 / 5.0 kVp
  • Color temperature 2000 K
  • Rated luminous flux 10700 lm
  • Color rendering index Ra ≤25
  • Rated LLMF at 4,000 h 0.92
  • Rated LLMF at 6,000 h 0.90
  • Rated LLMF at 8,000 h 0.89
  • ▼ see full specification ▼

Select your product from the 4

 NAV-T 100 W SUPER 4Y
Product code: 56399
€ 14,87 € 14,87 ex. VAT
pc(s)
pc(s)
 NAV-T 150 W SUPER 4Y
Product code: 56960 Nominal voltage: 100 V Nominal wattage: 150.00 W Rated luminous flux: 17500 lm Diameter: 47.0 mm Length: 210.0 mm Base (standard designation): E40 Dimmable: Yes  Energy efficiency class: A+ Lamp mercury content: 24.0 mg Energy consumption: 168 kWh/1000h see more »
ILCOS: ST-150-H/E/SL-E40-47/210 Product weight: 127.00 g Light center length (LCL): 132.0 mm Rated LLMF at 4,000 h: 0.97 Rated LLMF at 6,000 h: 0.96 Rated LLMF at 8,000 h: 0.95 Rated lamp survival factor at 4,000 h: 0.99 Rated lamp survival factor at 8,000 h: 0.98 Rated LLMF at 12,000 h: 0.94 Rated lamp survival factor at 12,000 h: 0.97 Rated LLMF at 16,000 h: 0.94 Rated LLMF at 20,000 h: 0.94 Rated lamp survival factor at 16,000 h: 0.96 Rated lamp survival factor at 20,000 h: 0.95 Rated lamp efficacy (standard condition): 115 lm/W Rated LLMF at 2,000 h: 0.98 Lamp current: 1.78000 A Ignition voltage: 3.3 / 5.0 kVp  Maximum permitted outer bulb temperature: 310 °C Lifespan B50: 32000 h Maximum permitted base edge temperature: 210 °C Lifespan B10: 24000 h Lifespan B5: 20000 h Rated wattage: 152.00 W « hide more
€ 17,61 € 17,61 ex. VAT
pc(s)
pc(s)
 NAV-T 250 W SUPER 4Y
Product code: 56961 Nominal voltage: 100 V Nominal wattage: 250.00 W Rated luminous flux: 33200 lm Diameter: 47.0 mm Length: 257.0 mm Base (standard designation): E40 Dimmable: Yes  Energy efficiency class: A+ Lamp mercury content: 24.0 mg Energy consumption: 281 kWh/1000h see more »
ILCOS: ST-250-H/E/SL-E40-47/257 Product weight: 148.00 g Light center length (LCL): 158.0 mm Rated LLMF at 4,000 h: 0.97 Rated LLMF at 6,000 h: 0.96 Rated LLMF at 8,000 h: 0.95 Rated lamp survival factor at 4,000 h: 0.99 Rated lamp survival factor at 8,000 h: 0.98 Rated LLMF at 12,000 h: 0.94 Rated lamp survival factor at 12,000 h: 0.97 Rated LLMF at 16,000 h: 0.94 Rated LLMF at 20,000 h: 0.94 Rated lamp survival factor at 16,000 h: 0.96 Rated lamp survival factor at 20,000 h: 0.95 Rated lamp efficacy (standard condition): 130 lm/W Rated LLMF at 2,000 h: 0.98 Lamp current: 2.95000 A Ignition voltage: 3.3 / 5.0 kVp  Maximum permitted outer bulb temperature: 400 °C Lifespan B50: 32000 h Maximum permitted base edge temperature: 250 °C Lifespan B10: 24000 h Lifespan B5: 20000 h Rated wattage: 255.00 W « hide more
€ 18,90 € 18,90 ex. VAT
pc(s)
pc(s)
 NAV-T 400 W SUPER 4Y
Product code: 56962 Nominal voltage: 100 V Nominal wattage: 400.00 W Rated luminous flux: 56500 lm Diameter: 47.0 mm Length: 285.0 mm Base (standard designation): E40 Dimmable: Yes Energy efficiency class: A++ Lamp mercury content: 24.0 mg Energy consumption: 440 kWh/1000h see more »
ILCOS: ST-400-H/E/SL-E40-47/285 Product weight: 174.00 g Light center length (LCL): 175.0 mm Rated LLMF at 4,000 h: 0.97 Rated LLMF at 6,000 h: 0.96 Rated LLMF at 8,000 h: 0.95 Rated lamp survival factor at 4,000 h: 0.99 Rated lamp survival factor at 8,000 h: 0.98 Rated LLMF at 12,000 h: 0.94 Rated lamp survival factor at 12,000 h: 0.97 Rated LLMF at 16,000 h: 0.94 Rated LLMF at 20,000 h: 0.94 Rated lamp survival factor at 16,000 h: 0.96 Rated lamp survival factor at 20,000 h: 0.95 Rated lamp efficacy (standard condition): 141 lm/W Rated LLMF at 2,000 h: 0.98 Lamp current: 4.52000 A Ignition voltage: 3.3 / 5.0 kVp  Maximum permitted outer bulb temperature: 400 °C Lifespan B50: 32000 h Maximum permitted base edge temperature: 250 °C Lifespan B10: 24000 h Lifespan B5: 20000 h Rated wattage: 400.00 W « hide more
€ 21,99 € 21,99 ex. VAT
pc(s)
pc(s)

Electrical data

Construction wattage [PICOS] 100.00 W
Nominal voltage 100 V
Nominal wattage 100.00 W
Rated lamp efficacy (standard condition) 107 lm/W
Lamp current 1.20000 A
Ignition voltage 3.3 / 5.0 kVp

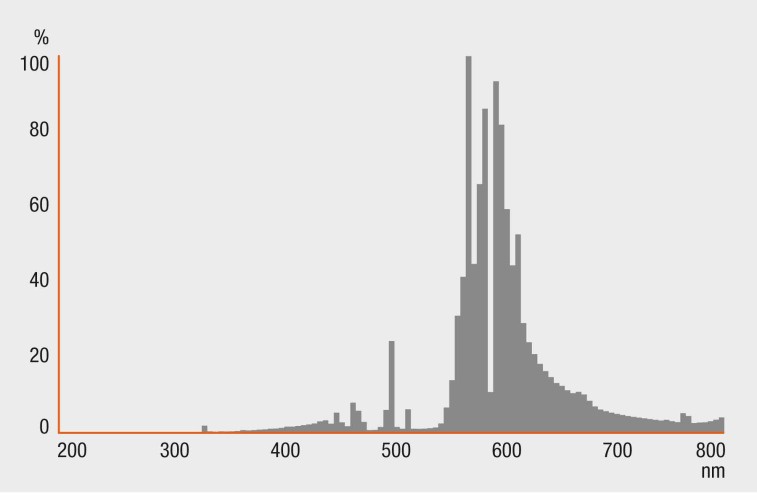

Photometrical data

Color temperature 2000 K
Rated luminous flux 10700 lm
Color rendering index Ra ≤25
Rated LLMF at 4,000 h 0.92
Rated LLMF at 6,000 h 0.90
Rated LLMF at 8,000 h 0.89
Rated LLMF at 12,000 h 0.88
Rated LLMF at 16,000 h 0.87
Rated LLMF at 20,000 h 0.86
Rated LLMF at 2,000 h 0.94

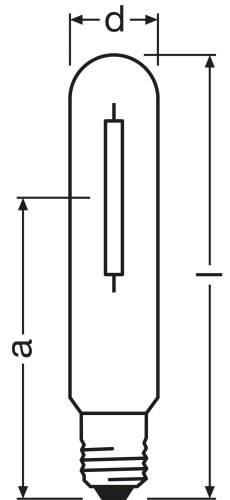

Dimensions & weight

Diameter 47.0 mm
Length 210.0 mm
Product weight 103.00 g
Light center length (LCL) 132.0 mm

Lifespan

Rated lamp survival factor at 2,000 h 0.99
Rated lamp survival factor at 4,000 h 0.98
Rated lamp survival factor at 6,000 h 0.98
Operation mode LLMF/LSF 50 Hz
Rated lamp survival factor at 8,000 h 0.97
Rated lamp survival factor at 12,000 h 0.97
Rated lamp survival factor at 16,000 h 0.96
Rated lamp survival factor at 20,000 h 0.95
Lifespan B50 32000 h
Lifespan B10 22000 h
Lifespan B5 20000 h

Additional product data

Base (standard designation) E40
Lamp mercury content 19.0 mg
Design / version Clear
Product remark Important: Before replacing for NAV Standard lamps in existing installations, check that the igniters are suitable
System guarantee level 3 (2/5)

Capabilities

Dimmable Yes
Burning position Any
Enclosed luminaire required No

Certificates & standards

Energy efficiency class A+
Energy consumption 110 kWh/1000h

Country specific categorizations

ILCOS ST-100-H/E/SL-E40-47/210

Temperatures

Maximum permitted outer bulb temperature 310 °C
Maximum permitted base edge temperature 210 °C

Product benefits

  • Long life time
  • Very high luminous efficacy
  • Very good luminous flux maintenance throughout the life of the lamp
  • Energy savings of up to 50 % when replacing inefficient mercury vapor lamps (HQL)
  • Optimum energy efficiency on POWERTRONIC PTo 3DIM ECGs
  • Dimmable on conventional control gears and electronic control gears

Areas of application

  • Streets
  • Outdoor lighting
  • Industrial installations
  • Suitable for use in open and enclosed luminaires
  • Outdoor  applications only in suitable luminaires

Product features

  • Lamp survival factor: 95 % after 16,000 hours burning time
  • Average lifetime: up to 32,000 hours
  • Lamp maintenance factor: ≥ 80 % after 16,000 h burning time (according to DIN 13201)
  • Service lifetime: 4 years (at approx. 11 h/day)
  • ErP compliant according to EU Directive 245/2009
