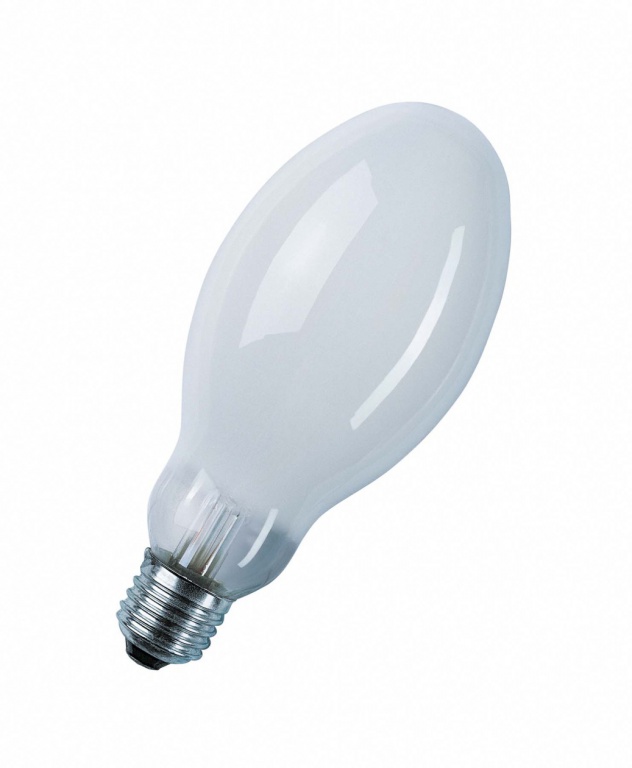

Sodium Lamp VIALOX NAV-E SUPER 4Y Sodium Lamps

From € 14,20 incl. VAT
From € 14,20 ex. VAT

See variants (5)

Color temperature 2000 K
Color rendering index Ra ≤25
Rated lamp survival factor at 2,000 h 0.99
Rated lamp survival factor at 6,000 h 0.98
Operation mode LLMF/LSF 50 Hz
Design / version Coated
Product remark Important: Before replacing for NAV Standard lamps in existing installations, check that the igniters are suitable
System guarantee level 3 (2/5)
Burning position Any
Enclosed luminaire required No
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

rate product

Select your product from the 5

NAV-E 70 W SUPER 4Y

Karta produktu PDF

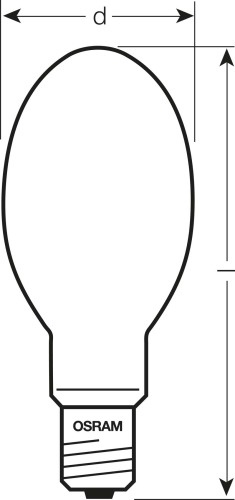

Product code: 56398 Construction wattage [PICOS]: 71.00 W Nominal voltage: 90 V Nominal wattage: 70.00 W Rated luminous flux: 6600 lm Diameter: 71.0 mm Length: 156.0 mm Base (standard designation): E27 Dimmable: Yes Energy efficiency class: A+ Lamp mercury content: 19.0 mg see more »

Energy consumption: 79 kWh/1000h ILCOS: SE-70-H/E/SL-E27-71/156 Product weight: 52.00 g Rated LLMF at 4,000 h: 0.91 Rated LLMF at 6,000 h: 0.90 Rated LLMF at 8,000 h: 0.89 Rated lamp survival factor at 4,000 h: 0.98 Rated lamp survival factor at 8,000 h: 0.97 Rated LLMF at 12,000 h: 0.88 Rated lamp survival factor at 12,000 h: 0.96 Rated LLMF at 16,000 h: 0.86 Rated LLMF at 20,000 h: 0.85 Rated lamp survival factor at 16,000 h: 0.95 Rated lamp survival factor at 20,000 h: 0.90 Rated lamp efficacy (standard condition): 93 lm/W Rated LLMF at 2,000 h: 0.92 Lamp current: 0.98000 A Ignition voltage: 1.8 / 5.0 kVp Maximum permitted outer bulb temperature: 310 °C Lifespan B50: 28000 h Maximum permitted base edge temperature: 210 °C Lifespan B10: 20000 h Lifespan B5: 16000 h « hide more

€ 14,20 € 14,20 ex. VAT

NAV-E 50 W SUPER 4Y

Karta produktu PDF

Product code: 56959 Nominal voltage: 86 V Nominal wattage: 50.00 W Color temperature: 2000 K Rated luminous flux: 4000 lm Diameter: 71.0 mm Length: 156.0 mm Base (standard designation): E27 Dimmable: Yes Energy efficiency class: A Color rendering index Ra: ≤25 see more »

Lamp mercury content: 19.0 mg Energy consumption: 58 kWh/1000h ILCOS: SE-50-H/E/SL-E27-71/156 Product weight: 52.00 g Design / version: Coated Burning position: Any Product remark: Important: Before replacing for NAV Standard lamps in existing installations, check that the igniters are suitable Rated LLMF at 4,000 h: 0.90 Rated LLMF at 6,000 h: 0.88 Rated LLMF at 8,000 h: 0.86 Rated lamp survival factor at 2,000 h: 0.99 Rated lamp survival factor at 4,000 h: 0.98 Rated lamp survival factor at 6,000 h: 0.98 Operation mode LLMF/LSF: 50 Hz Rated lamp survival factor at 8,000 h: 0.97 Rated LLMF at 12,000 h: 0.84 Rated lamp survival factor at 12,000 h: 0.96 Rated LLMF at 16,000 h: 0.83 Rated LLMF at 20,000 h: 0.79 Rated lamp survival factor at 16,000 h: 0.95 Rated lamp survival factor at 20,000 h: 0.85 Rated lamp efficacy (standard condition): 77 lm/W Rated LLMF at 2,000 h: 0.92 Lamp current: 0.75000 A Ignition voltage: 1.8 / 5.0 kVp Maximum permitted outer bulb temperature: 310 °C Lifespan B50: 28000 h System guarantee level: 3 (2/5) Enclosed luminaire required: No Maximum permitted base edge temperature: 210 °C Lifespan B10: 18000 h Lifespan B5: 16000 h Rated wattage: 52.00 W « hide more

€ 14,69 € 14,69 ex. VAT

NAV-E 100 W SUPER 4Y

Karta produktu PDF

Product code: 56389 Construction wattage [PICOS]: 100.00 W Nominal voltage: 100 V Nominal wattage: 100.00 W Rated luminous flux: 10400 lm Diameter: 76.0 mm Length: 183.0 mm Base (standard designation): E40 Dimmable: Yes Energy efficiency class: A+ Lamp mercury content: 19.0 mg see more »

Energy consumption: 110 kWh/1000h ILCOS: SE-100-H/E/SL-E40-76/183 Product weight: 80.00 g Rated LLMF at 4,000 h: 0.92 Rated LLMF at 6,000 h: 0.90 Rated LLMF at 8,000 h: 0.89 Rated lamp survival factor at 4,000 h: 0.98 Rated lamp survival factor at 8,000 h: 0.97 Rated LLMF at 12,000 h: 0.88 Rated lamp survival factor at 12,000 h: 0.96 Rated LLMF at 16,000 h: 0.86 Rated LLMF at 20,000 h: 0.85 Rated lamp survival factor at 16,000 h: 0.95 Rated lamp survival factor at 20,000 h: 0.90 Rated lamp efficacy (standard condition): 104 lm/W Rated LLMF at 2,000 h: 0.94 Lamp current: 1.20000 A Ignition voltage: 3.3 / 5.0 kVp Maximum permitted outer bulb temperature: 310 °C Lifespan B50: 28000 h Maximum permitted base edge temperature: 210 °C Lifespan B10: 20000 h Lifespan B5: 16000 h « hide more

€ 17,83 € 17,83 ex. VAT

NAV-E 250 W SUPER 4Y

Karta produktu PDF

Product code: 56393 Construction wattage [PICOS]: 255.00 W Nominal voltage: 100 V Nominal wattage: 250.00 W Rated luminous flux: 31600 lm Diameter: 91.0 mm Length: 226.0 mm Base (standard designation): E40 Dimmable: Yes Energy efficiency class: A+ Lamp mercury content: 24.0 mg see more »

Energy consumption: 281 kWh/1000h ILCOS: SE-250-H/E/SL-E40-91/226 Product weight: 177.00 g Rated LLMF at 4,000 h: 0.97 Rated LLMF at 6,000 h: 0.96 Rated LLMF at 8,000 h: 0.95 Rated lamp survival factor at 4,000 h: 0.99 Rated lamp survival factor at 8,000 h: 0.98 Rated LLMF at 12,000 h: 0.94 Rated lamp survival factor at 12,000 h: 0.97 Rated LLMF at 16,000 h: 0.94 Rated LLMF at 20,000 h: 0.94 Rated lamp survival factor at 16,000 h: 0.96 Rated lamp survival factor at 20,000 h: 0.95 Rated lamp efficacy (standard condition): 124 lm/W Rated LLMF at 2,000 h: 0.98 Lamp current: 2.95000 A Ignition voltage: 3.3 / 5.0 kVp Maximum permitted outer bulb temperature: 400 °C Lifespan B50: 32000 h Maximum permitted base edge temperature: 250 °C Lifespan B10: 24000 h Lifespan B5: 20000 h « hide more

€ 21,33 € 21,33 ex. VAT

NAV-E 400 W SUPER 4Y

Karta produktu PDF

Product code: 56395 Construction wattage [PICOS]: 410.00 W Nominal voltage: 105 V Nominal wattage: 400.00 W Rated luminous flux: 56500 lm Diameter: 122.0 mm Length: 290.0 mm Base (standard designation): E40 Dimmable: Yes Energy efficiency class: A++ Lamp mercury content: 24.0 mg see more »

Energy consumption: 451 kWh/1000h ILCOS: SE-400-H/E/SL-E40-122/290 Product weight: 303.00 g Rated LLMF at 4,000 h: 0.97 Rated LLMF at 6,000 h: 0.96 Rated LLMF at 8,000 h: 0.95 Rated lamp survival factor at 4,000 h: 0.99 Rated lamp survival factor at 8,000 h: 0.98 Rated LLMF at 12,000 h: 0.94 Rated lamp survival factor at 12,000 h: 0.97 Rated LLMF at 16,000 h: 0.94 Rated LLMF at 20,000 h: 0.94 Rated lamp survival factor at 16,000 h: 0.96 Rated lamp survival factor at 20,000 h: 0.95 Rated lamp efficacy (standard condition): 138 lm/W Rated LLMF at 2,000 h: 0.98 Lamp current: 4.42000 A Ignition voltage: 3.3 / 5.0 kVp Maximum permitted outer bulb temperature: 400 °C Lifespan B50: 32000 h Maximum permitted base edge temperature: 250 °C Lifespan B10: 24000 h Lifespan B5: 20000 h « hide more

€ 22,78 € 22,78 ex. VAT

Description / FAQ Warranty

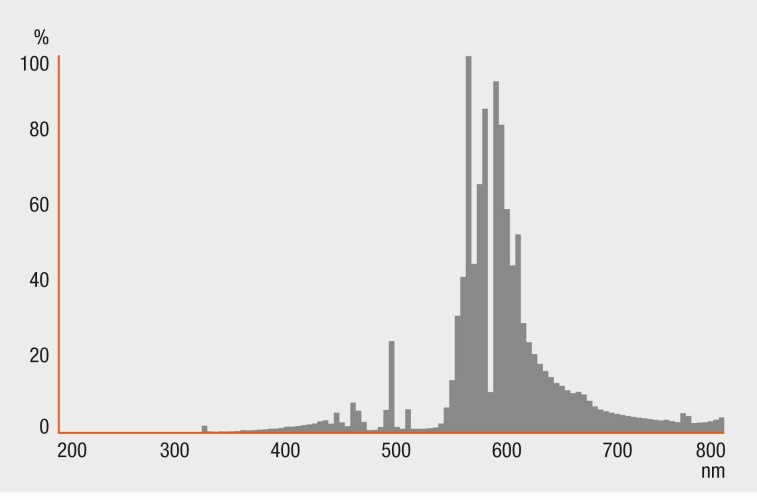

Photometrical data
Color temperature	2000 K
Color rendering index Ra	≤25
Lifespan
Rated lamp survival factor at 2,000 h	0.99
Rated lamp survival factor at 6,000 h	0.98
Operation mode LLMF/LSF	50 Hz
Additional product data
Design / version	Coated
Product remark	Important: Before replacing for NAV Standard lamps in existing installations, check that the igniters are suitable
System guarantee level	3 (2/5)
Capabilities
Burning position	Any
Enclosed luminaire required	No

Product benefits

Long life time
Very high luminous efficacy
Very good luminous flux maintenance throughout the life of the lamp
Energy savings of up to 50 % when replacing inefficient mercury vapor lamps (HQL)
Optimum energy efficiency on POWERTRONIC PTo 3DIM ECGs
Dimmable on conventional control gears and electronic control gears

Areas of application

Streets
Outdoor lighting
Industrial installations
Suitable for use in open and enclosed luminaires
Outdoor applications only in suitable luminaires

Product features

Lamp survival factor: 95 % after 16,000 hours burning time
Average lifetime: up to 32,000 hours
Lamp maintenance factor: ≥ 80 % after 16,000 h burning time (according to DIN 13201)
ErP compliant according to EU Directive 245/2009
Service lifetime: 4 years (at approx. 11 h/day)
