Sodium Lamp VIALOX NAV-E Sodium Lamps

From € 10,46 incl. VAT
From € 10,46 ex. VAT

See variants (2)

Color temperature 2000 K
Rated lamp survival factor at 4,000 h 0.98
Design / version Coated
Burning position Any
Enclosed luminaire required No
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

rate product

Select your product from the 2

NAV-E 70 W/E E27

Karta produktu PDF

Product code: 56396 Construction wattage [PICOS]: 70.00 W Nominal voltage: 90 V Nominal wattage: 70.00 W Rated luminous flux: 5900 lm Diameter: 71.0 mm Length: 156.0 mm Base (standard designation): E27 Dimmable: Yes Energy efficiency class: A Color rendering index Ra: ≤ 25 see more »

Lamp mercury content: 19.0 mg Energy consumption: 77 kWh/1000h ILCOS: SE-70-H/E/SL-E27-71/156 Product weight: 56.00 g Luminous flux: 5600 lm Rated LLMF at 4,000 h: 0.86 Rated LLMF at 6,000 h: 0.83 Rated LLMF at 8,000 h: 0.82 Rated lamp survival factor at 2,000 h: 0.98 Rated lamp survival factor at 6,000 h: 0.97 Operation mode LLMF/LSF: 50 Hz Rated lamp survival factor at 8,000 h: 0.96 Rated LLMF at 12,000 h: 0.81 Rated lamp survival factor at 12,000 h: 0.95 Rated LLMF at 16,000 h: 0.81 Rated LLMF at 20,000 h: 0.80 Rated lamp survival factor at 16,000 h: 0.85 Rated lamp survival factor at 20,000 h: 0.75 Rated lamp efficacy (standard condition): 84 lm/W Rated LLMF at 2,000 h: 0.92 Lamp current: 0.98000 A Ignition voltage: 1.8 / 5.0 kVp Maximum permitted outer bulb temperature: 310 °C Lifespan B50: 24000 h Maximum permitted base edge temperature: 210 °C Lifespan B10: 14000 h Lifespan B5: 12000 h « hide more

€ 10,46 € 10,46 ex. VAT

NAV-E 50 W/E E27

Karta produktu PDF

Product code: 56957 Nominal voltage: 85 V Nominal wattage: 50.00 W Color temperature: 2000 K Rated luminous flux: 3600 lm Diameter: 71.0 mm Length: 156.0 mm Base (standard designation): E27 Dimmable: Yes Energy efficiency class: A Color rendering index Ra: ≤25 see more »

Lamp mercury content: 19.0 mg Energy consumption: 55 kWh/1000h ILCOS: SE-50-H/E/SL-E27-71/156 Product weight: 52.00 g Design / version: Coated Luminous flux: 3500 lm Burning position: Any Rated LLMF at 4,000 h: 0.89 Rated LLMF at 6,000 h: 0.84 Rated LLMF at 8,000 h: 0.83 Rated lamp survival factor at 2,000 h: 0.99 Rated lamp survival factor at 4,000 h: 0.98 Rated lamp survival factor at 6,000 h: 0.97 Operation mode LLMF/LSF: 50 Hz Rated lamp survival factor at 8,000 h: 0.96 Rated LLMF at 12,000 h: 0.82 Rated lamp survival factor at 12,000 h: 0.91 Rated LLMF at 16,000 h: 0.81 Rated LLMF at 20,000 h: 0.80 Rated lamp survival factor at 16,000 h: 0.85 Rated lamp survival factor at 20,000 h: 0.75 Rated lamp efficacy (standard condition): 72 lm/W Rated LLMF at 2,000 h: 0.91 Lamp current: 0.77000 A Ignition voltage: 1.8 / 5.0 kVp Maximum permitted outer bulb temperature: 310 °C Lifespan B50: 24000 h Enclosed luminaire required: No Maximum permitted base edge temperature: 210 °C Lifespan B10: 13000 h Lifespan B5: 9000 h Rated wattage: 50.00 W « hide more

€ 11,67 € 11,67 ex. VAT

Description / FAQ Warranty

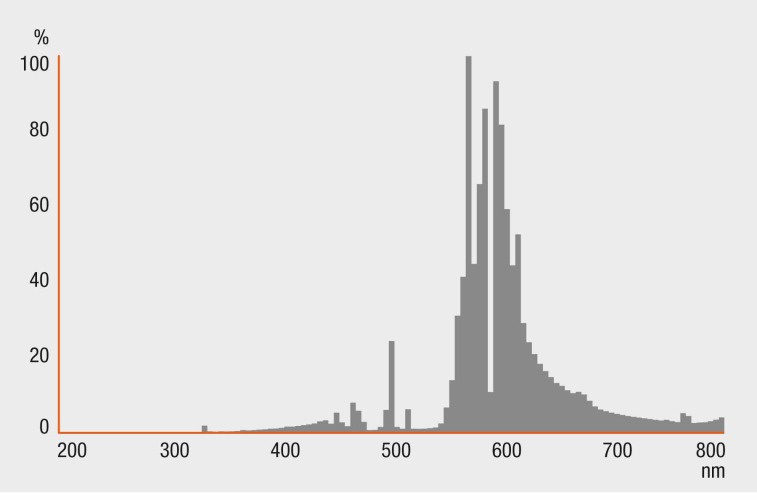

Photometrical data
Color temperature	2000 K
Lifespan
Rated lamp survival factor at 4,000 h	0.98
Additional product data
Design / version	Coated
Capabilities
Burning position	Any
Enclosed luminaire required	No

Product benefits

High luminous efficacy

Areas of application

Streets
Outdoor lighting
Industrial installations
Suitable for use in open and enclosed luminaires
Outdoor applications only in suitable luminaires

Product features

Service lifetime: 3 years (at approx. 11 h/day)
Average lifetime: up to 24,000 hours
ErP compliant according to EU Directive 245/2009
