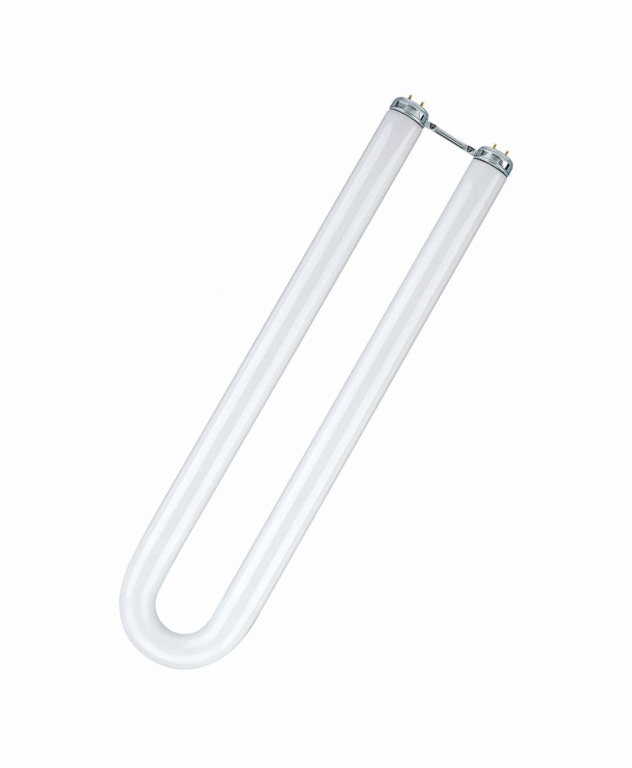

COMPANY New products Delivery

Fluorescent Lamp U-shaped T8 Speciality Fluorrescent Lamps

From € 14,75 incl. VAT
From € 14,75 ex. VAT
See variants (6)
  • Rated lamp efficacy (HF data 25 °C) Under clarification by authority and standardization body
  • Color rendering index Ra 80…89
  • Rated LLMF at 4,000 h 0.84
  • Rated LLMF at 6,000 h 0.80
  • Rated LLMF at 8,000 h 0.76
  • Rated LLMF at 12,000 h 0.70
  • Rated LLMF at 2,000 h 0.88
  • Diameter 26.0 mm
  • Maximum diameter 26.0 mm
  • Tube diameter 26 mm
  • Nominal lamp life time 13000 h
  • Rated lamp life time 13000 h
  • ▼ see full specification ▼
Ask for product Description / FAQ / Warranty

Score

* * * * *

rate product

Select your product from the 6

L U 18 W/830
L U 18 W/830
Karta produktu PDF
Product code: 56913 Nominal wattage: 18.00 W Color temperature: 3000 K Nominal luminous flux: 1350 lm Rated luminous flux: 1350 lm Diameter: 26.0 mm Length: 310.0 mm Nominal lamp life time: 13000 h Rated lamp life time: 13000 h Base (standard designation): 2G13 Appropriate disposal acc. to WEEE: Yes see more »
Energy efficiency class: A Color rendering index Ra: 80…89 Maximum diameter: 26.0 mm Lamp mercury content: 8.0 mg Energy consumption: 23 kWh/1000h Tube diameter: 26 mm Lifespan: 13000 h Light color: 830 Luminous flux at 25 °C: 1350 lm Rated LLMF at 4,000 h: 0.84 Rated LLMF at 6,000 h: 0.80 Rated LLMF at 8,000 h: 0.76 Rated lamp survival factor at 2,000 h: 0.99 Rated lamp survival factor at 4,000 h: 0.98 Rated lamp survival factor at 6,000 h: 0.96 Service life: 5000 h Operation mode LLMF/LSF: 50 Hz Rated lamp survival factor at 8,000 h: 0.94 Suitable for indoor: Yes Rated LLMF at 12,000 h: 0.70 Rated lamp survival factor at 12,000 h: 0.65 Length with base excl. base pins/connection: 310.00 mm Rated ambient temp.w.max.luminous flux: 25.0 °C Rated lamp efficacy (HF data 25 °C): Under clarification by authority and standardization body Rated lamp efficacy (standard condition): 75 lm/W Rated LLMF at 2,000 h: 0.88 Rated wattage: 18.00 W « hide more
€ 14,75 € 14,75 ex. VAT
pc(s)
pc(s)
L U 18 W/840
L U 18 W/840
Karta produktu PDF
Product code: 56226 Construction wattage [PICOS]: 18.00 W Nominal wattage: 18.00 W Color temperature: 4000 K Nominal luminous flux: 1350 lm Rated luminous flux: 1350 lm Length: 310.0 mm New article: NEW Lamp mercury content: 8.0 mg Energy consumption: 23 kWh/1000h Light color: 840 see more »
Luminous flux at 25 °C: 1350 lm Length with base excl. base pins/connection: 310.00 mm Rated lamp efficacy (standard condition): 75 lm/W « hide more
€ 14,75 € 14,75 ex. VAT
pc(s)
pc(s)
L U 36 W/830
L U 36 W/830
Karta produktu PDF
Product code: 56268 Construction wattage [PICOS]: 36.60 W Nominal wattage: 36.00 W Color temperature: 3000 K Nominal luminous flux: 3350 lm Rated luminous flux: 3350 lm Length: 607.0 mm Lamp mercury content: 8.0 mg Energy consumption: 41 kWh/1000h Light color: 830 Luminous flux at 25 °C: 3550 lm Length with base excl. base pins/connection: 607.00 mm Rated lamp efficacy (standard condition): 93 lm/W
€ 15,25 € 15,25 ex. VAT
pc(s)
pc(s)
L U 36 W/840
L U 36 W/840
Karta produktu PDF
Product code: 56271 Construction wattage [PICOS]: 36.60 W Nominal wattage: 36.00 W Color temperature: 4000 K Nominal luminous flux: 3350 lm Rated luminous flux: 3350 lm Length: 607.0 mm New article: NEW Lamp mercury content: 8.0 mg Energy consumption: 41 kWh/1000h Light color: 840 see more »
Luminous flux at 25 °C: 3350 lm Length with base excl. base pins/connection: 607.00 mm Rated lamp efficacy (standard condition): 93 lm/W « hide more
€ 15,25 € 15,25 ex. VAT
pc(s)
pc(s)
L U 58 W/830
L U 58 W/830
Karta produktu PDF
Product code: 56299 Construction wattage [PICOS]: 58.40 W Nominal wattage: 58.00 W Color temperature: 3000 K Nominal luminous flux: 5250 lm Rated luminous flux: 5250 lm Length: 765.0 mm Lamp mercury content: 12.0 mg Energy consumption: 65 kWh/1000h Light color: 830 Luminous flux at 25 °C: 5250 lm Length with base excl. base pins/connection: 765.00 mm Rated lamp efficacy (standard condition): 90 lm/W
€ 15,75 € 15,75 ex. VAT
pc(s)
pc(s)
L U 58 W/840
L U 58 W/840
Karta produktu PDF
Product code: 56302 Construction wattage [PICOS]: 58.40 W Nominal wattage: 58.00 W Color temperature: 4000 K Nominal luminous flux: 5250 lm Rated luminous flux: 5250 lm Length: 765.0 mm Lamp mercury content: 12.0 mg Energy consumption: 65 kWh/1000h Light color: 840 Luminous flux at 25 °C: 5250 lm Length with base excl. base pins/connection: 765.00 mm Rated lamp efficacy (standard condition): 90 lm/W
€ 15,75 € 15,75 ex. VAT
pc(s)
pc(s)

Electrical data
Rated lamp efficacy (HF data 25 °C) Under clarification by authority and standardization body

Photometrical data
Color rendering index Ra 80…89
Rated LLMF at 4,000 h 0.84
Rated LLMF at 6,000 h 0.80
Rated LLMF at 8,000 h 0.76
Rated LLMF at 12,000 h 0.70
Rated LLMF at 2,000 h 0.88

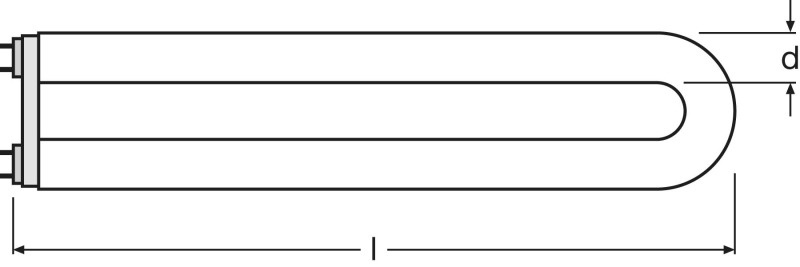

Dimensions & weight
Diameter 26.0 mm
Maximum diameter 26.0 mm
Tube diameter 26 mm

Lifespan
Nominal lamp life time 13000 h
Rated lamp life time 13000 h
Lifespan 13000 h
Rated lamp survival factor at 2,000 h 0.99
Rated lamp survival factor at 4,000 h 0.98
Rated lamp survival factor at 6,000 h 0.96
Service life 5000 h
Operation mode LLMF/LSF 50 Hz
Rated lamp survival factor at 8,000 h 0.94
Rated lamp survival factor at 12,000 h 0.65

Additional product data

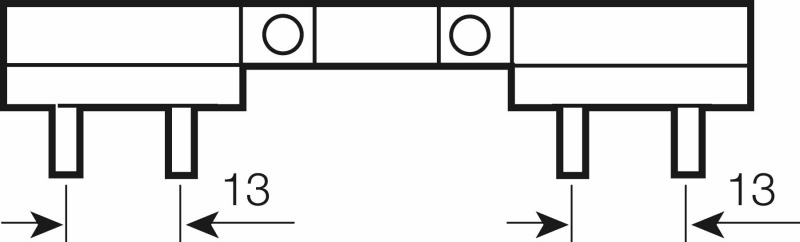

Base (standard designation) 2G13
Appropriate disposal acc. to WEEE Yes

Capabilities
Suitable for indoor Yes

Certificates & standards
Energy efficiency class A

Temperatures
Rated ambient temp.w.max.luminous flux 25.0 °C

Product benefits

  • Extremely economical
  • Good quality of light
  • Excellent luminous flux

Areas of application

  • Street lighting, city lighting
  • Industry

Product features

  • Good color rendering group: 1B (Ra: 80…89)
  • Good average lifetime
  • Double-ended U-shaped fluorescent lamp

Equipment / Accessories

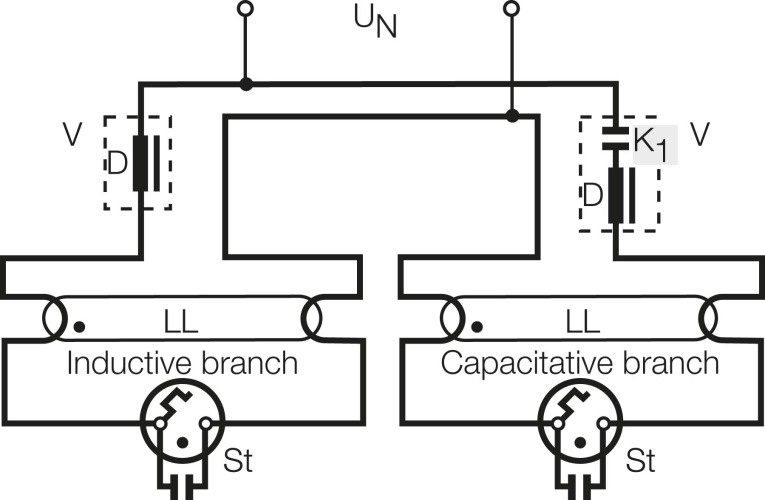

  • Suitable for operation on electronic and conventional control gears

Safety advice
In case of lamp breakage: www.osram.com/brokenlamp

System guarantee
OSRAM System+ Guarantee in  combination with OSRAM ECGs
