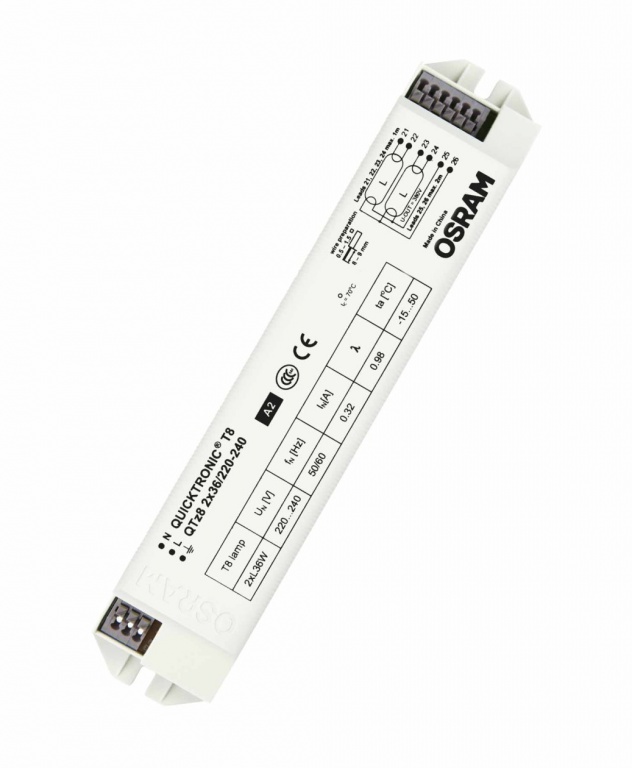

QUICKTRONIC QTz8 Fluorescent Electronic Gear

From € 9,14 incl. VAT
From € 9,14 ex. VAT
See variants (5)
  • Nominal voltage 220…240 V
  • Operating frequency 30…45 kHz
  • Mains frequency 50/60 Hz
  • Width 40.0 mm
  • Suitable for fixtures with prot. class I
  • Approval marks – approval CE / CQC
  • Type of protection IP20
  • EEI – Energy Label A2
  • Ambient temperature range -15…+50 °C
  • ▼ see full specification ▼

Select your product from the 5

 QTz8 1X18
Product code: 57108 Nominal voltage: 220…240 V Operating frequency: 30…45 kHz Length: 150.0 mm Mains frequency: 50/60 Hz Width: 40.0 mm Height: 28.0 mm Mounting hole spacing, length: 140.0 mm Product weight: 100.00 g Ambient temperature range: -15…+50 °C Suitable for fixtures with prot. class: I see more »
Approval marks – approval: CE / CQC Type of protection: IP20 EEI – Energy Label: A2 « hide more
€ 9,14 € 9,14 ex. VAT
pc(s)
pc(s)
 QTz8 1X36
Product code: 56548 Length: 150.0 mm Height: 28.0 mm Mounting hole spacing, length: 140.0 mm Product weight: 100.00 g Protection class: I
€ 9,14 € 9,14 ex. VAT
pc(s)
pc(s)
 QTz8 2X18
Product code: 56549 Length: 150.0 mm Height: 28.0 mm Mounting hole spacing, length: 140.0 mm Product weight: 105.00 g Protection class: I
€ 10,46 € 10,46 ex. VAT
pc(s)
pc(s)
 QTz8 2X36
Product code: 56550 Length: 210.0 mm Height: 30.0 mm Mounting hole spacing, length: 200.0 mm Product weight: 155.00 g Protection class: I
€ 10,46 € 10,46 ex. VAT
pc(s)
pc(s)
 QTz8 4X18
Product code: 56552 Length: 210.0 mm Height: 30.0 mm Mounting hole spacing, length: 200.0 mm Product weight: 150.00 g Protection class: II
€ 11,76 € 11,76 ex. VAT
pc(s)
pc(s)

Electrical data

Nominal voltage 220…240 V
Operating frequency 30…45 kHz
Mains frequency 50/60 Hz

Dimensions & weight

Width 40.0 mm

Capabilities

Suitable for fixtures with prot. class I

Certificates & standards

Approval marks – approval CE / CQC
Type of protection IP20
EEI – Energy Label A2

Temperatures

Ambient temperature range -15…+50 °C

Product benefits

  • Compact housing
  • Automatic restart after lamp replacement

Areas of application

  • Public buildings
  • Sports halls
  • Strip lighting
  • Suitable for luminaires of protection class I

Product features

  • Supply voltage: 220…240 V
  • Line voltage: 198…264 V
  • Line frequency: 50 Hz | 60 Hz
  • Energy Efficiency Index EEI: A2
