QUICKTRONIC PROFESSIONAL M ECG for CFL Fluorescent Electronic Gear

From € 17,39 incl. VAT
From € 17,39 ex. VAT
See variants (4)
  • Nominal voltage 220…240 V
  • Input voltage AC 198…264 V
  • Mains frequency 50…60 Hz
  • Starting time 1.0 s
  • Cable cross-section, input side 0.5…1.5 mm²
  • Cable cross-section, output side 0.5…1.5 mm²
  • ECG lifetime 50000 h
  • Suitable for fixtures with prot. class I / II
  • End of lamp life safety shutdown EOL T.2
  • Ambient temperature range -20…+50 °C
  • ▼ see full specification ▼

Select your product from the 4

 QT 1X18,2X18/220...240
Product code: 56546 Operating frequency: 40…50 kHz Length: 103.0 mm Max. no. of ECGs on circuit breaker 10 A: 17  Max. no. of ECGs on circuit breaker 16 A: 28  Width: 67.0 mm Height: 31.0 mm Mounting hole spacing, length: 94.0 mm Product weight: 149.00 g Approval marks – approval: VDE / VDE-EMC / ENEC 10 / GOST / RCM Standards: Acc. to EN 61347-2-3/Acc. to EN 60929/Acc. to EN 55015:2006 + A1:2007/Acc. to EN 61000-3-2/Acc. to EN 61547 see more »
Type of protection: IP20 Input voltage DC: 176…264 V EEI – Energy Label: A2 BAT Protection class: I/II « hide more
€ 17,39 € 17,39 ex. VAT
pc(s)
pc(s)
 QTP-T/E 1X26...42, 2X26
Product code: 56547 Operating frequency: 40…50 kHz Length: 103.0 mm Max. no. of ECGs on circuit breaker 10 A: 17  Max. no. of ECGs on circuit breaker 16 A: 28  Width: 67.0 mm Height: 31.0 mm Mounting hole spacing, length: 94.0 mm Mounting hole spacing, width: 57.0 mm Product weight: 148.50 g Approval marks – approval: VDE / ENEC 10 / VDE-EMC / GOST / RCM see more »
Standards: Acc. to EN 61347-2-3/Acc. to EN 60929/Acc. to EN 55015:2006 + A1:2007/Acc. to EN 61000-3-2/Acc. to EN 61547 Type of protection: IP20 Input voltage DC: 176…276 V EEI – Energy Label: A2 BAT Protection class: I/II Product remark: Optional cable clamp, see chapter ECG mountings - cable clamp « hide more
€ 18,65 € 18,65 ex. VAT
pc(s)
pc(s)

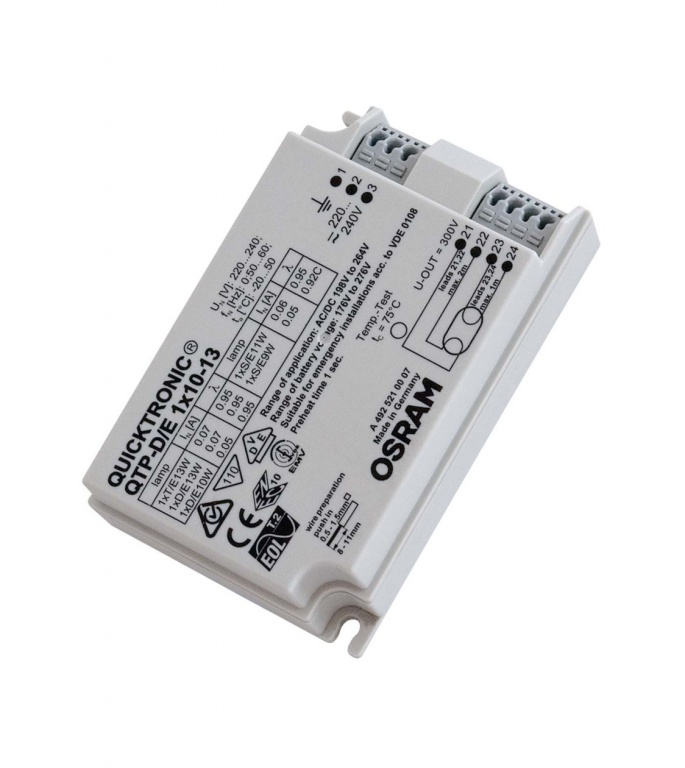

 QTP-D/E 1X10...13/220...240

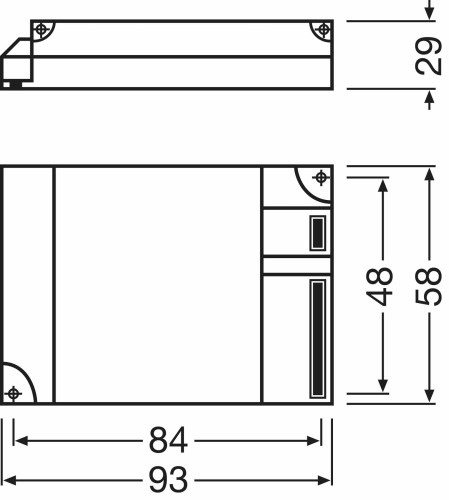

Product code: 56539 Operating frequency: 44 kHz  Length: 93.0 mm Inrush current: 7 A Max. no. of ECGs on circuit breaker 10 A: 25  Max. no. of ECGs on circuit breaker 16 A: 41  Width: 58.0 mm Height: 29.0 mm Mounting hole spacing, length: 84.0 mm Mounting hole spacing, width: 48.0 mm Product weight: 100.00 g see more »
Approval marks – approval: VDE / VDE-EMC / ENEC 10 / GOST / RCM Standards: acc. to EN 61347-2-3/acc. to EN 60929/acc. to EN 55015:2006 + A1:2007/acc. to EN 61000-3-2/acc. to EN 61547 Input voltage DC: 176…276 V  EEI – Energy Label: A2 Product remark: Optional cable clamp, see chapter ECG mountings - cable clamp « hide more
€ 22,20 € 22,20 ex. VAT
pc(s)
pc(s)
 QTP-D/E 2X10...13
Product code: 57036 Nominal voltage: 220…240 V Operating frequency: 44 kHz  Starting time: 1.0 s Length: 123.0 mm Input voltage AC: 198…264 V Mains frequency: 50…60 Hz Inrush current: 20 A Max. no. of ECGs on circuit breaker 10 A: 16  Max. no. of ECGs on circuit breaker 16 A: 28  Width: 79.0 mm see more »
Height: 33.0 mm Mounting hole spacing, length: 111.0 mm Mounting hole spacing, width: 67.0 mm Cable cross-section, input side: 0.5…1.5 mm² Product weight: 190.00 g Cable cross-section, output side: 0.5…1.5 mm² Ambient temperature range: -20…+50 °C ECG lifetime: 50000 h  Suitable for fixtures with prot. class: I / II Approval marks – approval: VDE / VDE-EMC / ENEC 10 / GOST / RCM Standards: acc. to EN 61347-2-3/acc. to EN 60929/acc. to EN 55015:2006 + A1:2007/acc. to EN 61000-3-2/acc. to EN 61547 Input voltage DC: 176…276 V  EEI – Energy Label: A2 End of lamp life safety shutdown: EOL T.2 Product remark: Optional cable clamp, see chapter ECG mountings - cable clamp « hide more
€ 24,78 € 24,78 ex. VAT
pc(s)
pc(s)

Electrical data

Nominal voltage 220…240 V
Input voltage AC 198…264 V
Mains frequency 50…60 Hz

Light technical data

Starting time 1.0 s

Dimensions & weight

Cable cross-section, input side 0.5…1.5 mm²
Cable cross-section, output side 0.5…1.5 mm²

Lifespan

ECG lifetime 50000 h

Capabilities

Suitable for fixtures with prot. class I / II
End of lamp life safety shutdown EOL T.2

Temperatures

Ambient temperature range -20…+50 °C

Product benefits

  • Long lamp life
  • No adverse effect from frequent on/off switching
  • Automatic restart after lamp replacement
  • Perfect lamp start for applications with motion sensors
  • Separate installations thanks to optional cable clamp for K2 and K3 casings
  • VDE/VDE EMC certified system

Areas of application

  • Emergency lighting systems acc. to EN 50172 / DIN VDE 0108-100
  • Public buildings
  • Sports halls and factories
  • Suitable for luminaires of protection class I

Product features

  • Supply voltage: 220…240 V
  • Line voltage: 198…264 V
  • Line frequency: 0 Hz | 50 Hz | 60 Hz
  • Lamp start with optimum filament preheating
  • Energy Efficiency Index EEI: A2
  • Automatic shutdown of defective lamps and at end of life (EoL T.2)
  • Lamp operation: to EN 60929
  • Safety: to EN 61347-2-3
