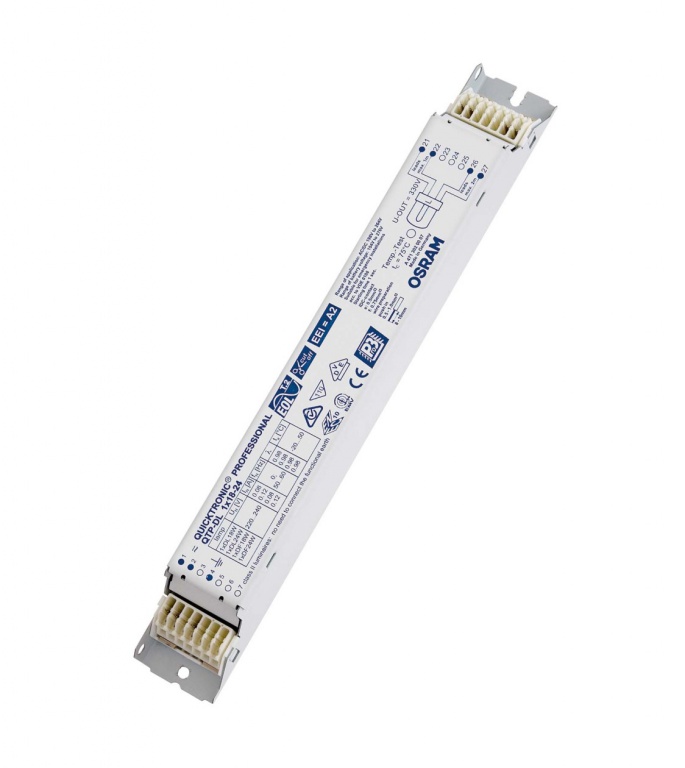

QUICKTRONIC PROFESSIONAL DL ECG for CFL Fluorescent Electronic Gear

Price € 25,60 € 25,60 ex. VAT

See variants (2)

Nominal voltage 220240 V
Mains frequency 5060 Hz
ECG lifetime 50000 h
Suitable for fixtures with prot. class I / II
End of lamp life safety shutdown EOL T.2
Approval marks approval VDE / VDE-EMC / ENEC 10 / GOST / RCM
Standards acc. to EN 61347-2-3/acc. to EN 60929/acc. to EN 55015:2006 + A1:2007/acc. to EN 61000-3-2/acc. to EN 61547
Type of protection IP20
Ambient temperature range -20+50 °C
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

rate product

Select your product from the 2

QTP-DL 2X36...40

Karta produktu PDF

Product code: 56542 Operating frequency: 4550 kHz Starting time: 1.0 s Length: 280.0 mm Input voltage AC: 198264 V Inrush current: 23 A Max. no. of ECGs on circuit breaker 10 A: 12 Max. no. of ECGs on circuit breaker 16 A: 19 Width: 40.0 mm Height: 28.0 mm Mounting hole spacing, length: 270.0 mm see more »

Product weight: 290.00 g Input voltage DC: 154276 V EEI Energy Label: A2 BAT « hide more

€ 25,60 € 25,60 ex. VAT

QTP-DL 2X55 GII

Karta produktu PDF

Product code: 56543 Operating frequency: 4050 kHz Starting time: 1.0 s Length: 360.0 mm Input voltage AC: 198264 V Inrush current: 28 A Max. no. of ECGs on circuit breaker 10 A: 8 Max. no. of ECGs on circuit breaker 16 A: 13 Width: 30.0 mm Height: 21.0 mm Mounting hole spacing, length: 350.0 mm see more »

Product weight: 265.00 g Input voltage DC: 176276 V EEI Energy Label: A2 BAT « hide more

€ 25,60 € 25,60 ex. VAT

Description / FAQ Warranty

Electrical data
Nominal voltage	220240 V
Mains frequency	5060 Hz
Lifespan
ECG lifetime	50000 h
Capabilities
Suitable for fixtures with prot. class	I / II
End of lamp life safety shutdown	EOL T.2
Certificates & standards
Approval marks approval	VDE / VDE-EMC / ENEC 10 / GOST / RCM
Standards	acc. to EN 61347-2-3/acc. to EN 60929/acc. to EN 55015:2006 + A1:2007/acc. to EN 61000-3-2/acc. to EN 61547
Type of protection	IP20
Temperatures
Ambient temperature range	-20+50 °C

Product benefits

Long lamp life
No adverse effect from frequent on/off switching
Automatic restart after lamp replacement
Perfect lamp start for applications with motion sensors
VDE/VDE EMC certified system
Very high energy efficiency due to cut-off technology

Areas of application

Emergency lighting systems acc. to EN 50172 / DIN VDE 0108-100
Open-plan offices, corridors and storage rooms
Public buildings
Suitable for luminaires of protection classes I and II

Product features

Supply voltage: 220…240 V
Line voltage: 198…264 V
Line frequency: 0 Hz | 50 Hz | 60 Hz
Lamp start with optimum filament preheating
Energy Efficiency Index EEI: A2 BAT
Automatic shutdown of defective lamps and at end of life (EoL T.2)
Lamp operation: to EN 60929
Safety: to EN 61347-2-3
