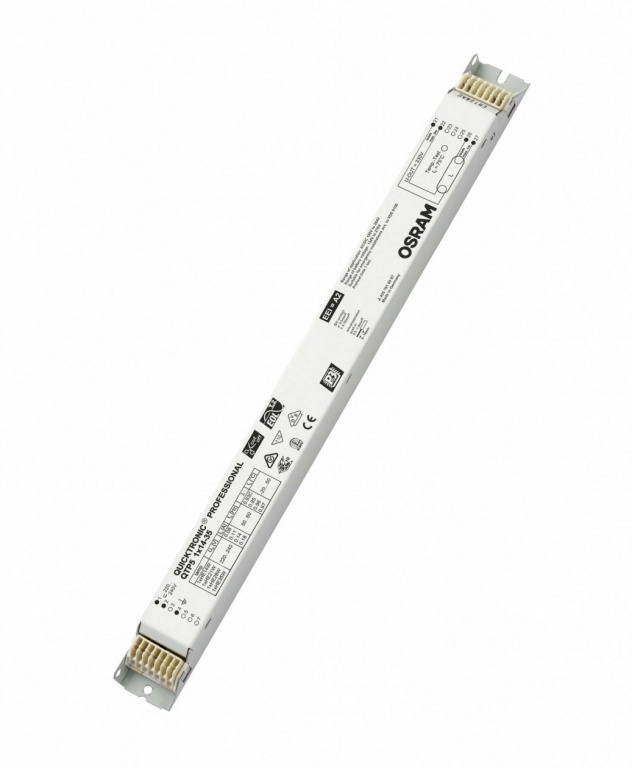

QUICKTRONIC PROFESSIONAL 5 ECG for FL 16mm Zoom in Fluorescent Electronic Gear

From € 13,28 incl. VAT
From € 13,28 ex. VAT
See variants (6)
  • Nominal voltage 220…240 V
  • Operating frequency 40…50 kHz
  • Mains frequency 50…60 Hz
  • Input voltage DC 176…276 V
  • Height 21.0 mm
  • ECG lifetime 100000 h
  • Suitable for fixtures with prot. class I / II
  • End of lamp life safety shutdown EOL T.2
  • EEI – Energy Label A2 BAT
  • Ambient temperature range -20…+50 °C
  • ▼ see full specification ▼

Select your product from the 6

 QTP5 1X14...35

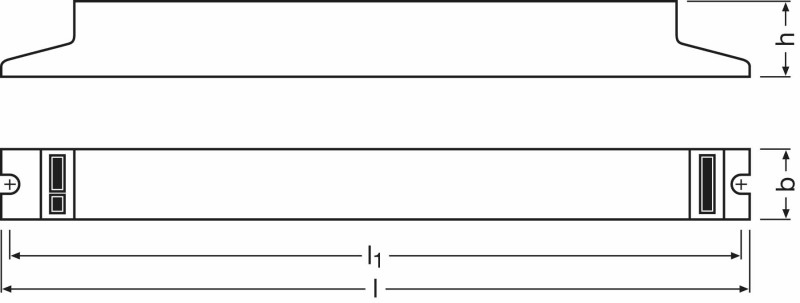

Product code: 56524 Starting time: 1.0 s  Length: 280.0 mm Input voltage AC: 198…264 V Inrush current: 24 A Max. no. of ECGs on circuit breaker 10 A: 17  Max. no. of ECGs on circuit breaker 16 A: 28  Width: 30.0 mm Mounting hole spacing, length: 270.0 mm Product weight: 171.00 g Approval marks – approval: VDE / VDE-EMC / CE / ENEC 10 Standards: acc. to EN 61347-2-3/acc. to EN 60929/acc. to EN 55015:2006 + A1:2007/acc. to EN 61000-3-2/acc. to EN 61547
€ 13,28 € 13,28 ex. VAT
pc(s)
pc(s)
 QTP5 1X49
Product code: 56525 Starting time: 1.0 s  Length: 280.0 mm Input voltage AC: 198…264 V Inrush current: 24 A Max. no. of ECGs on circuit breaker 10 A: 17  Max. no. of ECGs on circuit breaker 16 A: 28  Width: 30.0 mm Mounting hole spacing, length: 270.0 mm Product weight: 168.50 g Approval marks – approval: VDE / VDE-EMC / ENEC 10 / CE Standards: acc. to EN 61347-2-3/acc. to EN 60929/acc. to EN 55015:2006 + A1:2007/acc. to EN 61000-3-2/acc. to EN 61547
€ 13,28 € 13,28 ex. VAT
pc(s)
pc(s)
 QTP5 1X80
Product code: 56527 Starting time: 1.0 s  Length: 360.0 mm Input voltage AC: 198…264 V Inrush current: 40 A Max. no. of ECGs on circuit breaker 10 A: 12  Max. no. of ECGs on circuit breaker 16 A: 19  Width: 30.0 mm Mounting hole spacing, length: 350.0 mm Product weight: 235.50 g Approval marks – approval: VDE / VDE-EMC / ENEC 10 / CE Standards: acc. to EN 61347-2-3/acc. to EN 60929/acc. to EN 55015:2006 + A1:2007/acc. to EN 61000-3-2/acc. to EN 61547
€ 15,46 € 15,46 ex. VAT
pc(s)
pc(s)
 QTP5 2X14...35
Product code: 56528 Starting time: 1.0 s  Length: 360.0 mm Input voltage AC: 198…264 V Inrush current: 24 A Max. no. of ECGs on circuit breaker 10 A: 12  Max. no. of ECGs on circuit breaker 16 A: 19  Width: 30.0 mm Mounting hole spacing, length: 350.0 mm Product weight: 234.00 g Approval marks – approval: VDE / VDE-EMC / CE / ENEC 10 Standards: acc. to EN 61347-2-3/acc. to EN 60929/acc. to EN 55015:2006 + A1:2007/acc. to EN 61000-3-2/acc. to EN 61547
€ 16,18 € 16,18 ex. VAT
pc(s)
pc(s)
 QTP5 2X49
Product code: 56530 Starting time: 1.0 s  Length: 360.0 mm Input voltage AC: 198…264 V Inrush current: 53 A Max. no. of ECGs on circuit breaker 10 A: Max. no. of ECGs on circuit breaker 16 A: 13  Width: 30.0 mm Mounting hole spacing, length: 350.0 mm Product weight: 240.00 g Approval marks – approval: VDE / VDE-EMC / ENEC 10 / CE Standards: acc. to EN 61347-2-3/acc. to EN 60929/acc. to EN 55015:2006 + A1:2007/acc. to EN 61000-3-2/acc. to EN 61547
€ 16,18 € 16,18 ex. VAT
pc(s)
pc(s)

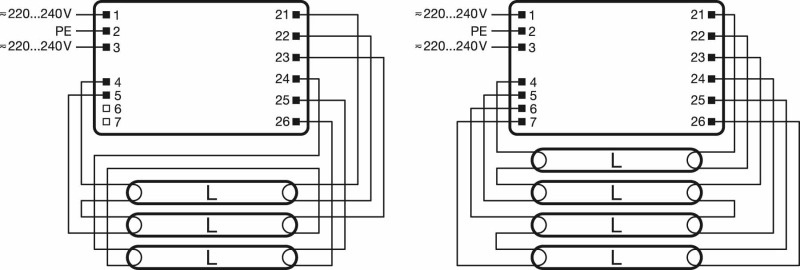

 QTP5 3X14,4X14
Product code: 56532 Starting time: 1.0 s  Length: 280.0 mm Inrush current: 40 A Max. no. of ECGs on circuit breaker 10 A: 12  Max. no. of ECGs on circuit breaker 16 A: 19  Width: 40.0 mm Mounting hole spacing, length: 270.0 mm Product weight: 211.00 g Approval marks – approval: VDE / VDE-EMC / ENEC 10 / CE Standards: Acc. to EN 61347-2-3/Acc. to EN 55015:2006 + A1:2007/Acc. to EN 61000-3-2/Acc. to EN 61547 Type of protection: IP20 Protection class: I/II
€ 16,67 € 16,67 ex. VAT
pc(s)
pc(s)

Electrical data

Nominal voltage 220…240 V
Operating frequency 40…50 kHz
Mains frequency 50…60 Hz
Input voltage DC 176…276 V

Dimensions & weight

Height 21.0 mm

Lifespan

ECG lifetime 100000 h

Capabilities

Suitable for fixtures with prot. class I / II
End of lamp life safety shutdown EOL T.2

Certificates & standards

EEI – Energy Label A2 BAT

Temperatures

Ambient temperature range -20…+50 °C

Product benefits

  • Long lamp life
  • No adverse effect from frequent on/off switching
  • Perfect lamp start for applications with motion sensors
  • Automatic restart after lamp replacement
  • VDE/VDE EMC certified system
  • Very high energy efficiency due to cut-off technology

Areas of application

  • Emergency lighting systems acc. to EN 50172 / DIN VDE 0108-100
  • Industry
  • Open-plan offices, corridors and storage rooms
  • Public buildings
  • Sports halls and factories
  • Strip lighting
  •  Suitable for emergency lighting (DC operation)
  • Modernization of existing systems

Product features

  • Supply voltage: 220…240 V
  • Line voltage: 198…264 V
  • Line frequency: 0 Hz, 50 Hz…60 Hz
  • Lamp start with optimum filament preheating
  • Lifetime: up to 100,000 h (temperature at Tc = 65 °C, max. 10 % failure rate)
  • Energy Efficiency Index EEI: A2 BAT
  • Automatic shutdown of defective lamps and at end of life (EoL T.2)
  • Safety: to EN 61347-2-3
  • Lamp operation: to EN 60929
