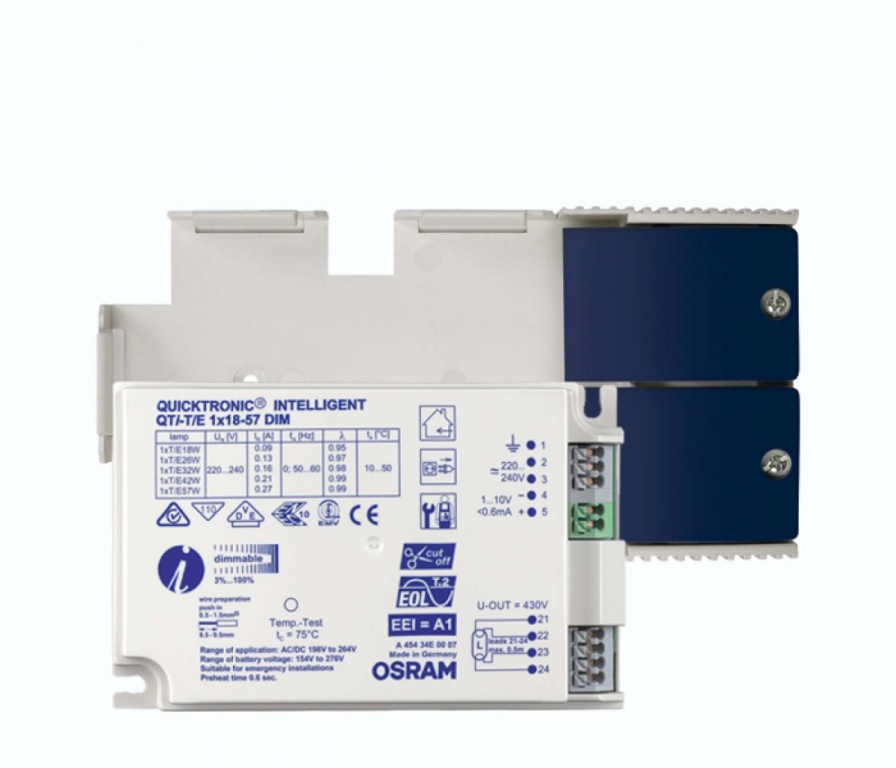

QUICKTRONIC INTELLIGENT DIM CFL Fluorescent Electronic Gear

From € 51,93 incl. VAT
From € 51,93 ex. VAT
See variants (2)
  • Nominal voltage 220…240 V
  • Operating frequency 42…140 kHz
  • Mains frequency 50…60 Hz
  • Inrush current 45 A
  • Max. no. of ECGs on circuit breaker 10 A 8
  • Max. no. of ECGs on circuit breaker 16 A 13
  • Input voltage DC 154…276 V
  • Starting time 0.6 s
  • Length 123.0 mm
  • Width 79.0 mm
  • Height 33.0 mm
  • Mounting hole spacing, length 111.0 mm
  • ▼ see full specification ▼
Ask for product Description / FAQ / Warranty

Score

* * * * *

rate product

Select your product from the 2

QUICKTRONIC INTELLIGENT DIM CFL 1X18...57/220...240 DIM
QUICKTRONIC INTELLIGENT DIM CFL 1X18...57/220...240 DIM
Karta produktu PDF
Product code: 57035
€ 51,93 € 51,93 ex. VAT
pc(s)
pc(s)

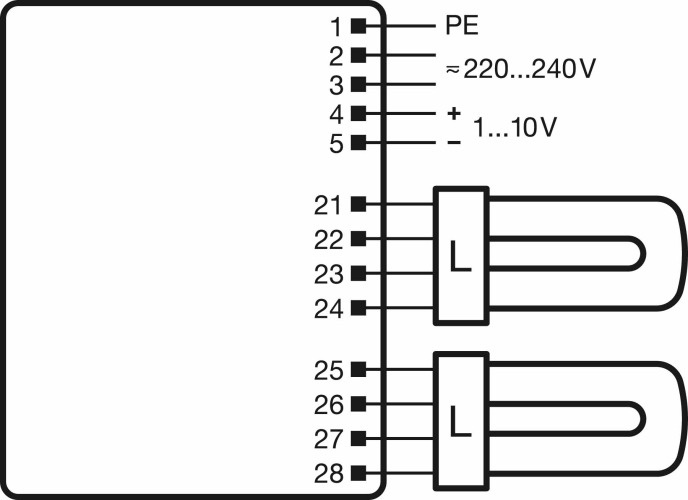

QUICKTRONIC INTELLIGENT DIM CFL 2X18...42/220...240 DIM
QUICKTRONIC INTELLIGENT DIM CFL 2X18...42/220...240 DIM
Karta produktu PDF
Product code: 56522
€ 58,69 € 58,69 ex. VAT
pc(s)
pc(s)

Electrical data
Nominal voltage 220…240 V
Operating frequency 42…140 kHz
Mains frequency 50…60 Hz
Inrush current 45 A
Max. no. of ECGs on circuit breaker 10 A 8
Max. no. of ECGs on circuit breaker 16 A 13
Input voltage DC 154…276 V

Light technical data
Starting time 0.6 s

Dimensions & weight
Length 123.0 mm
Width 79.0 mm
Height 33.0 mm
Mounting hole spacing, length 111.0 mm
Product weight 250.00 g
Wire preparation length, input side 8.5…9.5 mm
Wire preparation length, output side 8.5…9.5 mm

Lifespan
ECG lifetime 100000 h

Additional product data
Product remark Optional cable clamp, see chapter ECG mountings - cable clamp

Capabilities
Dimmable Yes
Suitable for fixtures with prot. class I
Dimming interface 1…10 V
Dimming range 3…100 %
End of lamp life safety shutdown EOL T.2

Certificates & standards
Approval marks – approval VDE / VDE-EMC / ENEC 10 / EL / GOST / RCM / CCC
Standards acc. to EN 61347-2-3/acc. to EN 60929/acc. to EN 55015:2006 + A1:2007/acc. to EN 61000-3-2/acc. to EN 61547
Type of protection IP20
EEI – Energy Label A1 BAT
Protection class I

Temperatures
Ambient temperature range -10…+50 °C

Product benefits

  • Same luminous flux with direct and alternating current
  • Perfect lamp start for applications with motion sensors
  • Dimming of amalgam lamps without flickering or reduced lifespan
  • Very high efficiency thanks to cut-off technology
  • Automatic restart after lamp replacement
  • ECGs comply with MINERGIE standard due to very low standby consumption
  • Configurable emergency power characteristics

Areas of application

  • Suitable for use in emergency lighting  systems as per EN 50172/DIN VDE 0108-100
  • Installation in emergency lighting systems according to IEC 61347-2-3, appendix J
  • Industry
  • Open-plan offices, corridors and storage rooms
  • Public buildings
  • Suitable for luminaires of protection class I

Product features

  • Control via 1…10 V interface
  • Supply voltage: 220…240 V
  • Line frequency: 0 Hz | 50 Hz | 60 Hz
  • Line voltage: 198…264 V
  • Dimming range: 3…100 % luminous flux
  • Lamp start: within 0.6 s
  • Lifetime: > 100,000 h (for T = 65 °C at Tc)
  • Automatic shutdown of defective lamps and at end of life (EoL T.2)
  • Energy Efficiency Index EEI: A1 BAT
  • Overtemperature protection: Thermal management at high tc temperatures
