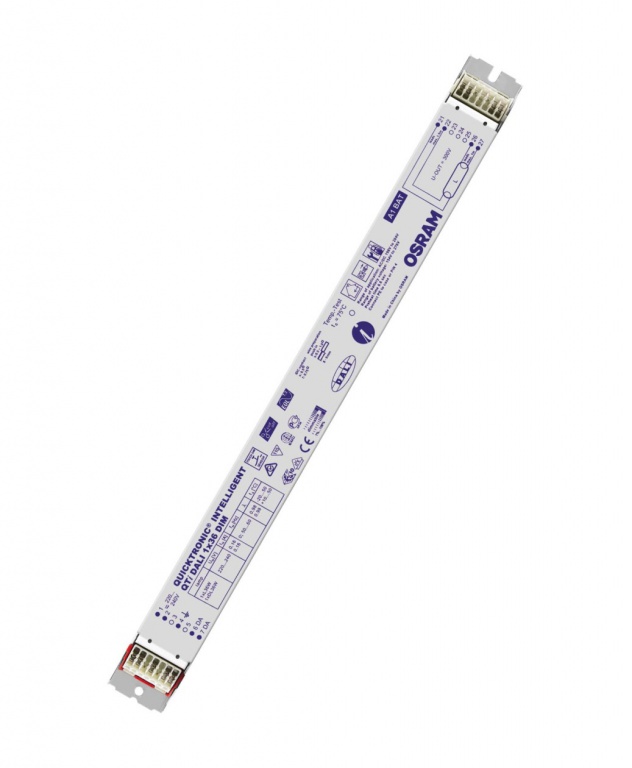

QUICKTRONIC INTELLIGENT DALI DIM T8 Zoom in Fluorescent Electronic Gear

From € 46,86 incl. VAT
From € 46,86 ex. VAT

See variants (7)

Nominal voltage 220240 V
Mains frequency 5060 Hz
Input voltage DC 154276 V
Starting time 0.6 s
Height 21.0 mm
Wire preparation length, input side 8.09.0 mm
Wire preparation length, output side 8.09.0 mm
ECG lifetime 100000 h
Dimmable Yes
Suitable for fixtures with prot. class I
Overheating protection Yes
Overload protection Yes
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

rate product

Select your product from the 7

QTi DALI 1X18 DIM

Karta produktu PDF

Product code: 57033 Nominal voltage: 220240 V Operating frequency: 51120 kHz Starting time: 0.6 s Length: 360.0 mm Dimmable: Yes Mains frequency: 5060 Hz Inrush current: 24 A Max. no. of ECGs on circuit breaker 10 A: 17 Max. no. of ECGs on circuit breaker 16 A: 28 Width: 30.0 mm see more »

Height: 21.0 mm Mounting hole spacing, length: 350.0 mm Product weight: 278.00 g Wire preparation length, input side: 8.09.0 mm Ambient temperature range: -20+50 °C ECG lifetime: 100000 h Suitable for fixtures with prot. class: I Overheating protection: Yes Overload protection: Yes Approval marks approval: VDE / VDE-EMC / ENEC 10 / EL / GOST / RCM / CCC Standards: acc. to EN 61347-2-3/acc. to EN 60929/acc. to EN 55015:2006 + A1:2007/acc. to EN 61000-3-2/acc. to EN 61547 Type of protection: IP20 Dimming interface: DALI / Touch DIM / Touch DIM Sensor Dimming range: 1100 % Input voltage DC: 154276 V EEI Energy Label: A1 BAT End of lamp life safety shutdown: EOL T.2 Wire preparation length, output side: 8.09.0 mm « hide more

€ 46,86 € 46,86 ex. VAT

QTi DALI 1X36/220...240 DIM

Karta produktu PDF

Product code: 56507 Operating frequency: 48120 kHz Length: 360.0 mm Inrush current: 28 A Max. no. of ECGs on circuit breaker 10 A: 17 Max. no. of ECGs on circuit breaker 16 A: 28 Width: 30.0 mm Mounting hole spacing, length: 350.0 mm Product weight: 270.00 g Ambient temperature range: -20+50 °C Standards: Acc. to EN 61347-2-3/Acc. to EN 60929/Acc. to EN 55015:2006 + A1:2007/Acc. to EN 61000-3-2/Acc. to EN 61547 Protection class: I

€ 46,86 € 46,86 ex. VAT

QTi DALI 1X58 DIM

Karta produktu PDF

Product code: 56508 Operating frequency: 46120 kHz Length: 360.0 mm Inrush current: 28 A Max. no. of ECGs on circuit breaker 10 A: 17 Max. no. of ECGs on circuit breaker 16 A: 28 Width: 30.0 mm Mounting hole spacing, length: 350.0 mm Product weight: 270.00 g Ambient temperature range: -20+50 °C Standards: acc. to EN 61347-2-3/acc. to EN 60929/acc. to EN 55015:2006 + A1:2007/acc. to EN 61000-3-2/acc. to EN 61547

€ 46,86 € 46,86 ex. VAT

QTi DALI 2X36 DIM

Karta produktu PDF

Product code: 56515 Operating frequency: 48120 kHz Length: 423.0 mm Inrush current: 45 A Max. no. of ECGs on circuit breaker 10 A: 8 Max. no. of ECGs on circuit breaker 16 A: 13 Width: 30.0 mm Mounting hole spacing, length: 415.0 mm Product weight: 370.00 g Ambient temperature range: -20+50 °C Standards: acc. to EN 61347-2-3/acc. to EN 60929/acc. to EN 55015:2006 + A1:2007/acc. to EN 61000-3-2/acc. to EN 61547

€ 49,51 € 49,51 ex. VAT

QTi DALI 2X58 DIM

Karta produktu PDF

Product code: 56516 Operating frequency: 46120 kHz Length: 423.0 mm Inrush current: 45 A Max. no. of ECGs on circuit breaker 10 A: 8 Max. no. of ECGs on circuit breaker 16 A: 13 Width: 30.0 mm Mounting hole spacing, length: 415.0 mm Product weight: 370.00 g Ambient temperature range: -20+50 °C Standards: Acc. to EN 61347-2-3/Acc. to EN 60929/Acc. to EN 55015:2006 + A1:2007/Acc. to EN 61000-3-2/Acc. to EN 61547 Protection class: I

€ 49,51 € 49,51 ex. VAT

QTi DALI 3X18 DIM

Karta produktu PDF

Product code: 56518 Operating frequency: 40100 kHz Length: 360.0 mm Inrush current: 35 A Max. no. of ECGs on circuit breaker 10 A: 17 Max. no. of ECGs on circuit breaker 16 A: 28 Width: 40.0 mm Mounting hole spacing, length: 350.0 mm Product weight: 386.00 g Ambient temperature range: 0+50 °C Standards: acc. to EN 61347-2-3/acc. to EN 60929/acc. to EN 55015:2006 + A1:2007/acc. to EN 61000-3-2/acc. to EN 61547 Lamp wattage: 3*16 W

€ 57,24 € 57,24 ex. VAT

QTi DALI 4X18 DIM

Karta produktu PDF

Product code: 56520 Operating frequency: 40100 kHz Length: 360.0 mm Inrush current: 35 A Max. no. of ECGs on circuit breaker 10 A: 12 Max. no. of ECGs on circuit breaker 16 A: 19 Width: 40.0 mm Mounting hole spacing, length: 350.0 mm Product weight: 374.00 g Ambient temperature range: 0+50 °C Standards: acc. to EN 61347-2-3/acc. to EN 60929/acc. to EN 55015:2006 + A1:2007/acc. to EN 61000-3-2/acc. to EN 61547 Lamp wattage: 4*16 W

€ 57,24 € 57,24 ex. VAT

Description / FAQ Warranty

Electrical data
Nominal voltage	220240 V
Mains frequency	5060 Hz
Input voltage DC	154276 V
Light technical data
Starting time	0.6 s

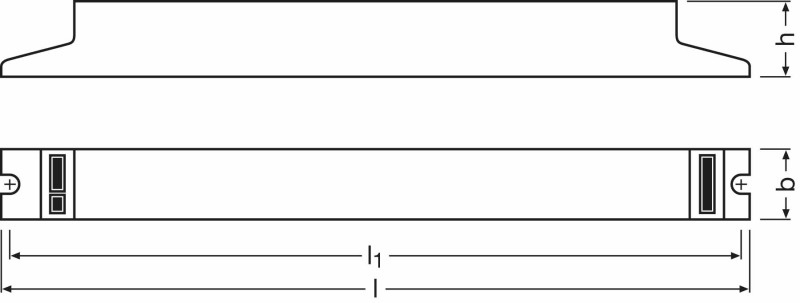

Dimensions & weight
Height	21.0 mm
Wire preparation length, input side	8.09.0 mm
Wire preparation length, output side	8.09.0 mm
Lifespan
ECG lifetime	100000 h
Capabilities
Dimmable	Yes
Suitable for fixtures with prot. class	I
Overheating protection	Yes
Overload protection	Yes
Dimming interface	DALI / Touch DIM / Touch DIM Sensor
Dimming range	1100 %
End of lamp life safety shutdown	EOL T.2
Certificates & standards
Approval marks approval	VDE / VDE-EMC / ENEC 10 / EL / GOST / RCM / CCC
Type of protection	IP20
EEI Energy Label	A1 BAT

Product benefits

System+ Guarantee available
Easy integration in luminaire thanks to same dimensions like DALI GI ECG
TouchDIM function for easy and inexpensive dimming of several ECGs
Same luminous flux with direct and alternating current
Dimming of amalgam lamps without flickering or reduced lifespan
Automatic restart after lamp replacement
No new approvals required

DALI product features

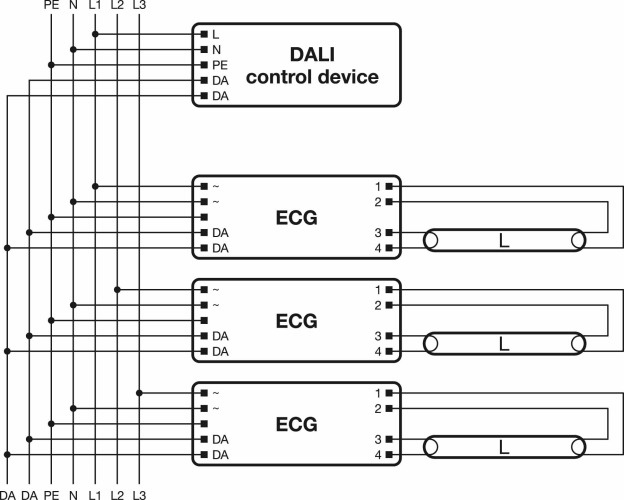

Control via the DALI interface
Compliance with the DALI standard to IEC 60929 and IEC 62386
Control input protected against overvoltage and polarity reversal (OSRAM ECG)

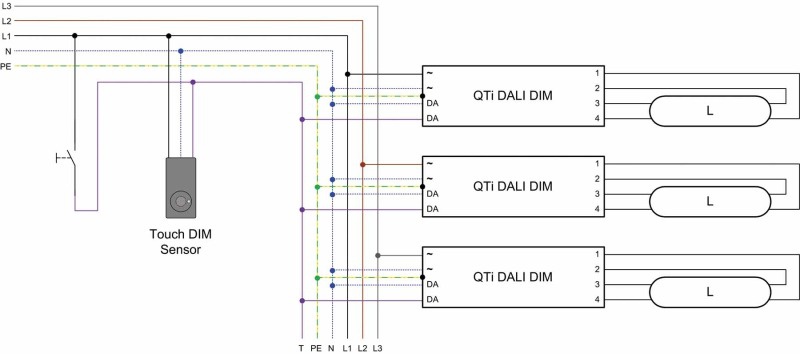

Touch DIM and Touch DIM Sensor function

Manual dimming without controller and with standard switches
Including memory function (double click) and soft start

Areas of application

Suitable for use in emergency lighting systems as per EN 50172/DIN VDE 0108-100
Installation in emergency lighting systems according to IEC 61347-2-3, appendix J
Industry
Open-plan offices, corridors and storage rooms
Public buildings
Sports halls and factories
Strip lighting
Suitable for luminaires of protection class I

Product features

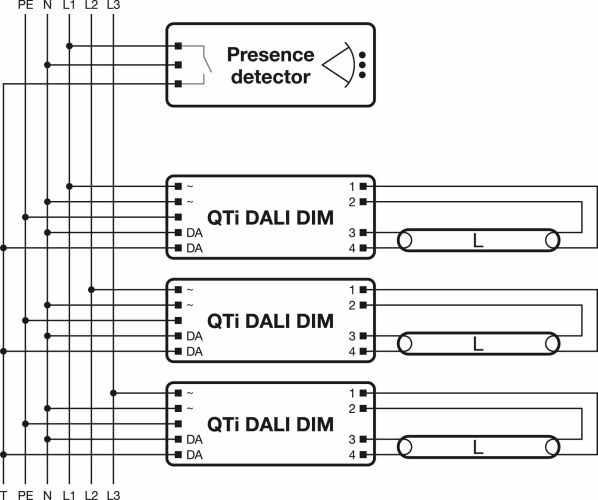

Corridor function for direct connection of ECG to common motion sensor
Corridor function with pre-programmed light program
TouchDIM function for free parameterization of light value and turn on time
Fit for SMART GRID for feedback of consumed mains power and lamp operating hours
Fit for Emergency function for automatic detection of emergency lighting by ECG
Very low standby power consumption: < 0.2 W (A1 BAT)
Lifetime: up to 100,000 h (temperature at Tc = 65 °C, max. 10 % failure rate)
Very high number of switching cycles: up to 300,000
Dimming range: 1…100 % (3…100 % with compact fluorescent lamp)
POWER2LAMP function for optimal matching of ECG power to lamp during lamp lifetime
Line frequency: 0 Hz, 50 Hz…60 Hz, rectified AC
