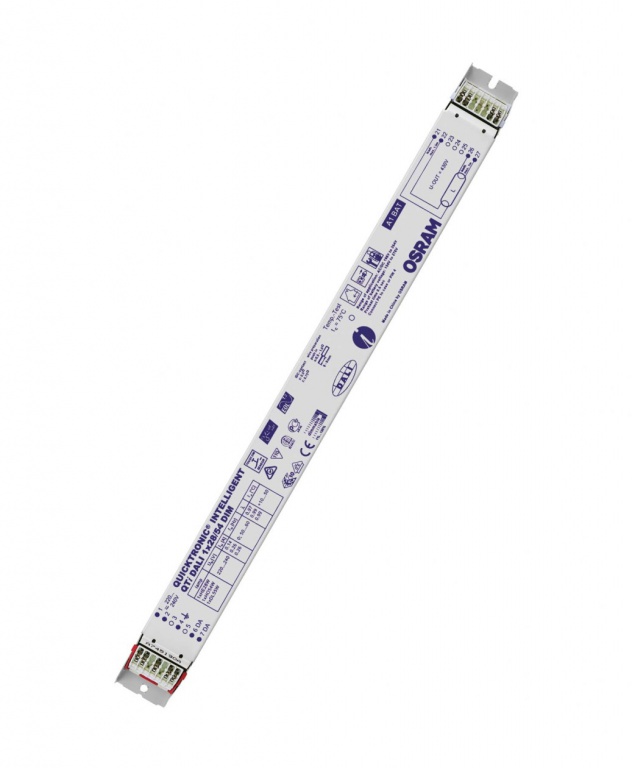

QTi DALI 2X35/49/80 DIM Fluorescent Electronic Gear

Product benefits

• System+ Guarantee available

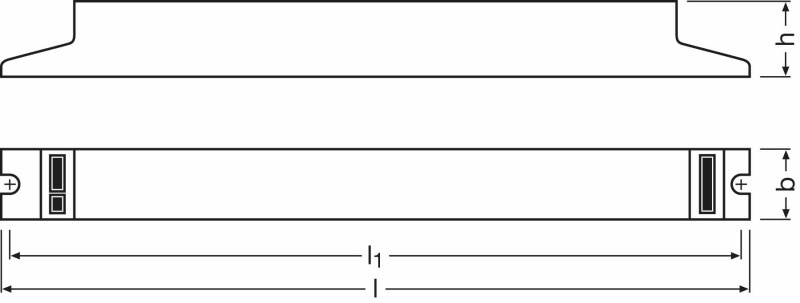

• Easy integration in luminaire thanks to same dimensions like DALI GI ECG
• TouchDIM function for easy and inexpensive dimming of several ECGs
• Same luminous flux with direct and alternating current
• Dimming of amalgam lamps without flickering or reduced lifespan
• Automatic restart after lamp replacement
• No new approvals required

DALI product features

• Control via the DALI interface
• Compliance with the DALI standard to  IEC 60929 and IEC 62386
• Control input protected against overvoltage and polarity reversal (OSRAM ECG)

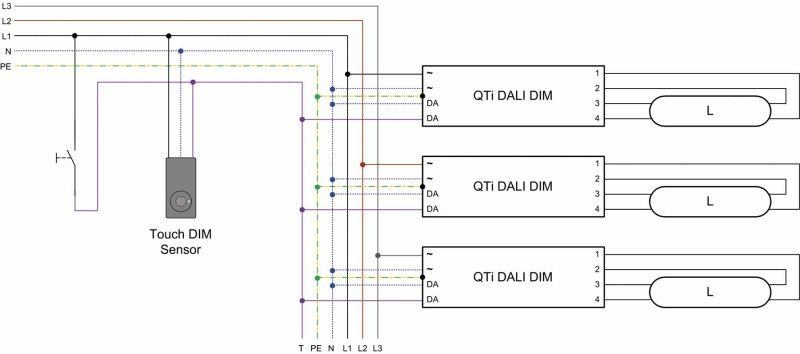

Touch DIM and Touch DIM Sensor function

• Manual dimming without controller and with standard switches
• Including memory function (double click) and soft start

Areas of application

• Suitable for use in emergency lighting systems as per EN 50172/DIN VDE 0108-100
• Installation in emergency lighting systems according to IEC 61347-2-3, appendix J
• Industry
• Open-plan offices, corridors and storage rooms
• Public buildings
• Sports halls and factories
• Strip lighting
• Shop lighting

Product features

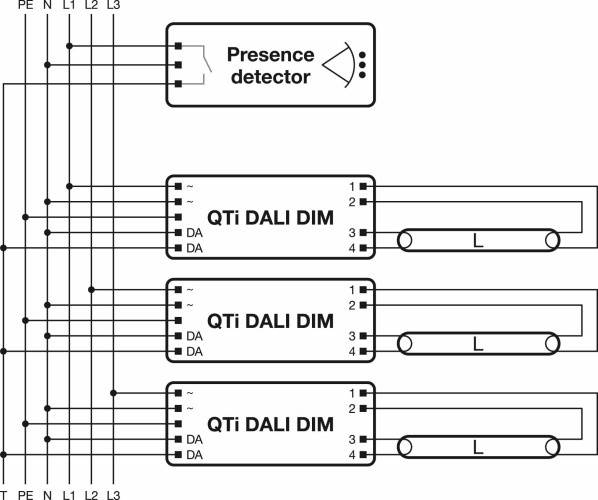

• Corridor function for direct connection of ECG to common motion sensor
• Corridor function with pre-programmed light program
• TouchDIM function for free parameterization of light value and turn on time
• Fit for SMART GRID for feedback of consumed mains power and lamp operating hours
• Fit for Emergency function for automatic detection of emergency lighting by ECG
• Very low standby power consumption: < 0.2 W (A1 BAT)
• Lifetime: up to 100,000 h (temperature at Tc = 65 °C, max. 10 % failure rate)
• Very high number of switching cycles: up to 300,000
• Dimming range: 1…100 % (3…100 % with compact fluorescent lamp)
• POWER2LAMP function for optimal matching of ECG power to lamp during lamp lifetime
