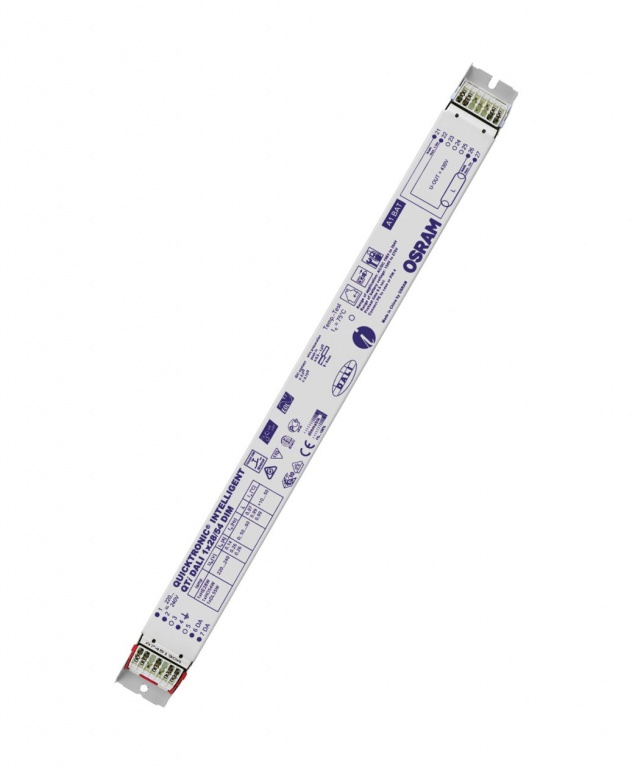

QUICKTRONIC INTELLIGENT DALI DIM T5 Zoom in Fluorescent Electronic Gear

From € 50,48 incl. VAT
From € 50,48 ex. VAT
See variants (11)
  • Nominal voltage 220…240 V
  • Input voltage AC 198…264 V
  • Mains frequency 50…60 Hz
  • Input voltage DC 154…276 V
  • Starting time 0.6 s
  • Height 21.0 mm
  • Wire preparation length, input side 8.0…9.0 mm
  • Wire preparation length, output side 8.0…9.0 mm
  • ECG lifetime 100000 h
  • Dimmable Yes
  • Suitable for fixtures with prot. class I
  • Overheating protection Yes
  • ▼ see full specification ▼

Select your product from the 11

 QTi DALI 1X14/24 DIM
Product code: 57032 Nominal voltage: 220…240 V Operating frequency: 53…120 kHz Starting time: 0.6 s  Length: 360.0 mm Dimmable: Yes Input voltage AC: 198…264 V Mains frequency: 50…60 Hz Inrush current: 24 A Max. no. of ECGs on circuit breaker 10 A: 17  Max. no. of ECGs on circuit breaker 16 A: 28  see more »
Width: 30.0 mm Height: 21.0 mm Mounting hole spacing, length: 350.0 mm Product weight: 278.00 g Wire preparation length, input side: 8.0…9.0 mm  Ambient temperature range: +10…+50 °C ECG lifetime: 100000 h  Suitable for fixtures with prot. class: I Overheating protection: Yes Overload protection: Yes Approval marks – approval: VDE / VDE-EMC / ENEC 10 / EL / GOST / RCM / CCC / E1 approval Standards: acc. to EN 61347-2-3/acc. to EN 60929/acc. to EN 55015:2006 + A1:2007/acc. to EN 61000-3-2/acc. to EN 61547 Type of protection: IP20 Power loss in stand-by mode: 0.2 W Dimming interface: DALI / Touch DIM / Touch DIM Sensor Dimming range: 1…100 %  Input voltage DC: 154…276 V EEI – Energy Label: A1 BAT End of lamp life safety shutdown: EOL T.2 Wire preparation length, output side: 8.0…9.0 mm  « hide more
€ 50,48 € 50,48 ex. VAT
pc(s)
pc(s)
 QTi DALI 1X21/39 DIM
Product code: 56505 Operating frequency: 44…120 kHz Length: 360.0 mm Inrush current: 24 A Max. no. of ECGs on circuit breaker 10 A: 17  Max. no. of ECGs on circuit breaker 16 A: 28  Width: 30.0 mm Mounting hole spacing, length: 350.0 mm Product weight: 270.00 g Approval marks – approval: VDE / VDE-EMC / ENEC 10 / EL / GOST / RCM / CCC / E1 approval Standards: acc. to EN 61347-2-3/acc. to EN 60929/acc. to EN 55015:2006 + A1:2007/acc. to EN 61000-3-2/acc. to EN 61547 Power loss in stand-by mode: 0.2 W
€ 50,48 € 50,48 ex. VAT
pc(s)
pc(s)
 QTi DALI 1X28/54 DIM
Product code: 56504 Operating frequency: 44…120 kHz Length: 360.0 mm Inrush current: 24 A Max. no. of ECGs on circuit breaker 10 A: 17  Max. no. of ECGs on circuit breaker 16 A: 28  Width: 30.0 mm Mounting hole spacing, length: 350.0 mm Product weight: 270.00 g Approval marks – approval: VDE / VDE-EMC / ENEC 10 / EL / GOST / RCM / CCC / E1 approval Standards: acc. to EN 61347-2-3/acc. to EN 60929/acc. to EN 55015:2006 + A1:2007/acc. to EN 61000-3-2/acc. to EN 61547 Power loss in stand-by mode: 0.2 W
€ 50,48 € 50,48 ex. VAT
pc(s)
pc(s)
 QTi DALI 1X35/49/80 DIM
Product code: 56506 Operating frequency: 44…120 kHz Length: 360.0 mm Inrush current: 28 A Max. no. of ECGs on circuit breaker 10 A: 17  Max. no. of ECGs on circuit breaker 16 A: 28  Width: 30.0 mm Mounting hole spacing, length: 350.0 mm Product weight: 278.00 g Approval marks – approval: VDE-EMC / VDE / ENEC 10 / EL / GOST / RCM / CCC / E1 approval Standards: Acc. to EN 61347-2-3/Acc. to EN 60929/Acc. to EN 55015:2006 + A1:2007/Acc. to EN 61000-3-2/Acc. to EN 61547 Power loss in stand-by mode: 0.2 W Protection class: I
€ 50,48 € 50,48 ex. VAT
pc(s)
pc(s)
 QTi DALI 2X14/24 DIM
Product code: 56509 Operating frequency: 53…120 kHz Length: 423.0 mm Inrush current: 35 A Max. no. of ECGs on circuit breaker 10 A: 12  Max. no. of ECGs on circuit breaker 16 A: 19  Width: 30.0 mm Mounting hole spacing, length: 415.0 mm Product weight: 370.00 g Approval marks – approval: VDE / VDE-EMC / ENEC 10 / EL / GOST / RCM / CCC Standards: acc. to EN 61347-2-3/acc. to EN 60929/acc. to EN 55015:2006 + A1:2007/acc. to EN 61000-3-2/acc. to EN 61547 Power loss in stand-by mode: 0.2 W
€ 55,31 € 55,31 ex. VAT
pc(s)
pc(s)
 QTi DALI 2X21/39 DIM
Product code: 56511 Operating frequency: 44…120 kHz Length: 423.0 mm Inrush current: 45 A Max. no. of ECGs on circuit breaker 10 A: Max. no. of ECGs on circuit breaker 16 A: 13  Width: 30.0 mm Mounting hole spacing, length: 415.0 mm Product weight: 370.00 g Approval marks – approval: VDE / VDE-EMC / ENEC 10 / EL / GOST / RCM / CCC Standards: acc. to EN 61347-2-3/acc. to EN 60929/acc. to EN 55015:2006 + A1:2007/acc. to EN 61000-3-2/acc. to EN 61547 Power loss in stand-by mode: 0.2 W
€ 55,31 € 55,31 ex. VAT
pc(s)
pc(s)
 QTi DALI 2X28/54 DIM
Product code: 56512 Operating frequency: 44…120 kHz Length: 423.0 mm Inrush current: 45 A Max. no. of ECGs on circuit breaker 10 A: Max. no. of ECGs on circuit breaker 16 A: 13  Width: 30.0 mm Mounting hole spacing, length: 415.0 mm Product weight: 370.00 g Approval marks – approval: VDE / VDE-EMC / ENEC 10 / EL / GOST / RCM / CCC Standards: acc. to EN 61347-2-3/acc. to EN 60929/acc. to EN 55015:2006 + A1:2007/acc. to EN 61000-3-2/acc. to EN 61547 Power loss in stand-by mode: 0.2 W
€ 55,31 € 55,31 ex. VAT
pc(s)
pc(s)
 QTi DALI 2X35/49 DIM
Product code: 56513 Operating frequency: 44…120 kHz Length: 423.0 mm Inrush current: 45 A Max. no. of ECGs on circuit breaker 10 A: Max. no. of ECGs on circuit breaker 16 A: 13  Width: 30.0 mm Mounting hole spacing, length: 415.0 mm Product weight: 370.00 g Approval marks – approval: VDE / VDE-EMC / ENEC 10 / EL / GOST / RCM / CCC Standards: acc. to EN 61347-2-3/acc. to EN 60929/acc. to EN 55015:2006 + A1:2007/acc. to EN 61000-3-2/acc. to EN 61547 Power loss in stand-by mode: 0.2 W
€ 55,31 € 55,31 ex. VAT
pc(s)
pc(s)
 QTi DALI 3X14/24 DIM
Product code: 56517 Operating frequency: 40…100 kHz Length: 360.0 mm Inrush current: 35 A Max. no. of ECGs on circuit breaker 10 A: 12  Max. no. of ECGs on circuit breaker 16 A: 19  Width: 40.0 mm Mounting hole spacing, length: 350.0 mm Product weight: 386.00 g Approval marks – approval: VDE / VDE-EMC / ENEC 10 / EL / GOST / RCM / CCC Standards: acc. to EN 61347-2-3/acc. to EN 60929/acc. to EN 55015:2006 + A1:2007/acc. to EN 61000-3-2/acc. to EN 61547 Power loss in stand-by mode:
€ 63,28 € 63,28 ex. VAT
pc(s)
pc(s)
 QTi DALI 4X14/24 DIM
Product code: 56519 Operating frequency: 40…100 kHz Length: 360.0 mm Inrush current: 45 A Max. no. of ECGs on circuit breaker 10 A: Max. no. of ECGs on circuit breaker 16 A: 13  Width: 40.0 mm Mounting hole spacing, length: 350.0 mm Product weight: 380.00 g Approval marks – approval: VDE / VDE-EMC / ENEC 10 / EL / GOST / RCM / CCC Standards: acc. to EN 61347-2-3/acc. to EN 60929/acc. to EN 55015:2006 + A1:2007/acc. to EN 61000-3-2/acc. to EN 61547 Power loss in stand-by mode:
€ 63,28 € 63,28 ex. VAT
pc(s)
pc(s)
 QTi DALI 2X35/49/80 DIM
Product code: 56514 Operating frequency: 44…120 kHz Length: 423.0 mm Inrush current: 60 A Max. no. of ECGs on circuit breaker 10 A: Max. no. of ECGs on circuit breaker 16 A: Width: 30.0 mm Mounting hole spacing, length: 415.0 mm Product weight: 370.00 g Approval marks – approval: VDE / VDE-EMC / ENEC 10 / EL / GOST / RCM / CCC Standards: acc. to EN 61347-2-3/acc. to EN 60929/acc. to EN 55015:2006 + A1:2007/acc. to EN 61000-3-2/acc. to EN 61547 Power loss in stand-by mode: 0.2 W Protection class: I
€ 72,70 € 72,70 ex. VAT
pc(s)
pc(s)

Electrical data

Nominal voltage 220…240 V
Input voltage AC 198…264 V
Mains frequency 50…60 Hz
Input voltage DC 154…276 V

Light technical data

Starting time 0.6 s

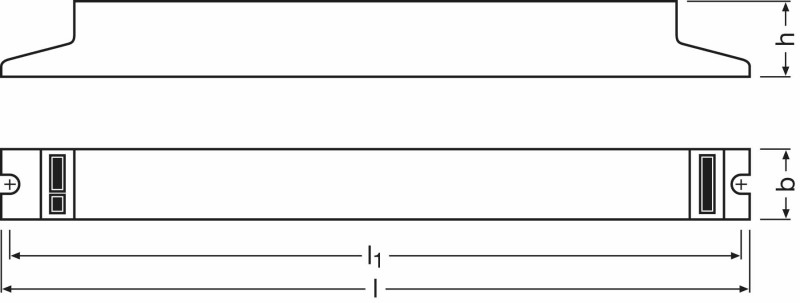

Dimensions & weight

Height 21.0 mm
Wire preparation length, input side 8.0…9.0 mm
Wire preparation length, output side 8.0…9.0 mm

Lifespan

ECG lifetime 100000 h

Capabilities

Dimmable Yes
Suitable for fixtures with prot. class I
Overheating protection Yes
Overload protection Yes
Dimming interface DALI / Touch DIM / Touch DIM Sensor
Dimming range 1…100 %
End of lamp life safety shutdown EOL T.2

Certificates & standards

Type of protection IP20
EEI – Energy Label A1 BAT

Temperatures

Ambient temperature range +10…+50 °C

Product benefits

  • System+ Guarantee available
  • Easy integration in luminaire thanks to same dimensions like DALI GI ECG
  • TouchDIM function for easy and inexpensive dimming of several ECGs
  • Same luminous flux with direct and alternating current
  • Dimming of amalgam lamps without flickering or reduced lifespan
  • Automatic restart after lamp replacement
  • No new approvals required

DALI product features

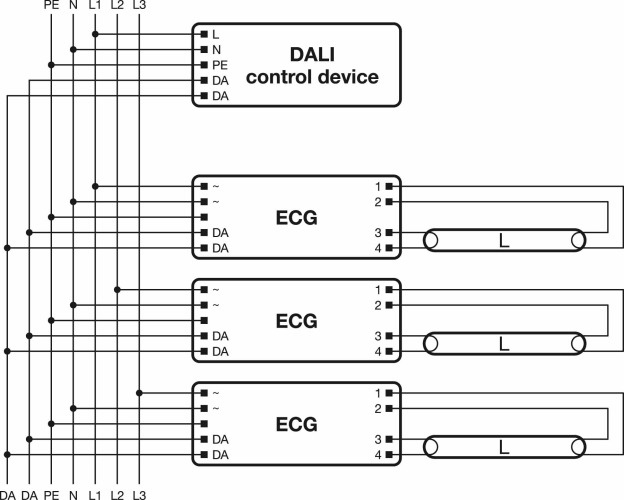

  • Control via the DALI interface
  • Compliance with the DALI standard to  IEC 60929 and IEC 62386
  • Control input protected against overvoltage and polarity reversal (OSRAM ECG)

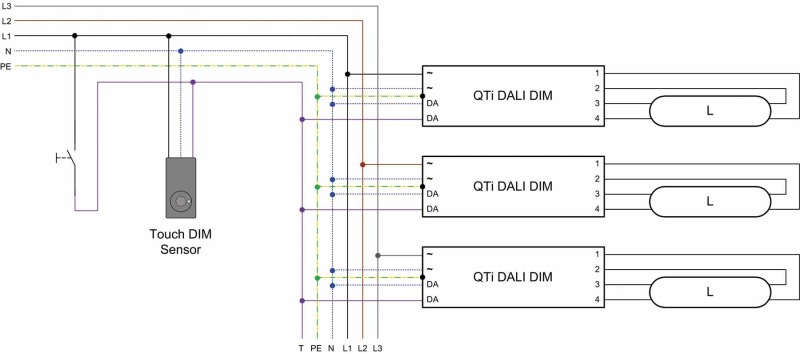

Touch DIM and Touch DIM Sensor function

  • Manual dimming without controller and with standard switches
  • Including memory function (double click) and soft start

Areas of application

  • Suitable for use in emergency lighting systems as per EN 50172/DIN VDE 0108-100
  • Installation in emergency lighting systems according to IEC 61347-2-3, appendix J
  • Industry
  • Open-plan offices, corridors and storage rooms
  • Public buildings
  • Sports halls and factories
  • Strip lighting
  • Shop lighting

Product features

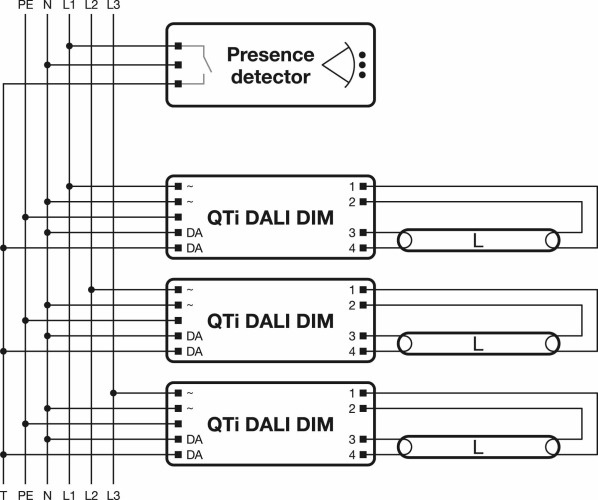

  • Corridor function for direct connection of ECG to common motion sensor
  • Corridor function with pre-programmed light program
  • TouchDIM function for free parameterization of light value and turn on time
  • Fit for SMART GRID for feedback of consumed mains power and lamp operating hours
  • Fit for Emergency function for automatic detection of emergency lighting by ECG
  • Very low standby power consumption: < 0.2 W (A1 BAT)
  • Lifetime: up to 100,000 h (temperature at Tc = 65 °C, max. 10 % failure rate)
  • Very high number of switching cycles: up to 300,000
  • Dimming range: 1…100 % (3…100 % with compact fluorescent lamp)
  • POWER2LAMP function for optimal matching of ECG power to lamp during lamp lifetime
