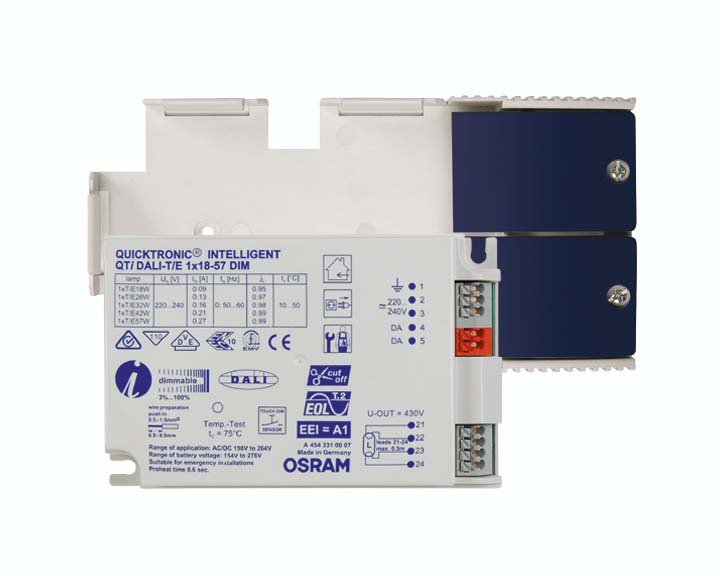

QUICKTRONIC INTELLIGENT DALI DIM CFL Zoom in Fluorescent Electronic Gear

From € 55,31 incl. VAT
From € 55,31 ex. VAT

See variants (2)

Ask for product Description / FAQ / Warranty

Score

rate product

QTi DALI-T/E 1X18...57/220...240 DIM

Karta produktu PDF

Product code: 57034

€ 55,31 € 55,31 ex. VAT

QTi DALI-T/E 2X18...42/220...240 DIM

Karta produktu PDF

Product code: 56521

€ 63,28 € 63,28 ex. VAT

Electrical data
Nominal voltage	220240 V
Operating frequency	42140 kHz
Mains frequency	5060 Hz
Inrush current	45 A
Max. no. of ECGs on circuit breaker 10 A	8
Max. no. of ECGs on circuit breaker 16 A	13
Input voltage DC	154276 V
Light technical data
Starting time	0.6 s

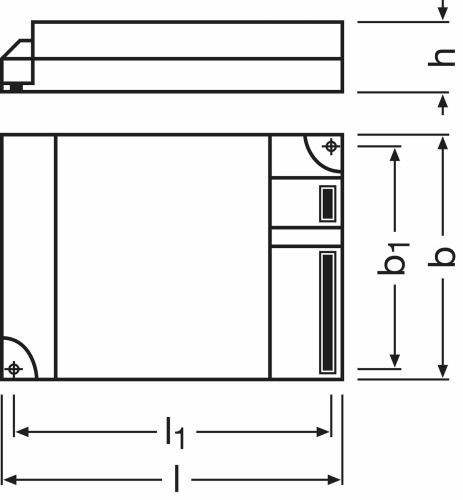

Dimensions & weight
Length	123.0 mm
Width	79.0 mm
Height	33.0 mm
Mounting hole spacing, length	129.5 mm
Mounting hole spacing, width	67.0 mm
Cable cross-section, input side	0.51.5 mm²
Product weight	247.00 g
Wire preparation length, input side	8.59.5 mm
Wire preparation length, output side	8.59.5 mm
Lifespan
ECG lifetime	100000 h
Additional product data
Product remark	Optional cable clamp, see chapter ECG mountings - cable clamp
Capabilities
Dimmable	Yes
Suitable for fixtures with prot. class	I
Overheating protection	Yes
Dimming interface	DALI / Touch DIM / Touch DIM Sensor
Dimming range	3100 %
End of lamp life safety shutdown	EOL T.2
Certificates & standards
Approval marks approval	VDE / VDE-EMC / ENEC 10 / EL / GOST / RCM / CCC
Standards	Acc. to EN 61347-2-3/Acc. to EN 60929/Acc. to EN 55015:2006 + A1:2007/Acc. to EN 61000-3-2/Acc. to EN 61547
Type of protection	IP20
EEI Energy Label	A1 BAT
Protection class	I
Temperatures
Ambient temperature range	+10+50 °C

Product benefits

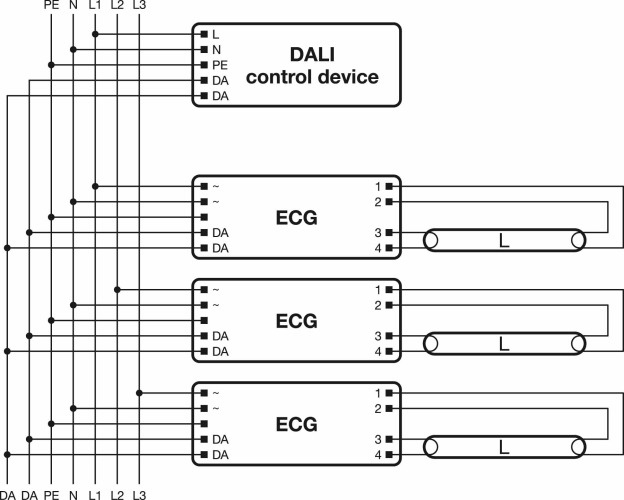

DALI product features

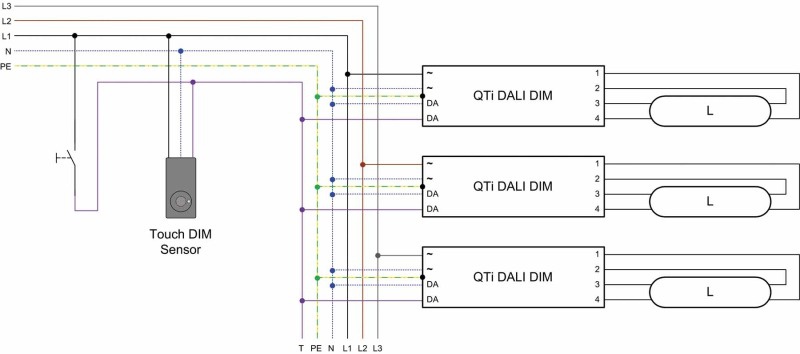

Touch DIM and Touch DIM Sensor function

Areas of application

Suitable for use in emergency lighting systems as per EN 50172/DIN VDE 0108-100
Installation in emergency lighting systems according to IEC 61347-2-3, appendix J
Open-plan offices, corridors and storage rooms
Public buildings
Suitable for luminaires of protection class I

Product features

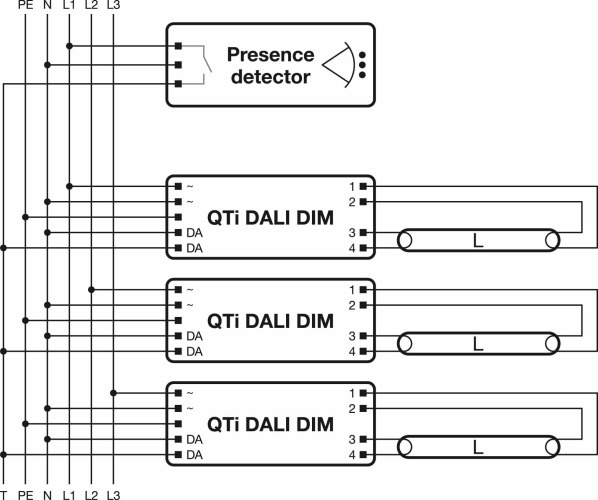

Corridor function for direct connection of ECG to common motion sensor
Corridor function with pre-programmed light program
TouchDIM function for free parameterization of light value and turn on time
Fit for SMART GRID for feedback of consumed mains power and lamp operating hours
Fit for Emergency function for automatic detection of emergency lighting by ECG
Very low standby power consumption: < 0.2 W (A1 BAT)
Lifetime: up to 100,000 h (temperature at Tc = 65 °C, max. 10 % failure rate)
Very high number of switching cycles: up to 300,000
Dimming range: 1…100 % (3…100 % with compact fluorescent lamp)
POWER2LAMP function for optimal matching of ECG power to lamp during lamp lifetime
Line frequency: 0 Hz, 50 Hz…60 Hz, rectified AC
