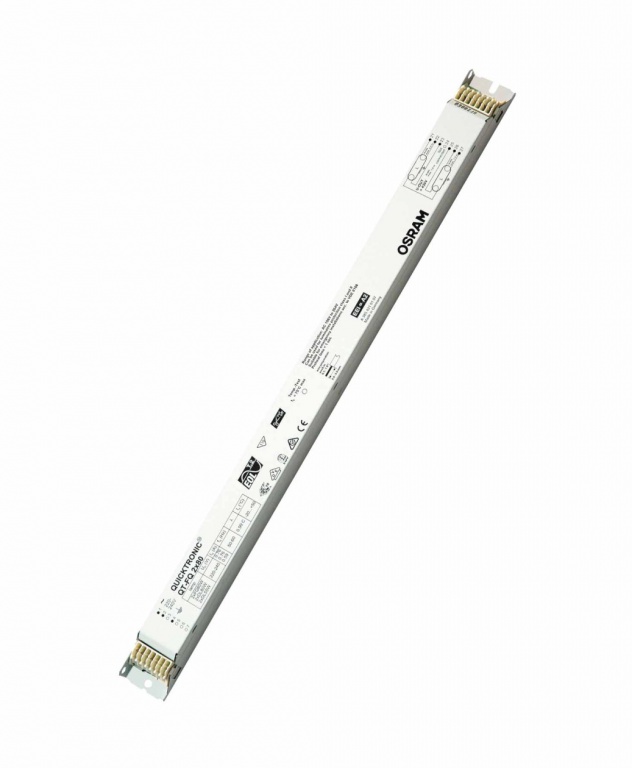

QUICKTRONIC FQ ECG for high efficiency FL 16mm Fluorescent Electronic Gear

Unavailable

Nominal voltage 220240 V
Operating frequency 7075 kHz
Input voltage AC 198264 V
Mains frequency 5060 Hz
Inrush current 39 A
Max. no. of ECGs on circuit breaker 10 A 5
Max. no. of ECGs on circuit breaker 16 A 9
Input voltage DC -
Starting time 1.0 s
Length 423.0 mm
Width 30.0 mm
Height 21.0 mm
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

rate product

Description / FAQ Warranty

Electrical data
Nominal voltage	220240 V
Operating frequency	7075 kHz
Input voltage AC	198264 V
Mains frequency	5060 Hz
Inrush current	39 A
Max. no. of ECGs on circuit breaker 10 A	5
Max. no. of ECGs on circuit breaker 16 A	9
Input voltage DC	-
Light technical data
Starting time	1.0 s

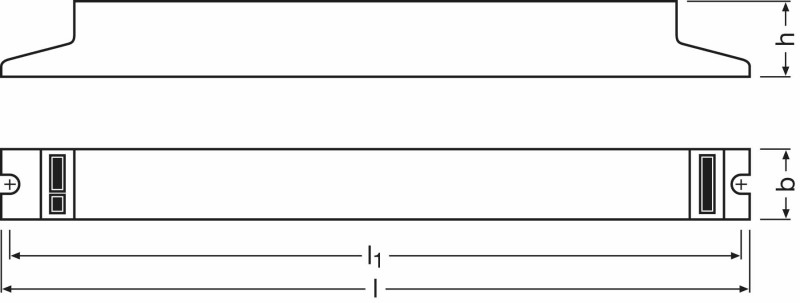

Dimensions & weight
Length	423.0 mm
Width	30.0 mm
Height	21.0 mm
Mounting hole spacing, length	415.0 mm
Product weight	381.00 g
Lifespan
ECG lifetime	50000 h
Capabilities
Suitable for fixtures with prot. class	I / II
End of lamp life safety shutdown	EOL T.2
Certificates & standards
Approval marks approval	VDE / VDE-EMC / ENEC 10 / GOST / RCM
Standards	acc. to EN 55015, CISPR 15/acc. to EN 61547/IEC 61547/acc. to EN 61000-3-2/IEC 61000-3-2/acc. to EN 61347-2-3/IEC 61347-2-3
Type of protection	IP20
EEI Energy Label	A2
Temperatures
Ambient temperature range	-20+50 °C

Product benefits

Long lamp life
No adverse effect from frequent on/off switching
Automatic restart after lamp replacement
Perfect lamp start for applications with motion sensors
VDE/VDE EMC certified system
Very high energy efficiency due to cut-off technology

Areas of application

Industry
Open-plan offices, corridors and storage rooms
Public buildings
Sports halls and factories
Strip lighting
Modernization of existing systems

Product features

Supply voltage: 220…240 V
Line voltage: 198…264 V
Line frequency: 50 Hz | 60 Hz
Lamp start with optimum filament preheating
Lifetime: up to 100,000 h (temperature at Tc = 65 °C, max. 10 % failure rate)
Energy Efficiency Index EEI: A2
Safety: to EN 61347-2-3
Automatic shutdown of defective lamps and at end of life (EoL T.2)
