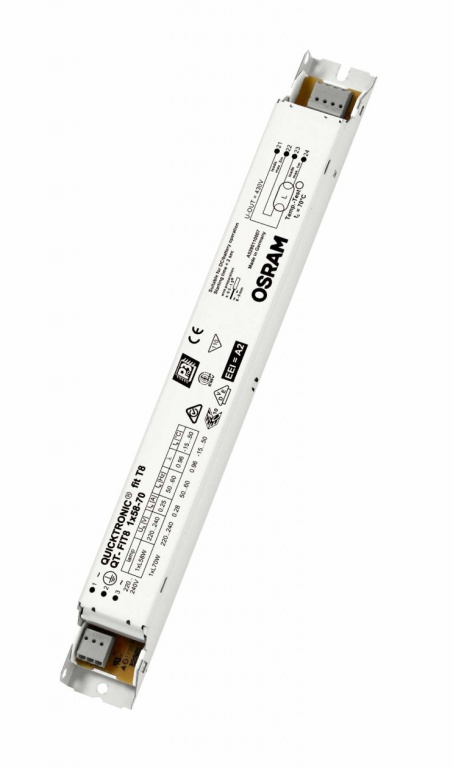

QUICKTRONIC FIT 8 ECG for FL 26mm Fluorescent Electronic Gear

Unavailable

Nominal voltage 220240 V
Operating frequency 4050 kHz
Input voltage AC 198264 V
Mains frequency 5060 Hz
Inrush current 15 A
Input voltage DC 185264 V
Starting time 2.0 s
Height 28.0 mm
Cable cross-section, input side 0.51.5 mm²
Cable cross-section, output side 0.51.5 mm²
ECG lifetime 50000 h
Suitable for fixtures with prot. class I
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

rate product

Description / FAQ Warranty

Electrical data
Nominal voltage	220240 V
Operating frequency	4050 kHz
Input voltage AC	198264 V
Mains frequency	5060 Hz
Inrush current	15 A
Input voltage DC	185264 V
Light technical data
Starting time	2.0 s

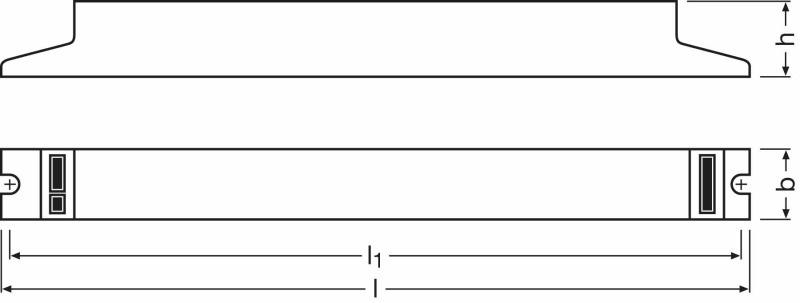

Dimensions & weight
Height	28.0 mm
Cable cross-section, input side	0.51.5 mm²
Cable cross-section, output side	0.51.5 mm²
Lifespan
ECG lifetime	50000 h
Capabilities
Suitable for fixtures with prot. class	I
End of lamp life safety shutdown	EOL T.2
Certificates & standards
Approval marks approval	VDE / VDE-EMC / ENEC 10 / CE
Standards	Acc. to EN 61347-2-3/Acc. to EN 60929/Acc. to EN 55015:2006 + A1:2007/Acc. to EN 61000-3-2/Acc. to EN 61547
EEI Energy Label	A2
Protection class	I
Temperatures
Ambient temperature range	-15+50 °C

Product benefits

Long lamp life
No adverse effect from frequent on/off switching
Automatic restart after lamp replacement
Perfect lamp start for applications with motion sensors
VDE/VDE EMC certified system
Very high energy efficiency due to cut-off technology

Areas of application

Open-plan offices, corridors and storage rooms
Public buildings
Strip lighting
Suitable for emergency lighting (DC operation)
Suitable for luminaires of protection class I

Product features

Supply voltage: 220…240 V
Line voltage: 198…264 V
Line frequency: 50…60 Hz
Lamp start with optimum filament preheating
Energy Efficiency Index EEI: A2
Automatic shutdown of defective lamps and at end of life (EoL T.2)
Lamp operation: to EN 60929
Safety: to EN 61347-2-3
