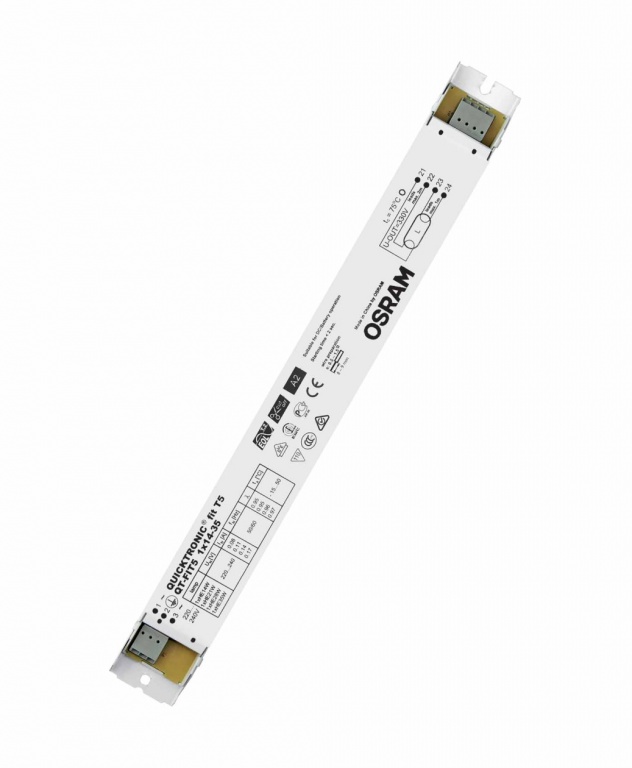

QUICKTRONIC FIT 5/8 Fluorescent Electronic Gear

From € 13,67 incl. VAT
From € 13,67 ex. VAT
See variants (4)
  • Nominal voltage 220…240 V
  • Operating frequency 40…50 kHz
  • Input voltage AC 198…264 V
  • Mains frequency 50…60 Hz
  • Input voltage DC 185…264 V
  • Starting time 2.0 s
  • Length 280.0 mm
  • Width 30.0 mm
  • Height 21.0 mm
  • Mounting hole spacing, length 270.0 mm
  • Cable cross-section, input side 0.5…1.5 mm²
  • Cable cross-section, output side 0.5…1.5 mm²
  • ▼ see full specification ▼

Select your product from the 4

 QT-FIT 5/8 1X18...39
Product code: 57107 Nominal voltage: 220…240 V Operating frequency: 40…50 kHz Starting time: 2.0 s Length: 280.0 mm Input voltage AC: 198…264 V Mains frequency: 50…60 Hz Inrush current: 24 A Max. no. of ECGs on circuit breaker 10 A: 17  Max. no. of ECGs on circuit breaker 16 A: 28  Width: 30.0 mm see more »
Height: 21.0 mm Mounting hole spacing, length: 270.0 mm Cable cross-section, input side: 0.5…1.5 mm²  Product weight: 154.00 g Cable cross-section, output side: 0.5…1.5 mm²  Ambient temperature range: -15…+50 °C ECG lifetime: 50000 h Suitable for fixtures with prot. class: I Approval marks – approval: CE / VDE / ENEC 10 / VDE-EMC Standards: Acc. to EN 61347-2-3/IEC 61347-2-3/Acc. to EN 55015:2006 + A1:2007 + A2:2009/Acc. to EN 61000-3-2/IEC 61000-3-2/Acc. to EN 61547/IEC 61547 Type of protection: IP20 Input voltage DC: 185…264 V  EEI – Energy Label: A2 End of lamp life safety shutdown: EOL T.2 Protection class: I « hide more
€ 13,67 € 13,67 ex. VAT
pc(s)
pc(s)
 QT-FIT 5/8 1X54...58
Product code: 55460 Inrush current: 24 A Max. no. of ECGs on circuit breaker 10 A: 17  Max. no. of ECGs on circuit breaker 16 A: 28  Product weight: 154.00 g
€ 13,67 € 13,67 ex. VAT
pc(s)
pc(s)
 QT-FIT 5/8 2X18...39
Product code: 55461 Inrush current: 40 A Max. no. of ECGs on circuit breaker 10 A: 12  Max. no. of ECGs on circuit breaker 16 A: 19  Product weight: 183.00 g
€ 16,16 € 16,16 ex. VAT
pc(s)
pc(s)
 QT-FIT 5/8 2X54...58
Product code: 55462 Inrush current: 53 A Max. no. of ECGs on circuit breaker 10 A: Max. no. of ECGs on circuit breaker 16 A: 13  Product weight: 183.00 g
€ 16,16 € 16,16 ex. VAT
pc(s)
pc(s)

Electrical data

Nominal voltage 220…240 V
Operating frequency 40…50 kHz
Input voltage AC 198…264 V
Mains frequency 50…60 Hz
Input voltage DC 185…264 V

Light technical data

Starting time 2.0 s

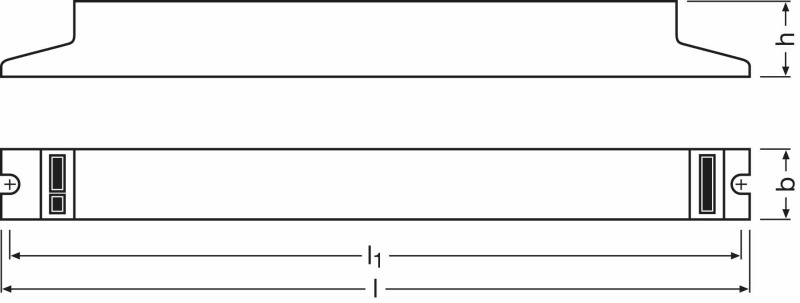

Dimensions & weight

Length 280.0 mm
Width 30.0 mm
Height 21.0 mm
Mounting hole spacing, length 270.0 mm
Cable cross-section, input side 0.5…1.5 mm²
Cable cross-section, output side 0.5…1.5 mm²

Lifespan

ECG lifetime 50000 h

Capabilities

Suitable for fixtures with prot. class I
End of lamp life safety shutdown EOL T.2

Certificates & standards

Approval marks – approval CE / VDE / ENEC 10 / VDE-EMC
Standards Acc. to EN 61347-2-3/IEC 61347-2-3/Acc. to EN 55015:2006 + A1:2007 + A2:2009/Acc. to EN 61000-3-2/IEC 61000-3-2/Acc. to EN 61547/IEC 61547
Type of protection IP20
EEI – Energy Label A2
Protection class I

Temperatures

Ambient temperature range -15…+50 °C

Product benefits

  • Long lamp life
  • No adverse effect from frequent on/off switching
  • Automatic restart after lamp replacement
  • Perfect lamp start for applications with motion sensors
  • VDE/VDE EMC certified system
  • Very high energy efficiency due to cut-off technology

Areas of application

  • Open-plan offices, corridors and storage rooms
  • Public buildings
  • Strip lighting
  • Suitable for emergency lighting (DC operation)
  • Suitable for luminaires of protection class I
  •  Modernization of existing systems

Product features

  • Supply voltage: 220…240 V
  • Line voltage: 198…264 V
  • Line frequency: 50…60 Hz
  • Lamp start with optimum filament preheating
  • Energy Efficiency Index EEI: A2
  • Automatic shutdown of defective lamps and at end of life (EoL T.2)
  • Lamp operation: to EN 60929
  • Safety: to EN 61347-2-3
