QUICKTRONIC ECG for circular FL 16mm Fluorescent Electronic Gear

Product code: 57038
Price € 22,22 incl. VAT
€ 22,22 netto
pc(s)
pc(s)
  • Nominal voltage 220…240 V
  • Operating frequency 40…50 kHz
  • Input voltage AC 198…264 V
  • Mains frequency 50…60 Hz
  • Max. no. of ECGs on circuit breaker 10 A 11
  • Max. no. of ECGs on circuit breaker 16 A 19
  • Input voltage DC 176…264 V
  • Starting time 1.0 s
  • Length 103.0 mm
  • Width 67.0 mm
  • Height 31.0 mm
  • Mounting hole spacing, length 94.0 mm
  • ▼ see full specification ▼

1 variant available

 QTP-FC 1X55
Product code: 57038
€ 22,22 € 22,22 ex. VAT
pc(s)
pc(s)

Electrical data

Nominal voltage 220…240 V
Operating frequency 40…50 kHz
Input voltage AC 198…264 V
Mains frequency 50…60 Hz
Max. no. of ECGs on circuit breaker 10 A 11
Max. no. of ECGs on circuit breaker 16 A 19
Input voltage DC 176…264 V

Light technical data

Starting time 1.0 s

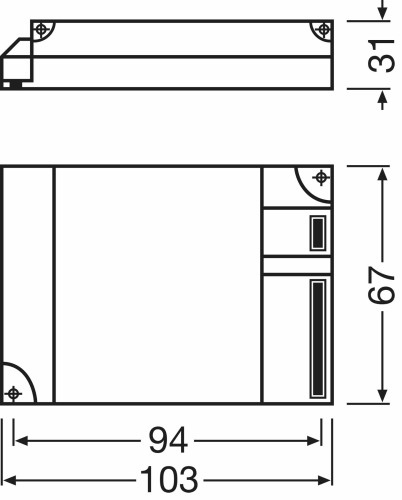

Dimensions & weight

Length 103.0 mm
Width 67.0 mm
Height 31.0 mm
Mounting hole spacing, length 94.0 mm
Mounting hole spacing, width 67.0 mm
Cable cross-section, input side 0.5…1.5 mm²
Product weight 135.00 g
Cable cross-section, output side 0.5…1.5 mm²

Lifespan

ECG lifetime 50000 h

Capabilities

Suitable for fixtures with prot. class I / II
End of lamp life safety shutdown EOL T.2

Certificates & standards

Approval marks – approval VDE / VDE-EMC / ENEC 10 / GOST / RCM
Standards acc. to EN 61347-2-3/IEC 61347-2-3/acc. to EN 55015:2006 + A1:2007/CISPR 15/acc. to EN 61000-3-2/IEC 61000-3-2/acc. to EN 61547/IEC 61547
EEI – Energy Label A2 BAT

Temperatures

Ambient temperature range -20…+50 °C

Product benefits

  • Long lamp life
  • No adverse effect from frequent on/off switching
  • Automatic restart after lamp replacement
  • Perfect lamp start for applications with motion sensors
  • Separate installations thanks to optional cable clamp for K2 and K3 casings
  • VDE/VDE EMC certified system

Areas of application

  • Emergency lighting systems acc. to EN 50172 / DIN VDE 0108-100
  • Open-plan offices, corridors and storage rooms
  • Public buildings
  • Suitable for luminaires of  protection class I

Product features

  • Supply voltage: 220…240 V
  • Line voltage: 198…264 V
  • Line frequency: 0 Hz | 50 Hz | 60 Hz
  • Lamp start with optimum filament preheating
  • Energy Efficiency Index EEI: A2 BAT
  • Automatic shutdown of defective lamps and at end of life (EoL)
  • Lamp operation: to EN 60929
  • Safety: to EN 61347-2-3
