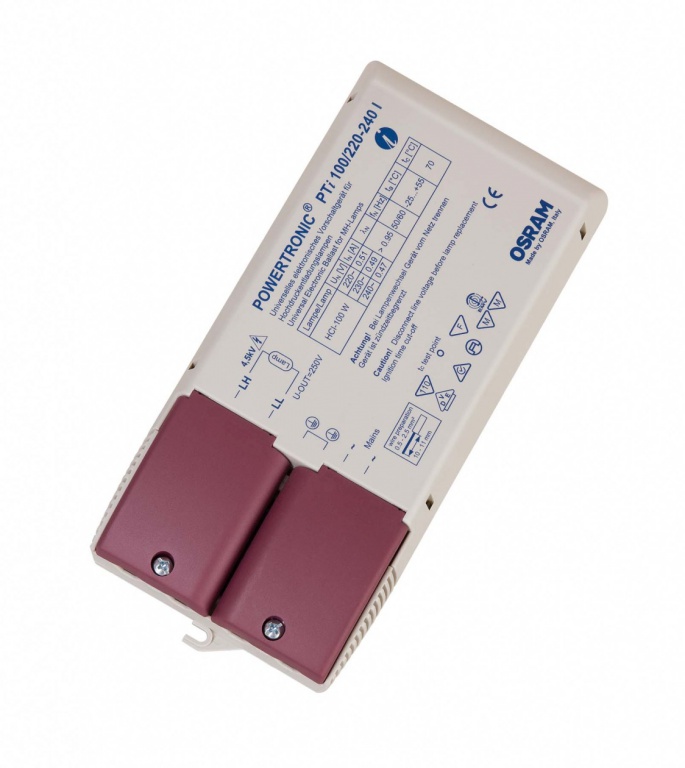

POWERTRONIC INTELLIGENT PTi I ECG for HID lamps, with cable clamp Electronic Ballasts For Discharge Lamps

From € 74,15 incl. VAT
From € 74,15 ex. VAT
See variants (3)
  • Power factor λ 0.95
  • Input voltage AC 220…240 V
  • Mains frequency 50…60 Hz
  • U-OUT (working voltage) 250 V
  • Ignition voltage 4.5 kVp
  • Max. working voltage between LH and LL 250 V
  • Max. capacitance of wire ECG/lamp 120 pF
  • Max. working voltage betw. LL/LH & earth 250 V
  • Cable cross-section, input side 0.75…2.5 mm²
  • Cable cross-section, output side 0.75…2.5 mm²
  • Wire preparation length, input side 10…11 mm
  • Dimmable No
  • ▼ see full specification ▼

Select your product from the 3

 PTi 35/220...240 I
Product code: 56574 Operating frequency: 0.200…0.240 kHz Length: 171.0 mm ECG efficiency: 91 % Inrush current: 30 A  Max. no. of ECGs on circuit breaker 10 A: 15  Max. no. of ECGs on circuit breaker 16 A: 26  Width: 83.0 mm Height: 32.0 mm Mounting hole spacing, length: 163.0 mm Product weight: 285.00 g see more »
Ambient temperature range: -25…+65 °C Maximum temperature at tc test point: 80 °C ECG lifetime: 50000 h  Overheating protection: Power reduction and switch off at T > 80 °C at the tc point Standards: acc. to EN 61347-2-12/acc. to EN 55015/acc. to EN 61000-3-2/acc. to EN 61547/acc. to EN 62493 Design / version: With cable clamp Input voltage range AC: 198…264 V Wire preparation length, output side: 10…11 mm Lamp wattage: 39 W Line current: 0.19 A  System wattage: 43.00 W Max. no. of ECGs on 16A MCB with EBN-OS: 65  Protective conductor current: 0.3 mA Cable types, output side: SIHF-J 3x1.5 / SIHF-J 3x2.5 / SIHSI 3x1.0 mm² Overvoltage protection at 275…300 V: 48 h  Overvoltage protection at 300…320 V: 2 h  Overvoltage protection at 320…350 V: 5 min  Maximum current for mains looping: 16 A « hide more
€ 74,15 € 74,15 ex. VAT
pc(s)
pc(s)
 PTi 70/220...240 I
Product code: 56582 Operating frequency: 0.200…0.240 kHz Length: 171.0 mm ECG efficiency: 92 % Inrush current: 45 A  Max. no. of ECGs on circuit breaker 10 A: Max. no. of ECGs on circuit breaker 16 A: 13  Width: 83.0 mm Height: 32.0 mm Mounting hole spacing, length: 163.0 mm Product weight: 290.00 g see more »
Ambient temperature range: -25…+50 °C Maximum temperature at tc test point: 80 °C ECG lifetime: 50000 h  Overheating protection: Power reduction and switch off at T > 80 °C at the tc point Standards: acc. to EN 61347-2-12/acc. to EN 55015/acc. to EN 61000-3-2/acc. to EN 61547/acc. to EN 62493 Design / version: With cable clamp Input voltage range AC: 198…264 V Wire preparation length, output side: 10…11 mm Lamp wattage: 73 W Line current: 0.36 A  System wattage: 79.00 W Max. no. of ECGs on 16A MCB with EBN-OS: 32  Protective conductor current: 0.3 mA Cable types, output side: SIHF-J 3x1.5 / SIHF-J 3x2.5 / SIHSI 3x1.0 mm² Overvoltage protection at 275…300 V: 48 h  Overvoltage protection at 300…320 V: 2 h  Overvoltage protection at 320…350 V: 5 min  Maximum current for mains looping: 16 A « hide more
€ 74,15 € 74,15 ex. VAT
pc(s)
pc(s)
 PTi 150/220...240 I
Product code: 56566 Operating frequency: 0.165 kHz Length: 212.0 mm ECG efficiency: 92 % Inrush current: 70 A  Max. no. of ECGs on circuit breaker 10 A: Max. no. of ECGs on circuit breaker 16 A: Width: 93.0 mm Height: 33.0 mm Mounting hole spacing, length: 203.0 mm Product weight: 420.00 g see more »
Ambient temperature range: -25…+50 °C Maximum temperature at tc test point: 75 °C ECG lifetime: 40000 h  Overheating protection: Power reduction and switch off at T > 75 °C at the tc point Standards: acc. to EN 61347-2-12/acc. to EN 55015/acc. to EN 61000-3-2/acc. to EN 61547/acc. to EN 62493 Design / version: With cable clamp Input voltage range AC: 198…254 V Wire preparation length, output side: 10…11 mm Lamp wattage: 147 W Line current: 0.72 A  System wattage: 160.00 W Max. no. of ECGs on 16A MCB with EBN-OS: 17  Protective conductor current: 0.4 mA Cable types, output side: SIHF-J 3x1.5 / SIHF-J 3x2.5 / SIHSI 3x1.0 mm² « hide more
€ 94,03 € 94,03 ex. VAT
pc(s)
pc(s)

Electrical data

Power factor λ 0.95
Input voltage AC 220…240 V
Mains frequency 50…60 Hz
U-OUT (working voltage) 250 V
Ignition voltage 4.5 kVp
Max. working voltage between LH and LL 250 V
Max. capacitance of wire ECG/lamp 120 pF
Max. working voltage betw. LL/LH & earth 250 V

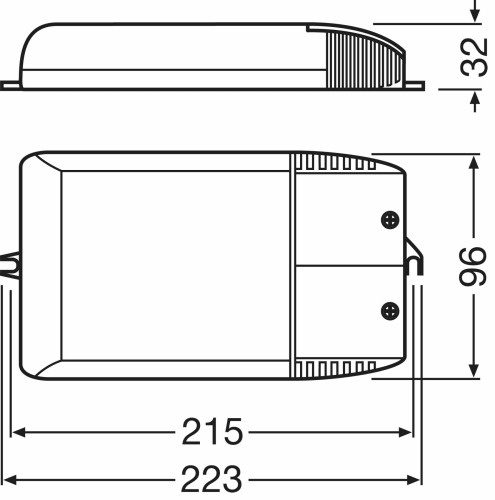

Dimensions & weight

Cable cross-section, input side 0.75…2.5 mm²
Cable cross-section, output side 0.75…2.5 mm²
Wire preparation length, input side 10…11 mm

Capabilities

Dimmable No
Suitable for fixtures with prot. class I
Max. cable length to lamp/LED module 1.5 m
Cable types, input side NYM-J 3x1.5 / NYM-J 3x2.5 / H05VV-F 3x1.5 / NHXMH-J 3x1.5 mm²
ECG reset time > 0.5 s
Restriction on ignition time 20 min

Certificates & standards

Approval marks – approval ENEC 10 / VDE / VDE-EMC / GOST / C-Tick
Type of protection IP20
EEI – Energy Label A2

Colors & materials

Casing material Plastic

Product benefits

  • Extended terminal section enables mains looping
  • Screw-down cable clamps for reliable strain relief
  • Long reliable life at maximum permitted temperatures
  • Automatic safety shutdown of lamps in the event of a defect or at end of life (EoL)

Areas of application

  • Shop lighting
  • Health and fitness areas (in dry, corrosion-protected place)
  • Effect and accent lighting

Product features

  • Energy Efficiency Index EEI: A2
  • Supply voltage: 220…240 V
  • Line  frequency: 50…60 Hz
  • RI suppression: to EN 55015/CISPR 15
  • Safety: to EN 61347-2-12
  • Line harmonics according to EN 61000-3-2
  • Immunity according to EN 61547

Thermal characteristics
Ballast losses and lamp heat radiation can lead to heat accumulation in a completely closed case. Therefore it is necessary to ensure that the temperature at the measuring point tc of the ECG does not exceed the maximum value.
Attention!
For safety reasons disconnect the device before replacing the lamp!
