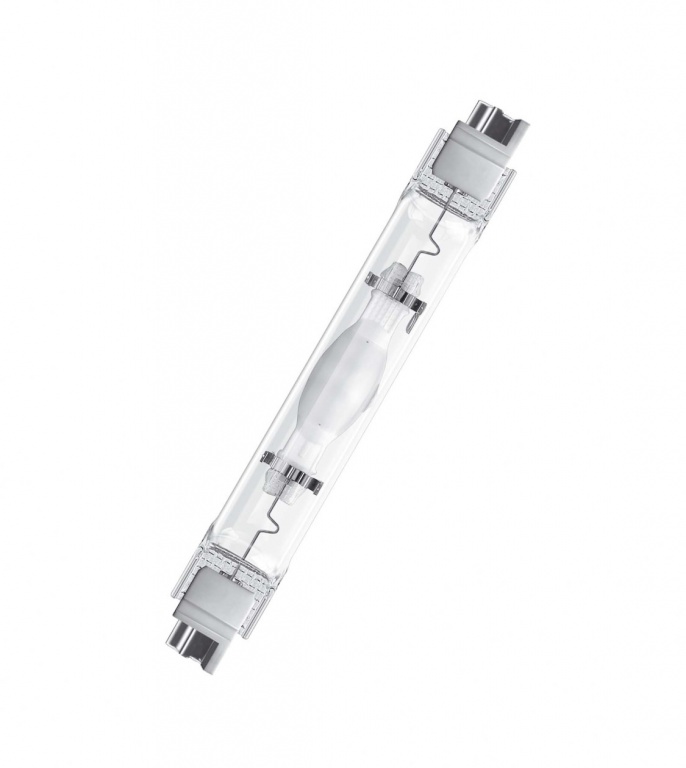

Metal Halide Lamp POWERSTAR HQI-TS Metal Halide Lamps Fc2

From € 40,41 incl. VAT
From € 40,41 ex. VAT

See variants (4)

Ignition voltage 4.0 / 5.0 kVp
Rated LLMF at 12,000 h 0.50
UV protection Yes
Rated lamp survival factor at 2,000 h 0.95
Rated lamp survival factor at 4,000 h 0.90
Rated lamp survival factor at 6,000 h 0.85
Rated lamp survival factor at 8,000 h 0.80
Rated lamp survival factor at 12,000 h 0.50
Lifespan B50 12000 h

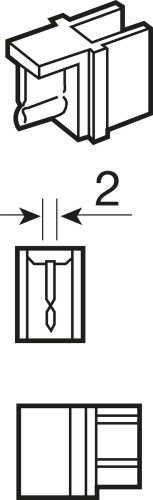

Base (standard designation) Fc2
Design / version Clear
Dimmable No
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

rate product

Select your product from the 4

HQI-TS 250 W/NDL UVS

Karta produktu PDF

Product code: 56360 Construction wattage [PICOS]: 250.00 W Nominal voltage: 98 V Nominal wattage: 250.00 W Color temperature: 4200 K Rated luminous flux: 20000 lm Diameter: 25.0 mm Length: 162.0 mm Energy efficiency class: A Color rendering index Ra: 88 Lamp mercury content: 14.0 mg see more »

Energy consumption: 275 kWh/1000h ILCOS: MD/UB-250/842-H/E/SL-Fc2-25/162/H Product weight: 52.00 g Light center length (LCL): 81.0 mm Light color: 842 Rated LLMF at 4,000 h: 0.75 Rated LLMF at 6,000 h: 0.65 Rated LLMF at 8,000 h: 0.55 Rated lamp efficacy (standard condition): 80 lm/W Rated LLMF at 2,000 h: 0.80 Lamp current: 3.00000 A PFC capacitor at 50 Hz: 32 µF « hide more

€ 40,41 € 40,41 ex. VAT

HQI-TS 250 W/WDL

Karta produktu PDF

Product code: 56893 Nominal voltage: 112 V Nominal wattage: 250.00 W Color temperature: 3200 K Rated luminous flux: 22000 lm Diameter: 25.0 mm Length: 162.0 mm Base (standard designation): Fc2 Dimmable: No Energy efficiency class: A+ Color rendering index Ra: 80 see more »

Lamp mercury content: 31.0 mg Energy consumption: 275 kWh/1000h ILCOS: MD/UB-250/832-H/E/SL-Fc2-25/162/H Product weight: 52.00 g Design / version: Clear Light center length (LCL): 81.0 mm Burning position: p45 Light color: 830 Rated LLMF at 4,000 h: 0.60 Rated LLMF at 6,000 h: 0.55 Rated LLMF at 8,000 h: 0.52 Rated lamp survival factor at 2,000 h: 0.95 Rated lamp survival factor at 4,000 h: 0.90 Rated lamp survival factor at 6,000 h: 0.85 Rated lamp survival factor at 8,000 h: 0.80 Rated LLMF at 12,000 h: 0.50 Rated lamp survival factor at 12,000 h: 0.50 Rated lamp efficacy (standard condition): 88 lm/W Rated LLMF at 2,000 h: 0.70 Lamp current: 2.80000 A PFC capacitor at 50 Hz: 32 µF Ignition voltage: 4.0 / 25 kVp UV protection: Yes Maximum permitted outer bulb temperature: 650 °C Maximum permitted pinch temperature: 300 °C Lifespan B50: 12000 h Enclosed luminaire required: Yes Hot restart: Yes Rated wattage: 250.00 W « hide more

€ 40,41 € 40,41 ex. VAT

HQI-TS 400 W/D

Karta produktu PDF

Product code: 56361 Construction wattage [PICOS]: 420.00 W Nominal voltage: 118 V Nominal wattage: 400.00 W Color temperature: 5500 K Rated luminous flux: 35000 lm Diameter: 33.0 mm Length: 206.0 mm Energy efficiency class: A Color rendering index Ra: 93 Lamp mercury content: 35.0 mg see more »

Energy consumption: 462 kWh/1000h ILCOS: MD/UB-400/856-H/E/SL-Fc2-25/162/H Product weight: 92.00 g Light center length (LCL): 103.0 mm Product remark: With NAV control gear Light color: 960 Rated LLMF at 4,000 h: 0.60 Rated LLMF at 6,000 h: 0.55 Rated LLMF at 8,000 h: 0.52 Rated lamp efficacy (standard condition): 83 lm/W Rated LLMF at 2,000 h: 0.70 Lamp current: 4.00000 A PFC capacitor at 50 Hz: 45 µF « hide more

€ 55,63 € 55,63 ex. VAT

HQI-TS 400 W/NDL

Karta produktu PDF

Product code: 56362 Construction wattage [PICOS]: 410.00 W Nominal voltage: 118 V Nominal wattage: 400.00 W Color temperature: 4200 K Rated luminous flux: 36000 lm Diameter: 33.0 mm Length: 206.0 mm Energy efficiency class: A+ Color rendering index Ra: 85 Lamp mercury content: 29.0 mg see more »

Energy consumption: 451 kWh/1000h ILCOS: MD/UB-400/842-H/E/SL-Fc2-25/162/H Product weight: 92.00 g Light center length (LCL): 103.0 mm Product remark: Operate only with NAV control gear Light color: 842 Rated LLMF at 4,000 h: 0.60 Rated LLMF at 6,000 h: 0.55 Rated LLMF at 8,000 h: 0.52 Rated lamp efficacy (standard condition): 88 lm/W Rated LLMF at 2,000 h: 0.70 Lamp current: 4.10000 A PFC capacitor at 50 Hz: 45 µF « hide more

€ 55,63 € 55,63 ex. VAT

Description / FAQ Warranty

Electrical data
Ignition voltage	4.0 / 5.0 kVp
Photometrical data
Rated LLMF at 12,000 h	0.50
UV protection	Yes
Lifespan
Rated lamp survival factor at 2,000 h	0.95
Rated lamp survival factor at 4,000 h	0.90
Rated lamp survival factor at 6,000 h	0.85
Rated lamp survival factor at 8,000 h	0.80
Rated lamp survival factor at 12,000 h	0.50
Lifespan B50	12000 h
Additional product data
Base (standard designation)	Fc2
Design / version	Clear
Capabilities
Dimmable	No
Burning position	p45
Enclosed luminaire required	Yes
Hot restart	Yes
Temperatures
Maximum permitted outer bulb temperature	650 °C
Maximum permitted pinch temperature	300 °C

Product benefits

High efficiency
Uniform distribution of light
Good to excellent color rendering
Long life time
Hot restrike capable
UV values significantly below the maximum permitted thresholds to IEC 61167 thanks to UV filter

Areas of application

Foyers, reception areas
Factory and hall lighting with low-cost installations
Exhibition halls and trade fairs
Sports halls and multi-purpose halls
Pedestrian zones, public squares
Parks and gardens
Buildings, monuments, bridges
Approved only for use in enclosed luminaires
Outdoor applications only in suitable luminaires

Product features

POWERSTAR quartz technology
Light colors: warm white (WDL), neutral white (NDL), daylight (D)
