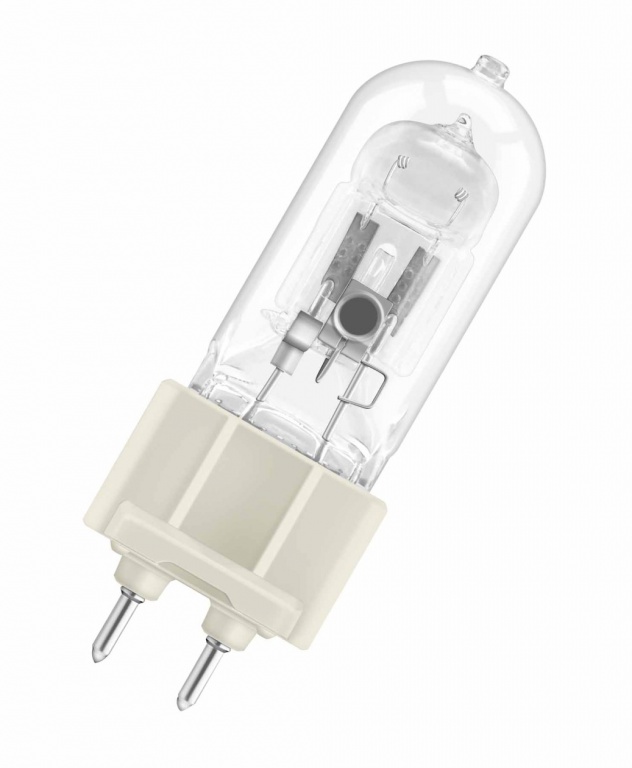

Metal Halide Lamp POWERSTAR HQI-T G12 Metal Halide Lamps G12

Price € 26,76 € 26,76 ex. VAT

See variants (4)

Nominal voltage 100 V
Ignition voltage 3.6 / 5.0 kVp
UV protection Yes
Diameter 25.0 mm
Length 84.0 mm
Product weight 30.00 g
Light center length (LCL) 56.0 mm
Rated lamp survival factor at 6,000 h 0.80
Lifespan B50 9000 h
Base (standard designation) G12
Design / version Clear
Dimmable No
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

rate product

Select your product from the 4

HQI-T 150 W/NDL UVS

Karta produktu PDF

Product code: 56348 Construction wattage [PICOS]: 150.00 W Nominal wattage: 150.00 W Color temperature: 4200 K Rated luminous flux: 13000 lm Energy efficiency class: A+ Color rendering index Ra: 85 Lamp mercury content: 32.3 mg Energy consumption: 165 kWh/1000h ILCOS: MT/UB-150/842-H/E/SL-G12-25/84 Light color: 842 see more »

Rated LLMF at 4,000 h: 0.77 Rated LLMF at 6,000 h: 0.73 Rated LLMF at 8,000 h: 0.68 Rated lamp survival factor at 2,000 h: 0.92 Rated lamp survival factor at 4,000 h: 0.90 Rated lamp survival factor at 8,000 h: 0.55 Rated lamp efficacy (standard condition): 87 lm/W Rated LLMF at 2,000 h: 0.82 Lamp current: 1.80000 A PFC capacitor at 50 Hz: 20 µF Maximum permitted outer bulb temperature: 550 °C « hide more

€ 26,76 € 26,76 ex. VAT

HQI-T 150 W/WDL UVS

Karta produktu PDF

Product code: 56349 Construction wattage [PICOS]: 150.00 W Nominal wattage: 150.00 W Color temperature: 3000 K Rated luminous flux: 13000 lm Energy efficiency class: A+ Color rendering index Ra: 77 Lamp mercury content: 32.0 mg Energy consumption: 165 kWh/1000h ILCOS: MT/UB-150/730-H/E/SL-G12-25/84 Light color: 730 see more »

Rated LLMF at 4,000 h: 0.73 Rated LLMF at 6,000 h: 0.69 Rated LLMF at 8,000 h: 0.60 Rated lamp survival factor at 2,000 h: 0.92 Rated lamp survival factor at 4,000 h: 0.90 Rated lamp survival factor at 8,000 h: 0.55 Rated lamp efficacy (standard condition): 87 lm/W Rated LLMF at 2,000 h: 0.80 Lamp current: 1.80000 A PFC capacitor at 50 Hz: 20 µF Maximum permitted outer bulb temperature: 550 °C « hide more

€ 26,76 € 26,76 ex. VAT

HQI-T 70 W/NDL UVS

Karta produktu PDF

Product code: 56358 Construction wattage [PICOS]: 73.00 W Nominal wattage: 70.00 W Color temperature: 4200 K Rated luminous flux: 5800 lm Energy efficiency class: A Color rendering index Ra: 80 Lamp mercury content: 14.7 mg Energy consumption: 81 kWh/1000h ILCOS: MT/UB-70/842-H/E/SL-G12-25/84 Light color: 842 see more »

Rated LLMF at 4,000 h: 0.74 Rated LLMF at 6,000 h: 0.68 Rated LLMF at 8,000 h: 0.60 Rated lamp survival factor at 2,000 h: 0.87 Rated lamp survival factor at 4,000 h: 0.85 Rated lamp survival factor at 8,000 h: 0.60 Rated lamp efficacy (standard condition): 77 lm/W Rated LLMF at 2,000 h: 0.80 Lamp current: 0.90000 A PFC capacitor at 50 Hz: 12 µF Maximum permitted outer bulb temperature: 500 °C « hide more

€ 26,76 € 26,76 ex. VAT

HQI-T 70 W/WDL

Karta produktu PDF

Product code: 56891 Nominal voltage: 95 V Nominal wattage: 70.00 W Color temperature: 3075 K Rated luminous flux: 5300 lm Diameter: 25.0 mm Length: 84.0 mm Base (standard designation): G12 Dimmable: No Energy efficiency class: A Color rendering index Ra: 73 see more »

Lamp mercury content: 13.9 mg Energy consumption: 83 kWh/1000h ILCOS: MT/UB-70/730-H/E/SL-G12-25/84 Product weight: 30.00 g Design / version: Clear Light center length (LCL): 56.0 mm Burning position: Any Light color: 730 Rated LLMF at 4,000 h: 0.80 Rated LLMF at 6,000 h: 0.75 Rated LLMF at 8,000 h: 0.70 Rated lamp survival factor at 2,000 h: 0.87 Rated lamp survival factor at 4,000 h: 0.85 Rated lamp survival factor at 6,000 h: 0.75 Rated lamp survival factor at 8,000 h: 0.60 Rated lamp efficacy (standard condition): 71 lm/W Rated LLMF at 2,000 h: 0.85 Lamp current: 0.95000 A PFC capacitor at 50 Hz: 12 µF Ignition voltage: 3.6 / 5.0 kVp UV protection: Yes Maximum permitted outer bulb temperature: 550 °C Maximum permitted pinch temperature: 280 °C Lifespan B50: 9000 h Enclosed luminaire required: Yes Rated wattage: 75.00 W « hide more

€ 26,76 € 26,76 ex. VAT

Description / FAQ Warranty

Electrical data
Nominal voltage	100 V
Ignition voltage	3.6 / 5.0 kVp
Photometrical data
UV protection	Yes

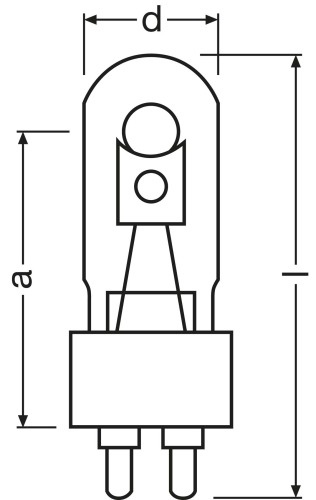

Dimensions & weight
Diameter	25.0 mm
Length	84.0 mm
Product weight	30.00 g
Light center length (LCL)	56.0 mm
Lifespan
Rated lamp survival factor at 6,000 h	0.80
Lifespan B50	9000 h
Additional product data

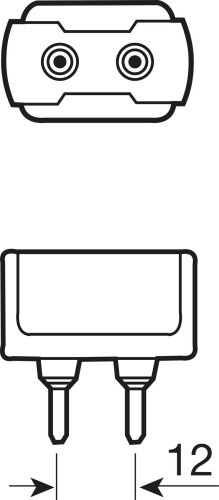

Base (standard designation)	G12
Design / version	Clear
Capabilities
Dimmable	No
Burning position	Any
Enclosed luminaire required	Yes

Product benefits

High efficiency
Good to excellent color rendering
UV values significantly below the maximum permitted thresholds to IEC 61167 thanks to UV filter

Areas of application

Shopping arcades
Exhibition halls and trade fairs
Factories and workshops
Pedestrian zones, public squares
Buildings, monuments, bridges
Approved only for use in enclosed luminaires
Outdoor applications only in suitable luminaires

Product features

POWERSTAR quartz technology
Light colors: warm white (WDL), neutral white (NDL)
Average lifetime: 9,000 hours

System guarantee
For the vast majority of our lamps we are offering an extended system guarantee in conjunction with OSRAM POWERTRONIC control gear.
