RX7s-24

Electrico24 code: 56877 | Osram code: 4008321688309

Unavailable

Nominal wattage 70.00 W
Color temperature 4200 K
Diameter 20.0 mm
Length 120.0 mm
Base (standard designation) RX7s
Color rendering index Ra 94
Lamp mercury content 8.0 mg
Energy consumption 81 kWh/1000h
ILCOS MD/UB-70/942-H/SL-RX7s-22/114,2/H
Product weight 22.00 g
Luminous flux 6700 lm
Luminous efficacy 92 lm/W
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

5.0 / 5 (1 score)

Description / FAQ Warranty

Nominal wattage	70.00 W
Color temperature	3000 K
Diameter	20.0 mm
Length	120.0 mm
Base (standard designation)	RX7s
Color rendering index Ra	88
Lamp mercury content	5.5 mg
Energy consumption	81 kWh/1000h
ILCOS	MD/UB-70/830-H/SL-RX7s-22/114,2/H
Product weight	22.00 g
Luminous flux	7000 lm
Luminous efficacy	96 lm/W
Light center length (LCL)	60.0 mm
Light color	830
Rated LLMF at 4,000 h	0.82
Rated LLMF at 6,000 h	0.79
Rated LLMF at 8,000 h	0.76
Rated lamp survival factor at 4,000 h	0.98
Rated lamp survival factor at 6,000 h	0.97
Rated lamp survival factor at 8,000 h	0.96
Rated LLMF at 12,000 h	0.71
Rated lamp survival factor at 12,000 h	0.80
Rated LLMF at 2,000 h	0.84
Lamp current	0.95000 A
PFC capacitor at 50 Hz	12 µF
Ignition voltage	3.6 / 4.5 kVp
Maximum permitted outer bulb temperature	500 °C
Rated wattage	73.00 W
Electrical data
Construction wattage [PICOS]	73.00 W
Nominal wattage	70.00 W
Lamp current	0.94000 A
PFC capacitor at 50 Hz	12 µF
Ignition voltage	3.6 / 5.0 kVp
Photometrical data
Color temperature	4200 K
Color rendering index Ra	94
Luminous flux	6700 lm
Luminous efficacy	92 lm/W
Light color	942
Rated LLMF at 4,000 h	0.78
Rated LLMF at 6,000 h	0.76
Rated LLMF at 8,000 h	0.74
Rated LLMF at 12,000 h	0.71
Rated LLMF at 2,000 h	0.82
UV protection	Yes

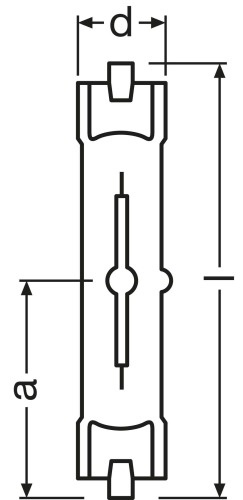

Dimensions & weight
Diameter	20.0 mm
Length	120.0 mm
Product weight	22.00 g
Light center length (LCL)	60.0 mm
Lifespan
Rated lamp survival factor at 2,000 h	0.99
Rated lamp survival factor at 4,000 h	0.98
Rated lamp survival factor at 6,000 h	0.97
Operation mode LLMF/LSF	ECG
Rated lamp survival factor at 8,000 h	0.96
Rated lamp survival factor at 12,000 h	0.80
Lifespan B50	15000 h
Additional product data
Base (standard designation)	RX7s
Lamp mercury content	8.0 mg
System guarantee level	3 (2/5)
Capabilities
Dimmable	Yes
Burning position	p45
Enclosed luminaire required	Yes
Certificates & standards
Energy efficiency class	A+
Energy consumption	81 kWh/1000h
Country specific categorizations
ILCOS	MD/UB-70/942-H/SL-RX7s-22/114,2/H
Temperatures
Maximum permitted outer bulb temperature	500 °C
Maximum permitted pinch temperature	330 °C

Product benefits

Very high efficiency
Good to excellent color rendering
Very good color stability
UV values significantly below the maximum permitted thresholds to IEC 61167 thanks to UV filter

Areas of application

Shopping arcades
Foyers, reception areas
Museums, exhibitions
Exhibition halls and trade fairs
Factories and workshops
Buildings, monuments, bridges
Approved only for use in enclosed luminaires
Outdoor applications only in suitable luminaires

Product features

POWERBALL ceramic technology
Light colors: warm white (830 WDL), neutral white (942 NDL)

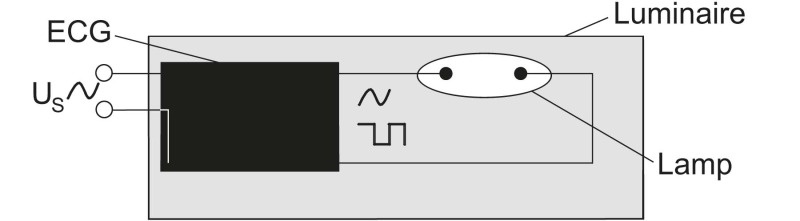

Average lifetime: 15,000 h (operation with ECG with 70…400 Hz square-wave current)

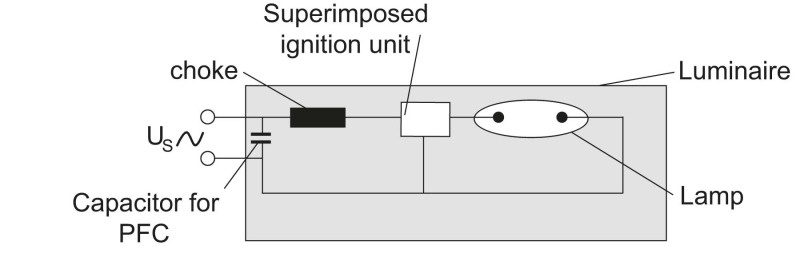

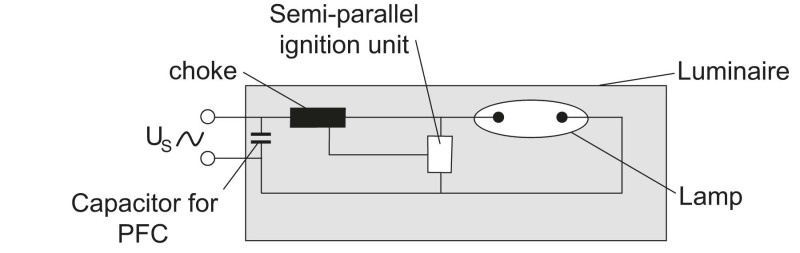

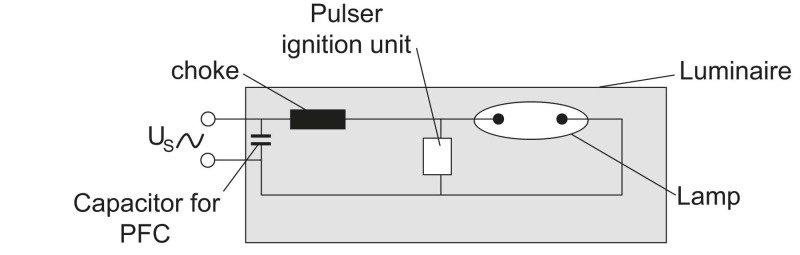

Average lifetime: 12,000 hours (with magnetic control gear)

System guarantee
For the vast majority of our lamps we are offering an extended system guarantee in conjunction with OSRAM POWERTRONIC control gear.

HCI-TS 70 W/830 WDL PB
