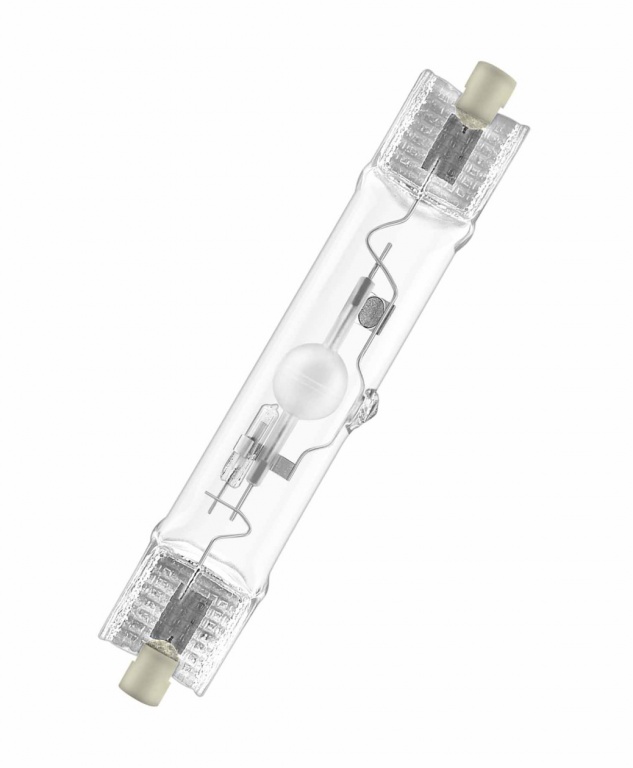

Metal Halide Lamp POWERBALL HCI-TS Metal Halide Lamps RX7s / RX7s-24

From € 20,61 incl. VAT
From € 20,61 ex. VAT

See variants (3)

Construction wattage [PICOS] 73.00 W
Nominal wattage 70.00 W
Lamp current 0.94000 A
PFC capacitor at 50 Hz 12 µF
Ignition voltage 3.6 / 5.0 kVp
Color temperature 4200 K
Color rendering index Ra 94
Luminous flux 6700 lm
Luminous efficacy 92 lm/W
Light color 942
Rated LLMF at 4,000 h 0.78
Rated LLMF at 6,000 h 0.76
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

5.0 / 5 (1 score)

Select your product from the 3

HCI-TS 70 W/830 WDL PB

Karta produktu PDF

Product code: 56877 Nominal wattage: 70.00 W Color temperature: 3000 K Diameter: 20.0 mm Length: 120.0 mm Base (standard designation): RX7s Color rendering index Ra: 88 Lamp mercury content: 5.5 mg Energy consumption: 81 kWh/1000h ILCOS: MD/UB-70/830-H/SL-RX7s-22/114,2/H Product weight: 22.00 g see more »

Luminous flux: 7000 lm Luminous efficacy: 96 lm/W Light center length (LCL): 60.0 mm Light color: 830 Rated LLMF at 4,000 h: 0.82 Rated LLMF at 6,000 h: 0.79 Rated LLMF at 8,000 h: 0.76 Rated lamp survival factor at 4,000 h: 0.98 Rated lamp survival factor at 6,000 h: 0.97 Rated lamp survival factor at 8,000 h: 0.96 Rated LLMF at 12,000 h: 0.71 Rated lamp survival factor at 12,000 h: 0.80 Rated LLMF at 2,000 h: 0.84 Lamp current: 0.95000 A PFC capacitor at 50 Hz: 12 µF Ignition voltage: 3.6 / 4.5 kVp Maximum permitted outer bulb temperature: 500 °C Rated wattage: 73.00 W « hide more

€ 20,61 € 20,61 ex. VAT

HCI-TS 70 W/942 NDL PB

Karta produktu PDF

Product code: 56322

€ 20,61 € 20,61 ex. VAT

HCI-TS 150 W/942 NDL PB

Karta produktu PDF

Product code: 56876 Nominal wattage: 150.00 W Color temperature: 4200 K Diameter: 23.0 mm Length: 138.0 mm Base (standard designation): RX7s-24 Color rendering index Ra: 96 Lamp mercury content: 17.9 mg Energy consumption: 162 kWh/1000h ILCOS: MD/UB-150/942-H/SL-RX7s=24-25/132/H Product weight: 27.00 g see more »

Luminous flux: 14800 lm Luminous efficacy: 101 lm/W Light center length (LCL): 69.0 mm Light color: 942 Rated LLMF at 4,000 h: 0.75 Rated LLMF at 6,000 h: 0.70 Rated LLMF at 8,000 h: 0.67 Rated lamp survival factor at 4,000 h: 0.98 Rated lamp survival factor at 6,000 h: 0.97 Rated lamp survival factor at 8,000 h: 0.96 Rated LLMF at 12,000 h: 0.65 Rated lamp survival factor at 12,000 h: 0.80 Rated LLMF at 2,000 h: 0.85 Lamp current: 1.80000 A PFC capacitor at 50 Hz: 20 µF Ignition voltage: 3.6 / 5.0 kVp Maximum permitted outer bulb temperature: 650 °C Rated wattage: 147.00 W « hide more

€ 23,99 € 23,99 ex. VAT

Description / FAQ Warranty

Electrical data
Construction wattage [PICOS]	73.00 W
Nominal wattage	70.00 W
Lamp current	0.94000 A
PFC capacitor at 50 Hz	12 µF
Ignition voltage	3.6 / 5.0 kVp
Photometrical data
Color temperature	4200 K
Color rendering index Ra	94
Luminous flux	6700 lm
Luminous efficacy	92 lm/W
Light color	942
Rated LLMF at 4,000 h	0.78
Rated LLMF at 6,000 h	0.76
Rated LLMF at 8,000 h	0.74
Rated LLMF at 12,000 h	0.71
Rated LLMF at 2,000 h	0.82
UV protection	Yes

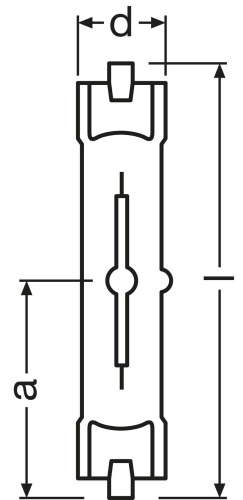

Dimensions & weight
Diameter	20.0 mm
Length	120.0 mm
Product weight	22.00 g
Light center length (LCL)	60.0 mm
Lifespan
Rated lamp survival factor at 2,000 h	0.99
Rated lamp survival factor at 4,000 h	0.98
Rated lamp survival factor at 6,000 h	0.97
Operation mode LLMF/LSF	ECG
Rated lamp survival factor at 8,000 h	0.96
Rated lamp survival factor at 12,000 h	0.80
Lifespan B50	15000 h
Additional product data
Base (standard designation)	RX7s
Lamp mercury content	8.0 mg
System guarantee level	3 (2/5)
Capabilities
Dimmable	Yes
Burning position	p45
Enclosed luminaire required	Yes
Certificates & standards
Energy efficiency class	A+
Energy consumption	81 kWh/1000h
Country specific categorizations
ILCOS	MD/UB-70/942-H/SL-RX7s-22/114,2/H
Temperatures
Maximum permitted outer bulb temperature	500 °C
Maximum permitted pinch temperature	330 °C

Product benefits

Very high efficiency
Good to excellent color rendering
Very good color stability
UV values significantly below the maximum permitted thresholds to IEC 61167 thanks to UV filter

Areas of application

Shopping arcades
Foyers, reception areas
Museums, exhibitions
Exhibition halls and trade fairs
Factories and workshops
Buildings, monuments, bridges
Approved only for use in enclosed luminaires
Outdoor applications only in suitable luminaires

Product features

POWERBALL ceramic technology
Light colors: warm white (830 WDL), neutral white (942 NDL)

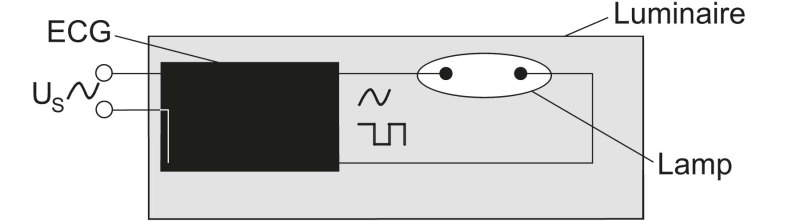

Average lifetime: 15,000 h (operation with ECG with 70…400 Hz square-wave current)
Average lifetime: 12,000 hours (with magnetic control gear)

System guarantee
For the vast majority of our lamps we are offering an extended system guarantee in conjunction with OSRAM POWERTRONIC control gear.
