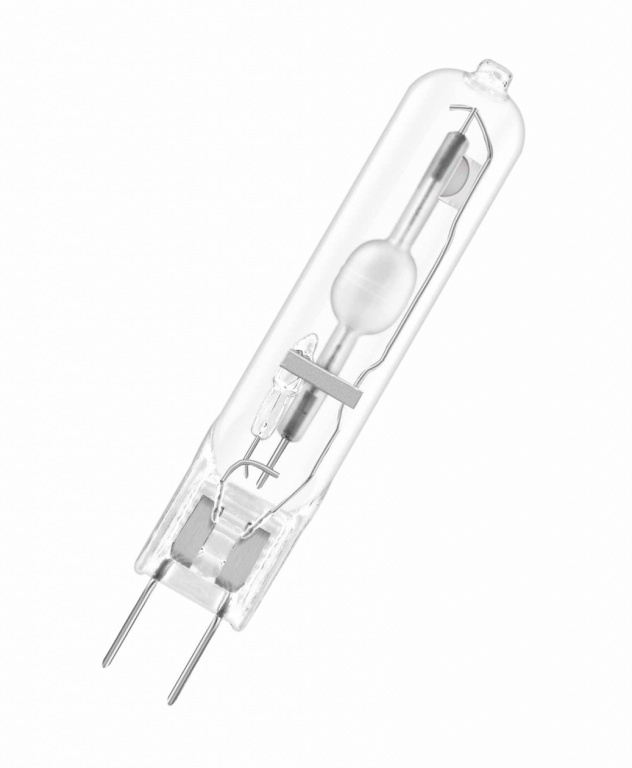

Metal Halide Lamp POWERBALL HCI-TC Metal Halide Lamps G8.5

Price € 25,68 € 25,68 ex. VAT
See variants (5)
  • UV protection Yes
  • Diameter 15.0 mm
  • Length 81.0 mm
  • Light center length (LCL) 52.0 mm
  • Rated lamp survival factor at 2,000 h 0.99
  • Operation mode LLMF/LSF ECG
  • Rated lamp survival factor at 12,000 h 0.80
  • Lifespan B50 15000 h
  • Base (standard designation) G8.5
  • System guarantee level 3 (2/5)
  • Burning position Any
  • Enclosed luminaire required Yes
  • ▼ see full specification ▼

Select your product from the 5

 HCI-TC 20 W/830 WDL PB
Product code: 56862 Nominal wattage: 20.00 W Color temperature: 3000 K Dimmable: No Energy efficiency class: A Color rendering index Ra: 83 Lamp mercury content: 3.7 mg  Energy consumption: 22 kWh/1000h ILCOS: MT/UB-20/830-H/L-G8.5-17/85 Product weight: 8.00 g Luminous flux: 1700 lm see more »
Luminous efficacy: 85 lm/W Product remark: Only for operation with electronic control gear with 70…400 Hz square-wave current Light color: 830 Rated LLMF at 4,000 h: 0.75 Rated LLMF at 6,000 h: 0.71 Rated LLMF at 8,000 h: 0.69 Rated lamp survival factor at 4,000 h: 0.98 Rated lamp survival factor at 6,000 h: 0.97 Rated lamp survival factor at 8,000 h: 0.96 Rated LLMF at 12,000 h: 0.65 Rated LLMF at 2,000 h: 0.80 Lamp current: 0.23000 A Ignition voltage: 3.6 / 5.0 kVp  Maximum permitted outer bulb temperature: 400 °C Maximum permitted pinch temperature: 330 °C Rated wattage: 20.00 W « hide more
€ 25,68 € 25,68 ex. VAT
pc(s)
pc(s)
 HCI-TC 35 W/830 WDL PB
Product code: 56863 Nominal wattage: 35.00 W Color temperature: 3000 K Dimmable: No Energy efficiency class: A+ Color rendering index Ra: 85 Lamp mercury content: 3.3 mg Energy consumption: 43 kWh/1000h ILCOS: MT/UB-35/830-H/SL-G8.5-17/85 Product weight: 9.00 g Luminous flux: 3700 lm  see more »
Luminous efficacy: 95 lm/W  Light color: 830 Rated LLMF at 4,000 h: 0.82 Rated LLMF at 6,000 h: 0.78 Rated LLMF at 8,000 h: 0.77 Rated lamp survival factor at 4,000 h: 0.98 Rated lamp survival factor at 6,000 h: 0.97 Rated lamp survival factor at 8,000 h: 0.96 Rated LLMF at 12,000 h: 0.76 Rated LLMF at 2,000 h: 0.83 Lamp current: 0.52000 A PFC capacitor at 50 Hz: 6 µF  Ignition voltage: 3.6 / 5.0 kVp  Maximum permitted outer bulb temperature: 500 °C Maximum permitted pinch temperature: 330 °C Rated wattage: 39.00 W « hide more
€ 25,68 € 25,68 ex. VAT
pc(s)
pc(s)
 HCI-TC 35 W/942 NDL PB
Product code: 56864 Nominal wattage: 35.00 W Color temperature: 4200 K Dimmable: No Energy efficiency class: A+ Color rendering index Ra: 90 Lamp mercury content: 5.1 mg  Energy consumption: 43 kWh/1000h ILCOS: MT/UB-35/942-H/SL-G8.5-17/85 Product weight: 9.00 g Luminous flux: 3500 lm  see more »
Luminous efficacy: 90 lm/W  Light color: 942 Rated LLMF at 4,000 h: 0.92 Rated LLMF at 6,000 h: 0.91 Rated LLMF at 8,000 h: 0.90 Rated lamp survival factor at 4,000 h: 0.98 Rated lamp survival factor at 6,000 h: 0.97 Rated lamp survival factor at 8,000 h: 0.92 Rated LLMF at 12,000 h: 0.85 Rated LLMF at 2,000 h: 0.93 Lamp current: 0.53000 A PFC capacitor at 50 Hz: 6 µF  Ignition voltage: 3.6 / 5.0 kVp  Maximum permitted outer bulb temperature: 500 °C Maximum permitted pinch temperature: 330 °C Rated wattage: 39.00 W « hide more
€ 25,68 € 25,68 ex. VAT
pc(s)
pc(s)
 HCI-TC 70 W/830 WDL PB
Product code: 56868 Nominal wattage: 70.00 W Color temperature: 3000 K Dimmable: Yes  Energy efficiency class: A+ Color rendering index Ra: 89 Lamp mercury content: 5.2 mg  Energy consumption: 81 kWh/1000h ILCOS: MT/UB-70/830-H/SL-G8.5-17/85 Product weight: 9.00 g Luminous flux: 7200 lm  see more »
Luminous efficacy: 99 lm/W  Light color: 830 Rated LLMF at 4,000 h: 0.82 Rated LLMF at 6,000 h: 0.80 Rated LLMF at 8,000 h: 0.78 Rated lamp survival factor at 4,000 h: 0.98 Rated lamp survival factor at 6,000 h: 0.97 Rated lamp survival factor at 8,000 h: 0.96 Rated LLMF at 12,000 h: 0.70 Rated LLMF at 2,000 h: 0.84 Lamp current: 0.95000 A PFC capacitor at 50 Hz: 12 µF  Ignition voltage: 3.6 / 5.0 kVp  Maximum permitted outer bulb temperature: 550 °C Maximum permitted pinch temperature: 350 °C Rated wattage: 73.00 W « hide more
€ 25,68 € 25,68 ex. VAT
pc(s)
pc(s)
 HCI-TC 70 W/942 NDL PB
Product code: 56870 Nominal wattage: 70.00 W Color temperature: 4200 K Dimmable: Yes  Energy efficiency class: A+ Color rendering index Ra: 96 Lamp mercury content: 7.6 mg  Energy consumption: 81 kWh/1000h ILCOS: MT/UB-70/942-H/SL-G8.5-17/85 Product weight: 9.00 g Luminous flux: 6800 lm  see more »
Luminous efficacy: 93 lm/W  Light color: 942 Rated LLMF at 4,000 h: 0.88 Rated LLMF at 6,000 h: 0.86 Rated LLMF at 8,000 h: 0.84 Rated lamp survival factor at 4,000 h: 0.98 Rated lamp survival factor at 6,000 h: 0.97 Rated lamp survival factor at 8,000 h: 0.92 Rated LLMF at 12,000 h: 0.80 Rated LLMF at 2,000 h: 0.90 Lamp current: 1.00000 A PFC capacitor at 50 Hz: 12 µF  Ignition voltage: 3.6 / 5.0 kVp  Maximum permitted outer bulb temperature: 550 °C Maximum permitted pinch temperature: 350 °C Rated wattage: 73.00 W « hide more
€ 25,68 € 25,68 ex. VAT
pc(s)
pc(s)

Photometrical data

UV protection Yes

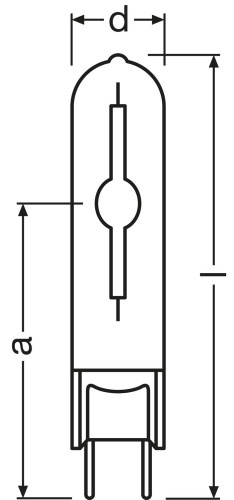

Dimensions & weight

Diameter 15.0 mm
Length 81.0 mm
Light center length (LCL) 52.0 mm

Lifespan

Rated lamp survival factor at 2,000 h 0.99
Operation mode LLMF/LSF ECG
Rated lamp survival factor at 12,000 h 0.80
Lifespan B50 15000 h

Additional product data

Base (standard designation) G8.5
System guarantee level 3 (2/5)

Capabilities

Burning position Any
Enclosed luminaire required Yes

Product benefits

  • Very high efficiency
  • Good to excellent color rendering
  • Very good color stability
  • UV values significantly below the maximum permitted thresholds to IEC 61167 thanks to UV filter

Areas of application

  • Shop interiors, shop windows
  • Shopping arcades
  • Foyers, reception areas
  • Museums, exhibitions
  • Accent lighting
  • Decorative lighting
  • Approved only for use in enclosed luminaires
  • Outdoor applications only in suitable luminaires

Product features

  • POWERBALL  ceramic technology
  • Light colors: warm white (830 WDL), neutral white (942 NDL)
  • Average lifetime: 15,000 h (operation with ECG with 70…400 Hz square-wave current)
  • Average lifetime: 12,000 hours (with magnetic control gear)
  • HCI-TC 20 W, HCI-TC 50 W only for operation with ECG with 70…400 Hz square-wave current

System guarantee
For the vast majority of our lamps we are offering an extended system guarantee in conjunction with OSRAM POWERTRONIC control gear.
