Metal Halide Lamp POWERBALL HCI-T Shoplight Metal Halide Lamps G12

Product code: 56861
Price € 28,45 incl. VAT
€ 28,45 netto
pc(s)
pc(s)
  • Nominal wattage 70.00 W
  • Dimmable Yes
  • Energy efficiency class A+
  • Lamp mercury content 8.5 mg
  • Energy consumption 81 kWh/1000h
  • ILCOS MT/UB-70/930-H/SL-G12-20/90
  • Product weight 28.00 g
  • Luminous flux 6800 lm
  • Luminous efficacy 93 lm/W
  • Rated LLMF at 4,000 h 0.83
  • Rated LLMF at 6,000 h 0.81
  • Rated LLMF at 8,000 h 0.74
  • ▼ see full specification ▼

1 variant available

 HCI-T 70 W/930 WDL PB Shoplight
Product code: 56861 Nominal wattage: 70.00 W Dimmable: Yes  Energy efficiency class: A+ Lamp mercury content: 8.5 mg  Energy consumption: 81 kWh/1000h ILCOS: MT/UB-70/930-H/SL-G12-20/90 Product weight: 28.00 g Luminous flux: 6800 lm  Luminous efficacy: 93 lm/W  Rated LLMF at 4,000 h: 0.83 see more »
Rated LLMF at 6,000 h: 0.81 Rated LLMF at 8,000 h: 0.74 Rated lamp survival factor at 8,000 h: 0.90 Rated LLMF at 12,000 h: 0.60 Rated LLMF at 2,000 h: 0.84 Lamp current: 0.98000 A PFC capacitor at 50 Hz: 12 µF  Rated wattage: 73.00 W « hide more
€ 28,45 € 28,45 ex. VAT
pc(s)
pc(s)
Nominal wattage 70.00 W
Dimmable Yes
Energy efficiency class A+
Lamp mercury content 8.5 mg
Energy consumption 81 kWh/1000h
ILCOS MT/UB-70/930-H/SL-G12-20/90
Product weight 28.00 g
Luminous flux 6800 lm
Luminous efficacy 93 lm/W
Rated LLMF at 4,000 h 0.83
Rated LLMF at 6,000 h 0.81
Rated LLMF at 8,000 h 0.74
Rated lamp survival factor at 8,000 h 0.90
Rated LLMF at 12,000 h 0.60
Rated LLMF at 2,000 h 0.84
Lamp current 0.98000 A
PFC capacitor at 50 Hz 12 µF
Rated wattage 73.00 W

Electrical data

Ignition voltage 3.6 / 5.0 kVp

Photometrical data

Color temperature 3000 K
Color rendering index Ra 93
Light color 930
UV protection Yes

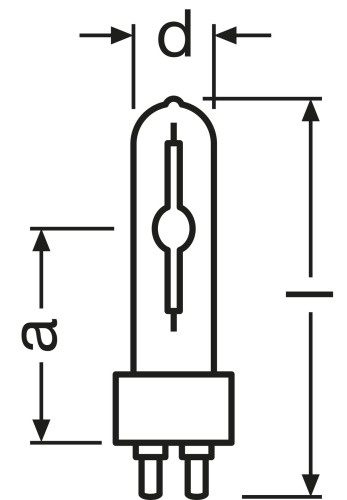

Dimensions & weight

Diameter 20.0 mm
Length 100.0 mm
Light center length (LCL) 56.0 mm

Lifespan

Rated lamp survival factor at 2,000 h 0.99
Rated lamp survival factor at 4,000 h 0.98
Rated lamp survival factor at 6,000 h 0.97
Operation mode LLMF/LSF ECG
Rated lamp survival factor at 12,000 h 0.80
Lifespan B50 15000 h

Additional product data

Base (standard designation) G12
System guarantee level 3 (2/5)

Capabilities

Burning position Any
Enclosed luminaire required Yes

Temperatures

Maximum permitted outer bulb temperature 500 °C
Maximum permitted pinch temperature 350 °C

Product benefits

  • Excellent color rendering
  • Excellent rendering of red tones
  • Very good color stability
  • High efficiency
  • UV values significantly below the maximum permitted thresholds to IEC 61167 thanks to UV filter

Areas of application

  • Shop interiors, shop windows
  • Museums, exhibitions
  • Accent lighting
  • Approved only for use in enclosed luminaires
  • Outdoor applications only in suitable luminaires

Product features

  • POWERBALL ceramic technology
  • Light color: warm white  (930 WDL)
  • Average lifetime: 15,000 h (operation with ECG with 70…400 Hz square-wave current)
  • Average lifetime: 12,000 hours (with magnetic control gear)
  • Color rendering index Ra: ≥ 93

System guarantee
For the vast majority of our lamps we are offering an extended system guarantee in conjunction with OSRAM POWERTRONIC control gear.
