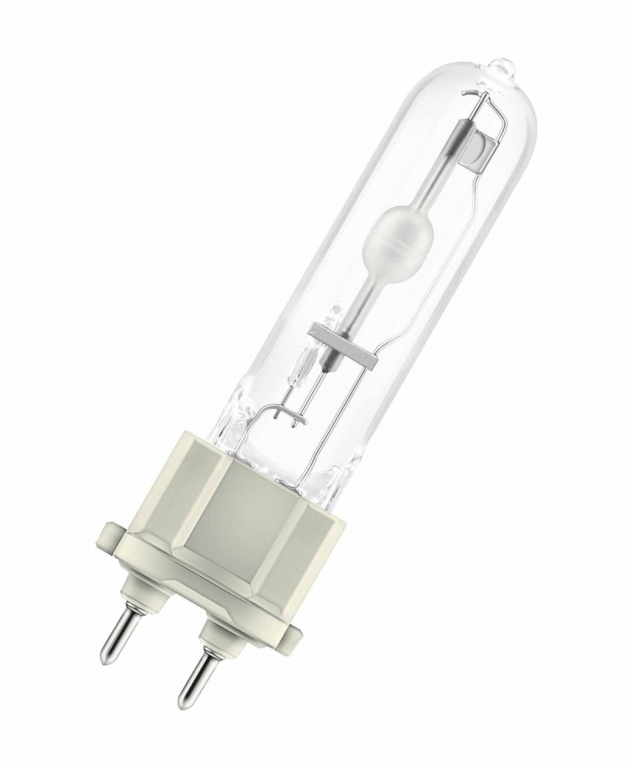

Metal Halide Lamp POWERBALL HCI-T Metal Halide Lamps G12

Price € 24,71 € 24,71 ex. VAT

See variants (4)

UV protection Yes
Light center length (LCL) 56.0 mm
Rated lamp survival factor at 2,000 h 0.99
Operation mode LLMF/LSF ECG
Rated lamp survival factor at 12,000 h 0.80
Lifespan B50 15000 h
Base (standard designation) G12
Design / version Clear
System guarantee level 3 (2/5)
Burning position Any
Enclosed luminaire required Yes
Hot restart No
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

rate product

Select your product from the 4

HCI-T 35 W/830 WDL PB

Karta produktu PDF

Product code: 56836 Nominal wattage: 35.00 W Color temperature: 3000 K Diameter: 20.0 mm Length: 100.0 mm Dimmable: No Color rendering index Ra: 85 Lamp mercury content: 3.3 mg Energy consumption: 43 kWh/1000h ILCOS: MT/UB-35/830-H/E/SL-G12-20/90 Product weight: 27.00 g see more »

Luminous flux: 3700 lm Luminous efficacy: 95 lm/W Light color: 830 Rated LLMF at 4,000 h: 0.82 Rated LLMF at 6,000 h: 0.78 Rated LLMF at 8,000 h: 0.75 Rated lamp survival factor at 4,000 h: 0.98 Rated lamp survival factor at 6,000 h: 0.97 Rated lamp survival factor at 8,000 h: 0.96 Rated LLMF at 12,000 h: 0.73 Rated LLMF at 2,000 h: 0.86 Lamp current: 0.52000 A PFC capacitor at 50 Hz: 6 µF Ignition voltage: 3.6 / 5.0 kVp Maximum permitted outer bulb temperature: 500 °C Rated wattage: 39.00 W « hide more

€ 24,71 € 24,71 ex. VAT

HCI-T 35 W/942 NDL PB

Karta produktu PDF

Product code: 56837 Nominal wattage: 35.00 W Color temperature: 4200 K Diameter: 20.0 mm Length: 100.0 mm Dimmable: No Color rendering index Ra: 91 Lamp mercury content: 5.4 mg Energy consumption: 43 kWh/1000h ILCOS: MT/UB-35/942-H/SL-G12-20/90 Product weight: 27.00 g see more »

Luminous flux: 3400 lm Luminous efficacy: 87 lm/W Light color: 942 Rated LLMF at 4,000 h: 0.91 Rated LLMF at 6,000 h: 0.91 Rated LLMF at 8,000 h: 0.89 Rated lamp survival factor at 4,000 h: 0.98 Rated lamp survival factor at 6,000 h: 0.97 Rated lamp survival factor at 8,000 h: 0.96 Rated LLMF at 12,000 h: 0.84 Rated LLMF at 2,000 h: 0.92 Lamp current: 0.53000 A PFC capacitor at 50 Hz: 6 µF Ignition voltage: 3.6 / 5.0 kVp Maximum permitted outer bulb temperature: 500 °C Rated wattage: 39.00 W « hide more

€ 24,71 € 24,71 ex. VAT

HCI-T 70 W/830 WDL PB

Karta produktu PDF

Product code: 56839 Nominal wattage: 70.00 W Color temperature: 3000 K Diameter: 20.0 mm Length: 100.0 mm Dimmable: Yes Color rendering index Ra: 89 Lamp mercury content: 6.1 mg Energy consumption: 81 kWh/1000h ILCOS: MT/UB-70/830-H/SL-G12-20/90 Product weight: 28.00 g see more »

Luminous flux: 7400 lm Luminous efficacy: 101 lm/W Light color: 830 Rated LLMF at 4,000 h: 0.81 Rated LLMF at 6,000 h: 0.80 Rated LLMF at 8,000 h: 0.78 Rated lamp survival factor at 4,000 h: 0.98 Rated lamp survival factor at 6,000 h: 0.97 Rated lamp survival factor at 8,000 h: 0.96 Rated LLMF at 12,000 h: 0.75 Rated LLMF at 2,000 h: 0.85 Lamp current: 0.96000 A PFC capacitor at 50 Hz: 12 µF Ignition voltage: 3.6 / 5.0 kVp Maximum permitted outer bulb temperature: 500 °C Rated wattage: 73.00 W « hide more

€ 24,71 € 24,71 ex. VAT

HCI-T 70 W/942 NDL PB

Karta produktu PDF

Product code: 56840 Nominal wattage: 70.00 W Color temperature: 4200 K Diameter: 20.0 mm Length: 100.0 mm Dimmable: Yes Color rendering index Ra: 95 Lamp mercury content: 7.3 mg Energy consumption: 81 kWh/1000h ILCOS: MT/UB-70/942-H/SL-G12-20/90 Product weight: 28.00 g see more »

Luminous flux: 6800 lm Luminous efficacy: 93 lm/W Light color: 942 Rated LLMF at 4,000 h: 0.81 Rated LLMF at 6,000 h: 0.78 Rated LLMF at 8,000 h: 0.77 Rated lamp survival factor at 4,000 h: 0.98 Rated lamp survival factor at 6,000 h: 0.97 Rated lamp survival factor at 8,000 h: 0.96 Rated LLMF at 12,000 h: 0.76 Rated LLMF at 2,000 h: 0.87 Lamp current: 0.99000 A PFC capacitor at 50 Hz: 12 µF Ignition voltage: 3.6 / 5.0 kVp Maximum permitted outer bulb temperature: 500 °C Rated wattage: 73.00 W « hide more

€ 24,71 € 24,71 ex. VAT

Description / FAQ Warranty

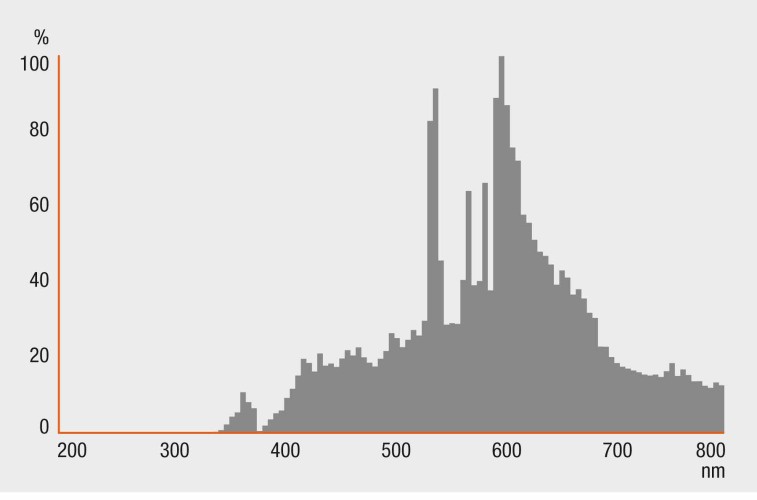

Photometrical data
UV protection	Yes
Dimensions & weight

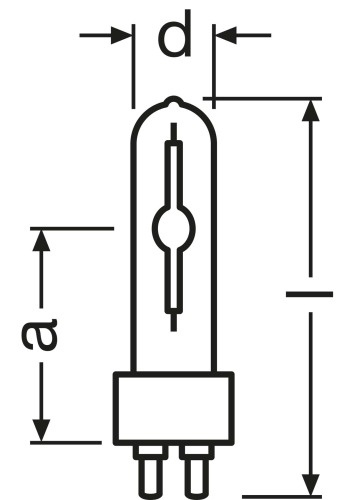

Light center length (LCL)	56.0 mm
Lifespan
Rated lamp survival factor at 2,000 h	0.99
Operation mode LLMF/LSF	ECG
Rated lamp survival factor at 12,000 h	0.80
Lifespan B50	15000 h
Additional product data
Base (standard designation)	G12
Design / version	Clear
System guarantee level	3 (2/5)
Capabilities
Burning position	Any
Enclosed luminaire required	Yes
Hot restart	No
Certificates & standards
Energy efficiency class	A+
Temperatures
Maximum permitted pinch temperature	350 °C

Product benefits

Very high efficiency
Good to excellent color rendering
Very good color stability
UV values significantly below the maximum permitted thresholds to IEC 61167 thanks to UV filter

Areas of application

Shop interiors, shop windows
Shopping arcades
Foyers, reception areas
Museums, exhibitions
Exhibition halls and trade fairs
Factories and workshops
Approved only for use in enclosed luminaires
Outdoor applications only in suitable luminaires

Product features

POWERBALL ceramic technology
Light colors: warm white (830 WDL), neutral white (942 NDL)

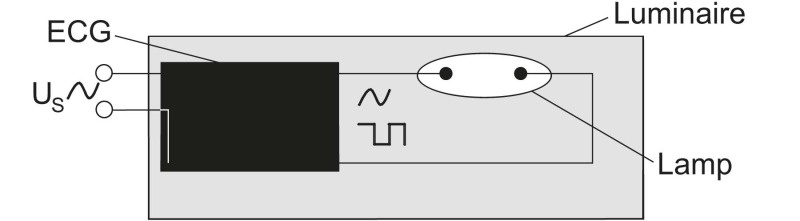

Average lifetime: 15,000 h (operation with ECG with 70…400 Hz square-wave current)

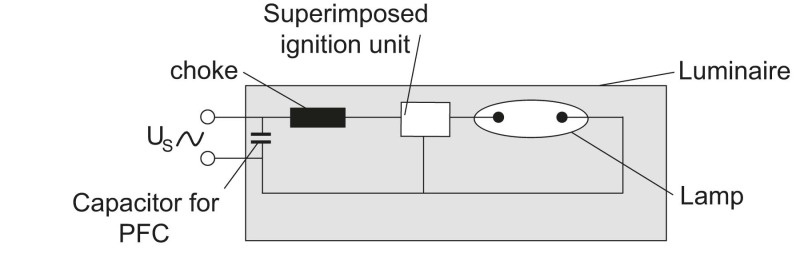

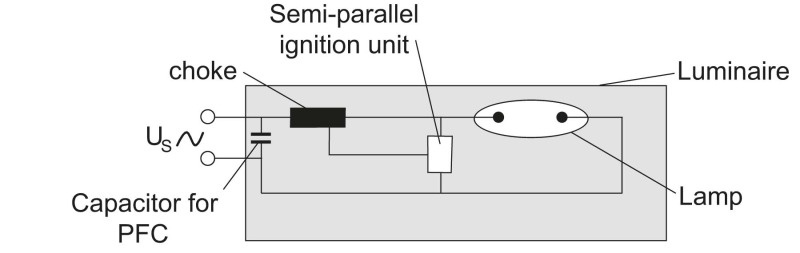

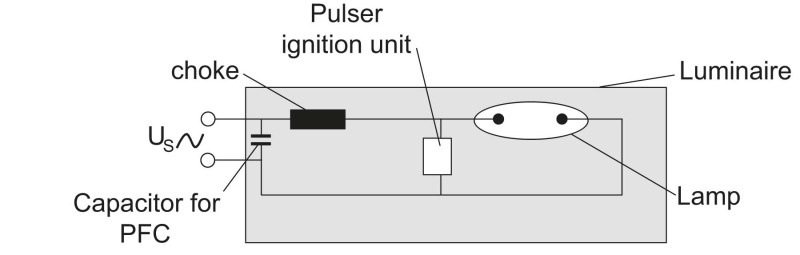

Average lifetime: 12,000 hours (with magnetic control gear)
HCI-T 50 W only for operation with ECG with 70…400 Hz square-wave current

System guarantee
For the vast majority of our lamps we are offering an extended system guarantee in conjunction with OSRAM POWERTRONIC control gear.
