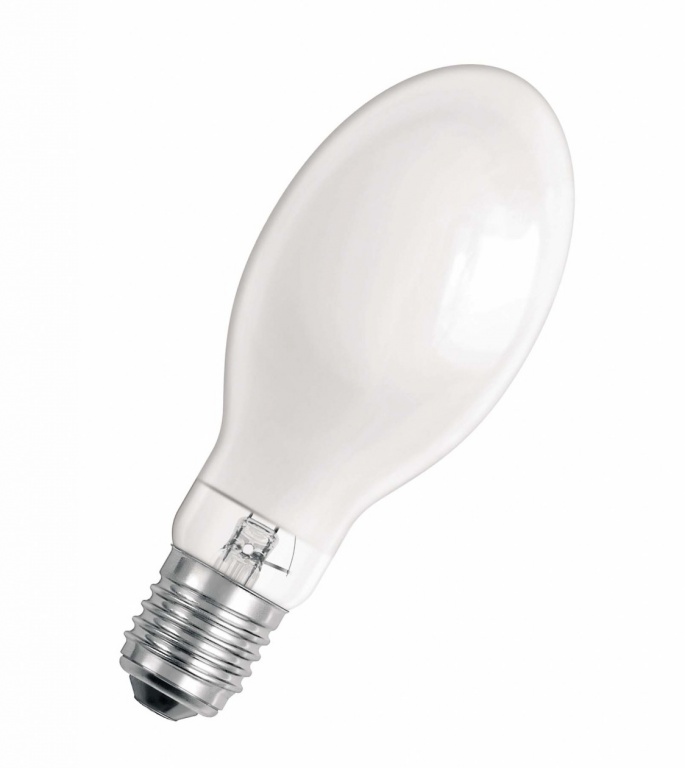

Metal Halide Lamp POWERBALL HCI-ET SUPER 4Y Metal Halide Lamps E27 / E40

Unavailable

Nominal voltage 98 V
Nominal wattage 70.00 W
Rated lamp efficacy (standard condition) 107 lm/W
Lamp current 0.95000 A
PFC capacitor at 50 Hz 12 µF
Ignition voltage 1.8 / 5.0 kVp
Rated wattage 74.00 W
Color temperature 3000 K
Rated luminous flux 7900 lm
Color rendering index Ra ≥80
Light color 830
Rated LLMF at 4,000 h 0.90
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

rate product

Description / FAQ Warranty

Electrical data
Nominal voltage	98 V
Nominal wattage	70.00 W
Rated lamp efficacy (standard condition)	107 lm/W
Lamp current	0.95000 A
PFC capacitor at 50 Hz	12 µF
Ignition voltage	1.8 / 5.0 kVp
Rated wattage	74.00 W
Photometrical data
Color temperature	3000 K
Rated luminous flux	7900 lm
Color rendering index Ra	≥80
Light color	830
Rated LLMF at 4,000 h	0.90
Rated LLMF at 6,000 h	0.89
Rated LLMF at 8,000 h	0.88
Rated LLMF at 12,000 h	0.85
Rated LLMF at 16,000 h	0.83
Rated LLMF at 20,000 h	0.75
Rated LLMF at 2,000 h	0.92
UV protection	Yes

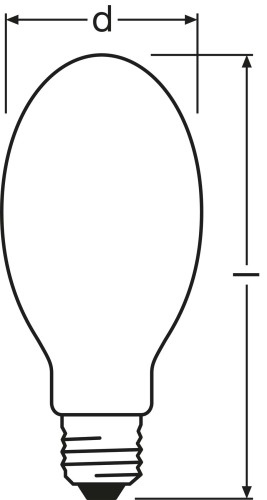

Dimensions & weight
Diameter	71.0 mm
Length	156.0 mm
Product weight	66.00 g
Lifespan
Rated lamp survival factor at 2,000 h	0.99
Rated lamp survival factor at 4,000 h	0.99
Rated lamp survival factor at 6,000 h	0.98
Operation mode LLMF/LSF	50 Hz
Rated lamp survival factor at 8,000 h	0.97
Rated lamp survival factor at 12,000 h	0.97
Rated lamp survival factor at 16,000 h	0.95
Rated lamp survival factor at 20,000 h	0.78
Lifespan B50	24000 h
Additional product data
Base (standard designation)	E27
New article	NEW
Lamp mercury content	6.7 mg
Design / version	Coated
System guarantee level	3 (2/5)
Capabilities
Dimmable	Yes
Burning position	Any
Enclosed luminaire required	Yes
Certificates & standards
Energy efficiency class	A+
Energy consumption	82 kWh/1000h
Country specific categorizations
ILCOS	ME/UB-70/830-H/E/SL-E27-71/156
Temperatures
Maximum permitted outer bulb temperature	350 °C
Maximum permitted base edge temperature	210 °C

Product benefits

Up to 15 % higher lumen maintenance factor compared to HCI-ET standard lamps
Up to 30 % higher lum. efficacy for lamps ≤ 100 W (comp. to NAV-T Super 4Y/6Y)
Good color rendering
Operation in existing HPS installations as ignition voltage of IEC 60662 is met
Energy savings of up to 70 % when replacing inefficient mercury vapor lamps (HQL)
Dimmable on conventional control gears and electronic control gears
Optimum energy efficiency on POWERTRONIC PTo 3DIM ECGs
UV values significantly below the maximum permitted thresholds to IEC 61167 thanks to UV filter

Areas of application

Streets
Outdoor lighting
Industrial installations
Exhibition halls and trade fairs
Approved only for use in enclosed luminaires
Outdoor applications only in suitable luminaires

Product features

White light due to POWERBALL ceramic technology
Light color: warm white (830 WDL)
Extended service lifetime: 4 years (at approx. 11 h/day)
Very high luminous efficacy: up to 110 lm/W
Lamp survival factor: 95 % after 16,000 hours burning time
Average lifetime: up to 24,000 hours
ErP compliant according to EU Directive 245/2009

Safety advice
Where possible, use a timer igniter (switch-off time of at least 15 minutes). Otherwise, switch off the luminaire for at least 15 minutes if a brief interruption has occurred to the mains voltage supply.

System guarantee
For the vast majority of our lamps we are offering an extended system guarantee in conjunction with OSRAM POWERTRONIC control gear.
