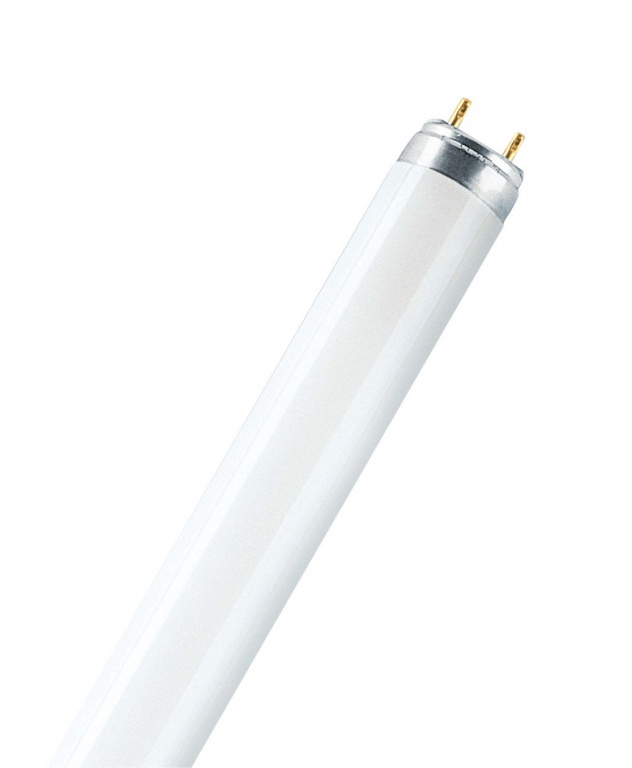

Fluorescent Lamp LUMILUX T8 ES Fluorescent Lamps T8/G13

From € 4,40 incl. VAT
From € 4,40 ex. VAT
See variants (5)
  • Rated lamp efficacy (HF data 25 °C) Under clarification by authority and standardization body
  • Color rendering index Ra ≥80
  • Rated LLMF at 4,000 h 0.92
  • Rated LLMF at 6,000 h 0.91
  • Rated LLMF at 8,000 h 0.90
  • Rated LLMF at 12,000 h 0.89
  • Rated LLMF at 2,000 h 0.95
  • Diameter 26.0 mm
  • Tube diameter 26 mm
  • Lifespan 20000 h
  • Rated lamp survival factor at 2,000 h 0.99
  • Rated lamp survival factor at 4,000 h 0.99
  • ▼ see full specification ▼

Select your product from the 5

 L 16 W/840 ES
Product code: 56317 Construction wattage [PICOS]: 15.80 W Nominal wattage: 15.80 W Color temperature: 4000 K Nominal luminous flux: 1100 lm Rated luminous flux: 1100 lm Light color as per EN 12464-1: LUMILUX Cool White Length: 590.0 mm Rated lamp life time: 0 h Energy consumption: 20 kWh/1000h Luminous flux: 1300 lm  see more »
Light color: 840 Luminous flux at 25 °C: 1050 lm Length with base excl. base pins/connection: 590.00 mm Rated lamp efficacy (standard condition): 70 lm/W Color coordinates chromaticity diagram: 0.38/0.38 « hide more
€ 4,40 € 4,40 ex. VAT
pc(s)
pc(s)
 L 32 W/830 ES
Product code: 56318 Construction wattage [PICOS]: 30.50 W Nominal wattage: 30.50 W Color temperature: 3000 K Nominal luminous flux: 2500 lm Rated luminous flux: 2500 lm Light color as per EN 12464-1: LUMILUX Warm White Length: 1200.0 mm Nominal lamp life time: 20000 h Rated lamp life time: 20000 h Energy consumption: 39 kWh/1000h see more »
Luminous flux: 3000 lm  Light color: 830 Luminous flux at 25 °C: 2500 lm Length with base excl. base pins/connection: 1200.00 mm Rated lamp efficacy (standard condition): 82 lm/W Color coordinates chromaticity diagram: 0.44/0.403 « hide more
€ 4,91 € 4,91 ex. VAT
pc(s)
pc(s)
 L 32 W/840 ES
Product code: 56319 Construction wattage [PICOS]: 30.50 W Nominal wattage: 30.50 W Color temperature: 4000 K Nominal luminous flux: 2500 lm Rated luminous flux: 2500 lm Light color as per EN 12464-1: LUMILUX Cool White Length: 1200.0 mm Nominal lamp life time: 20000 h Rated lamp life time: 20000 h Energy consumption: 39 kWh/1000h see more »
Luminous flux: 3000 lm  Light color: 840 Luminous flux at 25 °C: 2500 lm Length with base excl. base pins/connection: 1200.00 mm Rated lamp efficacy (standard condition): 82 lm/W Color coordinates chromaticity diagram: 0.38/0.38 « hide more
€ 4,91 € 4,91 ex. VAT
pc(s)
pc(s)
 L 51 W/830 ES
Product code: 56320 Construction wattage [PICOS]: 50.50 W Nominal wattage: 50.50 W Color temperature: 3000 K Nominal luminous flux: 4200 lm Rated luminous flux: 4200 lm Light color as per EN 12464-1: LUMILUX Warm White Length: 1500.0 mm Nominal lamp life time: 20000 h Rated lamp life time: 20000 h Energy consumption: 60 kWh/1000h see more »
Luminous flux: 4800 lm  Light color: 830 Luminous flux at 25 °C: 4200 lm Length with base excl. base pins/connection: 1500.00 mm Rated lamp efficacy (standard condition): 83 lm/W Color coordinates chromaticity diagram: 0.44/0.403 « hide more
€ 5,42 € 5,42 ex. VAT
pc(s)
pc(s)
 L 51 W/840 ES
Product code: 56321 Construction wattage [PICOS]: 50.50 W Nominal wattage: 50.50 W Color temperature: 4000 K Nominal luminous flux: 4200 lm Rated luminous flux: 4200 lm Light color as per EN 12464-1: LUMILUX Cool White Length: 1500.0 mm Nominal lamp life time: 20000 h Rated lamp life time: 20000 h Energy consumption: 60 kWh/1000h see more »
Luminous flux: 4800 lm  Light color: 840 Luminous flux at 25 °C: 4200 lm Length with base excl. base pins/connection: 1500.00 mm Rated lamp efficacy (standard condition): 83 lm/W Color coordinates chromaticity diagram: 0.38/0.38 « hide more
€ 5,42 € 5,42 ex. VAT
pc(s)
pc(s)

Electrical data

Rated lamp efficacy (HF data 25 °C) Under clarification by authority and standardization body

Photometrical data

Color rendering index Ra ≥80
Rated LLMF at 4,000 h 0.92
Rated LLMF at 6,000 h 0.91
Rated LLMF at 8,000 h 0.90
Rated LLMF at 12,000 h 0.89
Rated LLMF at 2,000 h 0.95

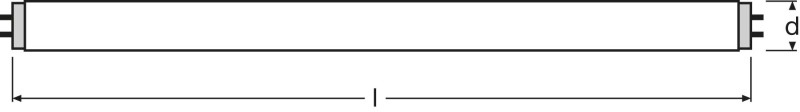

Dimensions & weight

Diameter 26.0 mm
Tube diameter 26 mm

Lifespan

Lifespan 20000 h
Rated lamp survival factor at 2,000 h 0.99
Rated lamp survival factor at 4,000 h 0.99
Rated lamp survival factor at 6,000 h 0.99
Service life 18000 h
Operation mode LLMF/LSF 50 Hz
Rated lamp survival factor at 8,000 h 0.99
Rated lamp survival factor at 12,000 h 0.90

Additional product data

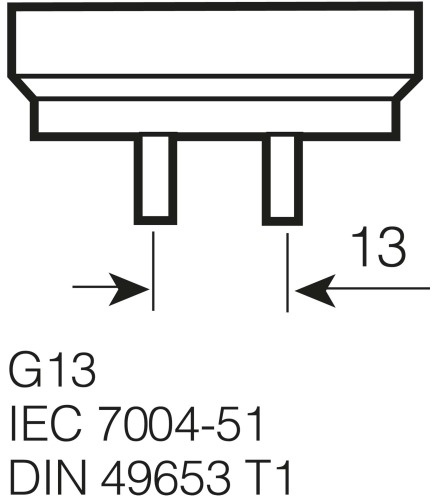

Base (standard designation) G13
Appropriate disposal acc. to WEEE Yes
Lamp mercury content 2.5 mg

Capabilities

Suitable for indoor Yes

Certificates & standards

Energy efficiency class A

Temperatures

Rated ambient temp.w.max.luminous flux 35.0 °C

Product benefits

  • Simple direct replacement in existing CCG/LLG systems
  • Instant energy savings in existing CCG/LLG systems
  • Up to 10 % lower energy consumption on conventional control gear
  • Reduction in CO2 emissions (51 W: 14 kg per year, 70 kg over the life of the lamp – energy mix: 0.5 kg/kWh)
  • Pay-back time less than 1 year
  • Energy savings in combination with QTP-OPTIMAL and QT-FIT in new systems

Areas of application

  • Public buildings
  • Office lighting
  • Industry
  • Shops
  • Supermarkets and department stores

Product features

  • Very good lumen maintenance: 90 % throughout the service lifetime of the lamp
  • Good color rendering group: 1B (Ra: 80…89)

Safety advice
In case of lamp breakage: www.osram.com/brokenlamp
Not released for dimming operation.
