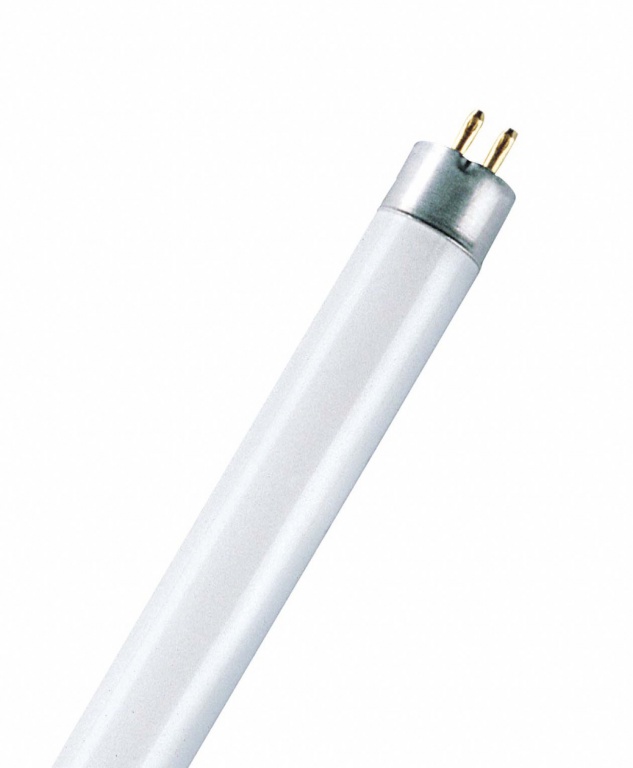

Fluorescent Lamp LUMILUX T5 HO ES Fluorescent Lamps T5/G5

Unavailable

Color rendering index Ra ≥80
Rated LLMF at 4,000 h 0.92
Rated LLMF at 6,000 h 0.91
Rated LLMF at 8,000 h 0.90
Rated LLMF at 12,000 h 0.90
Rated LLMF at 16,000 h 0.90
Rated LLMF at 20,000 h 0.89
Rated LLMF at 2,000 h 0.95
Diameter 16.0 mm
Maximum diameter 16.0 mm
Tube diameter 16 mm
Nominal lamp life time 24000 h
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

5.0 / 5 (1 score)

Description / FAQ Warranty

Photometrical data
Color rendering index Ra	≥80
Rated LLMF at 4,000 h	0.92
Rated LLMF at 6,000 h	0.91
Rated LLMF at 8,000 h	0.90
Rated LLMF at 12,000 h	0.90
Rated LLMF at 16,000 h	0.90
Rated LLMF at 20,000 h	0.89
Rated LLMF at 2,000 h	0.95

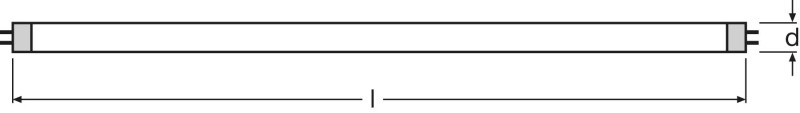

Dimensions & weight
Diameter	16.0 mm
Maximum diameter	16.0 mm
Tube diameter	16 mm
Lifespan
Nominal lamp life time	24000 h
Rated lamp life time	24000 h
Lifespan	24000 h
Rated lamp survival factor at 2,000 h	0.99
Rated lamp survival factor at 4,000 h	0.99
Rated lamp survival factor at 6,000 h	0.99
Service life	19000 h
Operation mode LLMF/LSF	HF
Rated lamp survival factor at 8,000 h	0.99
Rated lamp survival factor at 12,000 h	0.99
Rated lamp survival factor at 16,000 h	0.97
Rated lamp survival factor at 20,000 h	0.85
Additional product data

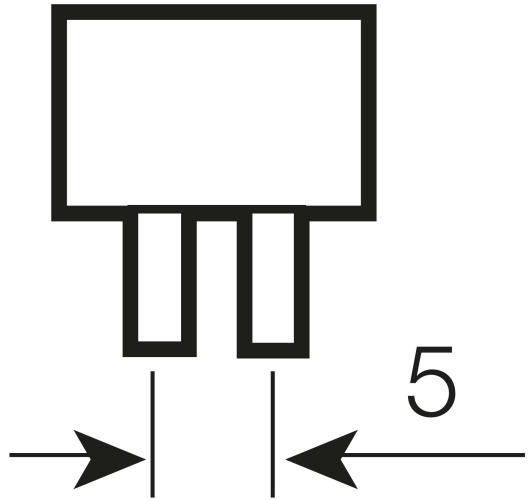

Base (standard designation)	G5
Appropriate disposal acc. to WEEE	Yes
Lamp mercury content	1.5 mg
Product remark	For ECG operation only/Lamp designed for internal luminaire temperatures of 3040 °C; optimum luminous flux achieved at 35 °C
Capabilities
Dimmable	Yes
Suitable for indoor	Yes
Temperatures
Rated ambient temp.w.max.luminous flux	35.0 °C

Product benefits

Up to 10 % energy savings compared to standard T5 HO LUMILUX lamps
Good economy and efficiency
Pay-back time less than 1 year
High luminous flux

Areas of application

Industry
Public buildings
Offices
Tunnels, underpasses

Product features

Luminous efficacy: up to 96 lm/W
Very good lumen maintenance: 90 % throughout the service lifetime of the lamp
Long average lifetime: up to 24,000 h (with QUICKTRONIC ECG)
Good color rendering group: 1B (Ra: 80…89)
Dimmable

Safety advice
In case of lamp breakage: www.osram.com/brokenlamp

System guarantee
OSRAM System+ Guarantee in combination with OSRAM ECGs
