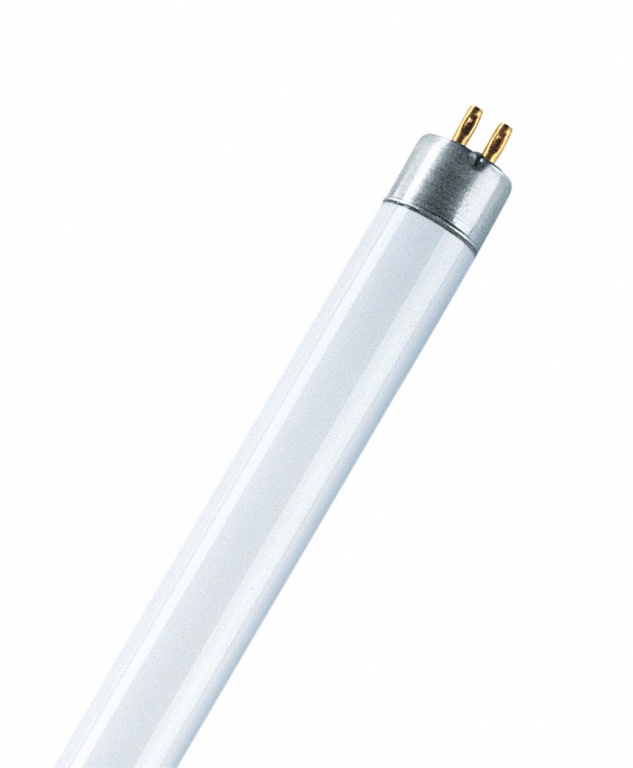

Fluorescent Lamp LUMILUX T5 HE ES Fluorescent Lamps T5/G5

Product code: 56158

Price € 8,66 incl. VAT
€ 8,66 netto

Construction wattage [PICOS] 31.60 W
Nominal wattage 32.00 W
Color temperature 4000 K
Nominal luminous flux 3100 lm
Rated luminous flux 3100 lm
Light color as per EN 12464-1 LUMILUX Cool White

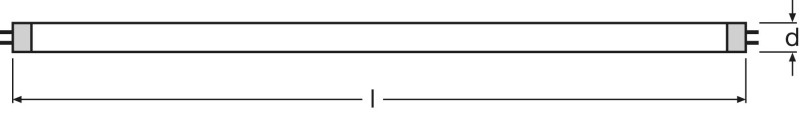

Length 1449.0 mm
Nominal lamp life time 24000 h
Rated lamp life time 24000 h
Color rendering index Ra ≥80
Maximum diameter 16.0 mm
Energy consumption 35 kWh/1000h
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

rate product

1 variant available

HE ES 32 W/840

Karta produktu PDF

Product code: 56158 Construction wattage [PICOS]: 31.60 W Nominal wattage: 32.00 W Color temperature: 4000 K Nominal luminous flux: 3100 lm Rated luminous flux: 3100 lm Light color as per EN 12464-1: LUMILUX Cool White Length: 1449.0 mm Nominal lamp life time: 24000 h Rated lamp life time: 24000 h Color rendering index Ra: ≥80 see more »

Maximum diameter: 16.0 mm Energy consumption: 35 kWh/1000h Light color: 840 Luminous flux at 25 °C: 3100 lm Rated LLMF at 4,000 h: 0.92 Rated LLMF at 6,000 h: 0.91 Rated LLMF at 8,000 h: 0.90 Rated lamp survival factor at 4,000 h: 0.99 Rated lamp survival factor at 6,000 h: 0.99 Rated lamp survival factor at 8,000 h: 0.99 Rated LLMF at 12,000 h: 0.90 Rated lamp survival factor at 12,000 h: 0.99 Length with base excl. base pins/connection: 1449.00 mm Rated lamp efficacy (HF data 25 °C): 98 lm/W Rated LLMF at 20,000 h: 0.89 Rated lamp survival factor at 16,000 h: 0.97 Rated lamp survival factor at 20,000 h: 0.85 Luminous flux at 35 °C: 3650 lm « hide more

€ 8,66 € 8,66 ex. VAT

Description / FAQ Warranty

Construction wattage [PICOS]	31.60 W
Nominal wattage	32.00 W
Color temperature	4000 K
Nominal luminous flux	3100 lm
Rated luminous flux	3100 lm
Light color as per EN 12464-1	LUMILUX Cool White
Length	1449.0 mm
Nominal lamp life time	24000 h
Rated lamp life time	24000 h
Color rendering index Ra	≥80
Maximum diameter	16.0 mm
Energy consumption	35 kWh/1000h
Light color	840
Luminous flux at 25 °C	3100 lm
Rated LLMF at 4,000 h	0.92
Rated LLMF at 6,000 h	0.91
Rated LLMF at 8,000 h	0.90
Rated lamp survival factor at 4,000 h	0.99
Rated lamp survival factor at 6,000 h	0.99
Rated lamp survival factor at 8,000 h	0.99
Rated LLMF at 12,000 h	0.90
Rated lamp survival factor at 12,000 h	0.99
Length with base excl. base pins/connection	1449.00 mm
Rated lamp efficacy (HF data 25 °C)	98 lm/W
Rated LLMF at 20,000 h	0.89
Rated lamp survival factor at 16,000 h	0.97
Rated lamp survival factor at 20,000 h	0.85
Luminous flux at 35 °C	3650 lm
Photometrical data
Rated LLMF at 16,000 h	0.90
Rated LLMF at 2,000 h	0.95
Dimensions & weight
Diameter	16.0 mm
Tube diameter	16 mm
Lifespan
Lifespan	24000 h
Rated lamp survival factor at 2,000 h	0.99
Service life	19000 h
Operation mode LLMF/LSF	HF
Additional product data

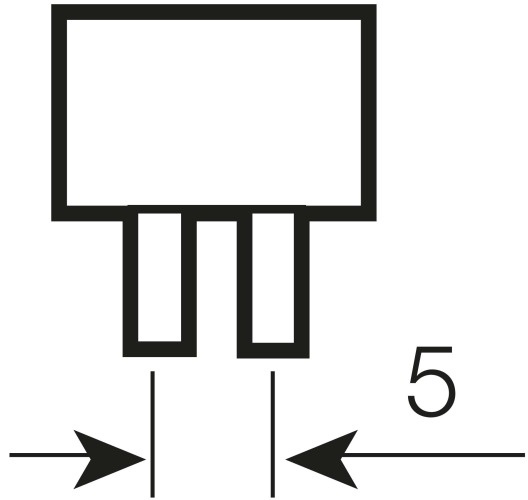

Base (standard designation)	G5
Appropriate disposal acc. to WEEE	Yes
Lamp mercury content	1.5 mg
Product remark	For ECG operation only/Lamp designed for internal luminaire temperatures of 3040 °C; optimum luminous flux achieved at 35 °C
Capabilities
Dimmable	Yes
Suitable for indoor	Yes
Certificates & standards
Energy efficiency class	A+
Temperatures
Rated ambient temp.w.max.luminous flux	35.0 °C

Product benefits

Up to 10 % energy savings compared to standard T5 HE LUMILUX lamps
Excellent economy and efficiency
Pay-back time less than 1 year
High luminous efficacy

Areas of application

Public buildings
Offices
Shops
Supermarkets and department stores
Industry

Product features

Luminous efficacy: up to 114 lm/W
Very good lumen maintenance: 90 % throughout the service lifetime of the lamp
Long average lifetime: up to 24,000 h (with QUICKTRONIC ECG)
Good color rendering group: 1B (Ra: 80…89)
Dimmable

Safety advice
In case of lamp breakage: www.osram.com/brokenlamp

System guarantee
OSRAM System+ Guarantee in combination with OSRAM ECGs
