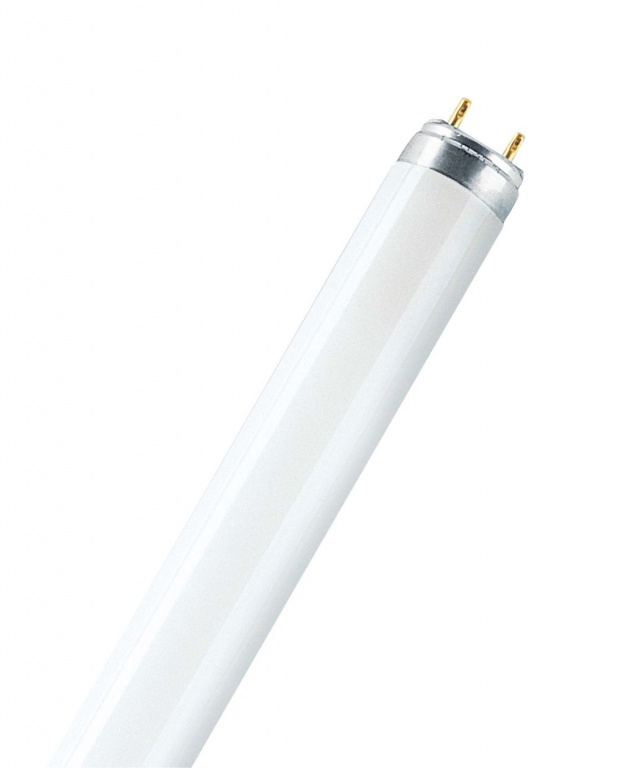

LUMILUX SPLIT control T8 Tubular fluorescent lamps 26mm, with G13 bases, shatterproof Speciality Fluorescent Lamps

Price € 15,00 € 15,00 ex. VAT

See variants (3)

Rated lamp efficacy (HF data 25 °C) Under clarification by authority and standardization body
Color temperature 4000 K
Color rendering index Ra ≥80
Light color 840
Rated LLMF at 4,000 h 0.92
Rated LLMF at 6,000 h 0.91
Rated LLMF at 8,000 h 0.90
Rated LLMF at 12,000 h 0.89
Rated LLMF at 2,000 h 0.95
Color coordinates chromaticity diagram 0.38/0.38
Diameter 26.0 mm
Maximum diameter 26.0 mm
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

rate product

Select your product from the 3

L 18 W/840 SPS

Karta produktu PDF

Product code: 56910 Nominal wattage: 18.00 W Color temperature: 4000 K Nominal luminous flux: 1320 lm Rated luminous flux: 1320 lm Light color as per EN 12464-1: Cool White Diameter: 26.0 mm Length: 590.0 mm Nominal lamp life time: 20000 h Rated lamp life time: 20000 h Base (standard designation): G13 see more »

Appropriate disposal acc. to WEEE: Yes Energy efficiency class: A Color rendering index Ra: ≥80 Maximum diameter: 26.0 mm Lamp mercury content: 2.5 mg Energy consumption: 23 kWh/1000h Tube diameter: 26 mm Lifespan: 20000 h Light color: 840 Luminous flux at 25 °C: 1300 lm Rated LLMF at 4,000 h: 0.92 Rated LLMF at 6,000 h: 0.91 Rated LLMF at 8,000 h: 0.90 Rated lamp survival factor at 2,000 h: 0.99 Rated lamp survival factor at 4,000 h: 0.99 Rated lamp survival factor at 6,000 h: 0.99 Service life: 18000 h Operation mode LLMF/LSF: 50 Hz Rated lamp survival factor at 8,000 h: 0.99 Suitable for indoor: Yes Rated LLMF at 12,000 h: 0.89 Rated lamp survival factor at 12,000 h: 0.90 Length with base excl. base pins/connection: 590.00 mm Rated ambient temp.w.max.luminous flux: 25.0 °C Rated lamp efficacy (HF data 25 °C): Under clarification by authority and standardization body Rated lamp efficacy (standard condition): 68 lm/W Rated LLMF at 2,000 h: 0.95 Color coordinates chromaticity diagram: 0.38/0.38 Rated wattage: 18.00 W « hide more

€ 15,00 € 15,00 ex. VAT

L 36 W/840 SPS

Karta produktu PDF

Product code: 56258 Construction wattage [PICOS]: 36.00 W Nominal wattage: 36.00 W Nominal luminous flux: 3260 lm Rated luminous flux: 3260 lm Light color as per EN 12464-1: Cool White Length: 1200.0 mm Energy consumption: 43 kWh/1000h Luminous flux at 25 °C: 3250 lm Length with base excl. base pins/connection: 1200.00 mm Rated lamp efficacy (standard condition): 91 lm/W

€ 15,00 € 15,00 ex. VAT

L 58 W/840 SPS

Karta produktu PDF

Product code: 56290 Construction wattage [PICOS]: 58.00 W Nominal wattage: 58.00 W Nominal luminous flux: 5140 lm Rated luminous flux: 5140 lm Light color as per EN 12464-1: LUMILUX Cool White Length: 1500.0 mm Energy consumption: 68 kWh/1000h Luminous flux at 25 °C: 5100 lm Length with base excl. base pins/connection: 1500.00 mm Rated lamp efficacy (standard condition): 89 lm/W

€ 15,00 € 15,00 ex. VAT

Description / FAQ Warranty

Electrical data
Rated lamp efficacy (HF data 25 °C)	Under clarification by authority and standardization body
Photometrical data
Color temperature	4000 K
Color rendering index Ra	≥80
Light color	840
Rated LLMF at 4,000 h	0.92
Rated LLMF at 6,000 h	0.91
Rated LLMF at 8,000 h	0.90
Rated LLMF at 12,000 h	0.89
Rated LLMF at 2,000 h	0.95
Color coordinates chromaticity diagram	0.38/0.38
Dimensions & weight
Diameter	26.0 mm
Maximum diameter	26.0 mm
Tube diameter	26 mm
Lifespan
Nominal lamp life time	20000 h
Rated lamp life time	20000 h
Lifespan	20000 h
Rated lamp survival factor at 2,000 h	0.99
Rated lamp survival factor at 4,000 h	0.99
Rated lamp survival factor at 6,000 h	0.99
Service life	18000 h
Operation mode LLMF/LSF	50 Hz
Rated lamp survival factor at 8,000 h	0.99
Rated lamp survival factor at 12,000 h	0.90
Additional product data

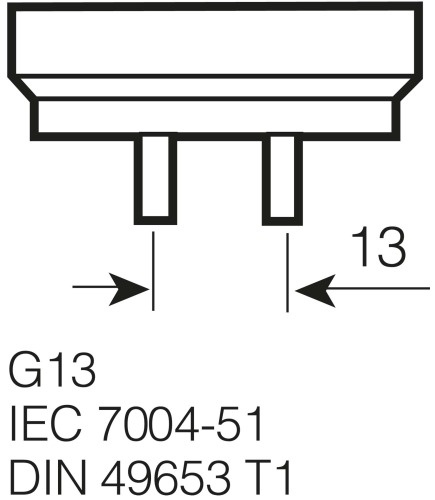

Base (standard designation)	G13
Appropriate disposal acc. to WEEE	Yes
Lamp mercury content	2.5 mg
Capabilities
Suitable for indoor	Yes
Certificates & standards
Energy efficiency class	A
Temperatures
Rated ambient temp.w.max.luminous flux	25.0 °C

Product benefits

Helps to prevent contamination in sensitive production areas (e.g. in the food industry)
Optimal shatter protection thanks to special FEP coating
Closed end caps allow additional protection beyond requirements of IEC 61549
The life of the sleeve is the same as the average lamp life
Support the implementation of the HACCP concepts from production through to presentation

Areas of application

Industry
Shops
Supermarkets and department stores
Street lighting
Outdoor applications only in suitable luminaires

Product features

Good color rendering group: 1B (Ra: 80…89)
Very good lumen maintenance: 90 % throughout the service lifetime of the lamp
Dimmable
Service life (L 58 W/865 XT SPS): up to 42,000 h on preheat ECGs or up to 35,000 h on CCGs

Equipment / Accessories

Suitable for use in open and enclosed luminaires

Safety advice
Lamps with plastic sleeves, ambient temperature range: -10…+80 °C
Lamps with plastic sleeves, maximum shelf life: 5 years at 0…30 °C
Lamps with plastic sleeves must be replaced after average life time (B50) has been reached
In case of lamp breakage: www.osram.com/brokenlamp
