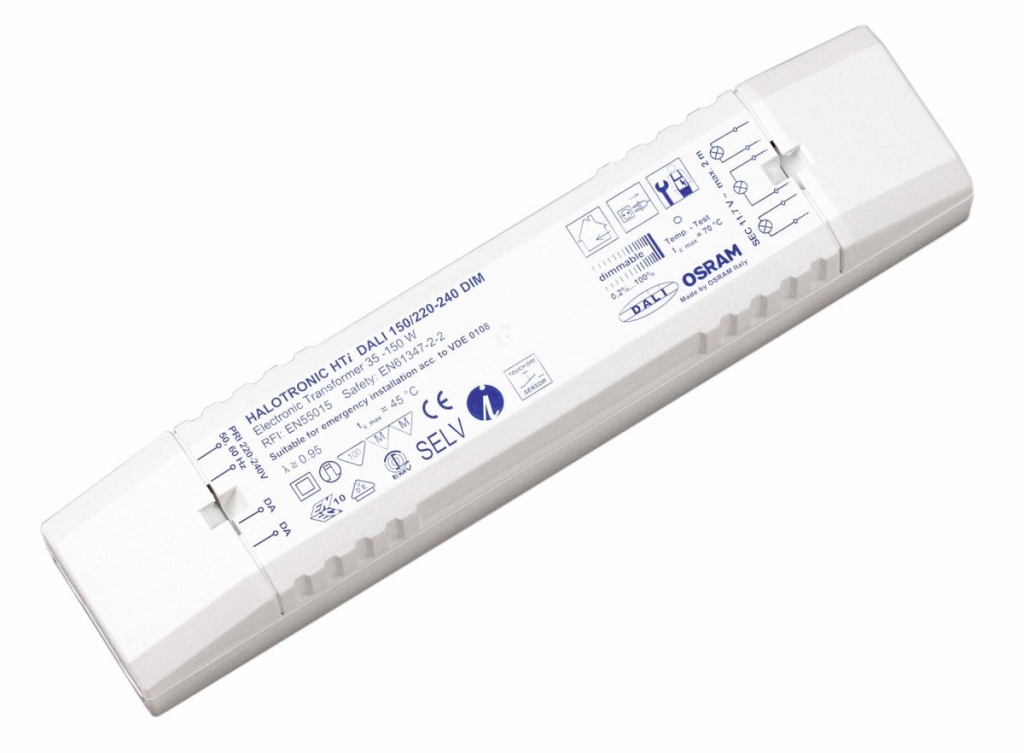

HALOTRONIC HTi Dimmable electronic transformers for low-voltage halogen lamps Transformers for Halogen Lamps

Product code: 56900

Price € 44,78 incl. VAT
€ 44,78 netto

Operating frequency 40 kHz
Power factor λ 0.95
Mains frequency 5060 Hz
Nominal output voltage 11.6 / 11.4 V
Inrush current 0.6 A
Max. no. of ECGs on circuit breaker 10 A 23
Galvanic isolation primary/secondary 4.00 kV
Max. no. of ECGs on circuit breaker 16 A 38
Input voltage DC 176275 V
Lamp wattage 35105 W
Line current 0.45 A
System wattage 108.00 W
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

rate product

1 variant available

HTI DALI 105/230...240 DIM

Karta produktu PDF

Product code: 56900

€ 44,78 € 44,78 ex. VAT

Description / FAQ Warranty

Electrical data
Operating frequency	40 kHz
Power factor λ	0.95
Mains frequency	5060 Hz
Nominal output voltage	11.6 / 11.4 V
Inrush current	0.6 A
Max. no. of ECGs on circuit breaker 10 A	23
Galvanic isolation primary/secondary	4.00 kV
Max. no. of ECGs on circuit breaker 16 A	38
Input voltage DC	176275 V
Lamp wattage	35105 W
Line current	0.45 A
System wattage	108.00 W

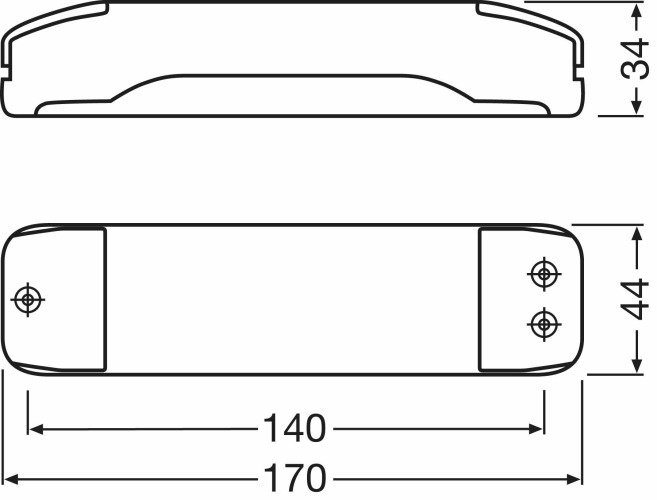

Dimensions & weight
Length	170.0 mm
Width	44.0 mm
Height	34.0 mm
Mounting hole spacing, length	140.0 mm
Product weight	160.00 g
Wire preparation length, input side	8.0 mm
Wire preparation length, output side	8.0 mm
Additional product data
New article	NEW
Design / version	Long with cable clamp
Capabilities
Dimmable	Yes
Overheating protection	Automatic reversible
Max. cable length to lamp/LED module	2.0 m
No-load proof	Yes
Overload protection	Automatic reversible
Short-circuit protection	Automatic reversible
Dimming interface	DALI / Touch DIM
Dimming range	0.1100 %
Cable types, input side	H03VV-F 2x0.50 / H03VV-F 2x0.75 / H03VVH2-F 2x0.75 / H05VVH2-F 2x0.75 / H05VV-F 2x2.5 / H05VV5G 1.5 / NYM-O 2x1.5 / NYM-J 3x1.5 / NYM-J 5x1.5 mm²
Cable types, output side	H03VV-F 2x0.75 / H05VV-F 2x0.75 / H05VV-F 2x1.5 / H05VV-F 2x2.5 / NYM-J 3x1.5 / NYM-J 3x2.5 / NYM-O 2x1.5 mm²
Dimming method	DALI or Touch DIM/Touch DIM Sensor
Certificates & standards
Approval marks approval	E1 approval / VDE / VDE-EMC
Standards	acc. to EN 55015:2006 + A1:2007/acc. to EN 61000-3-2/acc. to EN 61547/acc. to EN 61347-2-2
Type of protection	IP20
Temperatures
Ambient temperature range	-20+50 °C
Maximum temperature at tc test point	75 °C

Product benefits

Very low power consumption thanks to high efficiency
Through-wiring possible on the primary side
Large temperature range
Protective operation throughout the entire partial-load range for long lamp life

Areas of application

Effect and accent lighting
Living rooms
Object lighting
Conference rooms
Restaurants
Recessed and surface-mounted ceiling luminaires
Shop lighting
Event rooms

Product features

DALI transformer für low voltage halogen lamps
Electrical isolation between the primary side and the secondary side
Short-circuit protection, overload protection, overtemperature protection: electronically reversible
Switching between electronic transformer and lamp not permitted
Energy efficiency: ≥ 91 % (according to ErP regulation 2012/1194/EC)
