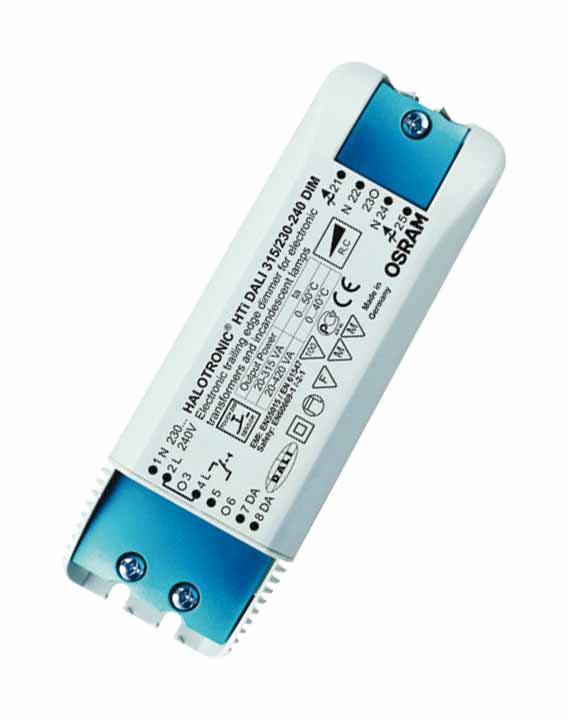

HALOTRONIC Dimmer modules Transformers for Halogen Lamps

Product code: 56901
Price € 154,24 incl. VAT
€ 154,24 netto
pc(s)
pc(s)
  • Nominal voltage 220…240 V
  • Mains frequency 50 Hz
  • Lamp wattage 20…315 W
  • System wattage 420.00 W
  • Length 153.0 mm
  • Width 54.0 mm
  • Height 36.0 mm
  • Mounting hole spacing, length 146.0 mm
  • Mounting hole spacing, width 15.0 mm
  • Product weight 137.00 g
  • Design / version Compact with cable clamp
  • Dimmable Yes
  • ▼ see full specification ▼

1 variant available

 HTI DALI 315 DIM
Product code: 56901
€ 154,24 € 154,24 ex. VAT
pc(s)
pc(s)

Electrical data

Nominal voltage 220…240 V
Mains frequency 50 Hz
Lamp wattage 20…315 W
System wattage 420.00 W

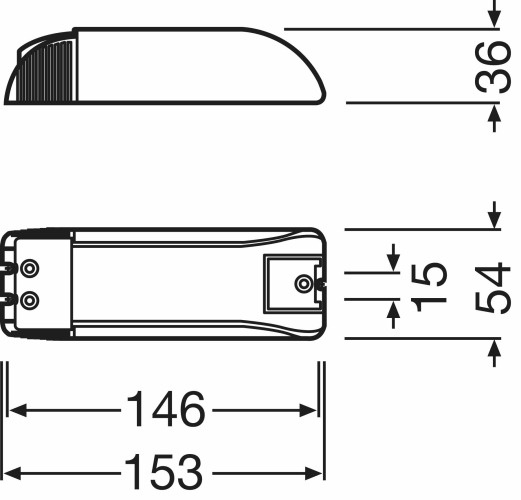

Dimensions & weight

Length 153.0 mm
Width 54.0 mm
Height 36.0 mm
Mounting hole spacing, length 146.0 mm
Mounting hole spacing, width 15.0 mm
Product weight 137.00 g

Additional product data

Design / version Compact with cable clamp

Capabilities

Dimmable Yes
Max. cable length to lamp/LED module 2.0 m
Dimming interface DALI / Touch DIM
Dimming range 0.1…100 %
Dimming method Trailing-edge dimmer

Certificates & standards

Type of protection IP20

Temperatures

Ambient temperature range 0…+45 °C

Product features

  • DALI trailing-edge phase dimmer
  • Dimming of high voltage halogen and incandescent lamps
  • Dimming of electronic transformers
  • Standby power consumption: < 0.5 W
  • DALI/Touch DIM control signal
  • Short-circuit protection, overload protection, overtemperature protection: electronically reversible
  • RI suppression: to EN 55015 (A1: 2007)
  • Line harmonics according to EN 61000-3-2
  • Safety: to EN 61347
  • Immunity according to EN 61547

Equipment / Accessories

  •  Suitable for all OSRAM HALOTRONIC and ET-PARROT ECGs
