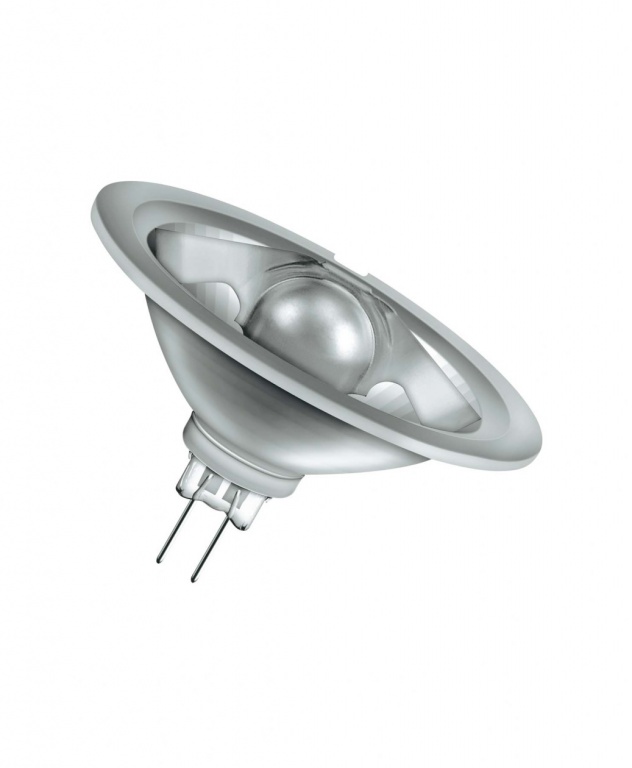

Halogen bulb HALOSPOT 48 Halogen Lamps 12V

Product code: 56703

Price € 5,57 incl. VAT
€ 5,57 netto

Construction wattage [PICOS] 20.00 W
Nominal voltage 24 V
Nominal wattage 20.00 W
Power factor λ 1.00
Rated wattage 20.00 W
Color temperature 2900 K
Light color as per EN 12464-1 Warm White
Rated useful luminous flux 90° 150 lm
Color rendering index Ra 100
Luminous intensity 3100 cd
Nominal useful luminous flux 90° 150 lm
Beam angle 8 °
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

rate product

1 variant available

HALOSPOT 48 20 W 12 V 8° GY4

Karta produktu PDF

Product code: 56703

€ 5,57 € 5,57 ex. VAT

Description / FAQ Warranty

Electrical data
Construction wattage [PICOS]	20.00 W
Nominal voltage	24 V
Nominal wattage	20.00 W
Power factor λ	1.00
Rated wattage	20.00 W
Photometrical data
Color temperature	2900 K
Light color as per EN 12464-1	Warm White
Rated useful luminous flux 90°	150 lm
Color rendering index Ra	100
Luminous intensity	3100 cd
Nominal useful luminous flux 90°	150 lm
Light technical data
Beam angle	8 °
Starting time	0.0 s
Warm-up time (60 %)	0.00 s

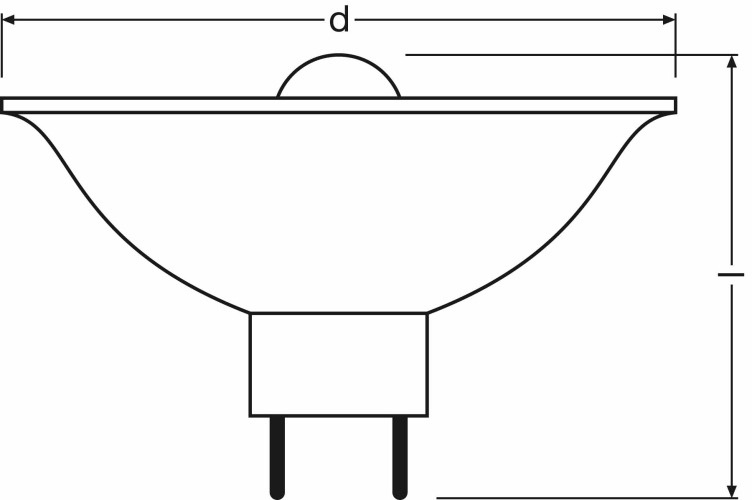

Dimensions & weight
Overall length	36.0 mm
Diameter	48.0 mm
Length	38.0 mm
Outer bulb	T9
Maximum diameter	48.0 mm
Lifespan
Nominal lamp life time	1000 h
Rated lamp life time	1000 h
Number of switching cycles	50000
Lumen main.fact.at end of nom.life time	0.75
Additional product data
Base (standard designation)	GY4
Mercury-free	Yes
Lamp mercury content	0.0 mg
Capabilities
Dimmable	Yes
Burning position	Any
Certificates & standards
Energy efficiency class	C
Energy consumption	22 kWh/1000h
Country specific categorizations
Order reference	41930 SP 20W 24
ILCOS	HMGS//UB-20-24-GY4-48/8

Product benefits

Brilliant accent light
Cap for reduced glare and ease of handling
Excellent distribution of light thanks to facetted reflector
Approved for use in open luminaires (to IEC 60598-1)
UV filter
Drastically reduced thermal load in fixture thanks to aluminum-coated reflector
Contains no mercury

Areas of application

General illumination
Shops
Restaurants, hotels and similar prestigious applications
Offices, public buildings

Product features

Color temperature: 2,800 K
Dimmable
Color rendering index Ra: 100
Diameter: 48 mm
