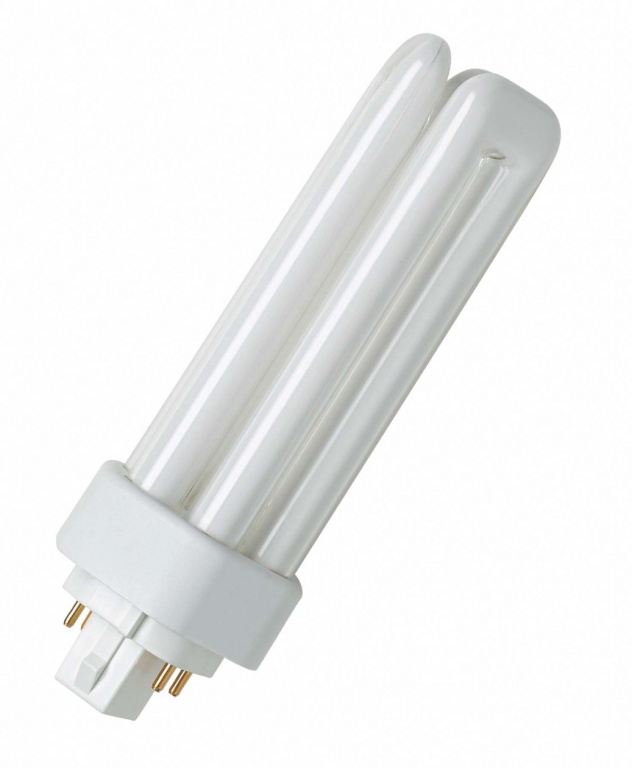

Compact Fluorescent Lamp DULUX T/E PLUS Compact Fluorescent Lamps GX24q (4-pin)

Unavailable

Rated lamp efficacy (HF data 25 °C) Under clarification by authority and standardization body
Color rendering index Ra 8089
Color rendering group 1B
Rated LLMF at 12,000 h 0.79
Rated LLMF at 16,000 h 0.78
Rated LLMF at 20,000 h 0.76
Tube diameter 12 mm
Nominal lamp life time 20000 h
Rated lamp life time 20000 h
Rated lamp survival factor at 2,000 h 0.99
Rated lamp survival factor at 4,000 h 0.99
Rated lamp survival factor at 6,000 h 0.99
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

rate product

Description / FAQ Warranty

Electrical data
Rated lamp efficacy (HF data 25 °C)	Under clarification by authority and standardization body
Photometrical data
Color rendering index Ra	8089
Color rendering group	1B
Rated LLMF at 12,000 h	0.79
Rated LLMF at 16,000 h	0.78
Rated LLMF at 20,000 h	0.76
Dimensions & weight
Tube diameter	12 mm
Lifespan
Nominal lamp life time	20000 h
Rated lamp life time	20000 h
Rated lamp survival factor at 2,000 h	0.99
Rated lamp survival factor at 4,000 h	0.99
Rated lamp survival factor at 6,000 h	0.99
Operation mode LLMF/LSF	HF
Rated lamp survival factor at 12,000 h	0.95
Rated lamp survival factor at 16,000 h	0.81
Rated lamp survival factor at 20,000 h	0.50
Additional product data
Appropriate disposal acc. to WEEE	Yes
Product remark	For ECG operation only
Capabilities
Dimmable	Yes
Suitable for indoor	Yes
Temperatures
Rated ambient temp.w.max.luminous flux	25.0 °C

Product benefits

Extremly economical
Good quality of light
Excellent luminous flux
Long service life
Improved maintenance
OSRAM System+ Guarantee in combination with OSRAM QUICKTRONIC ECG

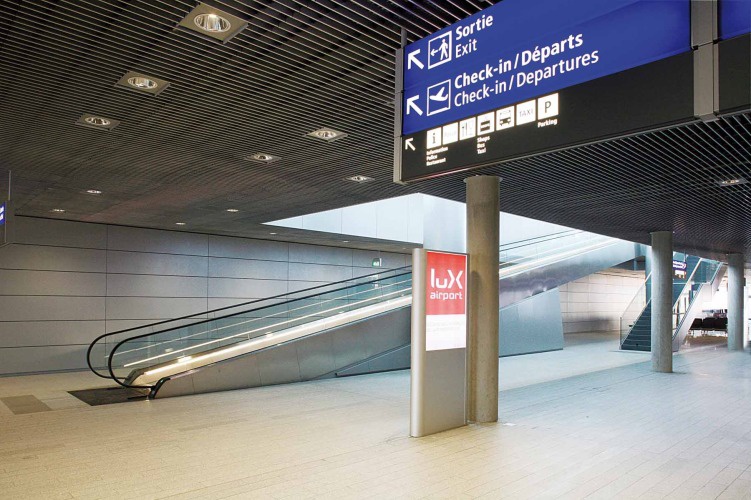

Areas of application

Offices, public buildings
Shops
Supermarkets and department stores
Hotels, restaurants
Industrial lighting

Product features

Average life: 20,000 h (with QUICKTRONIC)
Color rendering index Ra: 80…89
Dimmable (3…100 %)
Short and compact pin-base lamp with triple-turn tubes

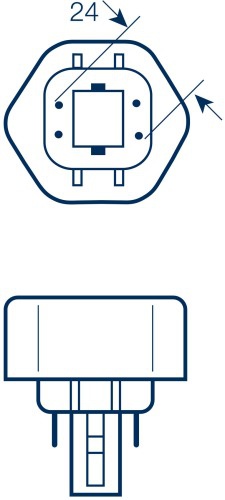

Single-ended four-pin plug-in GX24q base with shortened base casing

Equipment / Accessories

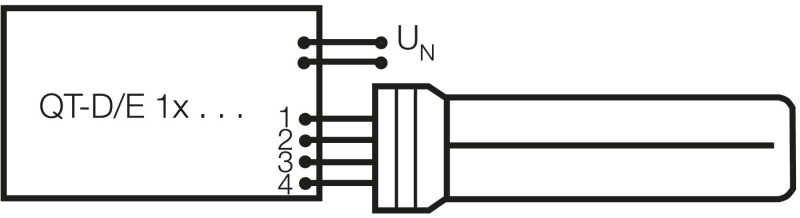

Suitable for operation on electronic control gear

Safety advice
In case of lamp breakage: www.osram.com/brokenlamp

Compact Fluorescent Lamp DULUX T/E PLUS

Rated 5.0/5 based on 1 customer reviews

https://www.electrico24.eu/uploads/assortment_images/a-16296-114419.jpg

Compact Fluorescent Lamps Non Integrated / Compact Fluorescent Lamps GX24q (4-pin)

Osram https://www.electrico24.eu/uploads/producer_logos/d83bdb510944b8ad8743f3d191f9d801.png

Compact Fluorescent Lamp DULUX T/E PLUS

42.11 PLN available
