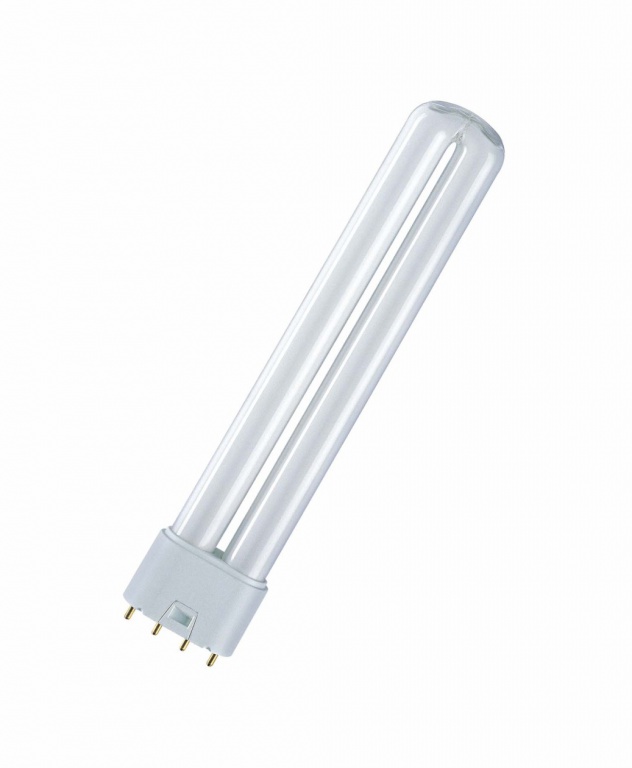

Fluorescent Lamp DULUX L SP Fluorescent Lamps 2G11

Unavailable

Construction wattage [PICOS] 24.00 W
Nominal wattage 24.00 W
Rated wattage 18.00 W
Color temperature 3000 K
Nominal luminous flux 1675 lm
Rated luminous flux 1675 lm
Light color as per EN 12464-1 LUMILUX Warm White
Color rendering index Ra 8089
Light color 830
Luminous flux at 25 °C 1800 lm
Rated LLMF at 4,000 h 0.90
Rated LLMF at 6,000 h 0.88
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

rate product

Description / FAQ Warranty

Electrical data
Construction wattage [PICOS]	24.00 W
Nominal wattage	24.00 W
Rated wattage	18.00 W
Photometrical data
Color temperature	3000 K
Nominal luminous flux	1675 lm
Rated luminous flux	1675 lm
Light color as per EN 12464-1	LUMILUX Warm White
Color rendering index Ra	8089
Light color	830
Luminous flux at 25 °C	1800 lm
Rated LLMF at 4,000 h	0.90
Rated LLMF at 6,000 h	0.88
Rated LLMF at 8,000 h	0.86
Rated LLMF at 12,000 h	0.84
Luminance	2.1 cd/cm²
Rated LLMF at 16,000 h	0.81
Rated LLMF at 20,000 h	0.80

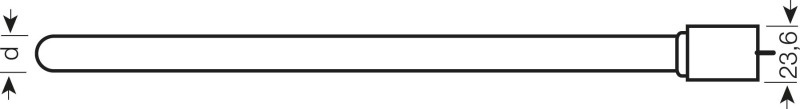

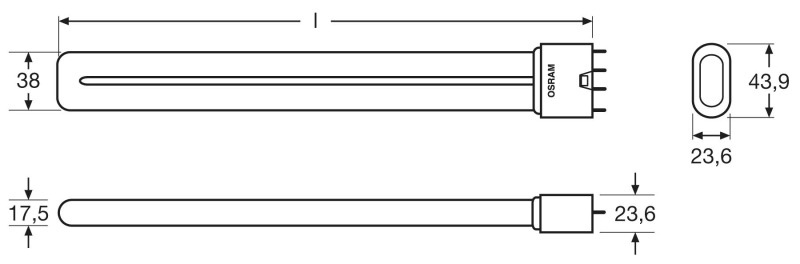

Dimensions & weight
Overall length	309.0 mm
Length	309.0 mm
Product weight	75.00 g
Tube diameter	17.5 mm
Length with base excl. base pins/connection	309.00 mm
Lifespan
Nominal lamp life time	20000 h
Rated lamp life time	20000 h
Lifespan	20000 h
Rated lamp survival factor at 2,000 h	0.99
Rated lamp survival factor at 4,000 h	0.99
Rated lamp survival factor at 6,000 h	0.99
Service life	13000 h
Operation mode LLMF/LSF	HF
Rated lamp survival factor at 8,000 h	0.99
Rated lamp survival factor at 12,000 h	0.95
Rated lamp survival factor at 16,000 h	0.81
Rated lamp survival factor at 20,000 h	0.50
Additional product data
Base (standard designation)	2G11
Appropriate disposal acc. to WEEE	Yes
Lamp mercury content	1.7 mg
Capabilities
Suitable for indoor	Yes
Certificates & standards
Energy efficiency class	A
Energy consumption	27 kWh/1000h
Country specific categorizations
ILCOS	FSD//L-24/830-E-2G11-43,9/309
Temperatures
Rated ambient temp.w.max.luminous flux	5.0 °C

Product benefits

Very economical
Optimum luminous flux at low ambient temperatures (+5 °C)
Good quality of light
Long service life

Areas of application

Street and city lighting
Industry
Applications with special thermal requirements

Product features

Short and compact pin-base lamp with double-turn tubes

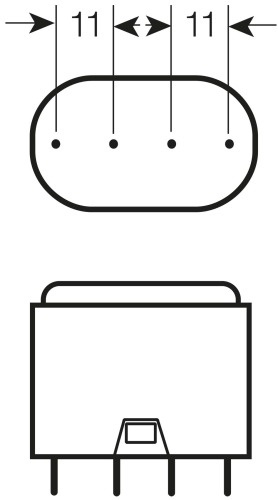

Single-ended four-pin plug-in 2G11 base
Average life: 20,000 h (with QUICKTRONIC)
Color rendering index Ra: 80…89

Equipment / Accessories

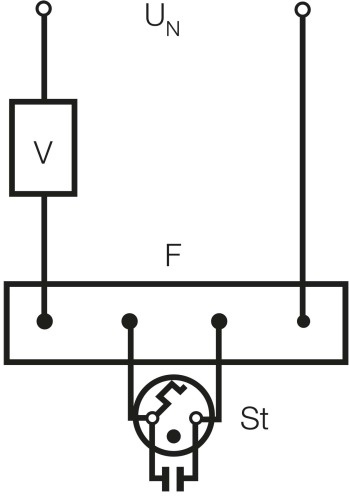

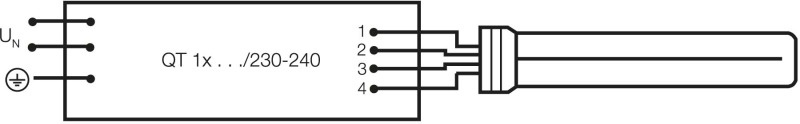

Suitable for operation on electronic and conventional control gear

Safety advice
In case of lamp breakage: www.osram.com/brokenlamp

Fluorescent Lamp DULUX L SP

Rated 5.0/5 based on 1 customer reviews

https://www.electrico24.eu/uploads/assortment_images/a-16291-114373.jpg

Compact Fluorescent Lamps Non Integrated / Fluorescent Lamps 2G11

Osram https://www.electrico24.eu/uploads/producer_logos/d83bdb510944b8ad8743f3d191f9d801.png

Fluorescent Lamp DULUX L SP

32.31 PLN available
