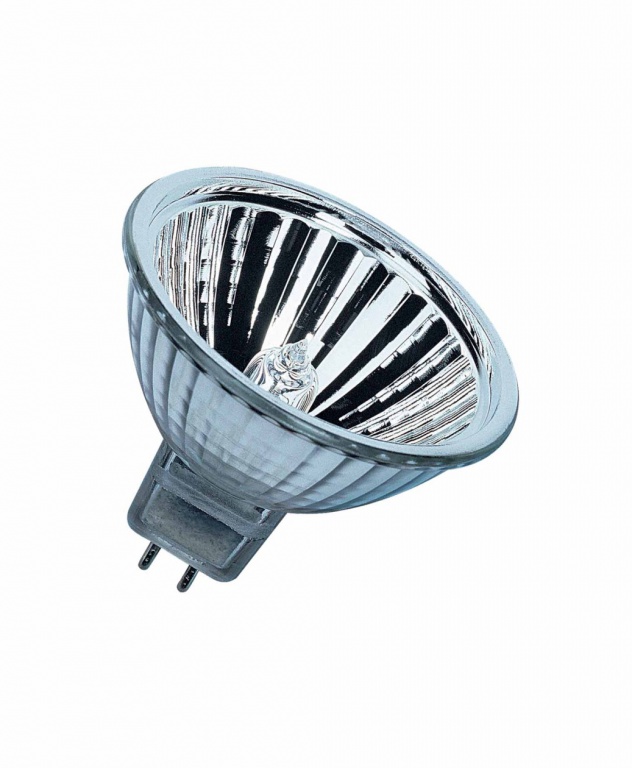

Halogen bulb DECOSTAR 51 ALU Halogen Lamps GU5.3 / MR16

Osram DECOSTAR 51 ALU 35 W 12 V 36° GU5.3

Price € 2,92 € 2,92 ex. VAT

See variants (3)

Nominal voltage 12 V
Power factor λ 1.00
Light color as per EN 12464-1 Warm White
Color rendering index Ra 100
Beam angle 36 °
Starting time 0.0 s
Warm-up time (60 %) 0.00 s
Overall length 46.0 mm
Diameter 51.0 mm
Length 46.0 mm
Outer bulb T9
Maximum diameter 51.0 mm
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

rate product

Select your product from the 3

DECOSTAR 51 ALU 20 W 12 V 36° GU5.3

Karta produktu PDF

Product code: 56702 Nominal voltage: 12 V Nominal wattage: 20.00 W Color temperature: 2800 K Power factor λ: 1.00 Light color as per EN 12464-1: Warm White Rated useful luminous flux 90°: 205 lm Beam angle: 36 ° Starting time: 0.0 s Warm-up time (60 %): 0.00 s Overall length: 46.0 mm see more »

Diameter: 51.0 mm Length: 46.0 mm Outer bulb: T9 Nominal lamp life time: 2000 h Rated lamp life time: 2000 h Base (standard designation): GU5.3 Mercury-free: Yes Number of switching cycles: 50000 Dimmable: Yes Energy efficiency class: B Order reference: 41861 WFL 20W 1 Color rendering index Ra: 100 Luminous intensity: 510 cd Nominal useful luminous flux 90°: 205 lm Lumen main.fact.at end of nom.life time: 0.75 Maximum diameter: 51.0 mm Lamp mercury content: 0.0 mg Energy consumption: 22 kWh/1000h ILCOS: HAGS//UB-20-12-GU5.3-51/36 Burning position: Any Rated wattage: 20.00 W « hide more

€ 2,92 € 2,92 ex. VAT

DECOSTAR 51 ALU 35 W 12 V 36° GU5.3

Karta produktu PDF

Product code: 55733 Construction wattage [PICOS]: 35.00 W Nominal wattage: 35.00 W Color temperature: 2900 K Rated useful luminous flux 90°: 430 lm Order reference: 41866 WFL 35W 1 Luminous intensity: 1100 cd Nominal useful luminous flux 90°: 430 lm Energy consumption: 38 kWh/1000h ILCOS: HAGS//UB-35-12-GU5.3-51/36

€ 2,92 € 2,92 ex. VAT

DECOSTAR 51 ALU 50 W 12 V 36° GU5.3

Karta produktu PDF

Product code: 55734 Construction wattage [PICOS]: 50.00 W Nominal wattage: 50.00 W Color temperature: 2950 K Rated useful luminous flux 90°: 675 lm Order reference: 41871 WFL 50W 1 Luminous intensity: 1800 cd Nominal useful luminous flux 90°: 675 lm Energy consumption: 53 kWh/1000h ILCOS: HAGS//UB-50-12-GU5.3-51/36

€ 2,92 € 2,92 ex. VAT

Description / FAQ Warranty

Electrical data
Nominal voltage	12 V
Power factor λ	1.00
Photometrical data
Light color as per EN 12464-1	Warm White
Color rendering index Ra	100
Light technical data
Beam angle	36 °
Starting time	0.0 s
Warm-up time (60 %)	0.00 s

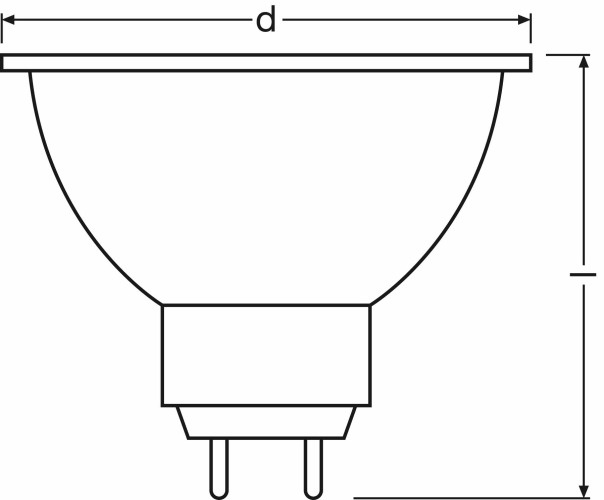

Dimensions & weight
Overall length	46.0 mm
Diameter	51.0 mm
Length	46.0 mm
Outer bulb	T9
Maximum diameter	51.0 mm
Lifespan
Nominal lamp life time	2000 h
Rated lamp life time	2000 h
Number of switching cycles	50000
Lumen main.fact.at end of nom.life time	0.75
Additional product data
Base (standard designation)	GU5.3
Mercury-free	Yes
Lamp mercury content	0.0 mg
Capabilities
Dimmable	Yes
Burning position	Any
Certificates & standards
Energy efficiency class	B

Product benefits

Brilliant accent light
No light can escape at the back of the reflector
Approved for use in open luminaires (to IEC 60598-1)
UV filter
Aluminum-coated reflector without a shield reduces thermal load in fixture
Reduced thermal load: ~60 % compared with aluminum-coated reflectors with shield
Reduced thermal load: ~80 % compared with dichroic reflectors with shield

Areas of application

General illumination
Shops
Restaurants, hotels and similar prestigious applications
Offices, public buildings

Product features

Average life: 2,000 h
Dimmable
Color rendering index Ra: 100
