DALI PRO PB Coupler Fluorescent Electronic Gear

Product code: 56765
Price € 124,39 incl. VAT
€ 124,39 netto
pc(s)
pc(s)
  • Length 42.0 mm
  • Width 42.0 mm
  • Height 20.0 mm
  • Product weight 22.00 g
  • Dimming interface DALI
  • Type of installation Integrated in flush device box
  • Number of control outputs 1
  • Type of protection IP20
  • Protection class II
  • Ambient temperature range 0…+50 °C
  • ▼ see full specification ▼

1 variant available

 COUPLER
Product code: 56765
€ 124,39 € 124,39 ex. VAT
pc(s)
pc(s)

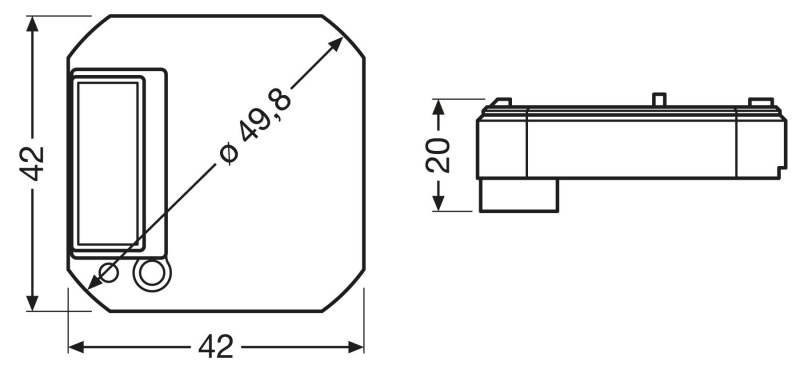

Dimensions & weight

Length 42.0 mm
Width 42.0 mm
Height 20.0 mm
Product weight 22.00 g

Capabilities

Dimming interface DALI
Type of installation Integrated in flush device box
Number of control outputs 1

Certificates & standards

Type of protection IP20
Protection class II

Temperatures

Ambient temperature range 0…+50 °C

Product benefits

  • Power supply from DALI
  • Standard pushbuttons/switches can be used

Areas of application

  • Classrooms
  • Conference rooms
  • Suitable for installation in flush-type boxes
  • Production and assembly facilities
  • Individual offices

Product features

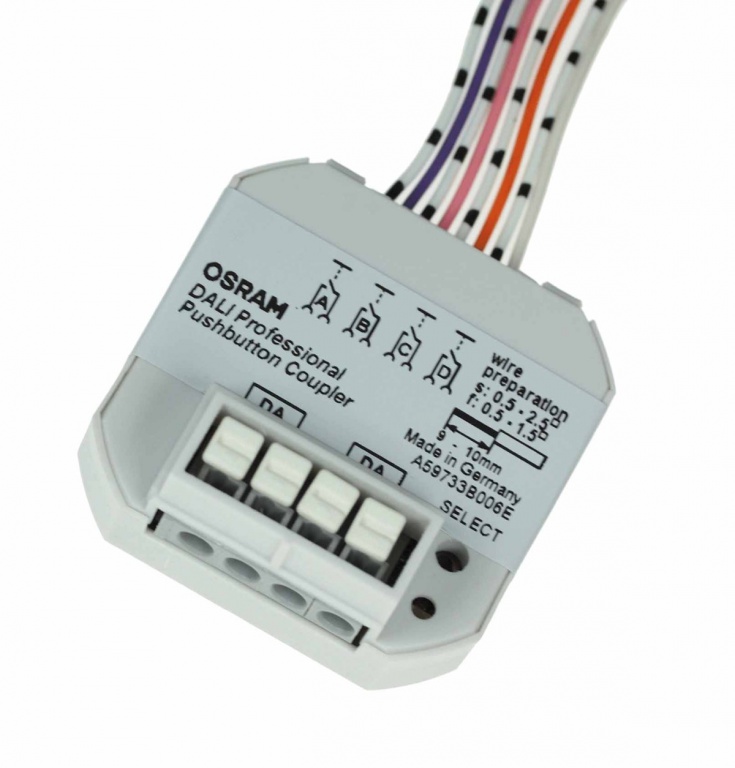

  • DALI pushbutton coupler
  • 4 floating inputs

Equipment / Accessories

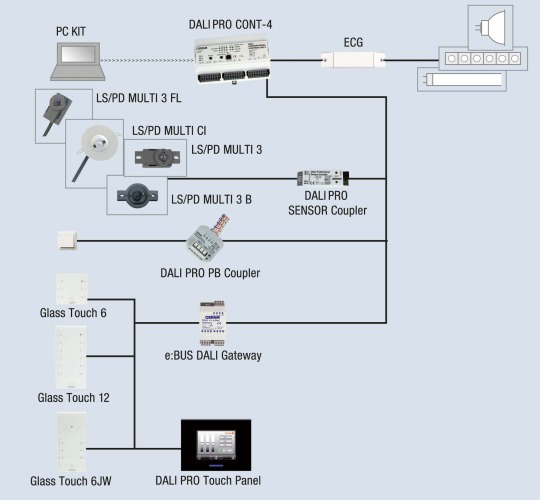

  • Can be used with DALI Professional or DALIeco light control system
