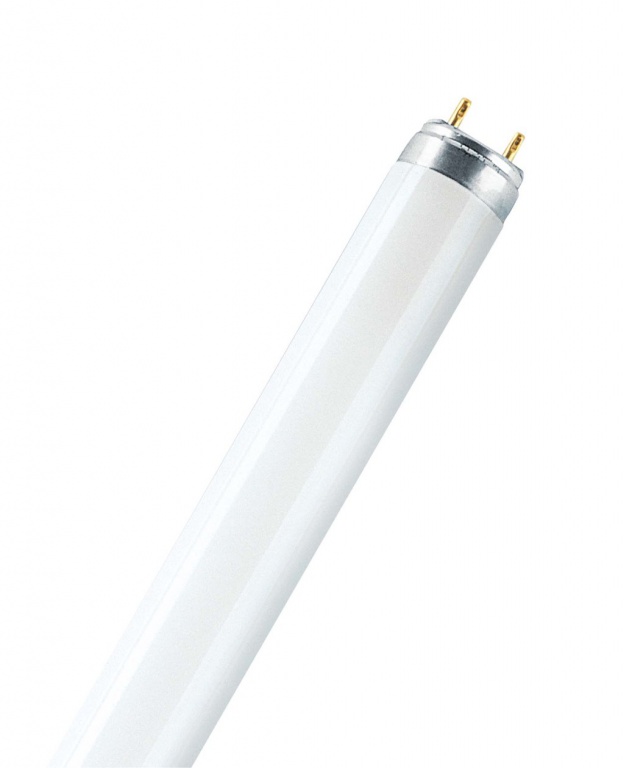

COLOR proof T8 Tubular fluorescent lamps 26mm, with G13 bases, color-proof Speciality Fluorescent Lamps

From € 10,52 incl. VAT
From € 10,52 ex. VAT

See variants (3)

Rated lamp efficacy (HF data 25 °C) Under clarification by authority and standardization body
Color temperature 5300 K
Light color as per EN 12464-1 Daylight
Light color 950
Rated LLMF at 4,000 h 0.72
Rated LLMF at 6,000 h 0.70
Rated LLMF at 8,000 h 0.69
Rated LLMF at 12,000 h 0.68
Rated LLMF at 16,000 h 0.68
Rated LLMF at 20,000 h 0.68
Rated LLMF at 2,000 h 0.77
Color coordinates chromaticity diagram 0.342/0.348
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

rate product

Select your product from the 3

L 36 W/950

Karta produktu PDF

Product code: 56275 Construction wattage [PICOS]: 36.00 W Nominal wattage: 36.00 W Nominal luminous flux: 2150 lm Rated luminous flux: 2150 lm Length: 1200.0 mm Energy consumption: 44 kWh/1000h Luminous flux at 25 °C: 2150 lm Length with base excl. base pins/connection: 1200.00 mm

€ 10,52 € 10,52 ex. VAT

L 18 W/950

Karta produktu PDF

Product code: 56915 Nominal wattage: 18.00 W Light color as per EN 12464-1: Daylight Diameter: 26.0 mm Length: 590.0 mm Nominal lamp life time: 20000 h Rated lamp life time: 20000 h Base (standard designation): G13 Appropriate disposal acc. to WEEE: Yes Energy efficiency class: B Lamp mercury content: 4.5 mg see more »

Energy consumption: 23 kWh/1000h Tube diameter: 26 mm Lifespan: 20000 h Light color: 950 Luminous flux at 25 °C: 900 lm Rated LLMF at 4,000 h: 0.72 Rated LLMF at 6,000 h: 0.70 Rated LLMF at 8,000 h: 0.69 Rated lamp survival factor at 2,000 h: 0.99 Rated lamp survival factor at 4,000 h: 0.99 Rated lamp survival factor at 6,000 h: 0.99 Service life: 2500 h Rated lamp survival factor at 8,000 h: 0.99 Rated LLMF at 12,000 h: 0.68 Rated lamp survival factor at 12,000 h: 0.95 Length with base excl. base pins/connection: 590.00 mm Rated lamp efficacy (HF data 25 °C): Under clarification by authority and standardization body Rated LLMF at 16,000 h: 0.68 Rated LLMF at 20,000 h: 0.68 Rated lamp survival factor at 16,000 h: 0.81 Rated lamp survival factor at 20,000 h: 0.50 Rated LLMF at 2,000 h: 0.77 Color coordinates chromaticity diagram: 0.342/0.348 Rated wattage: 18.00 W « hide more

€ 11,02 € 11,02 ex. VAT

L 58 W/950

Karta produktu PDF

Product code: 56306 Construction wattage [PICOS]: 58.00 W Nominal wattage: 58.00 W Nominal luminous flux: 3600 lm Rated luminous flux: 3600 lm Length: 1500.0 mm Energy consumption: 69 kWh/1000h Luminous flux at 25 °C: 3350 lm Length with base excl. base pins/connection: 1500.00 mm

€ 11,52 € 11,52 ex. VAT

Description / FAQ Warranty

Electrical data
Rated lamp efficacy (HF data 25 °C)	Under clarification by authority and standardization body
Photometrical data
Color temperature	5300 K
Light color as per EN 12464-1	Daylight
Light color	950
Rated LLMF at 4,000 h	0.72
Rated LLMF at 6,000 h	0.70
Rated LLMF at 8,000 h	0.69
Rated LLMF at 12,000 h	0.68
Rated LLMF at 16,000 h	0.68
Rated LLMF at 20,000 h	0.68
Rated LLMF at 2,000 h	0.77
Color coordinates chromaticity diagram	0.342/0.348

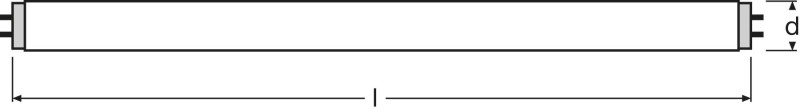

Dimensions & weight
Diameter	26.0 mm
Tube diameter	26 mm
Lifespan
Nominal lamp life time	20000 h
Rated lamp life time	20000 h
Lifespan	20000 h
Rated lamp survival factor at 2,000 h	0.99
Rated lamp survival factor at 4,000 h	0.99
Rated lamp survival factor at 6,000 h	0.99
Service life	2500 h
Rated lamp survival factor at 8,000 h	0.99
Rated lamp survival factor at 12,000 h	0.95
Rated lamp survival factor at 16,000 h	0.81
Rated lamp survival factor at 20,000 h	0.50
Additional product data

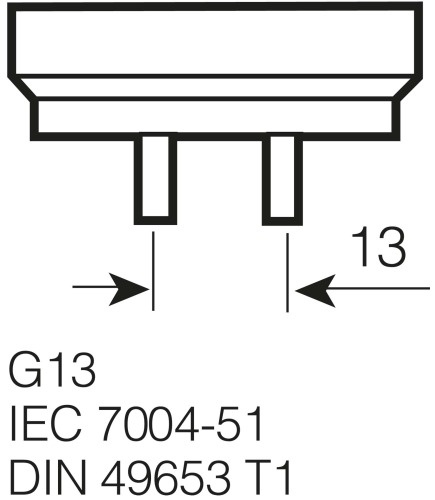

Base (standard designation)	G13
Appropriate disposal acc. to WEEE	Yes
Lamp mercury content	4.5 mg
Certificates & standards
Energy efficiency class	B

Product benefits

Outstanding OSRAM quality
Accurate chromaticity coordinates
Stable light-technical and electrical data
Uniform coating

Areas of application

Printing industry, graphic workshops, photographic laboratories
Industrial inspection and color matching facilities
Industry
Shops
Incoming goods inspection

Product features

Meets the application requirements of ISO 3664:2009 (when used in appropriate fixtures)
Metamerism indices: MVIS ≤ 1.0 and MUV ≤ 1.5

Safety advice
In case of lamp breakage: www.osram.com/brokenlamp
