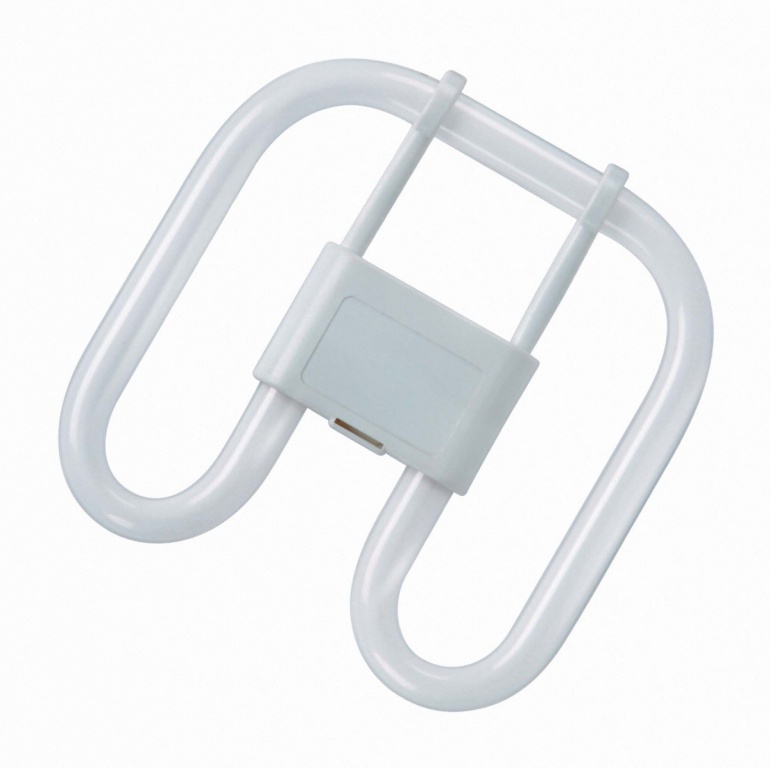

Fluorescent Lamp CFL SQUARE 4 pins Compact Fluorescent Lamps GR8 / GR10q

From € 6,76 incl. VAT
From € 6,76 ex. VAT

See variants (5)

Color rendering index Ra 8089
Rated LLMF at 4,000 h 0.88
Rated LLMF at 6,000 h 0.85
Rated LLMF at 8,000 h 0.82
Rated LLMF at 12,000 h 0.78
Nominal lamp life time 13000 h
Rated lamp life time 13000 h
Lifespan 13000 h
Rated lamp survival factor at 2,000 h 0.99
Rated lamp survival factor at 4,000 h 0.99
Rated lamp survival factor at 6,000 h 0.95
Service life 7500 h
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

rate product

Select your product from the 5

CFL SQUARE 16 W/827 GR10Q

Karta produktu PDF

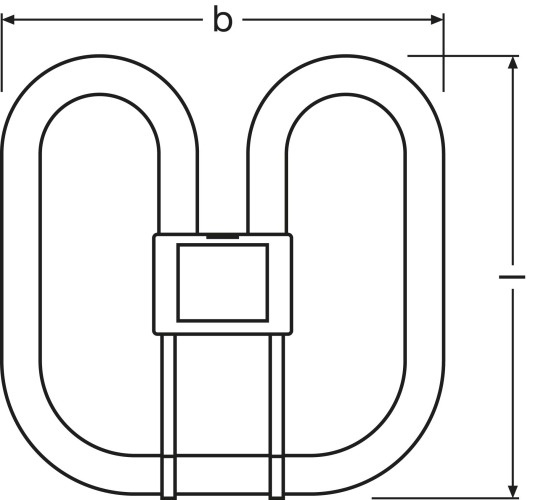

Product code: 56753 Nominal wattage: 16.00 W Color temperature: 2700 K Nominal luminous flux: 1050 lm Rated luminous flux: 1050 lm Light color as per EN 12464-1: LUMILUX INTERNA Overall length: 138.0 mm Length: 138.0 mm Nominal lamp life time: 13000 h Rated lamp life time: 13000 h Base (standard designation): GR10q see more »

Appropriate disposal acc. to WEEE: Yes Energy efficiency class: A Color rendering index Ra: 8089 Lamp mercury content: 3.5 mg Energy consumption: 18 kWh/1000h ILCOS: FSS-16/827-E-GR10q Product weight: 71.00 g Lifespan: 13000 h Light color: 827 Luminous flux at 25 °C: 1050 lm Rated LLMF at 4,000 h: 0.88 Rated LLMF at 6,000 h: 0.85 Rated LLMF at 8,000 h: 0.82 Length acc. to IEC standard: 138 mm Rated lamp survival factor at 2,000 h: 0.99 Rated lamp survival factor at 4,000 h: 0.99 Rated lamp survival factor at 6,000 h: 0.95 Service life: 7500 h Operation mode LLMF/LSF: HF Rated lamp survival factor at 8,000 h: 0.88 Suitable for indoor: Yes Rated LLMF at 12,000 h: 0.78 Rated lamp survival factor at 12,000 h: 0.59 Rated wattage: 16.00 W « hide more

€ 6,76 € 6,76 ex. VAT

CFL SQUARE 16 W/835 GR10Q

Karta produktu PDF

Product code: 55943 Construction wattage [PICOS]: 16.00 W Nominal wattage: 16.00 W Color temperature: 3500 K Nominal luminous flux: 1050 lm Rated luminous flux: 1050 lm Light color as per EN 12464-1: LUMILUX White Overall length: 138.0 mm Length: 138.0 mm Energy consumption: 18 kWh/1000h ILCOS: FSS-16/835-E-GR10q see more »

Product weight: 71.00 g Light color: 835 Luminous flux at 25 °C: 1050 lm Length acc. to IEC standard: 138 mm « hide more

€ 6,76 € 6,76 ex. VAT

CFL SQUARE 28 W/827 GR10Q

Karta produktu PDF

Product code: 55945 Construction wattage [PICOS]: 28.00 W Nominal wattage: 28.00 W Color temperature: 2700 K Nominal luminous flux: 2050 lm Rated luminous flux: 2050 lm Light color as per EN 12464-1: LUMILUX INTERNA Overall length: 205.0 mm Length: 205.0 mm Energy consumption: 31 kWh/1000h ILCOS: FSS-28/827-E-GR10q see more »

Product weight: 155.00 g Light color: 827 Luminous flux at 25 °C: 2050 lm Length acc. to IEC standard: 205 mm « hide more

€ 9,04 € 9,04 ex. VAT

CFL SQUARE 28 W/835 GR10Q

Karta produktu PDF

Product code: 55947 Construction wattage [PICOS]: 28.00 W Nominal wattage: 28.00 W Color temperature: 3500 K Nominal luminous flux: 2050 lm Rated luminous flux: 2050 lm Light color as per EN 12464-1: LUMILUX White Overall length: 205.0 mm Length: 205.0 mm Energy consumption: 31 kWh/1000h ILCOS: FSS-28/835-E-GR10q see more »

Product weight: 155.00 g Light color: 835 Luminous flux at 25 °C: 2050 lm Length acc. to IEC standard: 205 mm « hide more

€ 9,04 € 9,04 ex. VAT

CFL SQUARE 38 W/827 GR10Q

Karta produktu PDF

Product code: 55948 Construction wattage [PICOS]: 38.00 W Nominal wattage: 38.00 W Color temperature: 2700 K Nominal luminous flux: 2735 lm Rated luminous flux: 2735 lm Light color as per EN 12464-1: LUMILUX INTERNA Overall length: 205.0 mm Length: 205.0 mm Energy consumption: 43 kWh/1000h ILCOS: FSS-38/827-E-GR10q see more »

Product weight: 155.00 g Light color: 827 Luminous flux at 25 °C: 2700 lm Length acc. to IEC standard: 205 mm « hide more

€ 9,57 € 9,57 ex. VAT

Description / FAQ Warranty

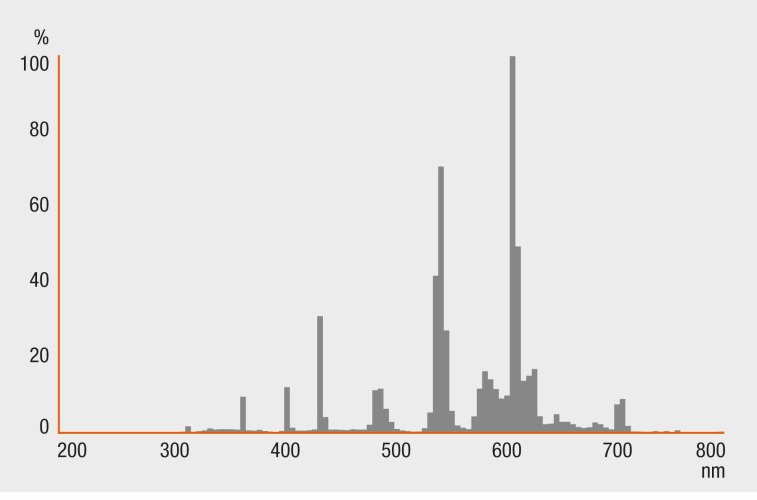

Photometrical data
Color rendering index Ra	8089
Rated LLMF at 4,000 h	0.88
Rated LLMF at 6,000 h	0.85
Rated LLMF at 8,000 h	0.82
Rated LLMF at 12,000 h	0.78
Lifespan
Nominal lamp life time	13000 h
Rated lamp life time	13000 h
Lifespan	13000 h
Rated lamp survival factor at 2,000 h	0.99
Rated lamp survival factor at 4,000 h	0.99
Rated lamp survival factor at 6,000 h	0.95
Service life	7500 h
Operation mode LLMF/LSF	HF
Rated lamp survival factor at 8,000 h	0.88
Rated lamp survival factor at 12,000 h	0.59
Additional product data
Base (standard designation)	GR10q
Appropriate disposal acc. to WEEE	Yes
Lamp mercury content	3.5 mg
Capabilities
Suitable for indoor	Yes
Certificates & standards
Energy efficiency class	A

Product benefits

Square shape provides uniform distribution of light
No shadows at either end and no dark patches
Very economical
Extremely low profile
Good quality of light
Long service life

Areas of application

Low-profile wall and ceiling luminaires
Public buildings, reception areas, offices, corridors, etc.
Shops
Supermarkets and department stores
Hotels, restaurants

Product features

Short and compact pin-base lamp with double-turn tubes

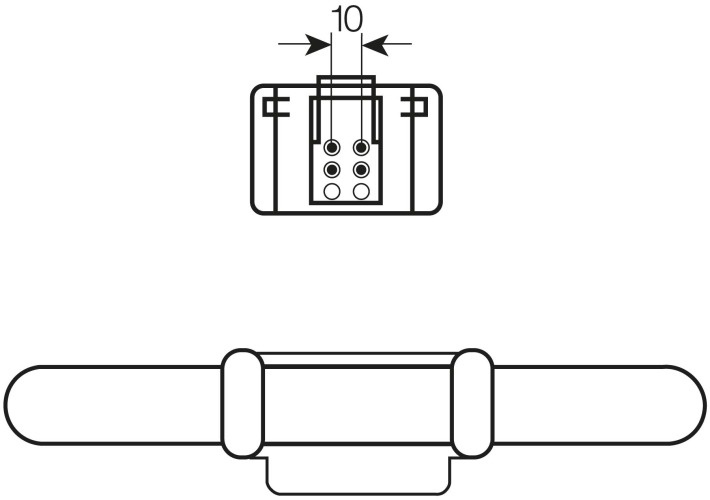

Single-ended four-pin plug-in GR10q base
Color rendering index Ra: 80…89

Equipment / Accessories

Suitable for operation on electronic and conventional control gear

Safety advice
In case of lamp breakage: www.osram.com/brokenlamp
